ETUF-860MHSM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ETUF-860MHSM

ETUF-860MHSM: Description800MHz - 1050MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8.3dB CONVERSION LOSS-MAX, R-15, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size54KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

ETUF-860MHSM Overview

800MHz - 1050MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8.3dB CONVERSION LOSS-MAX, R-15, 4 PIN

ETUF-860MHSM Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum frequency conversion loss	8.3 dB
Maximum input power (CW)	23 dBm
Maximum operating frequency	1050 MHz
Minimum operating frequency	800 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED

Preview

Download Datasheet

View All

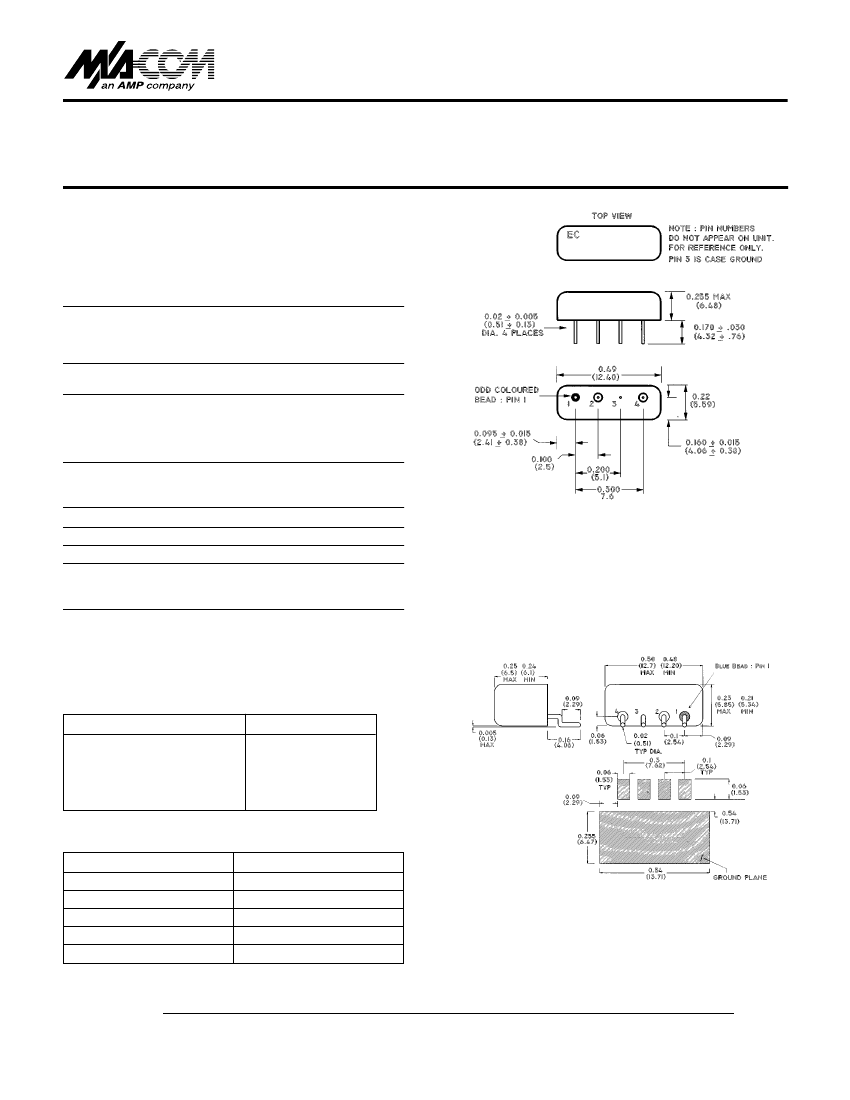

E-Series Plug-In Mixer

800 - 1050 MHz

Features

ETUF-860MH, ETUF-860MHSM

V3.00

R-3

LO Power: +13 dBm

Up to +9 dBm RF

Speciﬁcations

@ 25°C

Frequency Range

Conversion Loss (dB)

800 - 1050 MHz

Isolation (dB)

LO to RF

800 - 1050 MHz

LO to IF

800 - 1050 MHz

Typical

7.0

Typical

800 - 1050 MHz

DC - 250 MHz

Maximum

8.3

Minimum

Operating Characteristics

Impedance

RF input for 1dB Compression

DC Polarity

50 Ohms Nominal

+9 dBm

Negative

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .x = ±0.04 (1.00)

.xx = ±0.02 (0.50)

.xxx = ±0.010 (0.250)

WEIGHT (APPROX.): 0.05 OUNCES 1.5 GRAMS

Ordering Information

Part No.

ETUF-860MH

ETUF-860MHSM

ETUF-860MHSMTR

Packaging

R-3 in Tubes

R-15 in Tubes

R-15 in Tape & Reel

R-15

Absolute Maximum Ratings

Parameter

RF Power

Peak IF Current

Storage Temperature

Operating Temperature

Pin Temperature (10 Seconds)

Absolute Maximum

200 mW

40 mA

-55°C to 100°C

260°C

Pin Conﬁguration

Function

Ground

Case Ground

Pin No.

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .x = ±0.04 (1.00)

.xx = ±0.02 (0.50)

.xxx = ±0.010 (0.250)

S 0829 B, S 1197 A

Speciﬁcations Subject to Change Without Notice.

M/A-COM, Inc.

North America:

Tel. (800) 366-2266

Fax (800) 618-8883

Asia/Paciﬁc: Tel. +81 (03) 3226-1671

Fax +81 (03) 3226-1451

Europe: Tel. +44 (1344) 869 595

Fax +44 (1344) 300 020

ETUF-860MHSM Related Products

	ETUF-860MHSM	ETUF-860MHSMTR	ETUF-860MH
Description	800MHz - 1050MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8.3dB CONVERSION LOSS-MAX, R-15, 4 PIN	800MHz - 1050MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8.3dB CONVERSION LOSS-MAX, R-15, 4 PIN	800MHz - 1050MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8.3dB CONVERSION LOSS-MAX, R-3, 4 PIN
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT
Maximum frequency conversion loss	8.3 dB	8.3 dB	8.3 dB
Maximum input power (CW)	23 dBm	23 dBm	23 dBm
Maximum operating frequency	1050 MHz	1050 MHz	1050 MHz
Minimum operating frequency	800 MHz	800 MHz	800 MHz
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED
