JW075B1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> JW075B1

JW075B1: DescriptionAnalog Circuit, Hybrid, MDIP30; CategoryAnalog mixed-signal IC The signal circuit; File Size670KB，16 Pages; ManufacturerLSC/CSI; Websitehttps://lsicsi.com

Download Datasheet Parametric Compare View All

JW075B1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JW075B1	-	-	View	Buy Now

JW075B1 Overview

Analog Circuit, Hybrid, MDIP30

JW075B1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LSC/CSI
package instruction	DIP, DIP30,1.9
Reach Compliance Code	unknown
Maximum input voltage	72 V
Minimum input voltage	36 V
JESD-30 code	R-MDIP-T30
JESD-609 code	e0
Number of terminals	30
Maximum output current	6.3 A
Nominal output voltage	12 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP30,1.9
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

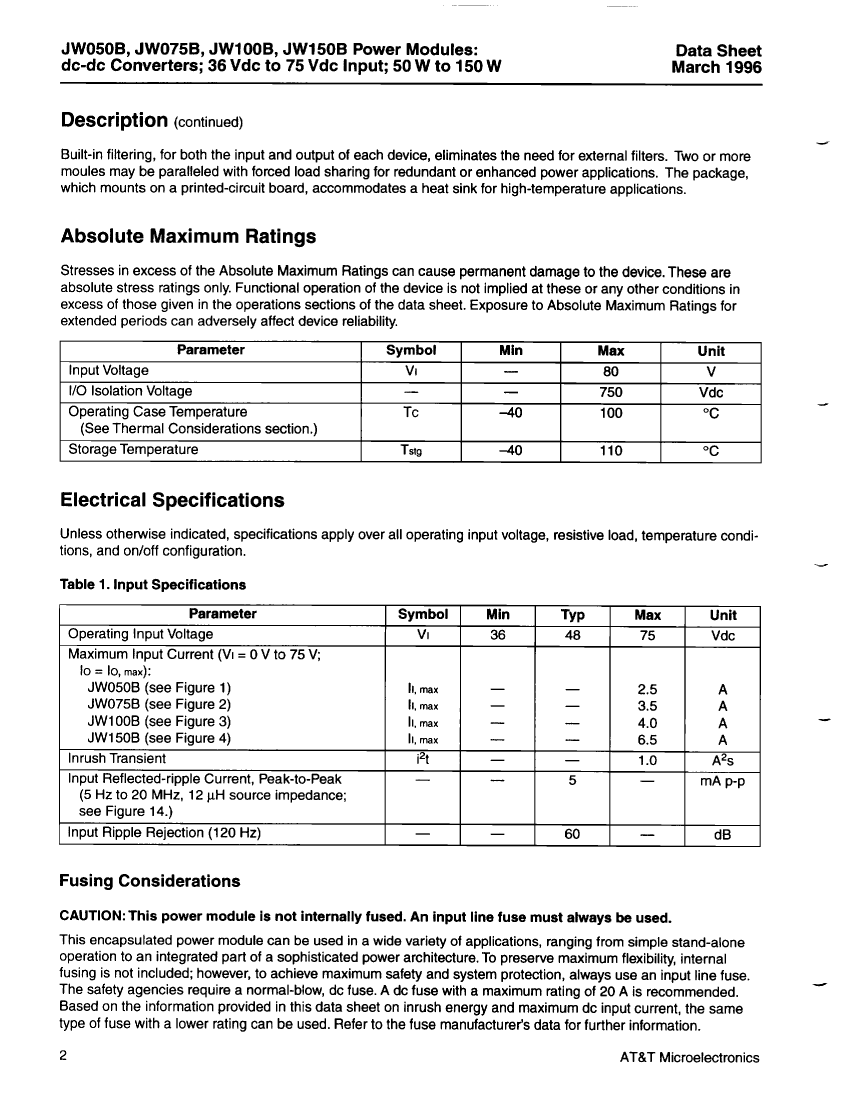

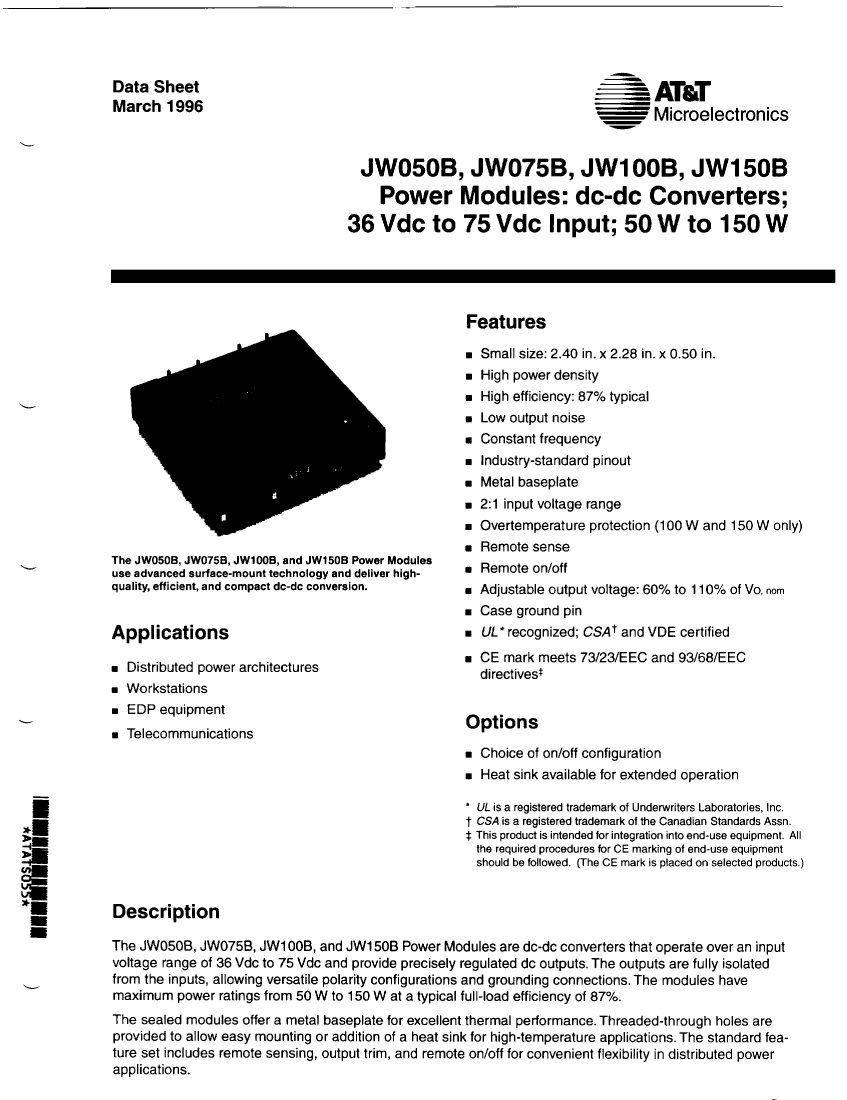

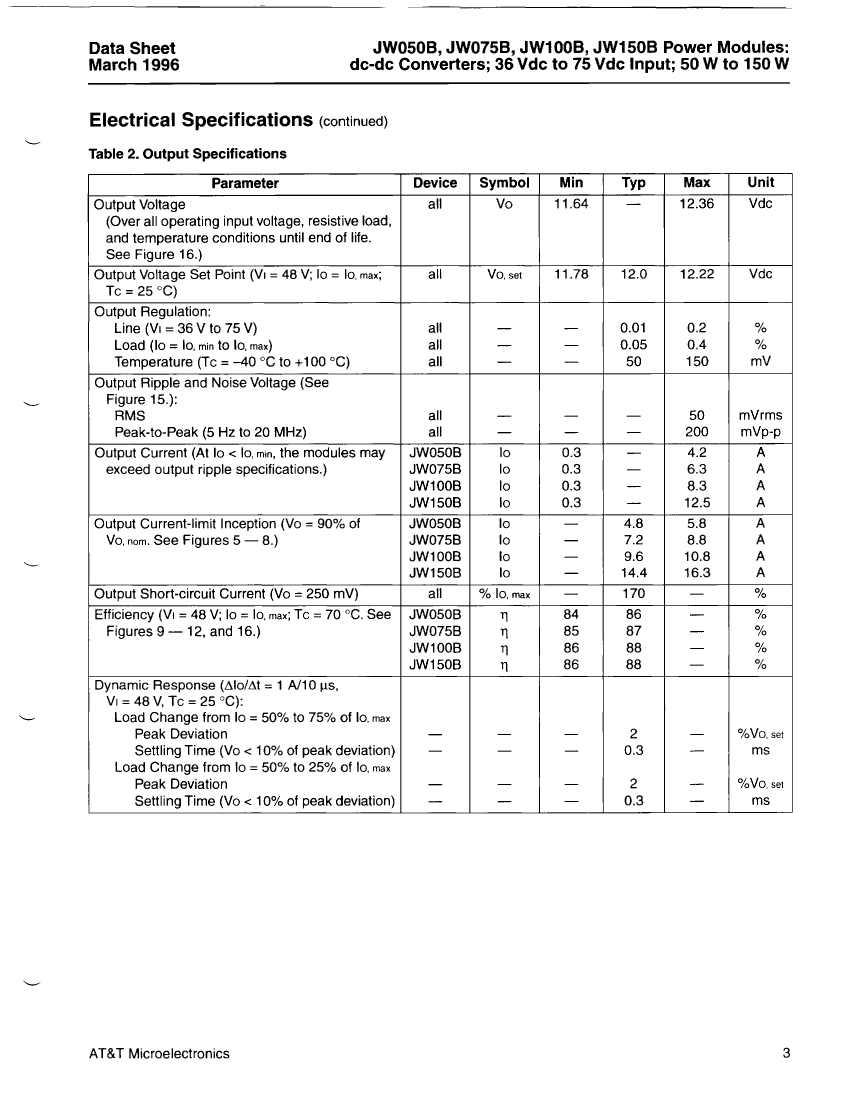

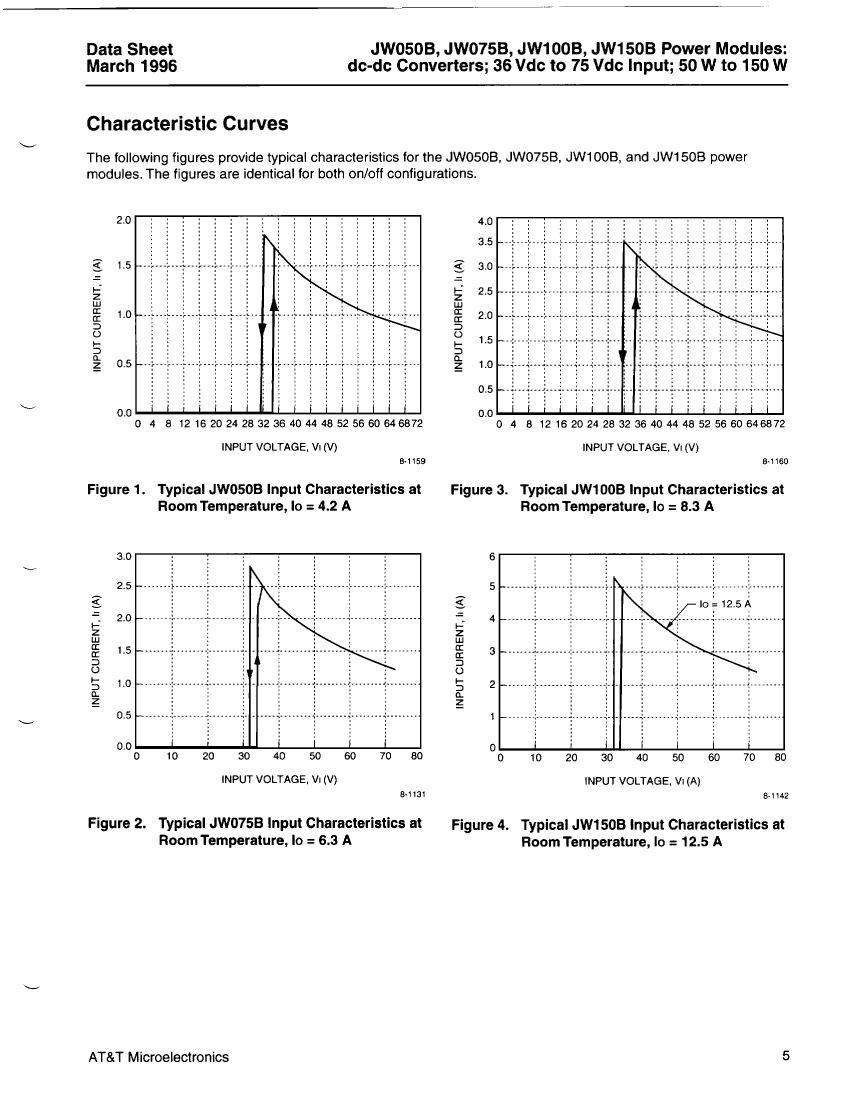

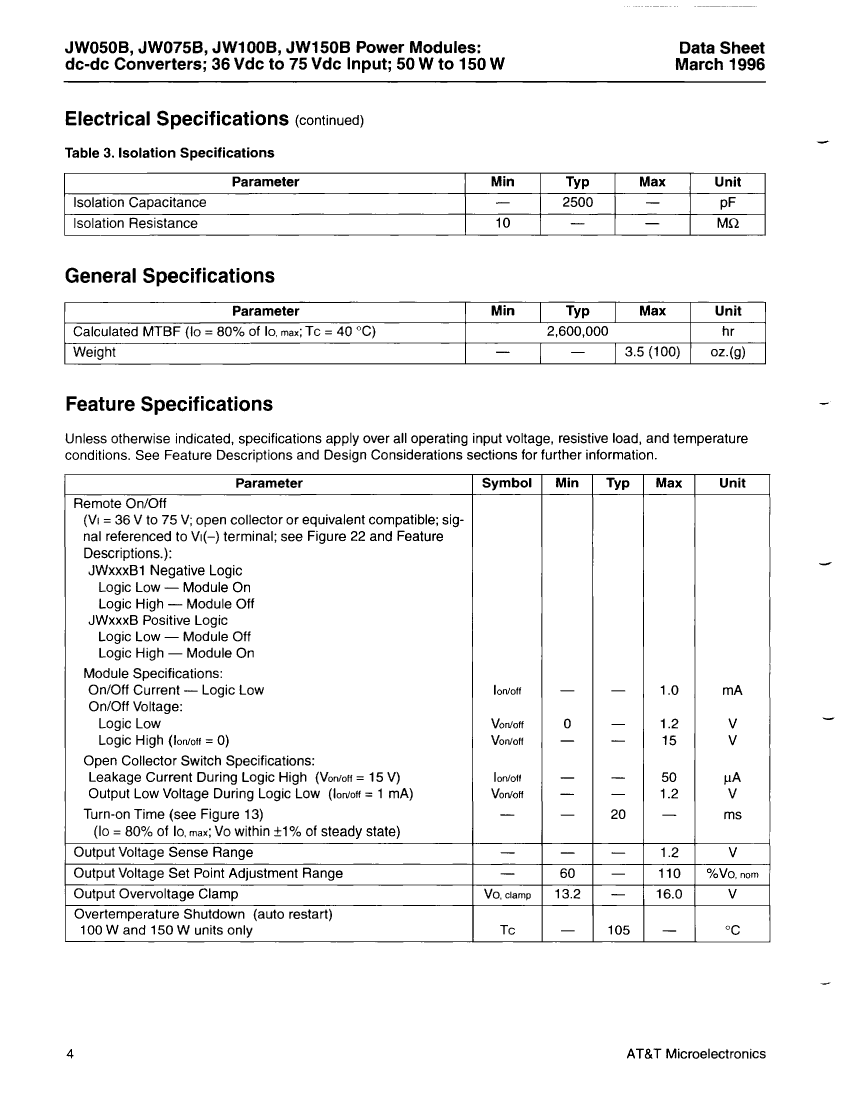

Preview

Download Datasheet

View All

JW075B1 Related Products

	JW075B1	JW050B1	JW050B	JW150B	JW150B1	JW075B	JW100B	JW100B1
Description	Analog Circuit, Hybrid, MDIP30	Analog Circuit, Hybrid, MDIP30	Analog Circuit, Hybrid, MDIP30	Analog Circuit, Hybrid, MDIP30	Analog Circuit, Hybrid, MDIP30	Analog Circuit, Hybrid, MDIP30	Analog Circuit, Hybrid, MDIP30	Analog Circuit, Hybrid, MDIP30
package instruction	DIP, DIP30,1.9	DIP, DIP30,1.9	DIP, DIP30,1.9	DIP, DIP30,1.9	DIP, DIP30,1.9	DIP, DIP30,1.9	DIP, DIP30,1.9	DIP, DIP30,1.9
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum input voltage	72 V	72 V	72 V	72 V	72 V	72 V	72 V	72 V
Minimum input voltage	36 V	36 V	36 V	36 V	36 V	36 V	36 V	36 V
JESD-30 code	R-MDIP-T30	R-MDIP-T30	R-MDIP-T30	R-MDIP-T30	R-MDIP-T30	R-MDIP-T30	R-MDIP-T30	R-MDIP-T30
Number of terminals	30	30	30	30	30	30	30	30
Maximum output current	6.3 A	4.2 A	4.2 A	12.5 A	12.5 A	6.3 A	8.3 A	8.3 A
Nominal output voltage	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP30,1.9	DIP30,1.9	DIP30,1.9	DIP30,1.9	DIP30,1.9	DIP30,1.9	DIP30,1.9	DIP30,1.9
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	-	incompatible	incompatible	-	incompatible	incompatible	incompatible
Maker	LSC/CSI	LSC/CSI	LSC/CSI	-	-	LSC/CSI	LSC/CSI	LSC/CSI
JESD-609 code	e0	-	e0	e0	-	e0	e0	e0
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
