FDB4030LL86Z datasheet, PDF - EEWORLD Datasheet

FDB4030LL86Z: DescriptionPower Field-Effect Transistor, 20A I(D), 30V, 0.035ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB; CategoryDiscrete semiconductor The transistor; File Size184KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

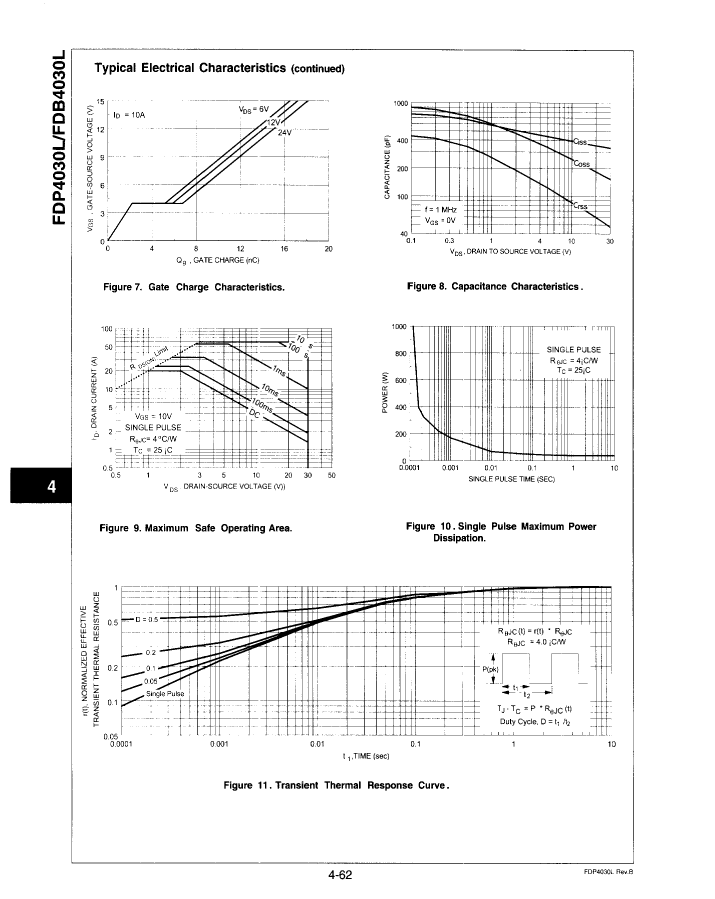

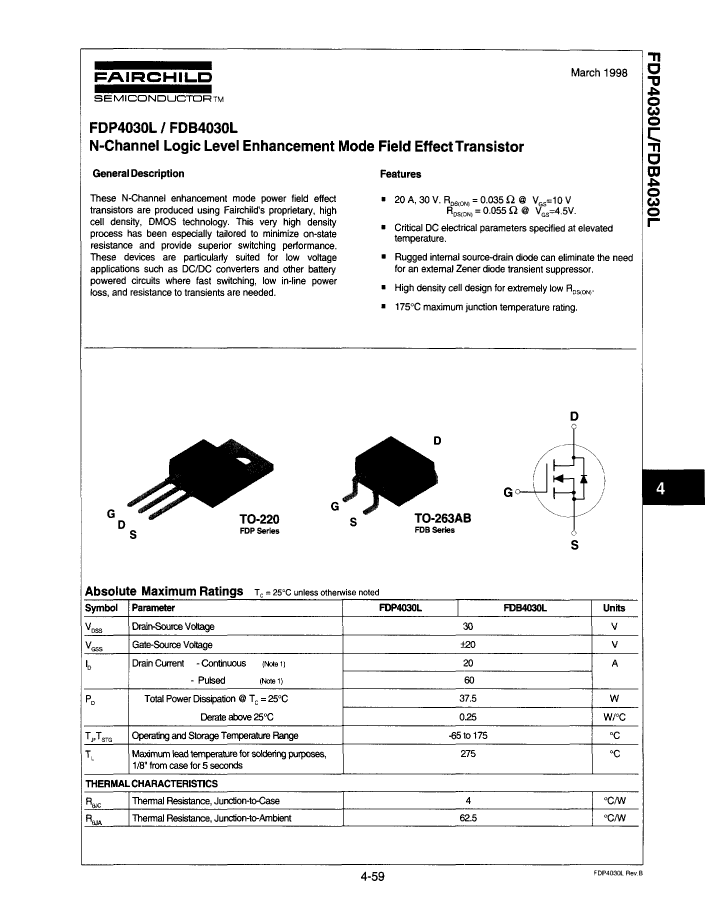

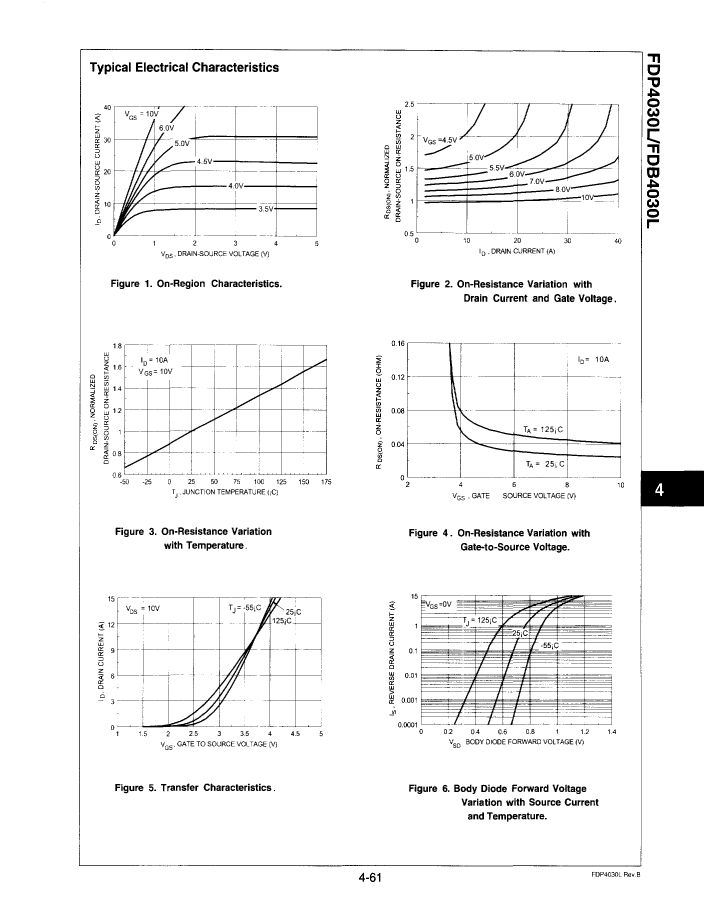

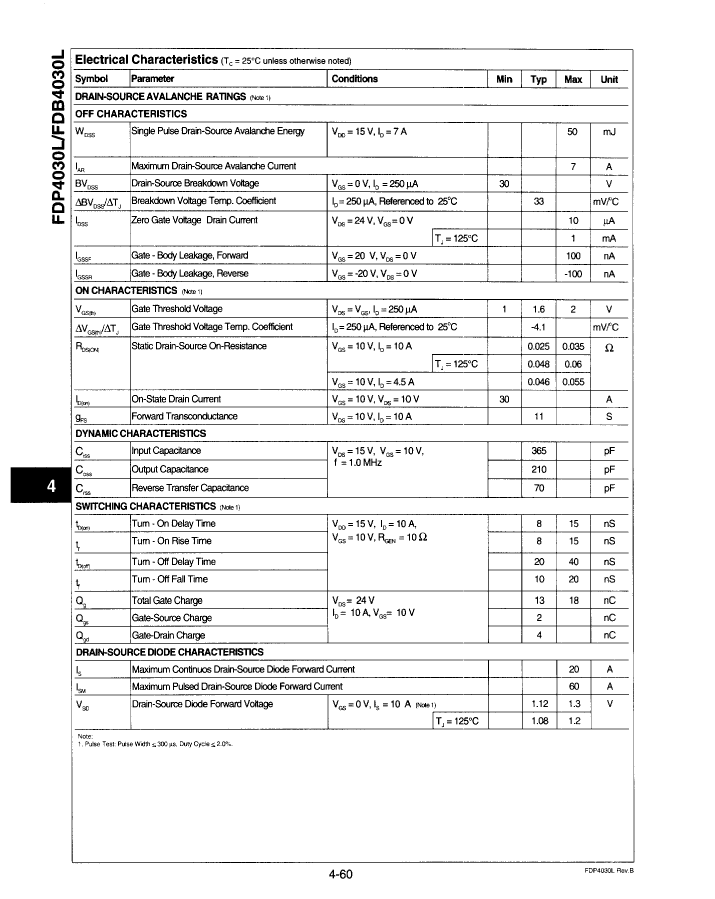

FDB4030LL86Z Overview

Power Field-Effect Transistor, 20A I(D), 30V, 0.035ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB

Parameter Name	Attribute value
Maker	Fairchild
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Avalanche Energy Efficiency Rating (Eas)	50 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	30 V
Maximum drain current (ID)	20 A
Maximum drain-source on-resistance	0.035 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-263AB
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	60 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

	FDB4030LL86Z	FDP4030LS62Z
Description	Power Field-Effect Transistor, 20A I(D), 30V, 0.035ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB	Power Field-Effect Transistor, 20A I(D), 30V, 0.035ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN
Maker	Fairchild	Fairchild
package instruction	SMALL OUTLINE, R-PSSO-G2	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Avalanche Energy Efficiency Rating (Eas)	50 mJ	50 mJ
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	30 V	30 V
Maximum drain current (ID)	20 A	20 A
Maximum drain-source on-resistance	0.035 Ω	0.035 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-263AB	TO-220AB
JESD-30 code	R-PSSO-G2	R-PSFM-T3
Number of components	1	1
Number of terminals	2	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	175 °C	175 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	60 A	60 A
Certification status	Not Qualified	Not Qualified
surface mount	YES	NO
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
