CY7C09269-9AI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CY7C09269-9AI

CY7C09269-9AI: DescriptionDual-Port SRAM, 16KX16, 9ns, CMOS, PQFP100, PLASTIC, TQFP-100; Categorystorage storage; File Size540KB，17 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

CY7C09269-9AI Overview

Dual-Port SRAM, 16KX16, 9ns, CMOS, PQFP100, PLASTIC, TQFP-100

CY7C09269-9AI Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	QFP
package instruction	PLASTIC, TQFP-100
Contacts	100
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	9 ns
Other features	AUTOMATIC POWER DOWN
Maximum clock frequency (fCLK)	67 MHz
I/O type	COMMON
JESD-30 code	S-PQFP-G100
JESD-609 code	e0
length	14 mm
memory density	262144 bit
Memory IC Type	DUAL-PORT SRAM
memory width	16
Humidity sensitivity level	3
Number of functions	1
Number of ports	2
Number of terminals	100
word count	16384 words
character code	16000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	16KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP100,.63SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum standby current	0.0005 A
Minimum standby current	4.5 V
Maximum slew rate	0.41 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	14 mm

Preview

Download Datasheet

View All

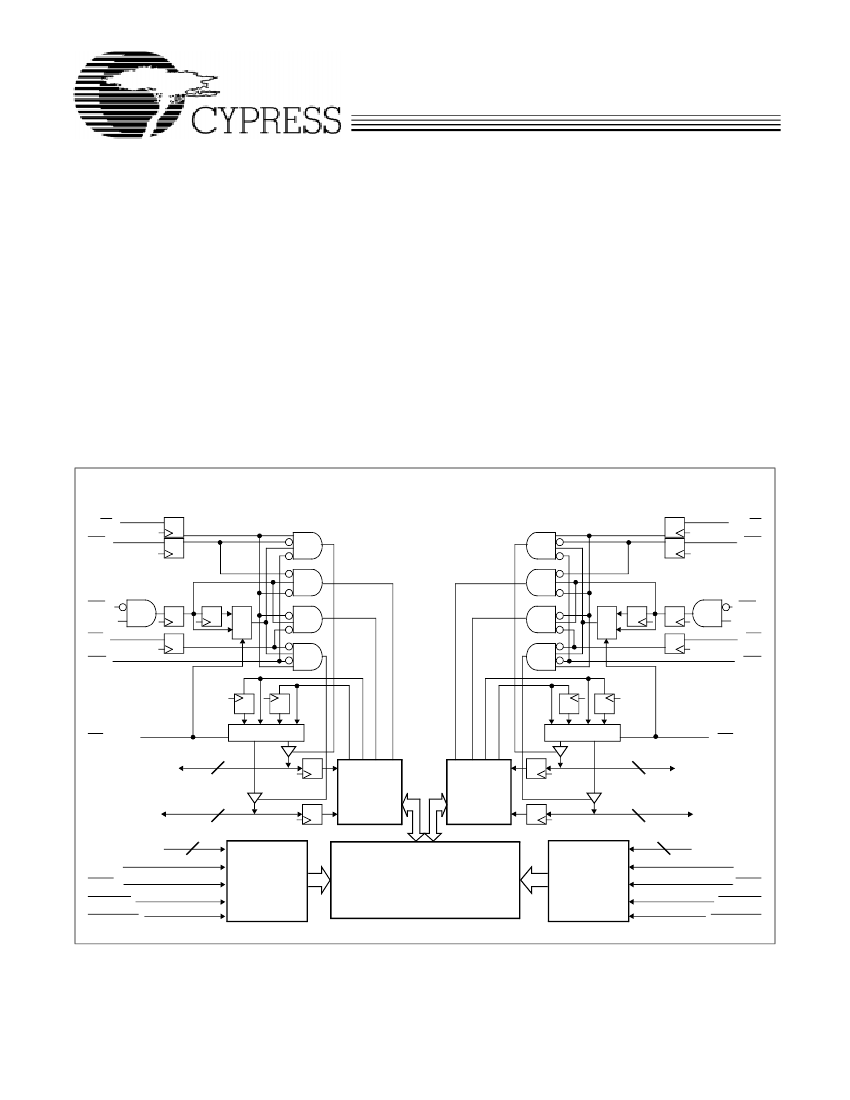

025/0251

PRELIMINARY

CY7C09269/79/89

CY7C09369/79/89

16K/32K/64K x16/18

Synchronous Dual Port Static RAM

Features

• True Dual-Ported memory cells which allow simulta-

neous access of the same memory location

• 6 Flow-Through/Pipelined devices

— 16K x 16/18 organization (CY7C09269/369)

— 32K x 16/18 organization (CY7C09279/379)

— 64K x 16/18 organization (CY7C09289/389)

• 3 Modes

— Flow-Through

— Pipelined

— Burst

• Pipelined output mode on both ports allows fast

100-MHz cycle time

• 0.35-micron CMOS for optimum speed/power

• High-speed clock to data access 6.5/7.5/9/12 ns (max.)

• Low operating power

— Active= 195 mA (typical)

— Standby= 0.05 mA (typical)

• Fully synchronous interface for easier operation

• Burst counters increment addresses internally

— Shorten cycle times

— Minimize bus noise

•

— Supported in Flow-Through and Pipelined modes

Dual Chip Enables for easy depth expansion

Upper and Lower Byte Controls for Bus Matching

Automatic power-down

Commercial and Industrial temperature ranges

Available in 100-pin TQFP

Pin-compatible and functionally equivalent to

IDT709269, IDT70927, and IDT709279

Logic Block Diagram

R/W

0/1

FT/Pipe

[1]

0/1

1b 0b 1a 0a

0a 1a 0b 1b

0/1

FT/Pipe

8/9

[1]

8/9

I/O

8/9L

–I/O

15/17L

[2]

I/O

8/9R

–I/O

15/17R

8/9

I/O

Control

I/O

Control

8/9

14/15/16

I/O

–I/O

7/8L

–A

13/14/15L

CLK

ADS

CNTEN

CNTRST

[3]

I/O

–I/O

7/8R

14/15/16

[2]

Counter/

Address

Decode

True Dual-Ported

RAM Array

Counter/

Address

Decode

–A

13/14/15R

CLK

ADS

CNTEN

CNTRST

[3]

Notes:

1. I/O

–I/O

for x16 devices; I/O

–I/O

for x18 devices.

2. I/O

–I/O

for x16 devices. I/O

–I/O

for x18 devices.

3. A

–A

for 16K; A

–A

for 32K; A

–A

for 64K devices.

For the most recent information, visit the Cypress web site at www.cypress.com

Cypress Semiconductor Corporation

•

3901 North First Street

•

San Jose

•

CA 95134

• 408-943-2600

November 23, 1998
