PS2602L-K datasheet, PDF - EEWORLD Datasheet

PS2602L-K: DescriptionTransistor Output Optocoupler, 1-Element, 5000V Isolation, DSO-6; CategoryLED optoelectronic/LED photoelectric; File Size162KB，6 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

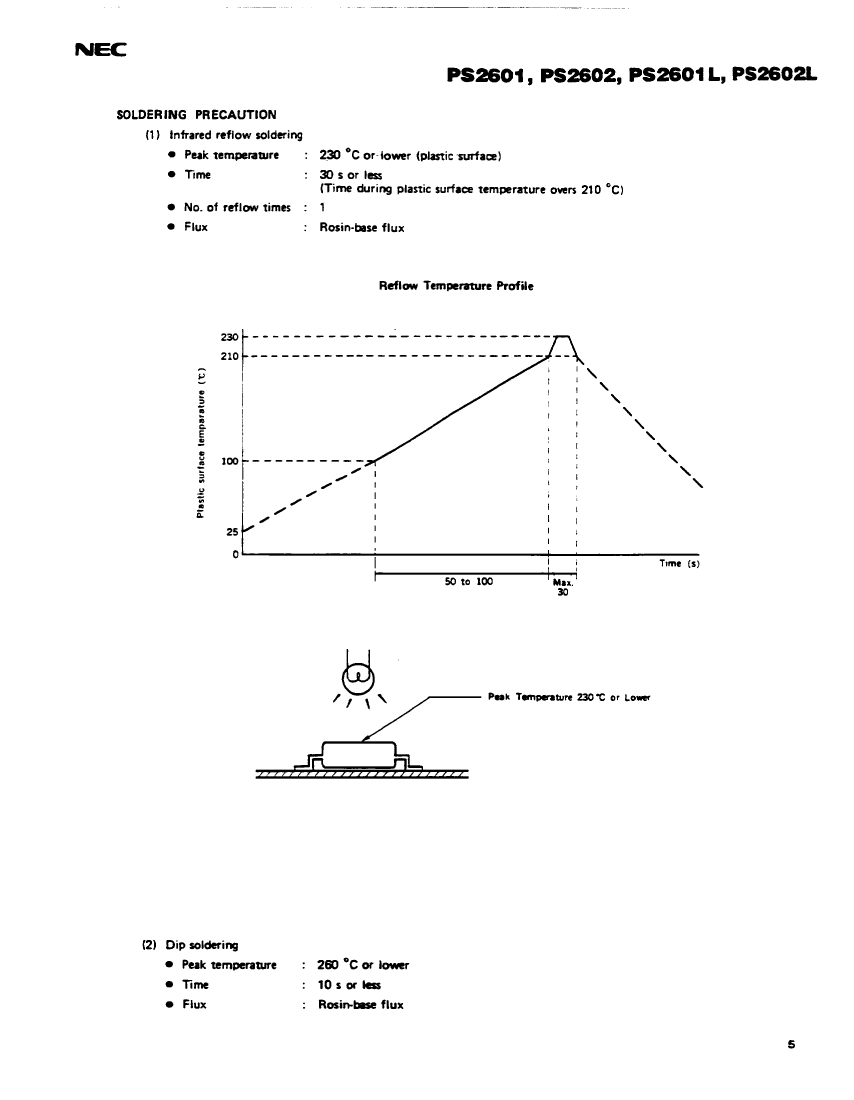

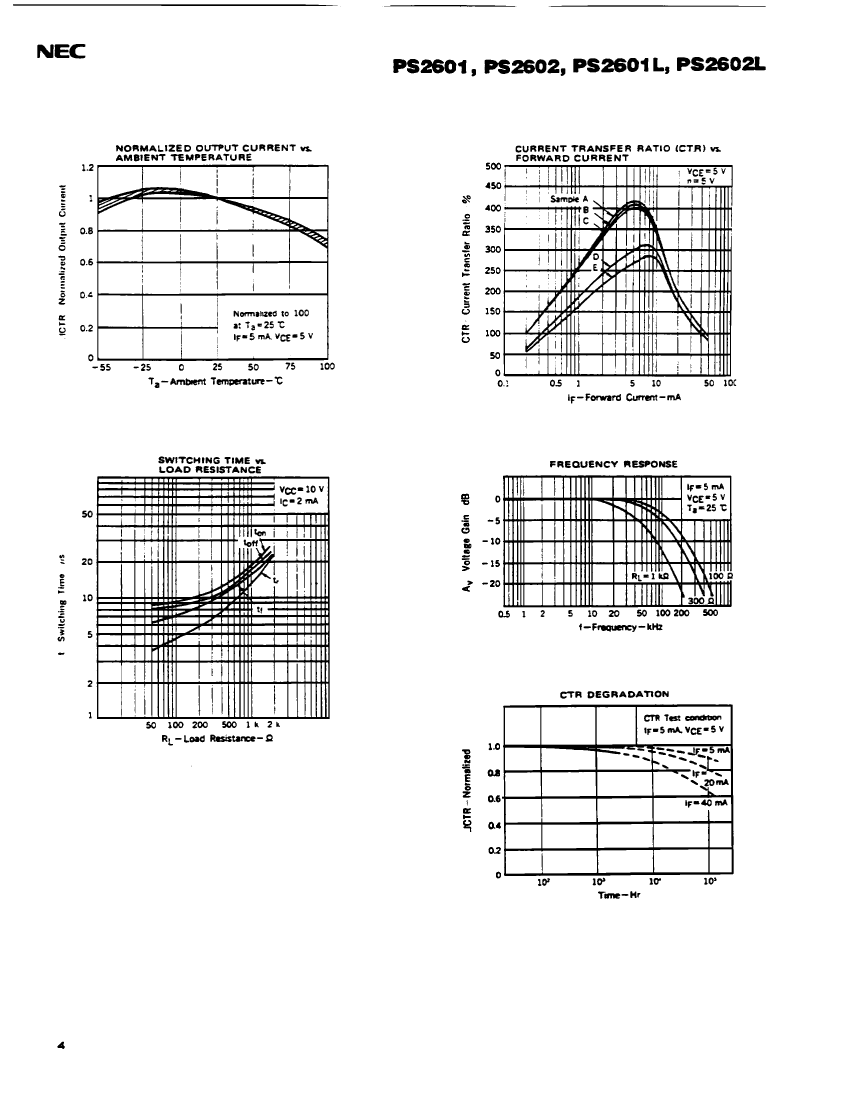

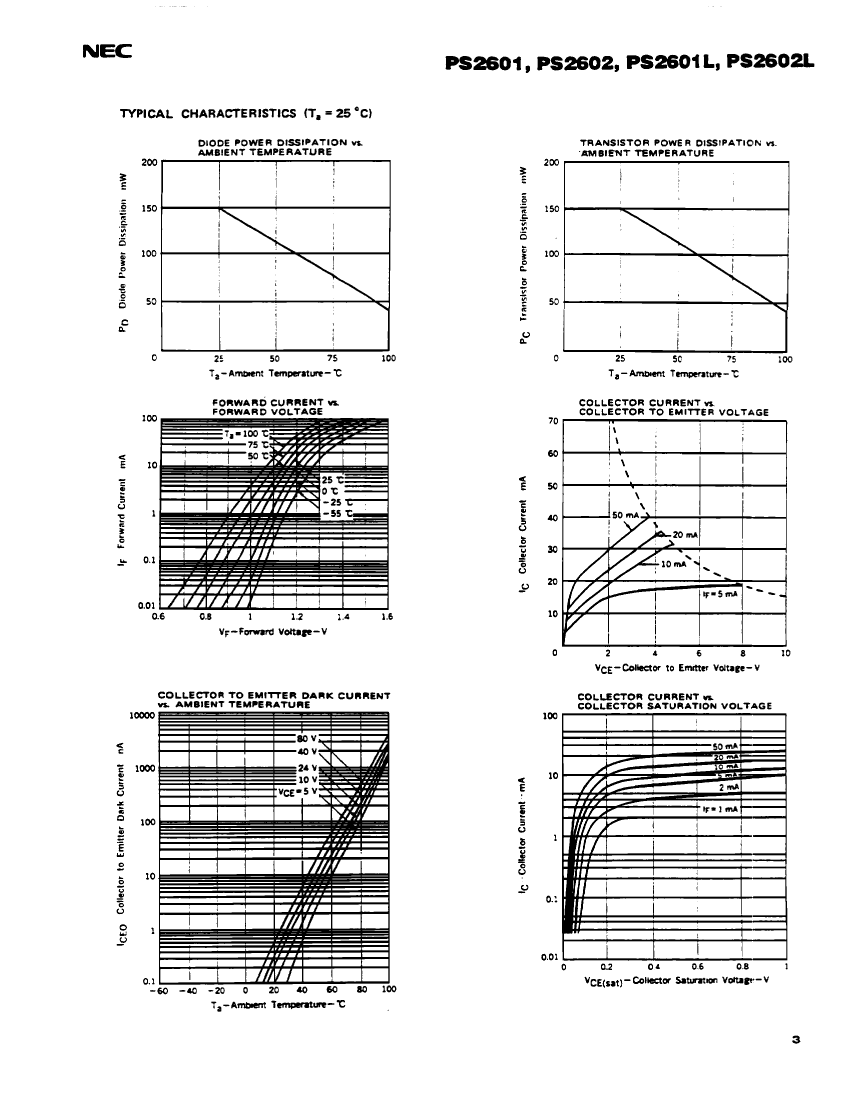

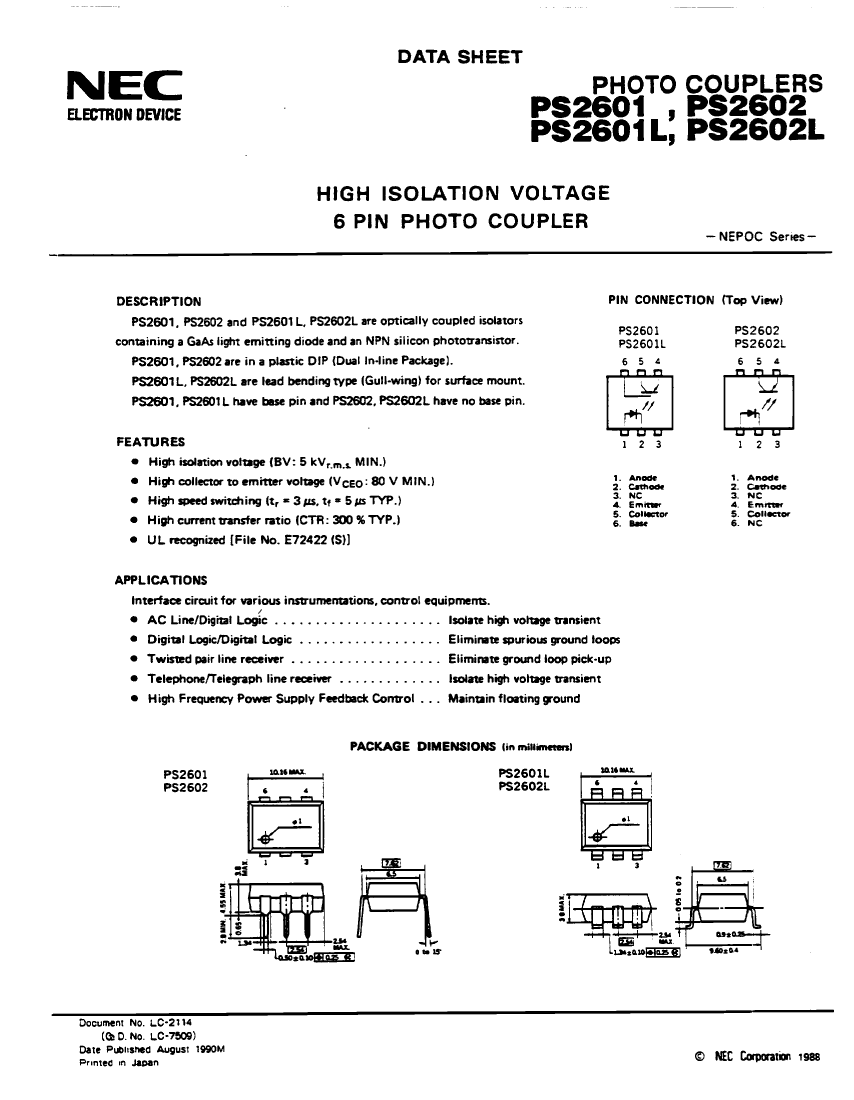

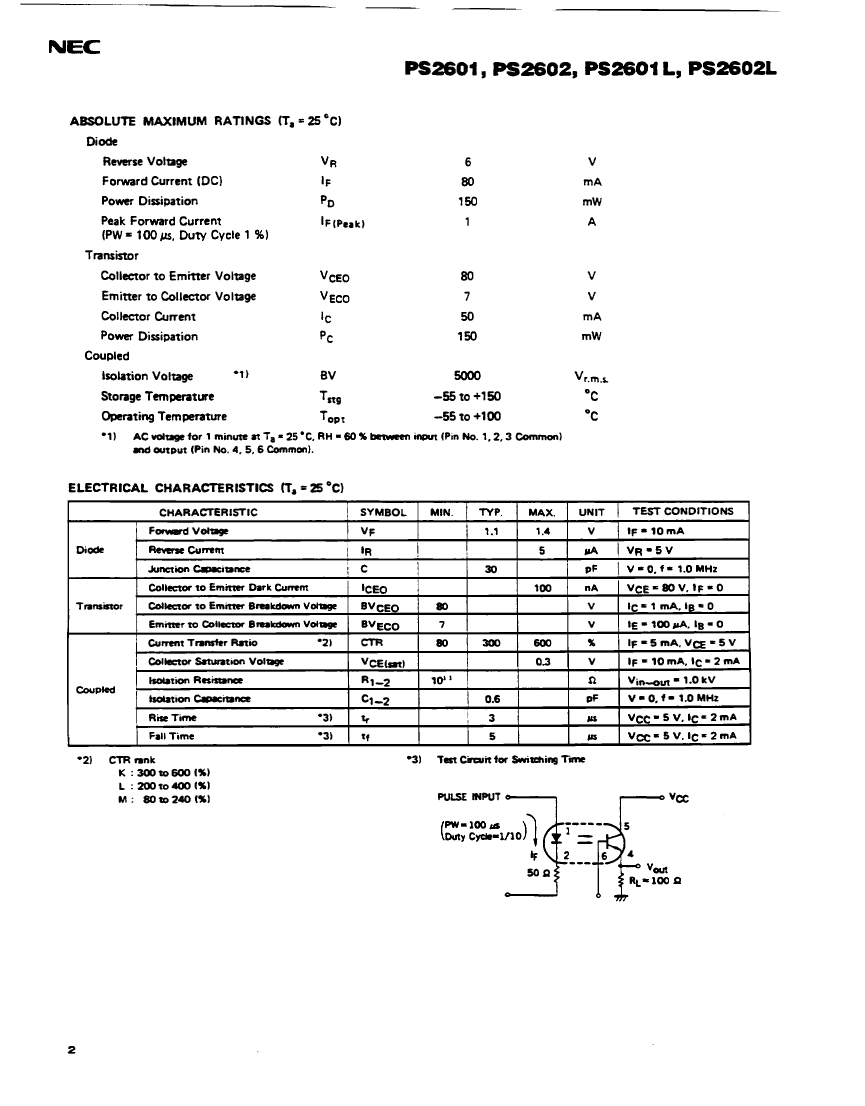

PS2602L-K Overview

Transistor Output Optocoupler, 1-Element, 5000V Isolation, DSO-6

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	DSO-6
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min	80 V
Configuration	SINGLE
Nominal current transfer ratio	300%
Maximum dark power	100 nA
Maximum forward current	0.08 A
Maximum insulation voltage	5000 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER

	PS2602L-K	PS2602-K	1-2106391-1	PS2602L-L	PS2601L-L	PS2601-K
Description	Transistor Output Optocoupler, 1-Element, 5000V Isolation, DSO-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6	THIS DRAWING IS A CONTROLLED DOCUMENT.	Transistor Output Optocoupler, 1-Element, 5000V Isolation, DSO-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, DSO-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6
Maker	NEC Electronics	-	-	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	DSO-6	PLASTIC, DIP-6	-	DSO-6	DSO-6	PLASTIC, DIP-6
Reach Compliance Code	unknown	unknown	-	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	-	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min	80 V	80 V	-	80 V	80 V	80 V
Configuration	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	300%	300%	-	200%	200%	300%
Maximum dark power	100 nA	100 nA	-	100 nA	100 nA	100 nA
Maximum forward current	0.08 A	0.08 A	-	0.08 A	0.08 A	0.08 A
Maximum insulation voltage	5000 V	5000 V	-	5000 V	5000 V	5000 V
Number of components	1	1	-	1	1	1
Maximum operating temperature	100 °C	100 °C	-	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	-	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches	-	1	-	1	1	1
