Sealed Rocker Switch
Single (and Double)
1
Pole
KS Series
Features
•
•
Snap-in mounting
RoHS compliant
1
•
•
IP56
100,000 cycles mechanical life
Standard Parts
North America and Europe
KSF2ANB1BBD
1
KSF2BNB1BBB
The part number configuration matrix below provides details to the part numbers above.
For configurable part numbers that are not listed above, not listed in your region, or for custom part numbers, contact the factory or
your distributor.
Part Number Breakdown
KSF2ANB 1BBD
KS F 2 A N B
Series
KS
Contact Rating
2
F
Circuitry
2
3
Single pole
Double pole
Switch Function
A
B
ON-OFF
ON-ON
Lighting Options
N
Non-lighted
Terminal Type
6.35 mm (0.250”)
B
quick connect
S
Screw, No. 6-32 UNC
4.8 mm (0.189”)
T
solder, square
2
See Electrical Specifications section
1BBD
Actuator Type
1
Non-lighted
Actuator Color
B
Black
R
Red
W
White
Housing Color
B
Black
Actuator Marking
B
Blank
D
O ––
H
ON
J
OFF
www.cherryswitches.com
Page 1 of 2, Last update 2015-04-09, Specifications subject to change without notice.
Electrical Specifications
Dielectric Strength
Insulation Resistance
Initial Contact Resistance
Electrical Ratings
UL1054
16 A 125 VAC / 10 A 277 VAC
¾ HP 125/277 VAC
Electrical Life at Rated Load
Minimum Operations
1500 VAC for 1 minute
100 MΩ min at 500 VDC
0.050
Ω
max
VDC
3
21 A 14 VDC
UL
6,000
DC ratings not agency approved
UL File No: E23301
3
Material and Environmental Specifications
Actuator
Housing
Bezel
Spring
Contacts
Movable Arm
Terminals
Operating Temperature Range
Ingress Protection
Nylon 66 with Glass Fiber
Nylon 66 94 V-2
Nylon 66 with Glass Fiber
Steel
Silver Inlay Copper Alloy
Silver-Plated Copper Alloy
Silver-Plated Copper Alloy
O
-20 C to +85
O
C (-4
O
F to +185
O
F)
IP56
Circuitry and Switch Functions

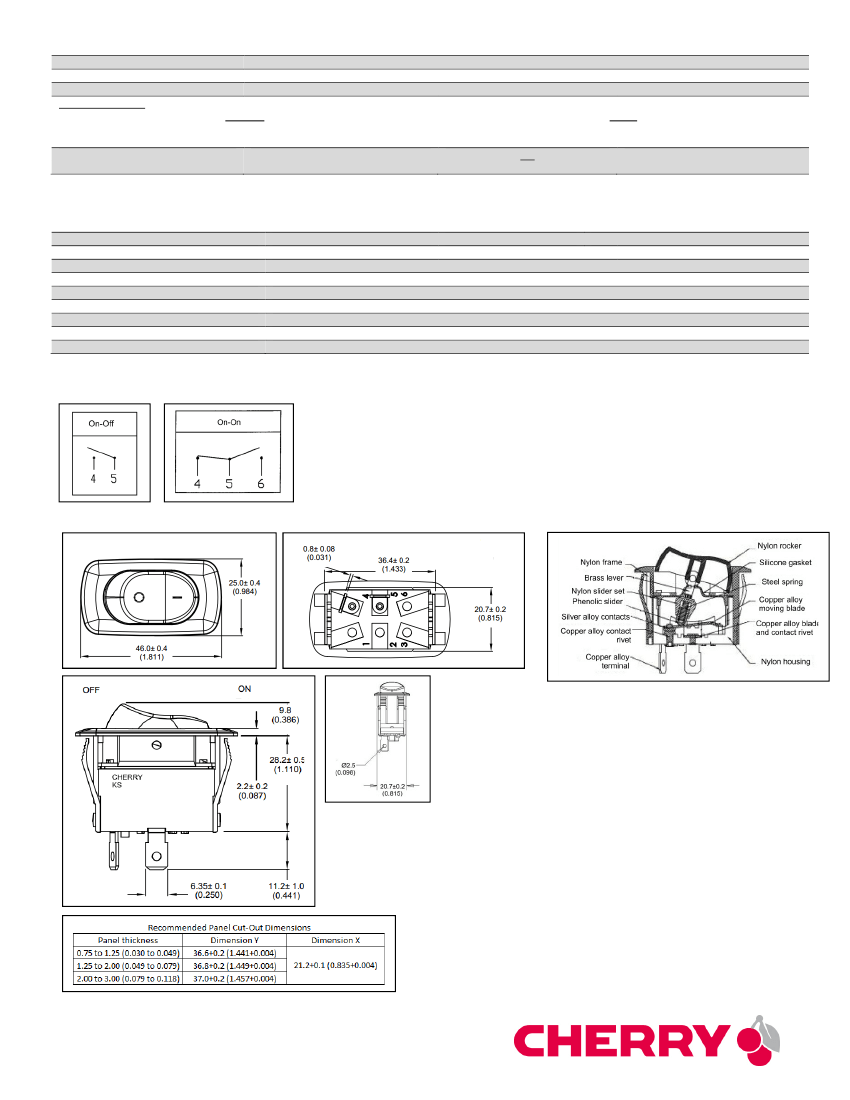

Dimensions mm (inches)
