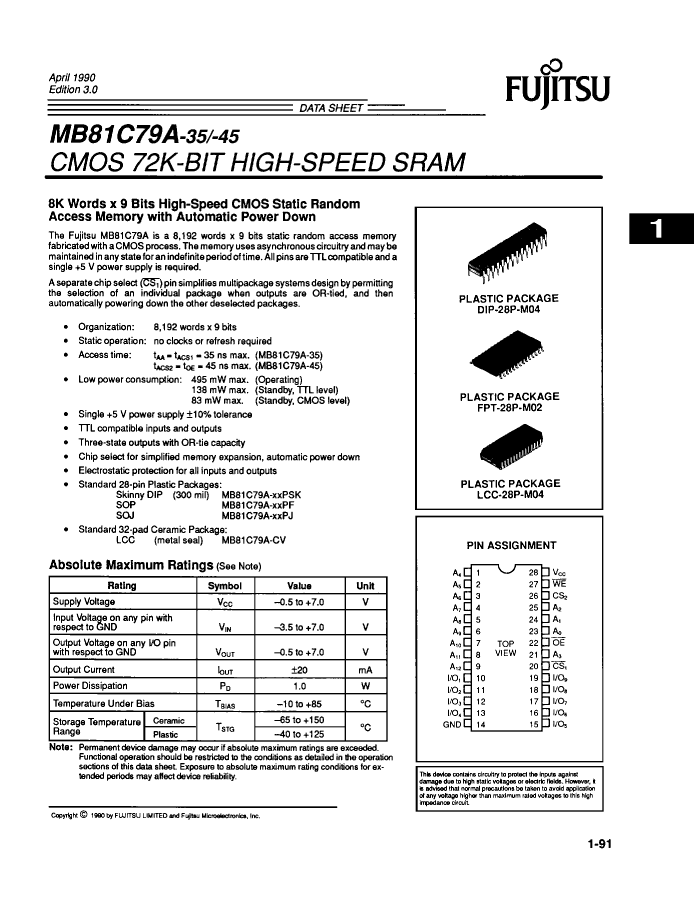

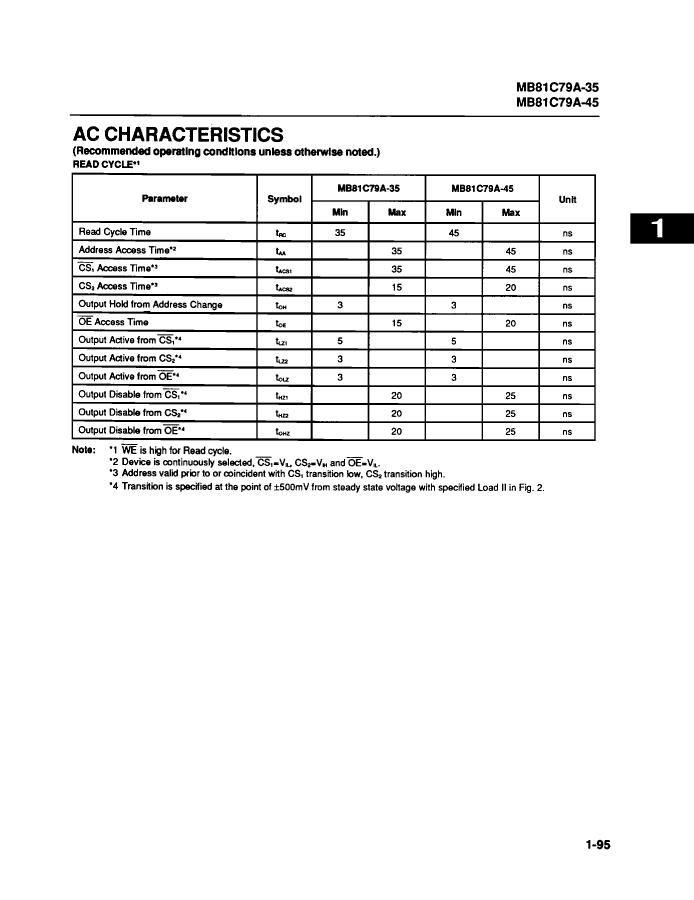

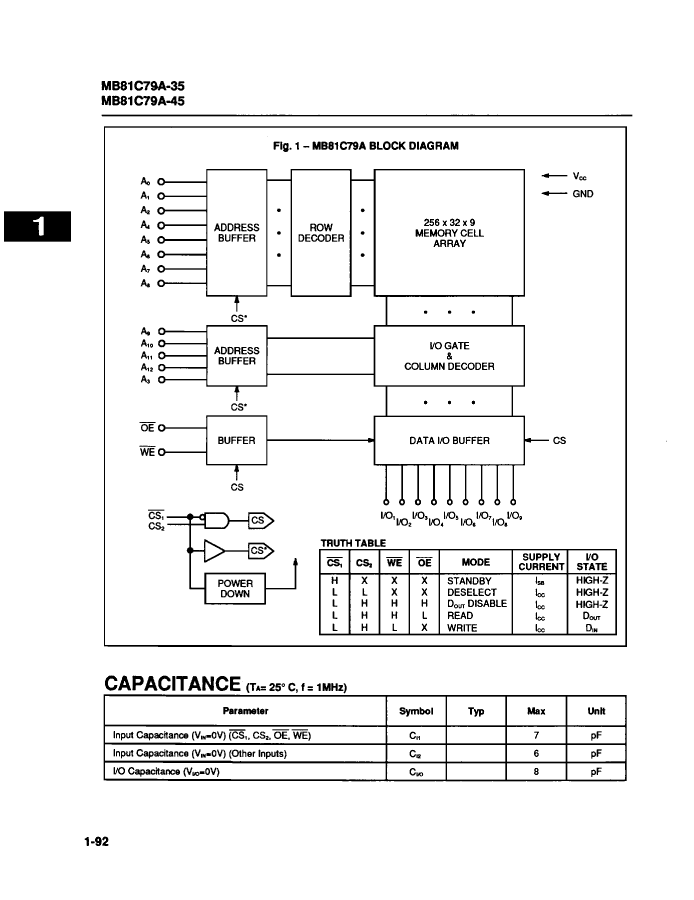

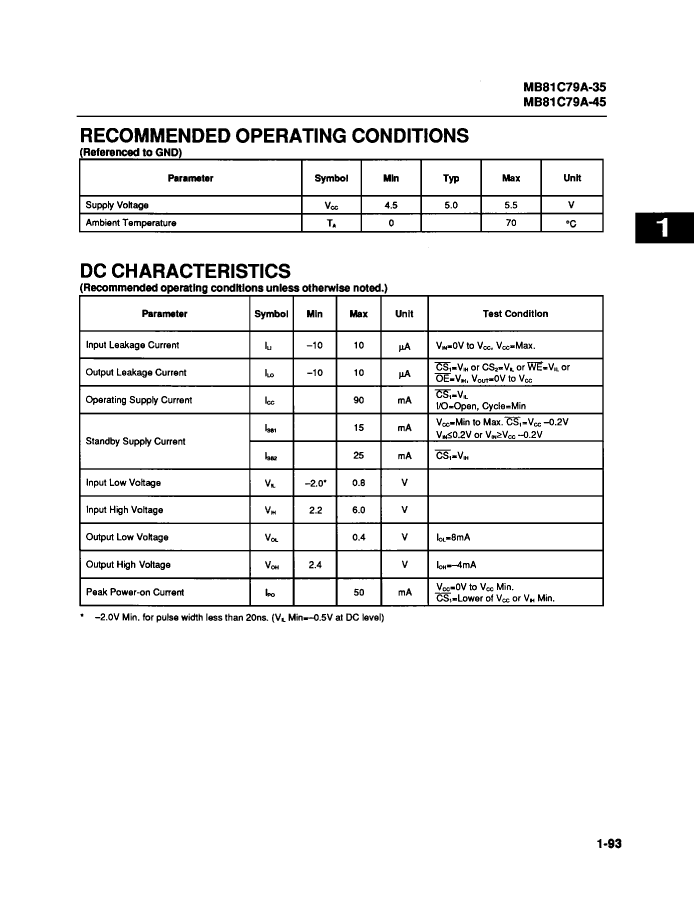

MB81C79A-45CV: DescriptionStandard SRAM, 8KX9, 45ns, CMOS, CQCC32; Categorystorage storage; File Size288KB，16 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB81C79A-45CV Overview

Standard SRAM, 8KX9, 45ns, CMOS, CQCC32

MB81C79A-45CV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	FUJITSU
Parts packaging code	QFJ
package instruction	QCCN, LCC32,.45X.55
Contacts	32
Reach Compliance Code	unknown
Maximum access time	45 ns
I/O type	COMMON
JESD-30 code	R-XQCC-N32
JESD-609 code	e0
memory density	73728 bit
Memory IC Type	STANDARD SRAM
memory width	9
Number of terminals	32
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX9
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC32,.45X.55
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.015 A
Minimum standby current	4.5 V
Maximum slew rate	0.09 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

Preview

Download Datasheet

View All

MB81C79A-45CV Related Products

	MB81C79A-45CV	MB81C79A-35PJ	MB81C79A-35CV	MB81C79A-45PSK	MB81C79A-35PSK	MB81C79A-35PF
Description	Standard SRAM, 8KX9, 45ns, CMOS, CQCC32	Standard SRAM, 8KX9, 35ns, CMOS, PDSO28	Standard SRAM, 8KX9, 35ns, CMOS, CQCC32, METAL SEALED, CERAMIC, LCC-32	8KX9 STANDARD SRAM, 45ns, PDIP28, 0.300 INCH, SKINNY, PLASTIC, DIP-28	8KX9 STANDARD SRAM, 35ns, PDIP28, 0.300 INCH, SKINNY, PLASTIC, DIP-28	Standard SRAM, 8KX9, 35ns, CMOS, PDSO28
package instruction	QCCN, LCC32,.45X.55	SOJ, SOJ28,.34	QCCN,	DIP,	DIP,	SOP, SOP28,.5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	45 ns	35 ns	35 ns	45 ns	35 ns	35 ns
JESD-30 code	R-XQCC-N32	R-PDSO-J28	R-CQCC-N32	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28
memory density	73728 bit	73728 bit	73728 bit	73728 bit	73728 bit	73728 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	9	9	9	9	9	9
Number of terminals	32	28	32	28	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8KX9	8KX9	8KX9	8KX9	8KX9	8KX9
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	SOJ	QCCN	DIP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE	CHIP CARRIER	IN-LINE	IN-LINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	J BEND	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL
Parts packaging code	QFJ	SOJ	-	DIP	DIP	SOIC
Contacts	32	28	-	28	28	28
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99
