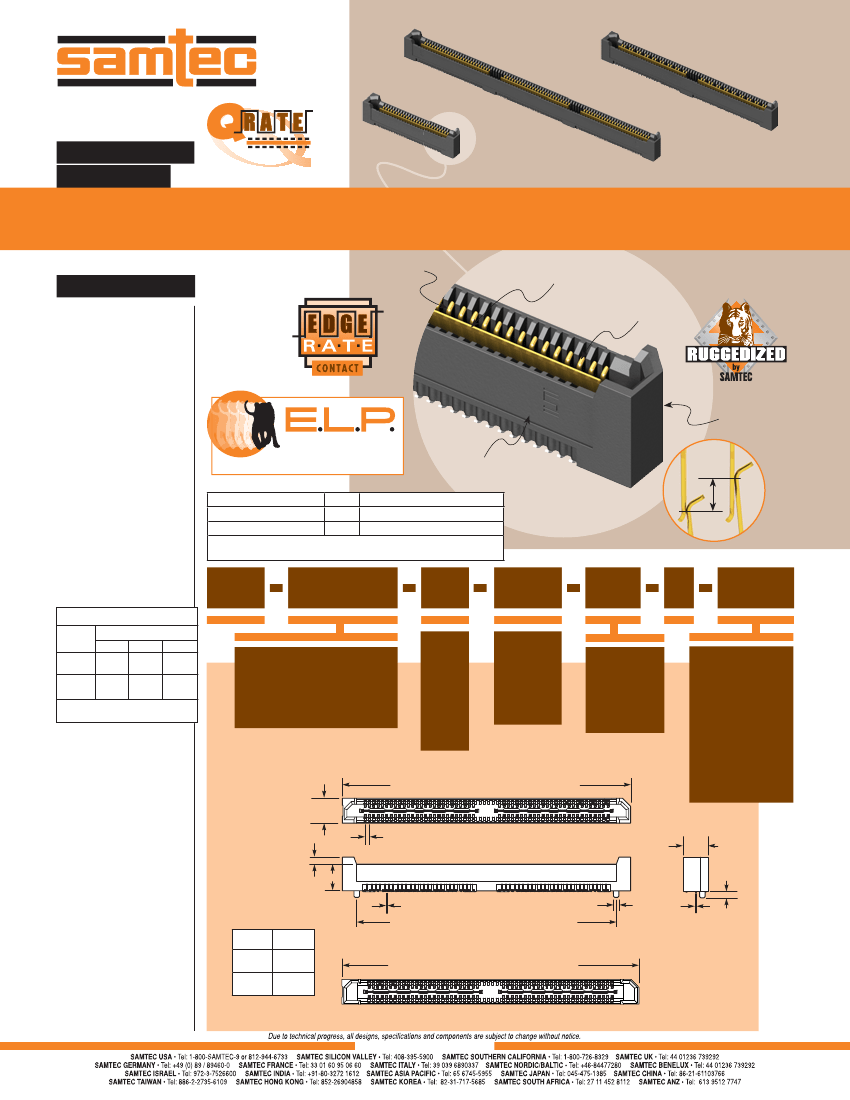

F-210-1
QRF8–078–05.0–L–D–A
QRF8–036–05.0–L–D–DP–A
®
(0,80mm) .0315"
QRF8 SERIES
QRF8–026–05.0–L–D–A
SLIM BODY GROUND PLANE SOCKET
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?QRF8
Insulator Material:
Black LCP
Contact Material:
BeCu
Ground Plane Material:
Phosphor Bronze
Plating:
Au or Sn over 50µ" (1,27µm) Ni
Current Rating:
2.0A @ 80°C ambient
Operating Temp Range:
-55°C to + 125°C
Voltage Rating:
215 VAC
RoHS Compliant:
Yes
Board Mates:
QRM8
Increased wipe
for rugged
applications
Integral
ground/power plane
Edge Rate
™
contacts
™
TM
Slim
footprint
EXTENDED LIFE PRODUCT
10 Year Mixed Flowing Gas (MFG)
Call Samtec for maximum cycles mated with QRM8
Choice of
stack heights
(1,20mm)
.047"
NOMINAL
WIPE
Processing:
Max Processing Temp:
230°C for 60 seconds, or
260°C for 20 seconds 3x
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0,10mm) .004" max (026)
(0,15mm) .006" max (052-078)
7mm Stack Height
Single-Ended Signaling
Differential Pair Signaling
Type
–D
–D
Rated @ -3dB Insertion Loss
9.5 GHz / 19 Gbps
8.5 GHz / 17 Gbps
Performance data for other stack heights and complete test data
available at www.samtec.com?QRF8 or contact sig@samtec.com
QRF8
PINS PER ROW
NO. OF PAIRS
LEAD
STYLE
PLATING
OPTION
TYPE
A
OTHER
OPTION
MATED HEIGHT*
QRF8
LEAD
STYLE
QRM8 LEAD STYLE
–02.0 –05.0 –07.0
–05.0
–026, –052, –078
(52 total pins per bank = –D)
= 5mm
Body
Height
–L
= 10µ"
(0,25µm)
Gold on
contact,
Matte Tin
on tail
–05.0
(7,00) (10,00) (12,00)
.276
.394
.472
–07.0
(9,00) (12,00) (14,00)
.354
.472
.551
*Processing conditions will
affect mated height.
–D
= Single-Ended
–GP
= Guide Post
(Requires –GP on
mating connector)
–018, –036, –054
(18 pairs per bank = –D–DP)
–07.0
= 7mm
Body
Height
–D–DP
= Differential
Pair
–K
= (5,00mm) .197" DIA
Polyimide Film
Pick & Place Pad
No. of Banks x (24,80) .976 + (3,57) .140
(4,60)
.181
(0,80)
.0315
–TR
01
= Tape & Reel
02
(4,60)
.181
(1,04)
.041
(1,25)
A
.049
(0,23) .009
LEAD
STYLE
(1,00) .039 DIA
(0,20)
.008
No. of Banks x (24,80) .976 - (2,00) .078
A
(5,01)
.197
(7,01)
.276
–05.0
Note:
Other Gold plating
options available.
Contact Samtec.
Note:
Some lengths, styles
and options are non-standard,
non-returnable.
No. of Banks x (24,80) .976 + (5,25) .206
–07.0
–GP OPTION
WWW.SAMTEC.COM
