MB16A22-32SY datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MB16A22-32SY

Preview

MB16A22-32SY: DescriptionMIL Series Connector, 32 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug; CategoryThe connector The connector; File Size232KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MB16A22-32SY Overview

MIL Series Connector, 32 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug

MB16A22-32SY Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-26482, POLARIZED, COMPATIBLE CONTACT: M5100-001-0020L
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FLUID/IMMERSION/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	MB16A
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	ANODIZED BLOCK
Shell material	ALUMINUM ALLOY
Housing size	22
Termination type	CRIMP
Total number of contacts	32

Preview

Download Datasheet

View All

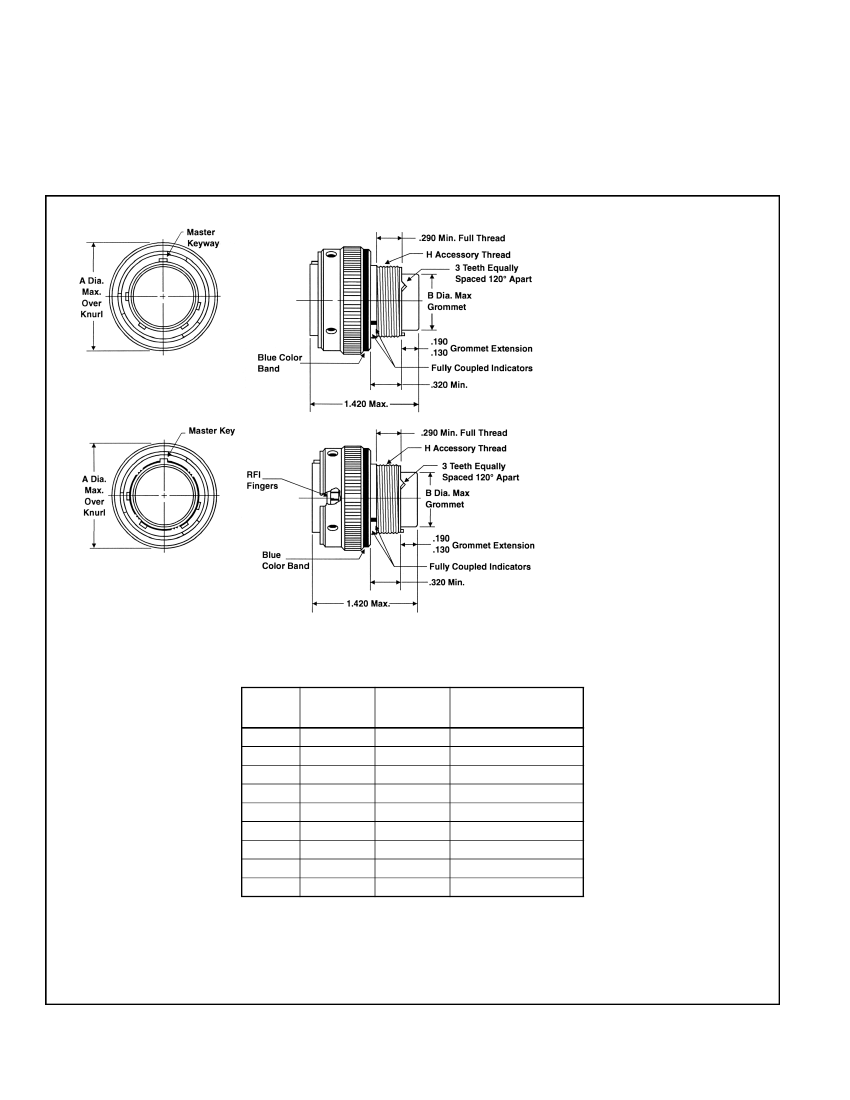

Miniature Cylindrical MIL-C-26482, Series 2

MS3476

straight plug

MS3475

straight plug with RFI grounding fingers

Plug Shell,

Bayonet Coupling

Military No. MS3476

Amphenol/Matrix No. MB16

Plug Shell, RFI Grounding,

Bayonet Coupling

Military No. MS3475

Amphenol/Matrix No. MB18

To complete order number see how to order, page 14.

A Dia.

Max.

B Dia.

Max.

H

Accessory Thread

Class 2A

Shell

Size

8

10

12

14

16

18

20

22

24

.782

.926

1.043

1.183

1.305

1.391

1.531

1.656

1.777

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

.5000-20 UNF

.6250-24 UNEF

.7500-20 UNEF

.8750-20 UNEF

1.0000-20 UNEF

1.0625-18 UNEF

1.1875-18 UNEF

1.3125-18 UNEF

1.4375-18 UNEF

8
