54HC76FK/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54HC76FK/B

54HC76FK/B: DescriptionJ-K Flip-Flop; Categorylogic logic; File Size775KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54HC76FK/B Overview

J-K Flip-Flop

54HC76FK/B Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
Logic integrated circuit type	J-K FLIP-FLOP

Preview

Download Datasheet

View All

REI Datasheet

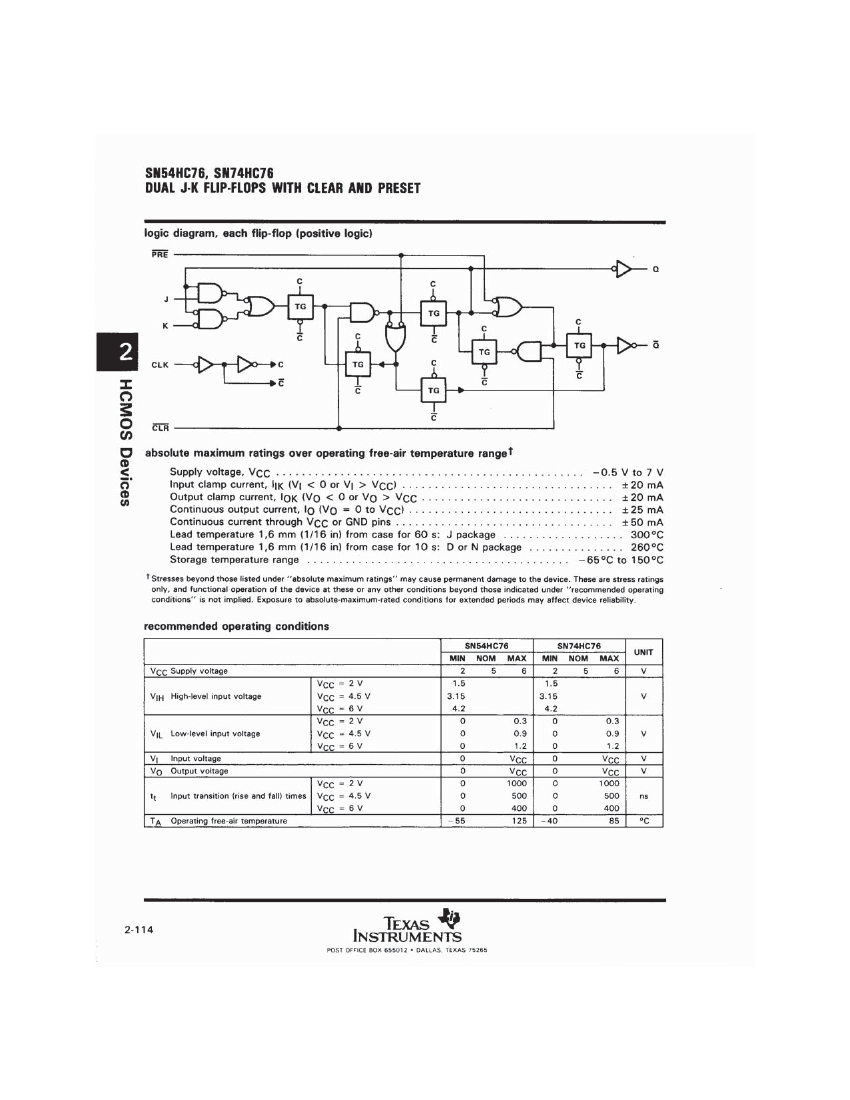

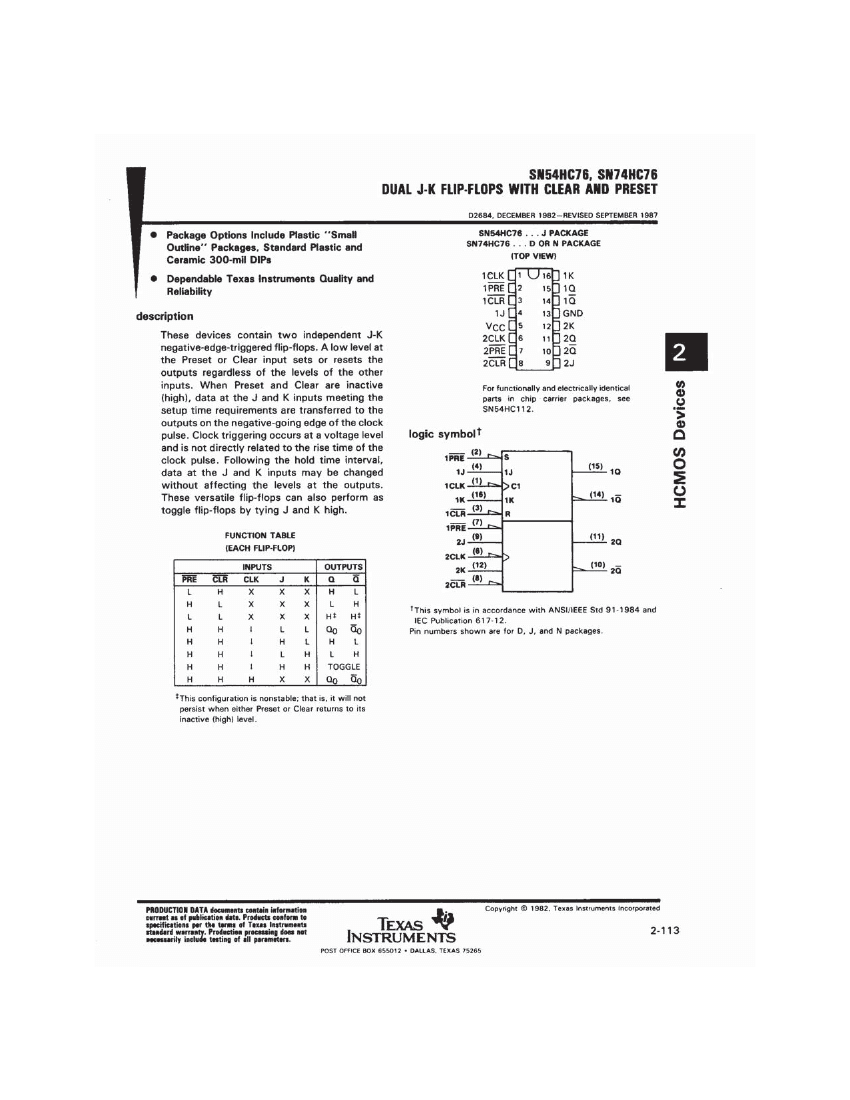

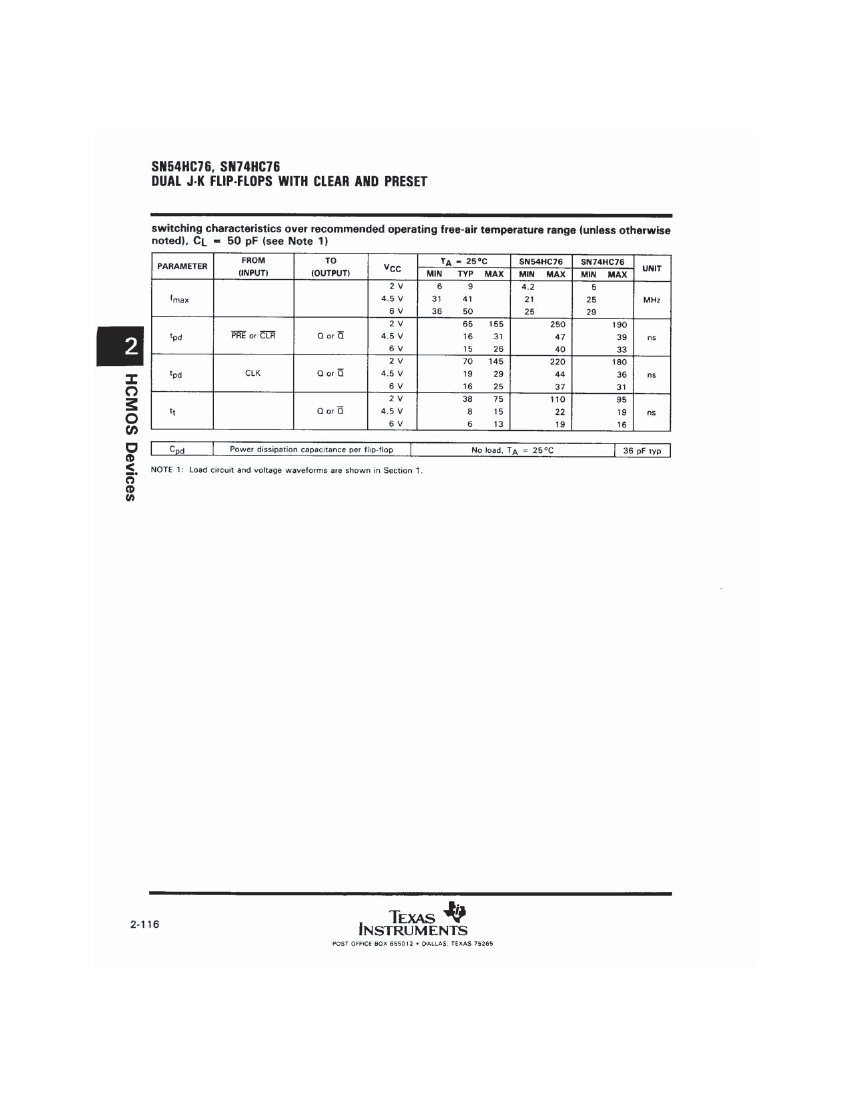

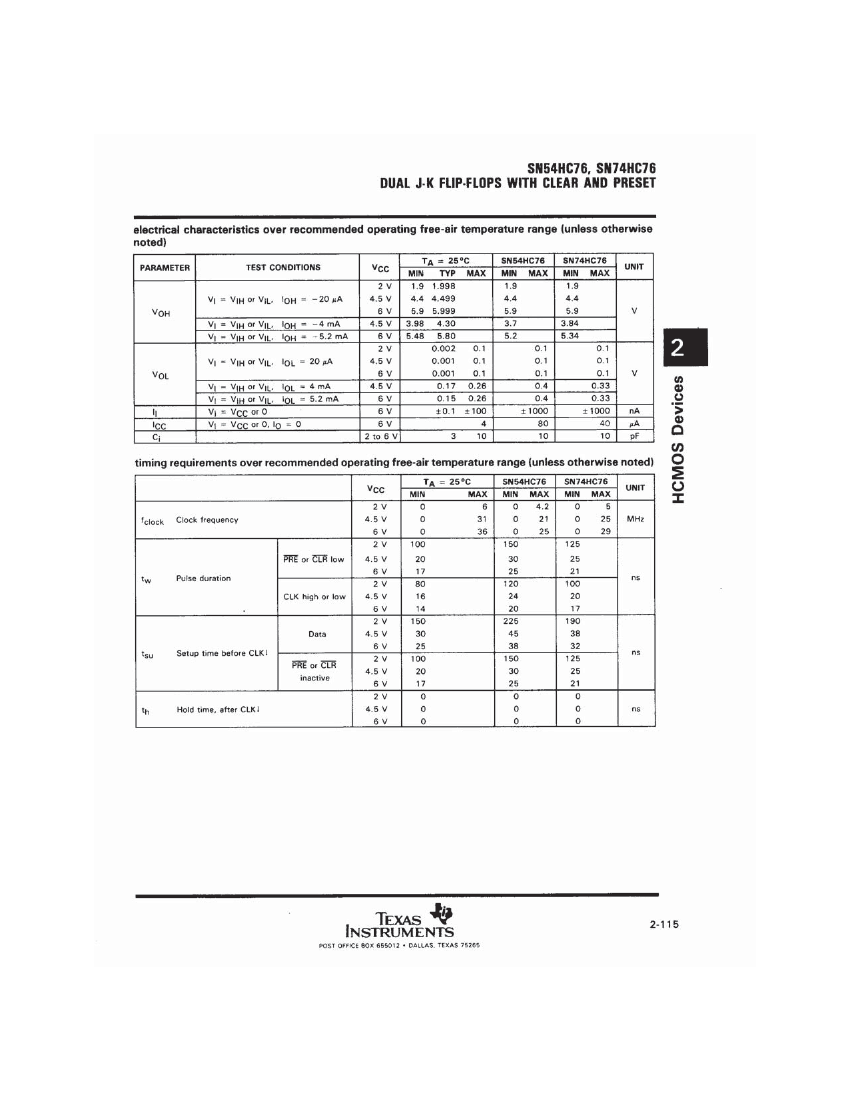

SN54HC76, SN74HC76

Dual J-K Flip-Flops with Clear and Preset

These devices contain two independent J-K negative-edge-triggered flip-flops. A low level at the

Preset or Clear input sets or resets the outputs regardless of the levels of the other inputs. When

Preset and Clear are inactive (high), data at the J and K inputs meeting the setup time requirements

are transferred to the outputs on the negative-going edge of the clock pulse. Clock triggering occurs

at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold time

interval data at the J and K inputs may be changed without affecting the levels at the outputs. These

versatile flip-flops can also perform toggle flip-flops by tying J and K high.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

• Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

54HC76FK/B Related Products

	54HC76FK/B	74HC76D	74HC76N
Description	J-K Flip-Flop	J-K Flip-Flop	J-K Flip-Flop
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
Reach Compliance Code	unknown	unknown	unknown
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
