Features
PEX 8525 General Features
o
24-lane PCI Express switch
-
Integrated SerDes
o
Up to five configurable ports
(x1, x2, x4, x8, x16)
o
23mm x 23mm,
484-ball PBGA package
o
31mm x31mm,
644-ball PBGA package
o
Typical Power: 2.6 Watts
PEX 8525 Key Features
o
Standard Compliant
-
PCI Express Base Specification, r1.0a
o
High Performance
-
Non-blocking switch fabric
-
Full line rate on all ports
-
Packet Cut-Thru with 115ns max
packet latency (x8 to x8)
o
Flexible Configuration
-
Five highly flexible & configurable
ports (x1, x2, x4, x8, or x16)
-
Configurable with strapping pins,
EEPROM, I
2
C, or Host software
-
Lane and polarity reversal
o
PCI Express Power Management
-
Link power management states: L0,
L0s, L1, L2/L3 Ready, and L3
-
Device states: D0 and D3hot
o
Quality of Service (QoS)
-
One Virtual Channel per port
-
Eight Traffic Classes per port
-
Weighted Round-Robin Ingress Port
Arbitration
o
Reliability, Availability, Serviceability
-
3 Standard Hot-Plug Controllers
-
Upstream port as hot-plug client
-
Transaction Layer end-to-end CRC
-
Poison bit
-
INTA# interrupt signal
-
Fatal Error (FATAL_ERR#) signal
(legacy SERR equivalent)
-
PCIe baseline error reporting
-
Advanced Error Reporting
-
Port Status bits and GPO available
-
Per port error diagnostics
•
Bad DLLPs
•
Bad TLPs
•
CRC errors
-
JTAG boundary scan
PEX 8525
High-Performance 24-lane, 5-port PCIe Switch
Multi-purpose, High Performance
ExpressLane™
Switch
The
ExpressLane
PEX 8525 device offers PCI Express switching capability
enabling users to add scalable high bandwidth, non-blocking interconnection
to a wide variety of applications including
servers, storage systems,
communications platforms, blade servers,
and
embedded-control
products.
The PEX 8525 is well suited for
fan-out, aggregation, dual-
graphics, peer-to-peer,
and
intelligent I/O module
applications.
Highly Flexible Port Configurations
The PEX 8525 offers highly configurable ports. There are a maximum of 5
ports that can be configured to any legal width from x1 to x16, in any
combination to support your specific bandwidth needs. The ports can be
configured for
symmetric
(each port having the same lane width and traffic
load) or
asymmetric
(ports having different lane widths) traffic. In the event
of asymmetric traffic, the PEX 8525 features a
flexible central packet
memory
that allocates a memory buffer for each port as required by the
application or endpoint. This buffer allocation along with the device's
flexible packet flow control
minimizes bottlenecks when the upstream and
aggregated downstream bandwidths do not match (are asymmetric). Any of
the ports can be designated as the upstream port, which can be changed
dynamically.
High Performance
The PEX 8525 architecture supports packet
cut-thru with a max latency of
115ns (x8 to x8).
This, combined with large packet memory
(1024 byte
maximum payload size)
and non-blocking internal switch architecture,
provide full line rate on all ports for performance-hungry applications such as
storage servers
or
storage switch fabrics.
End-to-end Packet Integrity
The PEX 8525 provides
end-to-end CRC
protection (ECRC) and
Poison
bit
support to enable designs that require
end-to-end data integrity.
These
features are optional in the PCI Express specification, but PLX provides
them across its entire
ExpressLane
switch product line.
Configuration Flexibility
The PEX 8525 provides several ways to configure its operations. The device
can be configured through strapping pins,
I
2
C interface,
CPU configuration
cycles, or an optional serial EEPROM. This allows for easy debug during the
development phase, performance monitoring during the operation phase, and
driver or software upgrade.
Interoperability
The PEX 8525 is designed to be fully compliant with the PCI-SIG revision
1.1 specification. Additionally, it supports
auto-negotiation, lane reversal,
and
polarity reversal.
The PEX 8525 also undergoes thorough
Interoperability testing in PLX’s
Interoperability Lab.
PLX Confidential
Low Power with Granular SerDes Control
The PEX 8525 provides low power capability that is
fully compliant with the PCI Express power
management specification. In addition, the SerDes
physical links can be turned off when unused for even
lower power.
Flexible Port Width Configuration
The width of each port can be individually configured
through auto-negotiation, hardware strapping, host
software configuration, I
2
C interface, or through an
optional EEPROM.
The PEX 8525 supports a large number of port
configurations (see Figure 1). For example, if you are
using the PEX 8525 in a fan-out application, you may
configure the upstream port as x8 and the downstream
ports as four x4 ports; two x8 ports; or other
combinations as long as you don’t run out of lanes (24)
or ports (5). In a peer-to-peer application, you can
configure all five ports as x4. In a port aggregation
application you can configure four x2 or x4 ports for
aggregation into one x8 port.
x8
x8
Advanced Error Reporting
features makes it suitable
for
High Availability (HA) applications.
Three
downstream ports include a Standard Hot Plug
Controller. If the PEX 8525 is used in an application
where one or more of its downstream ports connect to
PCI Express slots, each port’s Hot Plug Controller can
be used to manage the hot-plug event of its associated
slot. Furthermore, its upstream port is a
hot-plug client,
allowing it to be
used on hot-pluggable adapter cards,
backplanes, and fabric modules.
Fully Compliant Power Management
For applications that require power management, the
PEX 8525 device support both link (L0, L0s, L1, L2/L3
Ready, and L3) and device (D0 and D3hot) power
management states, in compliance with the PCI Express
power management specification.
SerDes Power and Signal Management
The PEX 8525 supports
software control
of the
SerDes
outputs
to allow optimization of power and signal
strength in a system. The PLX SerDes implementation
supports four levels of power – off, low, typical, and
high. The SerDes block also supports
loop-back modes
and
advanced reporting of error conditions,
which
enables efficient debug and management of the entire
system.
PEX 8525
PEX 8525
Applications
x4 x4 x4 x4
x8
x8
x8
x4
Suitable for
host-centric
as well as
peer-to-peer traffic
patterns,
the PEX 8525 can be configured for a wide
variety of form factors and applications.
Host Centric Fan-out
The PEX 8525, with its symmetric or asymmetric lane
configuration capability, allows user-specific tuning to a
variety of host-centric applications.
Figure 2 shows a
CPU
typical
server-
based
design where
Memory
Chip Set
the root complex
provides a PCI
x8
Express link that
needs to be
PEX 8525
expanded to a larger
x4
number of smaller
x4
x4
ports for a variety
End
of I/O functions. In
x4
Point
this example, the
PEX 8525 would

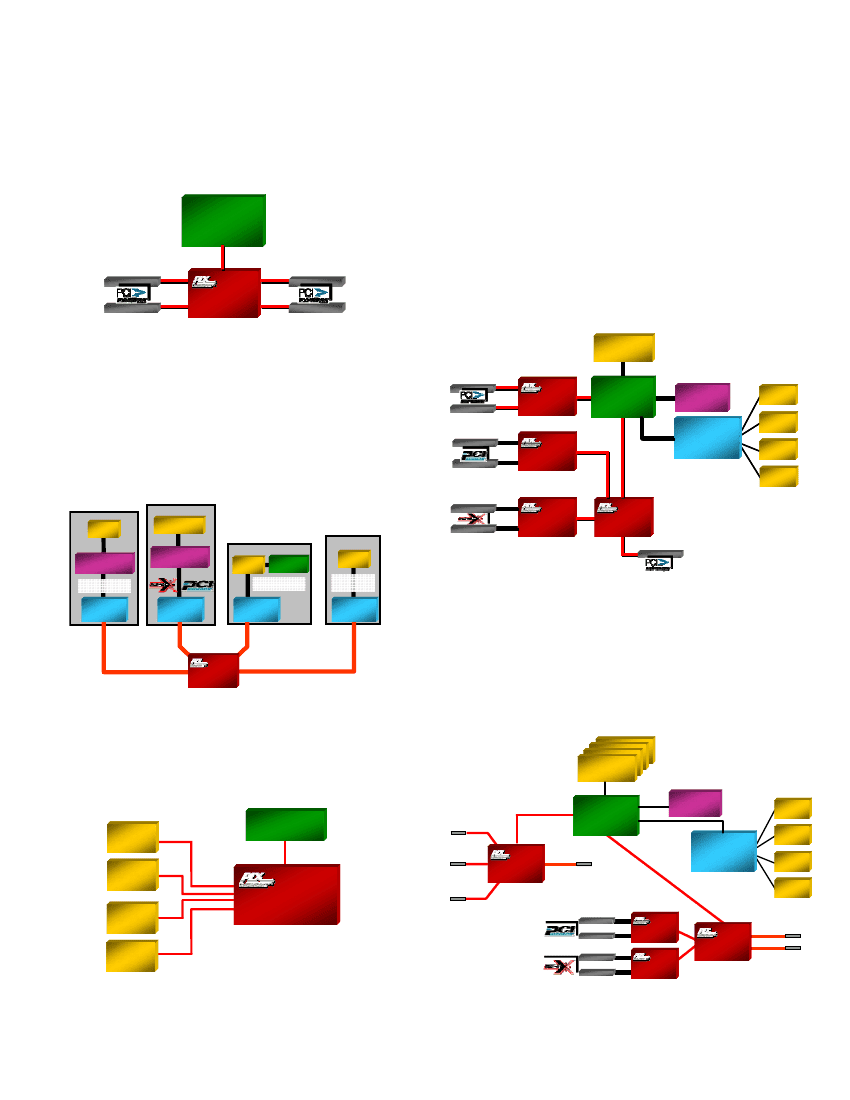

Figure 2. Fan-in/out Usage
typically have an 8-lane upstream port, and as many as
PEX 8525
PEX 8525
x4 x4 x2 x2
x4 x4 x4 x4
Figure 1. Common Port Configurations
Low Packet Latency
The PEX 8525 supports packet
cut-thru
with a max
packet latency of 115ns between symmetric x8 ingress
and egress ports. The low latency enables applications to
achieve high throughput and performance. In addition to
low latency, the device supports a packet payload size of
up to 1024 bytes, enabling the user to achieve even
higher throughput.
Hot Plug for High Availability
Hot plug capability allows users to replace hardware
modules and perform maintenance without powering
down the system. The PEX 8525 hot plug capability and
PLX Confidential
four x4 downstream ports. The downstream ports can be
of differing widths if required.
Almost all (non x86 based) high-end microprocessor
manufacturers are offering PCI Express interfaces. The
PEX 8525 can be directly connected to a processor to
fan-out its PCIe port to a larger number of ports for
enhanced connectivity as illustrated in Figure 3.
MIPS
or
PowerPC
x8
x4
x4
x4
PEX 8525
x4
Figure 3. Fan out for PowerPC/MIPS CPUs
Embedded Systems
The PEX 8525 can also be utilized in embedded
applications. Figure 4 shows several independent
modules connecting through the PEX 8525. The port
widths for each module can be configured as required.
The peer-to-peer communication feature of the PEX
8525 allows these modules to communicate with each
other without any centralized control.
CPU
Control
Graphics Fan-out Switch
As PCIe based graphics cards become more mainstream,
it will be necessary to take a x8 port on the root complex
device and fan it out to two x8 ports for dual graphics
applications. Root Complex (Northbridge) devices are
available with multiple PCIe ports. These ports can be
further expanded to connect to a larger number of I/Os
or to support dual-graphics using the PEX 8525 as
shown in Figure 6. In this dual graphics application
example, a x8 port on the root complex device is fanning
out to two PCIe graphics cards via x8 links. The figure
also shows how some of the ports can be bridged to
provide
PCI or PCI-X
slots through the use of the
ExpressLane
PEX 8114 and PEX 8111 PCIe
bridging
devices.
CPU
x8
x8
PEX 8525
PEX 8532
x8
Root
Complex
Memory
South
Bridge
USB
GbE
HDD
PCI
PEX
PEX 8111
8111
x1
x8
x4
PEX 8114
PEX 8516
FPGA/ASIC
FPGA/ASIC
DSP
Sensor
CPU
CPU Bus
Bridge
x1
Local Bus
Bridge
Bridge
Local Bus
Bridge
Figure 6. Dual Graphics Fan-out
PCI Express Port Expansion
The PEX 8525 enables designers to take, for example,
two x8 PCIe ports and expand them into eight
downstream ports. Some of these PCIe ports can be
bridged to PCI or PCI-X using bridging products from
PLX. Figure 7 illustrates one of the many configurations
the PEX 8525 can support.
CPU
CPU
CPU
CPU
x4
x8
PEX 8525
x4
x8
Figure 4. Embedded Systems
Peer to Peer Communication
Figure 5 represents a backplane where the PEX 8525
provides peer-to-peer data exchange for up to four line
cards where the CPU/Host plays the management role.
x8
Memory
North
Bridge
x4
x8
South
Bridge
USB
GbE
I/O
I/O
x4
x4
Host
x4
x8
x4
x4
PEX 8525
HDD
PCI
I/O
I/O
x4
x4
PEX 8525
x4
PEX 8111
x1
PEX 8525
x4
x4
x4
PEX 8114
Figure 5. Peer-to-Peer Usage
Figure 7. PCIe Port Expansion
PLX Confidential
Software Usage Model
From a system model viewpoint, each PCI Express port
is a virtual PCI to PCI bridge device and has its own set
of PCI
Express configuration registers. It is through the
upstream port that the BIOS or host can configure the
other ports using standard PCI enumeration. The virtual
PCI to PCI bridges within the PEX 8525 are compliant
to the PCI and PCI Express system models. The
Configuration Space Registers (CSRs) in a virtual
primary/secondary PCI to PCI bridge are accessible by
type 0 configuration cycles through the virtual primary
bus interface (matching bus number, device number, and
function number).
Interrupt Sources/Events
The PEX 8525 switch supports the INTx interrupt
message type (compatible with PCI 2.3 Interrupt signals)
or Message Signaled Interrupts (MSI) when enabled.
Interrupts/messages are generated by PEX 8525 for hot
plug events, doorbell interrupts, baseline error reporting,
and advanced error reporting.
Development Tools
PLX offers hardware and software tools to enable rapid
customer design activity. These tools consist of a
hardware module (PEX 8525 RDK), hardware
documentation, and a Software Development Kit (SDK).
ExpressLane
PEX 8525 RDK
The RDK hardware module includes the PEX 8525 with
one x8 (card-edge slot) port, two x4 ports and one x8
port (see Figure 8). The RDK is available with a x8 card
edge connector/adapter. The adapters for x4 and x1 edge
connectors are available to plug the RDK in smaller
slots. The PEX 8525 RDK board can be installed on a
motherboard or used as a riser card. The PEX 8525 RDK
can be used to test and validate customer software.
Additionally, it can be used as an evaluation vehicle for
the PEX 8525 features and benefits. The PEX 8525
RDK provides everything that a user needs to get their
hardware and software development started.
SDK
The SDK tool set
includes:
-
Linux & Windows
drivers
-
C/C++ Source code,
Objects, libraries
-
User’s Guides &
Application
examples
HotPlug
Ckt
Port 8 Status LED
PORT 8 - X8
HD Power
Connector
Port 10 Status LED
Manual
Reset
Port 9 Status LED
PORT 9 - X4
PORT 10 - X4
Midbus Site
Windows/Linux Apps
User
Space
JTAG
DIP Switch
for Config
PEX 8525
RefClk
EEPROM
PEX API
Kernel
Space
PCIe
Driver
PnP
Driver
Midbus Site
PERST#
Port 1 – x8
(Upstream Port)
Hardware
PCI Express Interface
Figure 8. PEX 8525 RDK
PLX Technology, Inc.
870 Maude Ave.
Sunnyvale, CA 94085 USA
Tel: 1-800-759-3735
Tel: 1-408-774-9060
Fax: 1-408-774-2169
Email: info@plxtech.com
Web Site: www.plxtech.com
Product Ordering Information
Part Number
PEX8525S-AA24BI G
PEX8525-AA25BI
PEX8525-AA25BI G
PEX 8525-AA RDK
Description
24-Lane, 5-Port PCIe Switch, Pb-Free, I-Temp, 23x23mm
2
24-Lane, 5-Port PCIe Switch, I-Temp, 31x31mm
2
24-Lane, 5-Port PCIe Switch, Pb-Free, I-Temp, 31x31mm
2
PEX 8525 Rapid Development Kit w/ x8 Edge Connector
Please visit the PLX Web site at
http://www.plxtech.com
or contact PLX sales at 408-774-9060 for sampling.
© 2007 PLX Technology, Inc. All rights reserved. PLX and the PLX logo are registered trademarks of PLX Technology, Inc. ExpressLane is a trademark of PLX Technology,
Inc., which may be registered in some jurisdiction. All other product names that appear in this material are for identification purposes only and are acknowledged to be
PLX Confidential
trademarks or registered trademarks of their respective companies. Information supplied by PLX is believed to be accurate and reliable, but PLX Technology, Inc. assumes no
responsibility for any errors that may appear in this material. PLX Technology, Inc. reserves the right, without notice, to make changes in product design or specification.
PEX8525-SIL-PB-P-1.4
10/07
京公网安备 11010802033920号
EEWORLD
