DCR604SE17 datasheet, PDF - EEWORLD Datasheet

DCR604SE17: DescriptionSilicon Controlled Rectifier, 562000mA I(T), 1700V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size336KB，8 Pages; ManufacturerZarlink Semiconductor (Microsemi); Websitehttp://www.zarlink.com/

Download Datasheet Parametric Compare View All

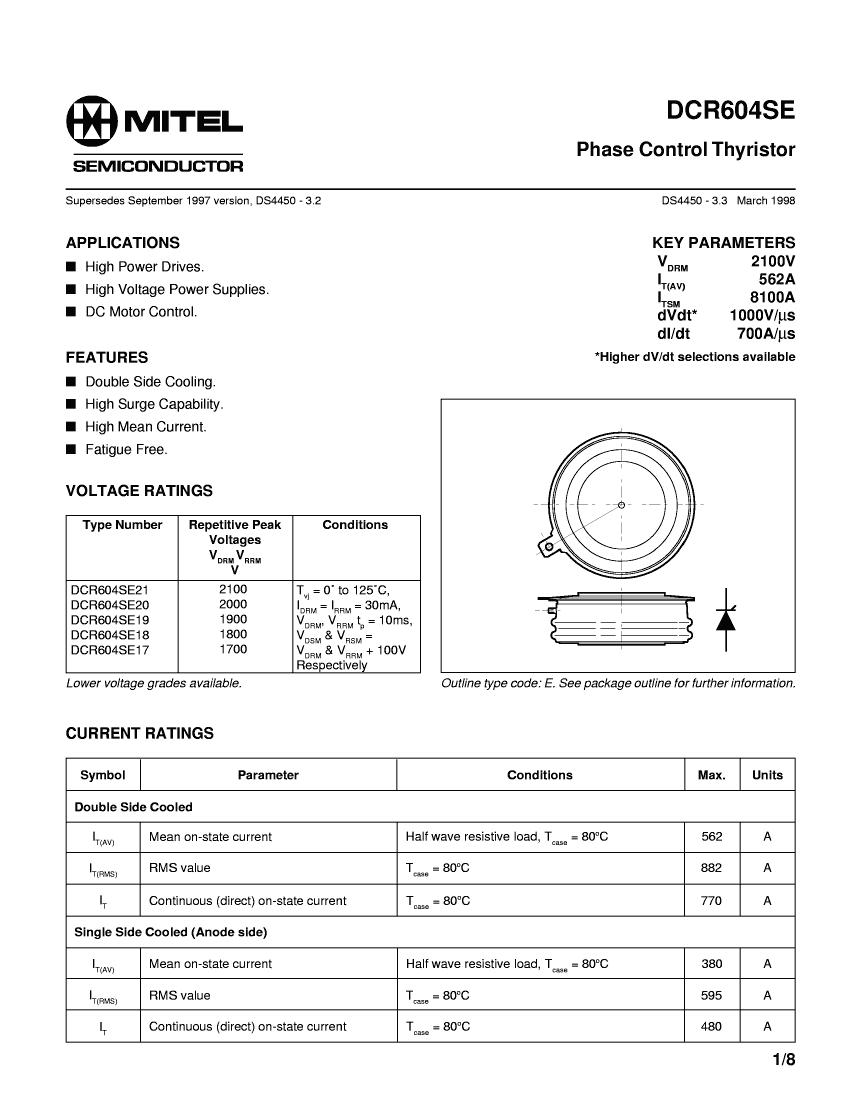

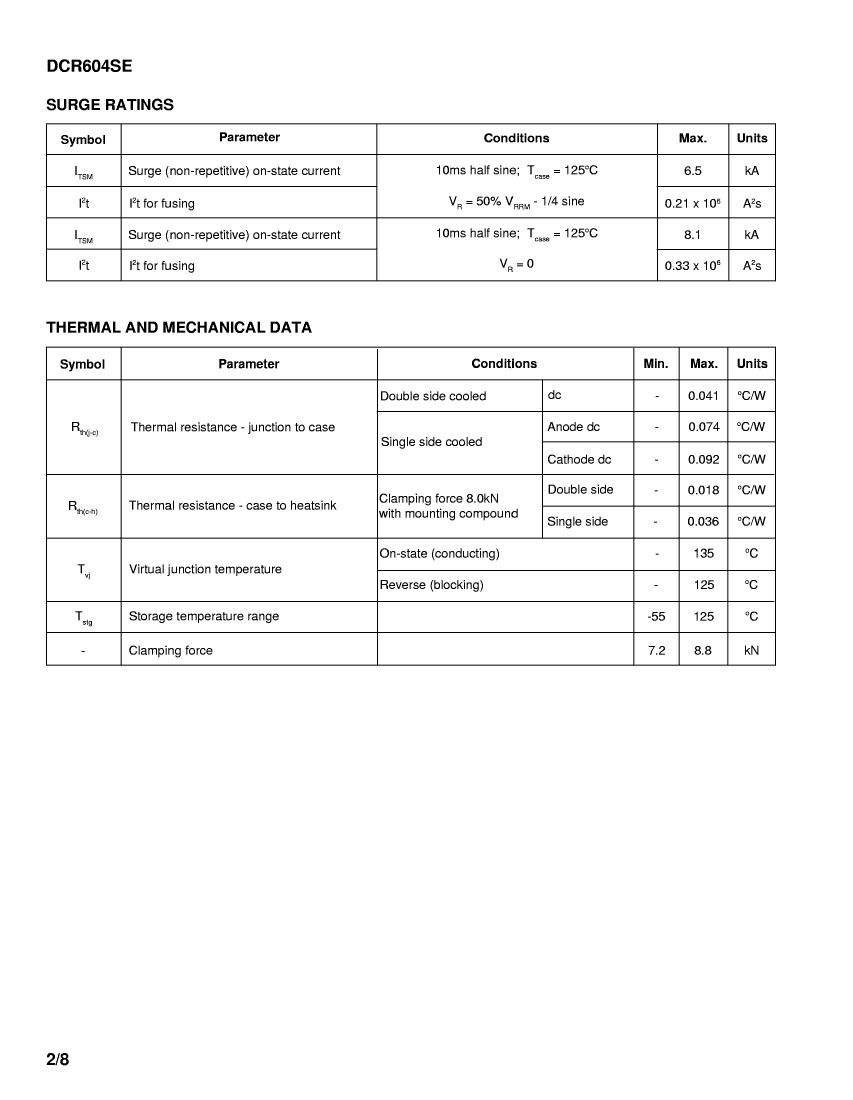

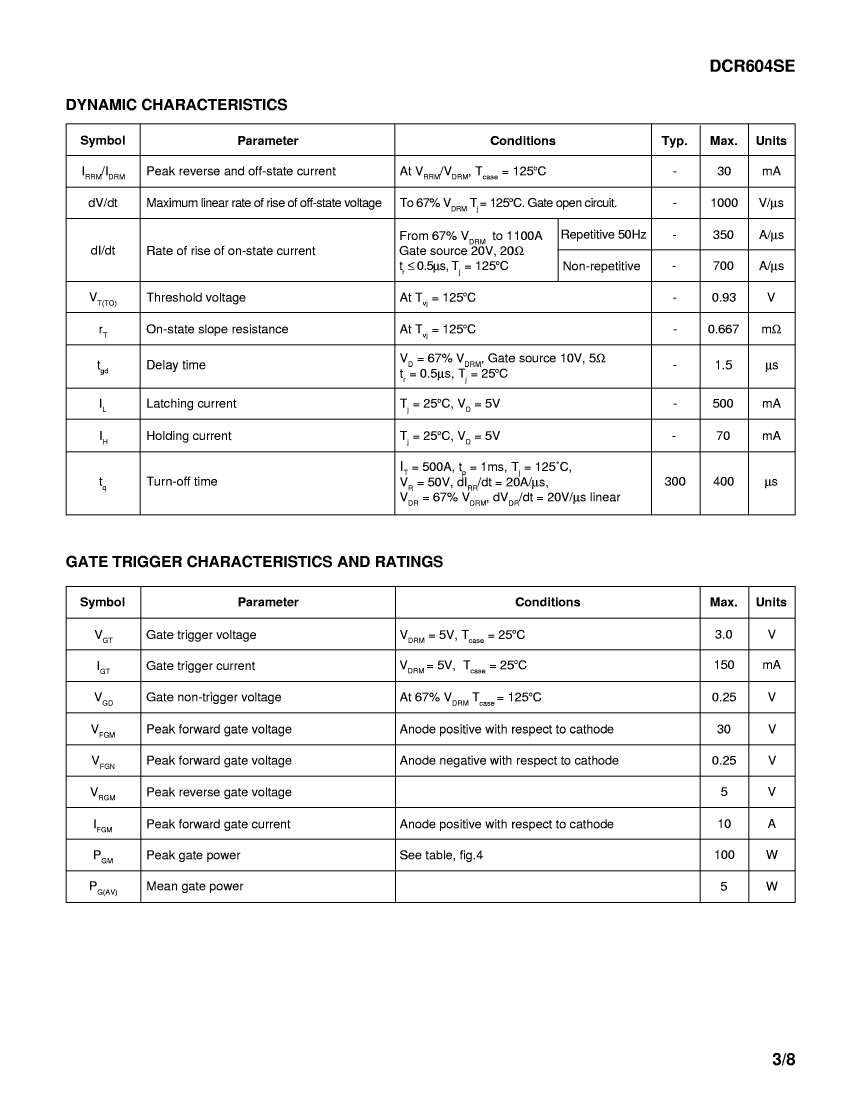

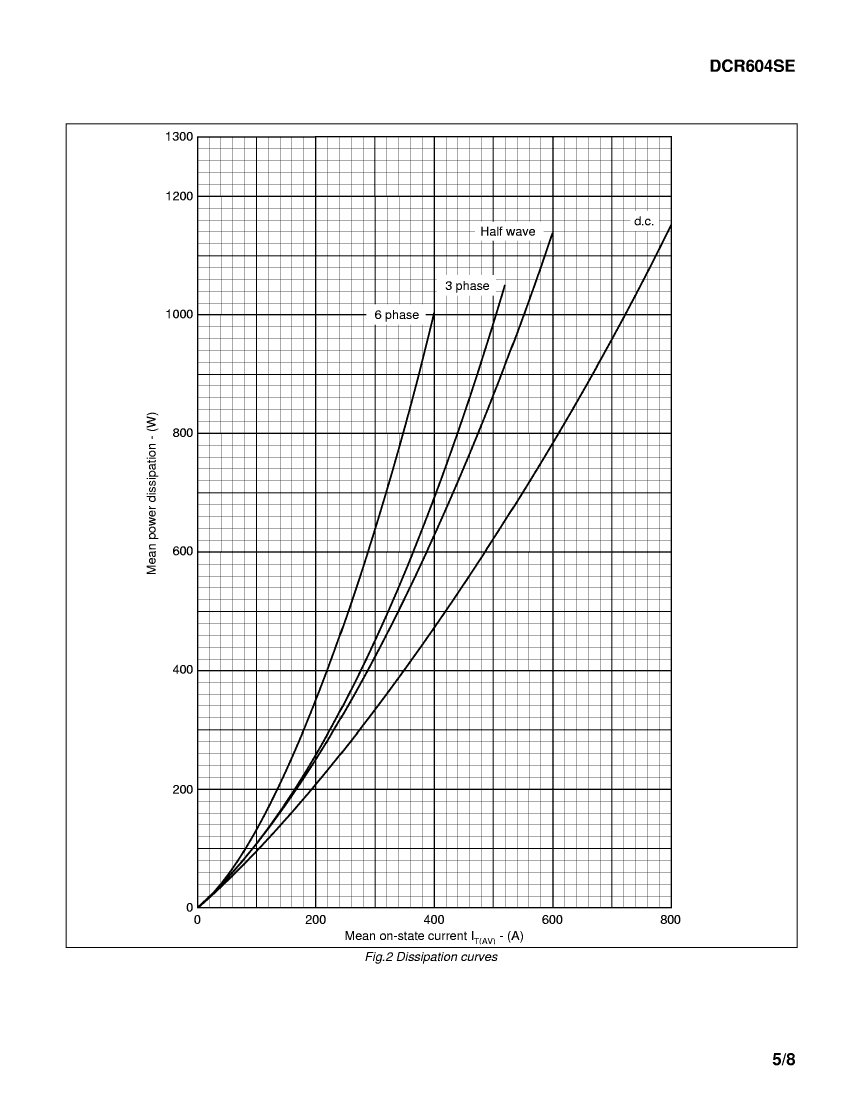

DCR604SE17 Overview

Silicon Controlled Rectifier, 562000mA I(T), 1700V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zarlink Semiconductor (Microsemi)
package instruction	,
Reach Compliance Code	unknown
Nominal circuit commutation break time	300 µs
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	70 mA
Maximum leakage current	30 mA
On-state non-repetitive peak current	6500 A
Maximum on-state current	562000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Off-state repetitive peak voltage	1700 V
surface mount	NO
Trigger device type	SCR

	DCR604SE17	DCR604SE18	DCR604SE19	DCR604SE20	DCR604SE21
Description	Silicon Controlled Rectifier, 562000mA I(T), 1700V V(DRM),	Silicon Controlled Rectifier, 562000mA I(T), 1800V V(DRM),	Silicon Controlled Rectifier, 562000mA I(T), 1900V V(DRM),	Silicon Controlled Rectifier, 562000mA I(T), 2000V V(DRM),	Silicon Controlled Rectifier, 562000mA I(T), 2100V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Zarlink Semiconductor (Microsemi)	Zarlink Semiconductor (Microsemi)	Zarlink Semiconductor (Microsemi)	Zarlink Semiconductor (Microsemi)	Zarlink Semiconductor (Microsemi)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Nominal circuit commutation break time	300 µs	300 µs	300 µs	300 µs	300 µs
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V
Maximum holding current	70 mA	70 mA	70 mA	70 mA	70 mA
Maximum leakage current	30 mA	30 mA	30 mA	30 mA	30 mA
On-state non-repetitive peak current	6500 A	6500 A	6500 A	6500 A	6500 A
Maximum on-state current	562000 A	562000 A	562000 A	562000 A	562000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Off-state repetitive peak voltage	1700 V	1800 V	1900 V	2000 V	2100 V
surface mount	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR
