Value Series surface mount
low profile MIL-PRF-21038
Interface Transformers (0
o
to +70
o
C)

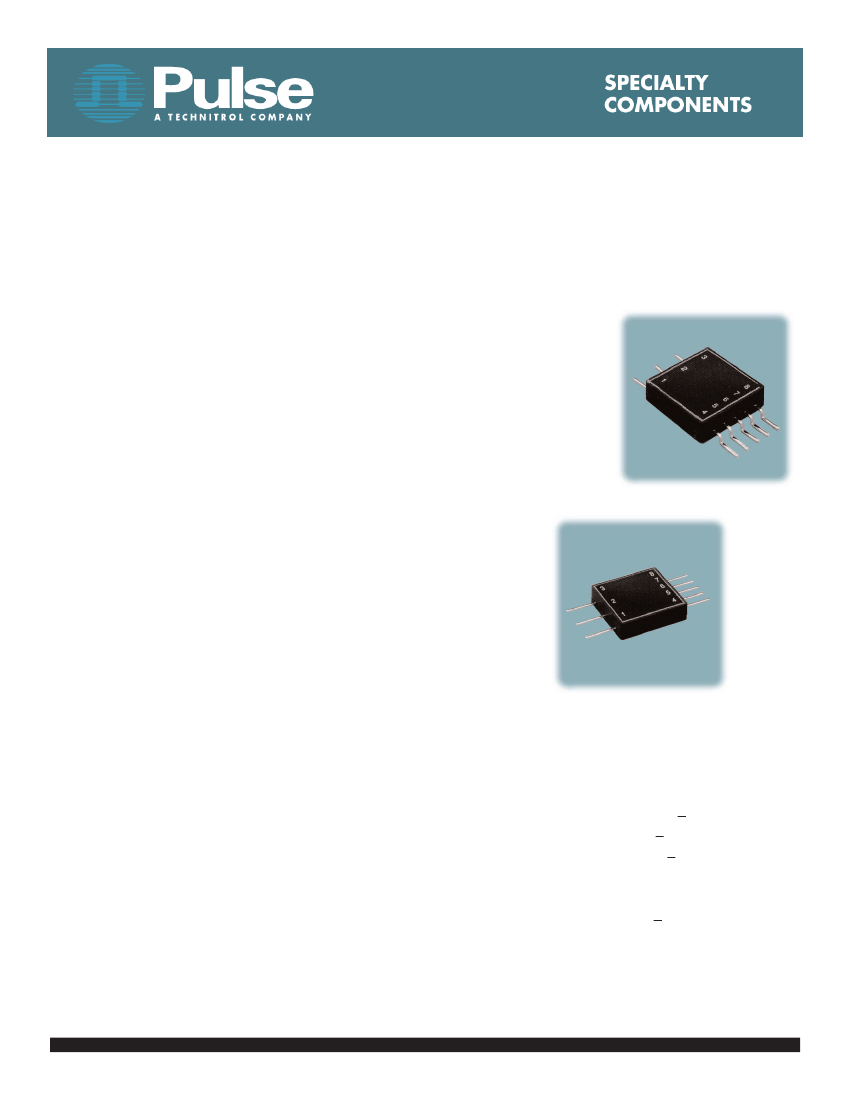

These non-QPL interface transformers conform to all electrical
and physical parameters of MIL-PRF-21038/27 and provide
performance as required over 0
o
to +70
o
C. Built and tested in
ISO 9002 approved facilities.
for use in MIL-STD-1553 applications
s
low profile, 0.155 in. height
s
dual ratio in a single package
s
performance to MIL-PRF-21038/27 requirements
s
built in ISO 9002 facility
s
0
o
to +70
o
C
s
APPLICABLE SPECIFICATIONS
MIL-STD-1553B
s
MIL-STD-202
s
MIL-T-10727
s
MIL-PRF-21038
s
ISO 9002
s
SUMMARY PERFORMANCE SPECIFICATIONS
Impedance................................................................................................... see table
Droop..............................................................................................................
<
20%
Overshoot..................................................................................................
+
1V max
Common mode rejection (CMR).................................................................
>
45 dB
Frequency range (no load)............................................................. 75 kHz to 1MHz
Operating temperature range................................................................ 0o to +70oC
Weight.......................................................................................................
<
5 grams
Insulation resistance (min)........................................... 10K megohms @ 250 Vdc
Dielectric withstanding voltage................................................................ 100 Vrms
TWO PEARL BUCK COURT
q
BRISTOL, PA 19007-6812
q
TEL 215-781-6400
q
FAX 215-781-6403
q
www.pulsespecialty.com
CHARACTERISTICS
PA RT N O.
T ERMINALS
RATIO (±3%)
R DC
(ohm s)
MAX.
IMP EDA NC E
(ohm s)
MIN.
GLC1553-1
FLC1553-1
GLC1553-2
FLC1553-2
GLC1553-3
FLC1553-3
GLC1553-5*
FLC1553-5*
GLC1553-40*
FLC1553-40*
GLC1553-45*
FLC1553-45*
1-3:4-8
1-3:5-7
1-3:4-8
1-3:5-7
1-3:4-8
1-3:5-7
1-3:4-8
1-3:5-7
1-3:4-8
1-3:5-7
1-3:4-8
1-3:5-7
1CT:1CT
1CT:. 707CT
1.4CT:1CT
2CT:1CT
1.25CT:1CT
1.66CT:1CT
1CT:2.12CT
1CT:1.5CT
1CT:2.5CT
1CT:1.75CT
1CT:2.5CT
1CT:1.79CT
1-3 = 3.0
4-8 = 3.0
1-3 = 3.5
4-8 = 3.0
1-3 = 3.2
4-8 = 3.0
1-3 = 1.0
4-8 = 3.5
1-3 = 1.0
4-8 = 3.5
1-3 = 1.0
4-8 = 3.5
(1-3)
4,000
(1-3)
7,200
(1-3)
4,000
(4-8)
4,000
(4-8)
4,000
(4-8)
4,000
*Designed for transceivers utilizing a single supply voltage (+5V).

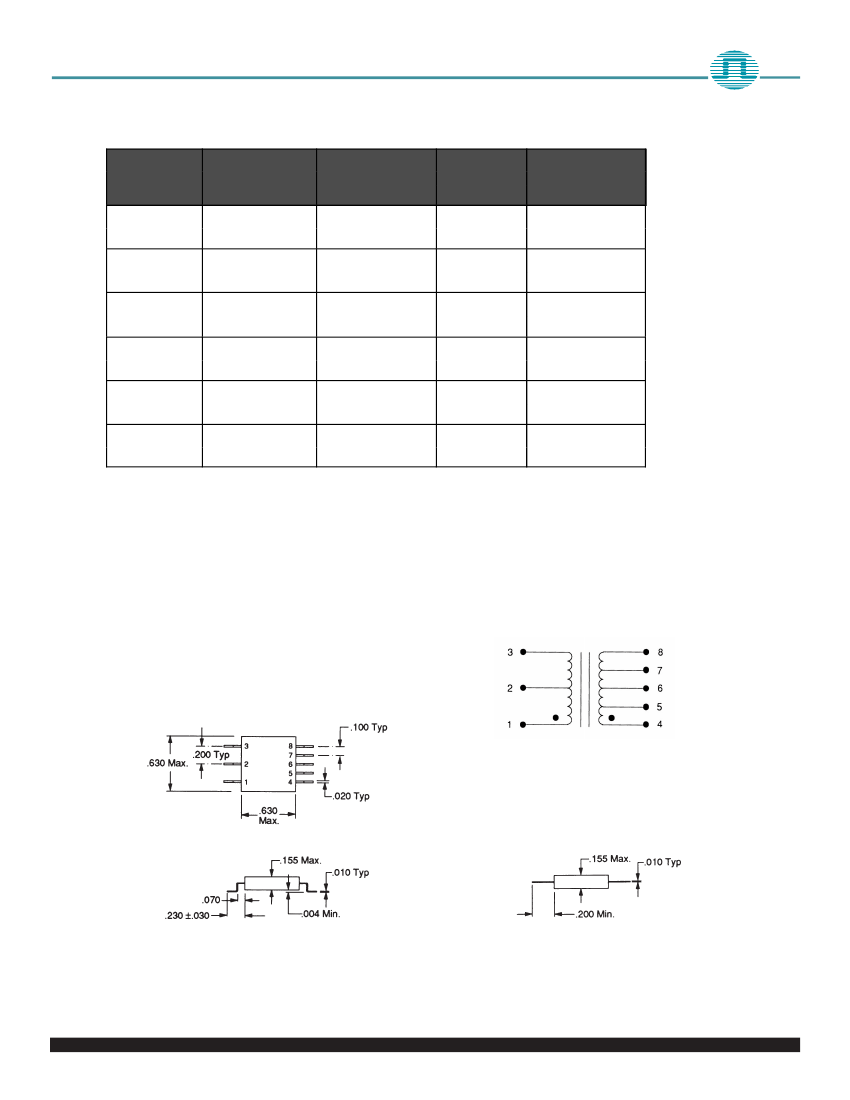

SCHEMATICS AND DIMENSIONS
Notes:
1. All dimensions are in inches.
2. Tolerances: .xx = +.008
3. All specifications and dimensions
are subject to change without notice
.
GLC1553-X
FLC1553-X
TWO PEARL BUCK COURT
q
BRISTOL, PA 19007-6812
q
TEL 215-781-6400
q
FAX 215-781-6403
q
www.pulsespecialty.com
