MW511 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> MW511

MW511: DescriptionVoltage Controlled Oscillator, 2162MHz Min, 2255MHz Max,; CategoryPassive components oscillator; File Size32KB，1 Pages; ManufacturerMicronetics ( Mercury ); Websitehttp://www.micronetics.com/

Download Datasheet Parametric View All

MW511 Overview

Voltage Controlled Oscillator, 2162MHz Min, 2255MHz Max,

MW511 Parametric

Parameter Name	Attribute value
Maker	Micronetics ( Mercury )
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Maximum control voltage	2.7 V
Minimum control voltage	0.3 V
Modulation sensitivity	1.5 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	2255 MHz
Minimum operating frequency	2162 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	6 dBm
phase noise	-97 dBc/Hz
physical size	8.0mm x 6.0mm x 1.9mm
Maximum slew rate	20 mA
Nominal supply voltage	3 V
surface mount	YES

Preview

Download Datasheet

View All

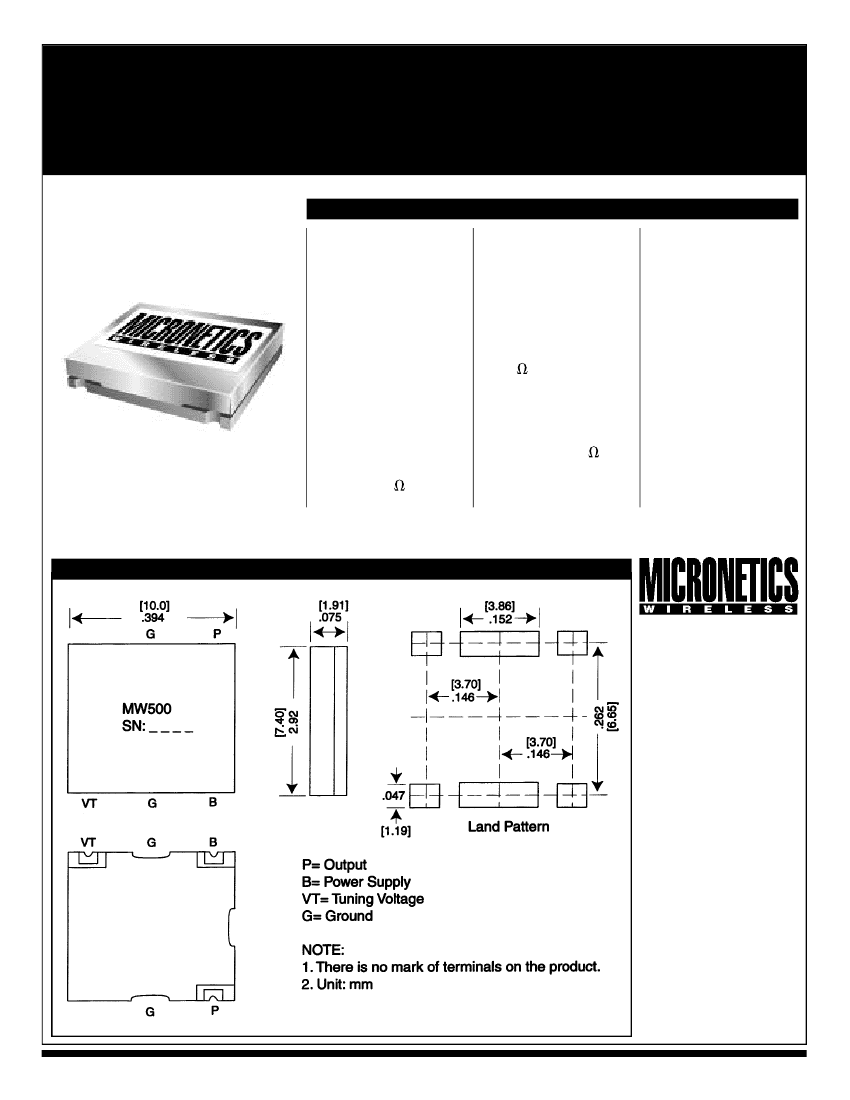

MW511 VCO

FOR

WCDMA A

PPLICATIONS

PECIFICATIONS

Frequency Range:

2162 MHz @ 0.3V

2255 MHz @ 2.7V

Tuning Sensitivity:

≥40

MHz/V

Output Power:

9±3 dBm

Pushing:

< 1 MHz/V

Pulling: < 5 MHz

(VSWR=2.0:1, For All

Phase, Ref.=50 )

Phase Noise:

@10 kHz:

≤-97

dBc/Hz

@100 kHz:

≤-117

dBc/Hz

Spurious Response

(2nd Harmonics):

≤-10

dBc

Input Impedance:

≥10

Input Capacitance:

≤50

Load Impedance: 50

Supply Voltage (VCC):

3.0 ± 0.1 V

Supply Current:

≤20

Tuning Voltage (VT):

0.3 to 2.7 V

Operating Temperature:

-40 to +85°C

Absolute Maximum Ratings:

Supply Voltage: 5V

Storage Temperature:

-40 to +85°C

MW500 VCO P

ACKAGE

UTLINE

M I C R O N E T I C S / 26 HAMPSHIRE DRIVE / HUDSON, NH 03051 / TEL: 603-883-2900 / FAX: 603-882-8987 / CUSTOMER HOTLINE: 1-800-963-3382 / WEB: WWW . M W I R E L E S S . C O M
