5962-9158505MZA datasheet, PDF

Datasheet> All Categories > storage> storage> 5962-9158505MZA

5962-9158505MZA: DescriptionFIFO, 1KX9, 40ns, Asynchronous, CMOS, CDFP28, CERAMIC, FP-28; Categorystorage storage; File Size547KB，18 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-9158505MZA Overview

FIFO, 1KX9, 40ns, Asynchronous, CMOS, CDFP28, CERAMIC, FP-28

5962-9158505MZA Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	DFP
package instruction	DFP,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	40 ns
Other features	RETRANSMIT
period time	50 ns
JESD-30 code	R-GDFP-F28
JESD-609 code	e0
memory density	9216 bit
memory width	9
Number of functions	1
Number of terminals	28
word count	1024 words
character code	1000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	1KX9
Exportable	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal location	DUAL

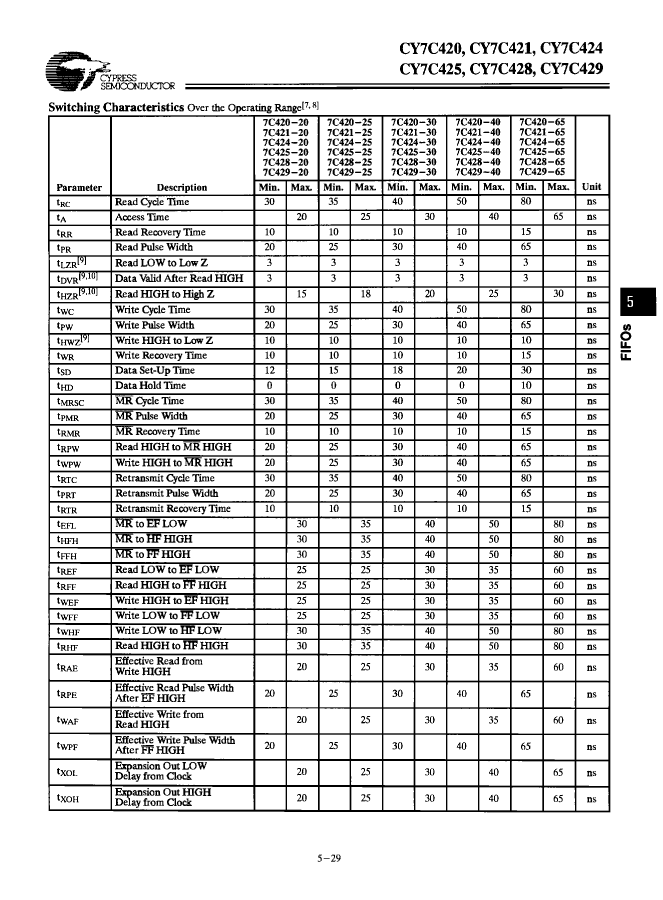

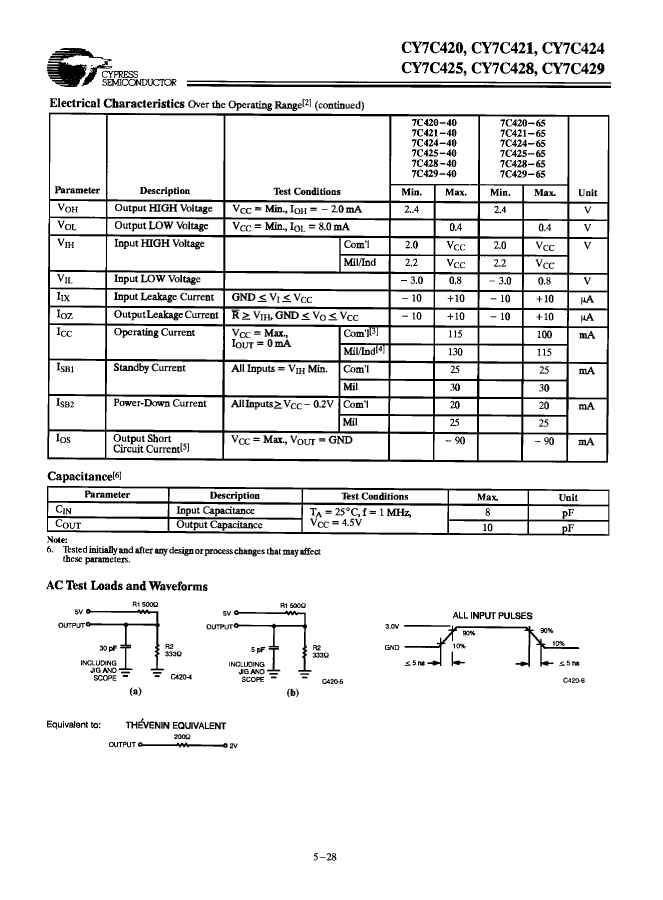

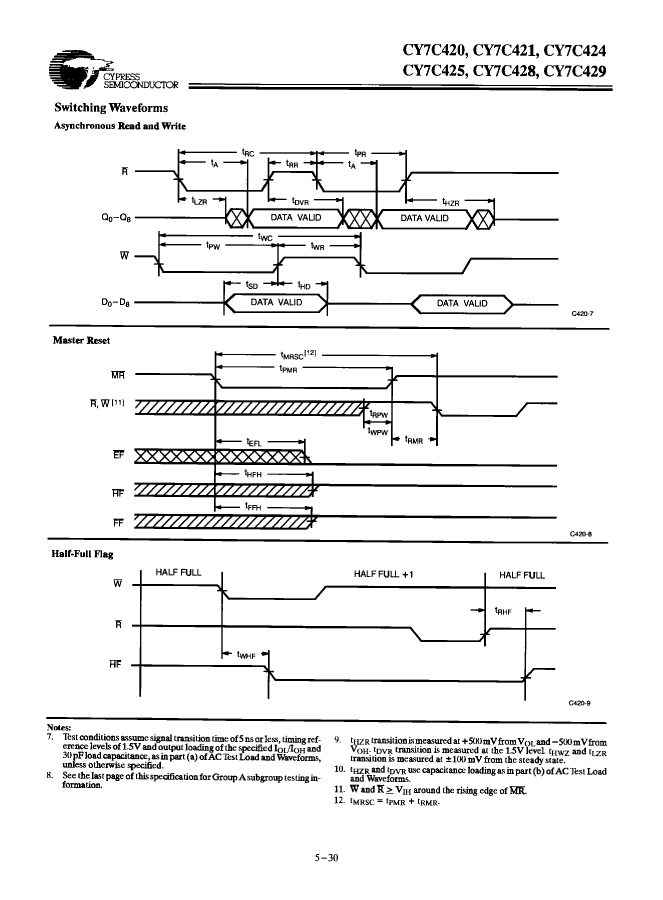

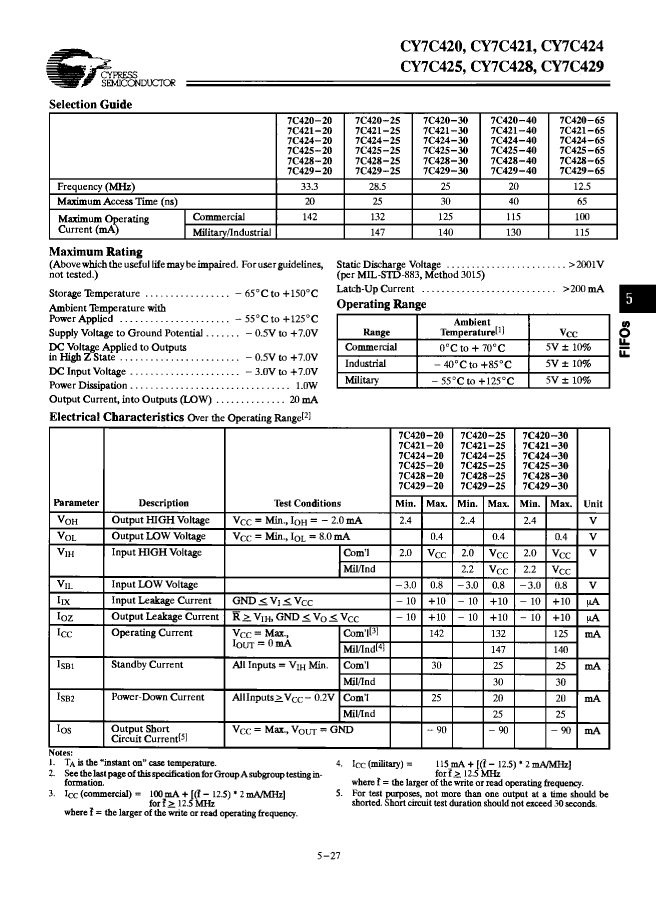

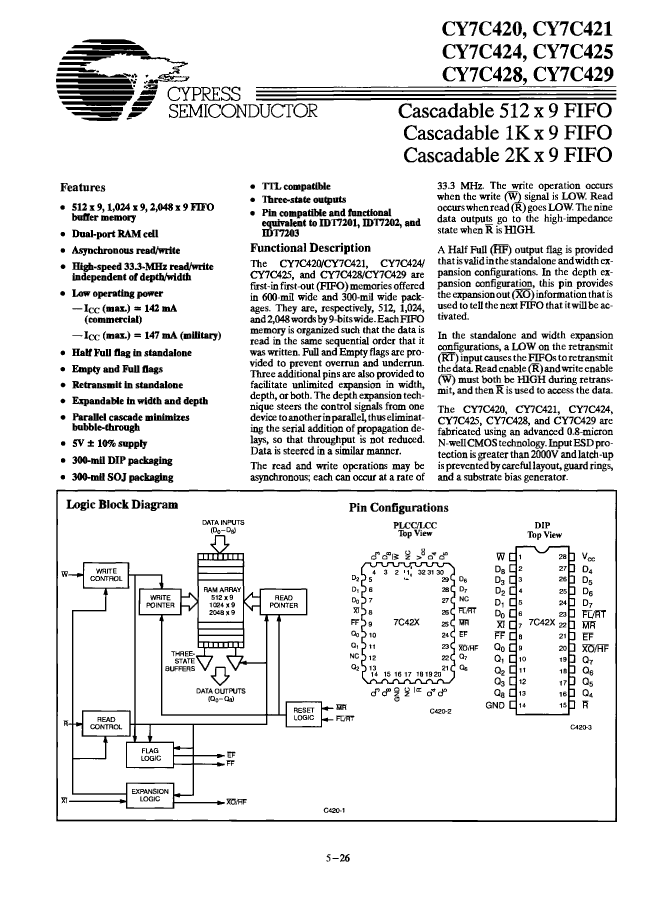

Preview

Download Datasheet

View All

5962-9158505MZA Related Products

	5962-9158505MZA	5962-9158503MZA	5962-9158506MZA
Description	FIFO, 1KX9, 40ns, Asynchronous, CMOS, CDFP28, CERAMIC, FP-28	FIFO, 1KX9, 65ns, Asynchronous, CMOS, CDFP28, CERAMIC, FP-28	FIFO, 1KX9, 30ns, Asynchronous, CMOS, CDFP28, CERAMIC, FP-28
Parts packaging code	DFP	DFP	DFP
package instruction	DFP,	DFP,	DFP,
Contacts	28	28	28
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum access time	40 ns	65 ns	30 ns
Other features	RETRANSMIT	RETRANSMIT	RETRANSMIT
period time	50 ns	80 ns	40 ns
JESD-30 code	R-GDFP-F28	R-GDFP-F28	R-GDFP-F28
JESD-609 code	e0	e0	e0
memory density	9216 bit	9216 bit	9216 bit
memory width	9	9	9
Number of functions	1	1	1
Number of terminals	28	28	28
word count	1024 words	1024 words	1024 words
character code	1000	1000	1000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
organize	1KX9	1KX9	1KX9
Exportable	NO	NO	NO
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	-	1	1
