KFPC100X-SV-29: DescriptionCard Edge Connector, 29 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size376KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

KFPC100X-SV-29 Overview

Card Edge Connector, 29 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

KFPC100X-SV-29 Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	29
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

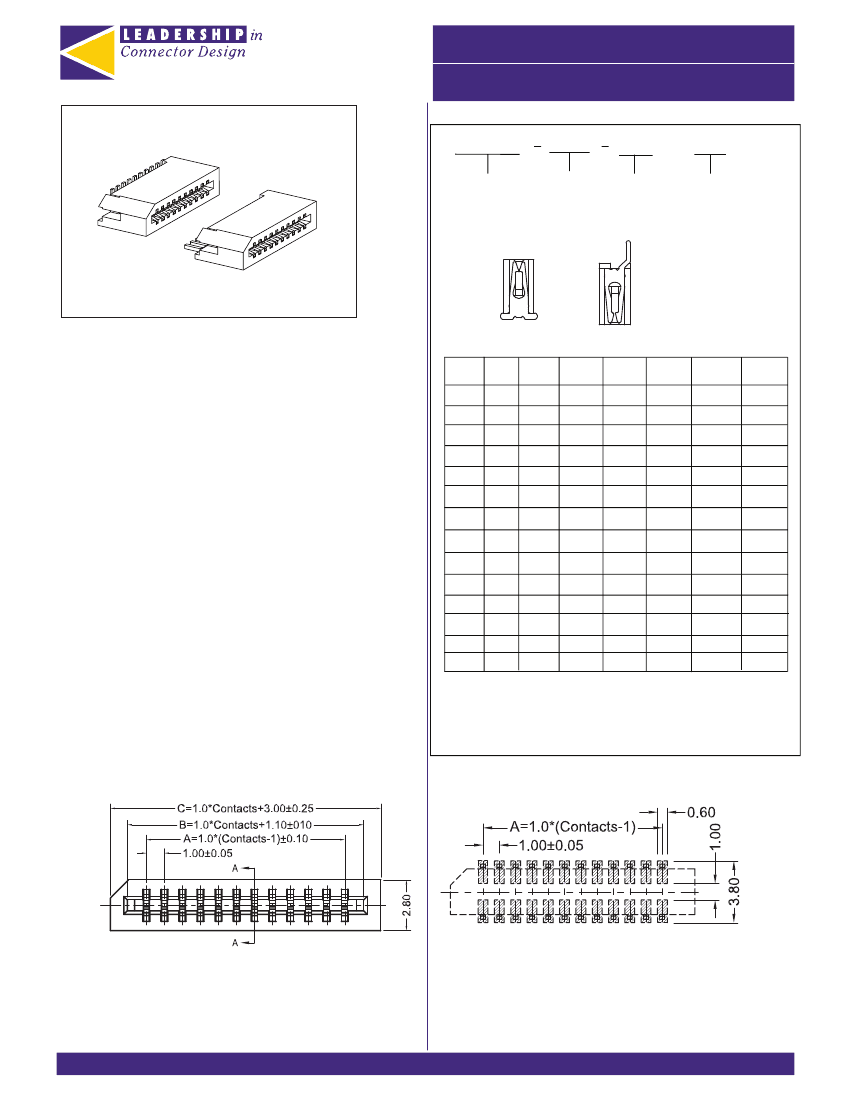

1.0 FPC/FFC SMD Side Entry

KYCON

RoHS

KFPC100X-S Series

Ordering Information

Series

Style

Contacts

Packaging

Series

KFPC100X -

1.0 FPC/FFC SMD Side Entry

Style

KFPC100X Series

SV - Vertical Entry

1.0 FPC/FFC SMD Side Entry

Features

Number of Contacts

No of

Dim

2.0

3.0

4.0

5.0

6.0

7.0

8.0

9.0

10.0

11.0

12.0

13.0

14.0

15.0

Dim

4.2

5.2

6.2

7.2

8.2

9.2

10.2

11.2

12.2

13.2

14.2

15.2

16.2

17.2

Dim

10.4

11.4

12.4

13.4

14.4

15.4

16.4

17.4

18.4

19.4

20.4

21.4

22.4

23.4

SR - Right angle

No of

•

Flexible Flat Connector (FFC) and

Flexible Printed Connector (FPC) offered.

•

1.00mm Pitch version.

•

Offered as Zero Insertion Force (ZIF)

Dim

17.0

18.0

19.0

20.0

21.0

22.0

23.0

24.0

25.0

26.0

27.0

28.0

29.0

30.0

Dim

19.2

20.2

21.2

22.2

23.2

24.2

25.2

26.2

27.2

28.2

29.2

30.2

31.2

32.2

Dim

25.4

26.4

27.4

28.4

29.4

30.4

31.4

32.4

33.4

34.4

35.4

36.4

37.4

38.4

•

Pin counts from 3 to 30 Available

Performance Specifications

Material and Finish

Housing

:High Temp plastic (UL94V-0)

Contact

: Copper Alloy

Plated

: Tin Plated

Electrical Characteristics

Current Rating :

1.0A AC/DC

Voltage Rating :

100V AC/DC

Resistance :

30m ohm.max.

Insulstion Resistance :100M

ohm.Min.

Withstanding Voltage :500V

R.m.s for one minute

Operating Temperature Range :

-25ºC to +105ºC

Packaging

Blank - Bulk

T - Tape and Reel (SRX option only)

C-T - Tape and Reel with Cap for pick & place

(SVX option only)

Contact Kycon for more option

SRX and SVX PCB Layout Reference

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
