MSM8128WA-70 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MSM8128WA-70

MSM8128WA-70: DescriptionStandard SRAM, 128KX8, 70ns, CMOS, CQCC32, 0.450 X 0.550 INCH, LCC-32; Categorystorage storage; File Size201KB，10 Pages; ManufacturerAPTA Group Inc

Download Datasheet Parametric Compare View All

MSM8128WA-70 Overview

Standard SRAM, 128KX8, 70ns, CMOS, CQCC32, 0.450 X 0.550 INCH, LCC-32

MSM8128WA-70 Parametric

Parameter Name	Attribute value
Maker	APTA Group Inc
Parts packaging code	QFJ
package instruction	QCCN,
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	70 ns
JESD-30 code	R-CQCC-N32
length	14.03 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	2.03 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.5 mm

Preview

Download Datasheet

View All

TRAILING EDGE PRODUCT - MINIMUM ORDER APPLIES

PRODUCT MAY BE MADE OBSOLETE WITHOUT NOTICE

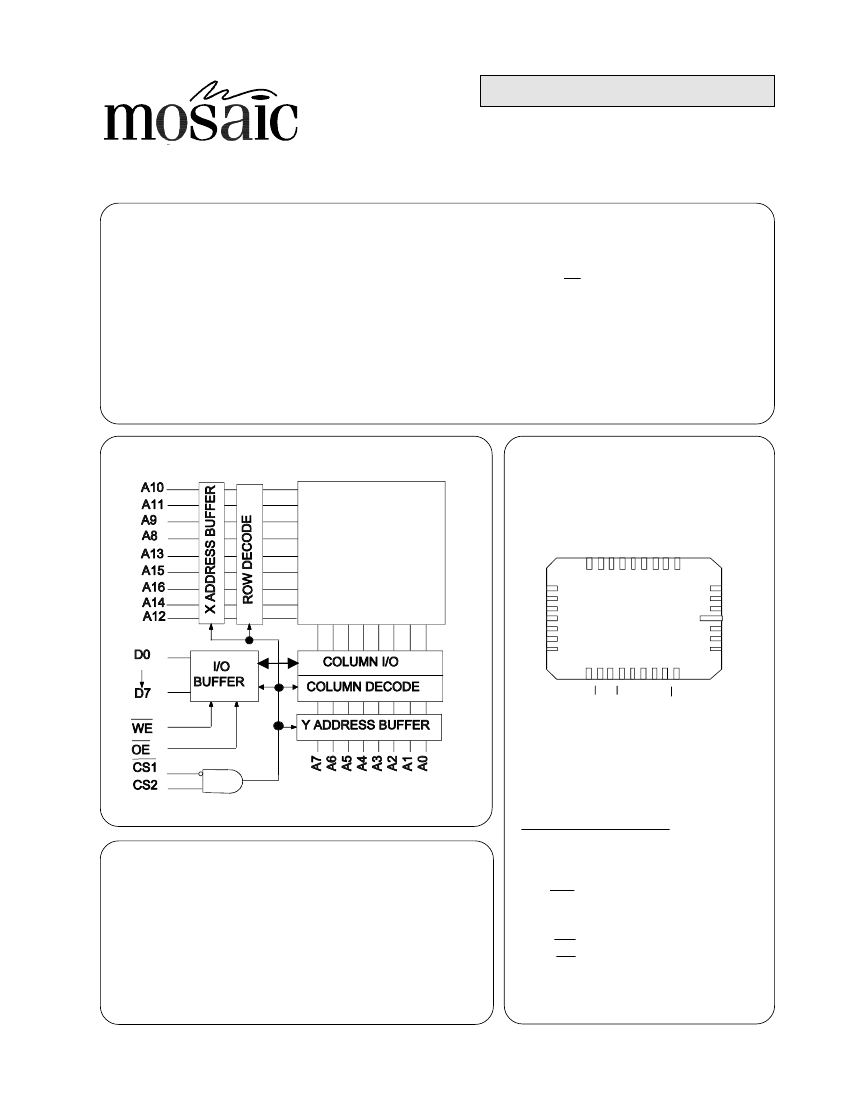

128K x 8 SRAM

MSM8128A - 85/10/12

Issue 1.0 April 2001

Description

The MSM8128 is a 1Mbit monolithic SRAM

organised as 128K x 8. It is available in with

access times of 85, 100 & 120ns. It has a low

power standby version and has 3.0V battery

backup capability. It is directly TTL compatible

and has common data inputs and outputs.

Two pinout variants (single and dual CS) are

available.

All versions may be screened in accordance with

MIL-STD-883.

131,072 x 8 CMOS Static RAM

Features

Access Times of 85/100/120 ns

JEDEC standard Dual CS footprints.

Operating Power

605 mW (max)

Low Power Standby (-L) 2.53 mW (max)

Low Voltage Data Retention.

Completely Static Operation

Directly TTL compatible.

May be processed in accordance with MIL-STD-883

Block Diagram

Pin Definition

MEMORY ARRAY

512 X 2048

GND

A12

A14

A16

VCC

A15

CS2

TOP VIEW

CS1

A10

A11

A13

Package Details

Pin Count

Description

Package Type

LCC (0.45 x 0.55" nom)

Package details on pages 8 & 9.

See Page 9 for X pinout

Pin Functions

A0-A16

Address Inputs

D0-7

Data Input/Output

CS1

Chip Select 1

CS2

Chip Select 2

Output Enable

Write Enable

No Connect

Power (+5V)

GND

Ground

MSM8128WA-70 Related Products

	MSM8128WA-70	MSM8128WAL-70	MSM8128WALM-70	MSM8128WAI-70	MSM8128WAM-70	MSM8128WAMB-70	MSM8128WALMB-70	MSM8128WALI-70
Description	Standard SRAM, 128KX8, 70ns, CMOS, CQCC32, 0.450 X 0.550 INCH, LCC-32	Standard SRAM, 128KX8, 70ns, CMOS, CQCC32, 0.450 X 0.550 INCH, LCC-32	Standard SRAM, 128KX8, 70ns, CMOS, CQCC32, 0.450 X 0.550 INCH, LCC-32	Standard SRAM, 128KX8, 70ns, CMOS, CQCC32, 0.450 X 0.550 INCH, LCC-32	Standard SRAM, 128KX8, 70ns, CMOS, CQCC32, 0.450 X 0.550 INCH, LCC-32	Standard SRAM, 128KX8, 70ns, CMOS, CQCC32, 0.450 X 0.550 INCH, LCC-32	Standard SRAM, 128KX8, 70ns, CMOS, CQCC32, 0.450 X 0.550 INCH, LCC-32	Standard SRAM, 128KX8, 70ns, CMOS, CQCC32, 0.450 X 0.550 INCH, LCC-32
Parts packaging code	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ
package instruction	QCCN,	QCCN,	QCCN,	QCCN,	QCCN,	QCCN,	QCCN,	QCCN,
Contacts	32	32	32	32	32	32	32	32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	3A001.A.2.C	EAR99	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	EAR99
Maximum access time	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns
JESD-30 code	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32
length	14.03 mm	14.03 mm	14.03 mm	14.03 mm	14.03 mm	14.03 mm	14.03 mm	14.03 mm
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	125 °C	85 °C	125 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-	-	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C	-40 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.03 mm	2.03 mm	2.03 mm	2.03 mm	2.03 mm	2.03 mm	2.03 mm	2.03 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY	MILITARY	INDUSTRIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm
Maker	APTA Group Inc	-	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc
