M12536JP10FREQ1: DescriptionParallel - Fundamental Quartz Crystal, 13MHz Min, 19.9999MHz Max, ROHS COMPLIANT, LEADLESS, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size56KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M12536JP10FREQ1 Overview

Parallel - Fundamental Quartz Crystal, 13MHz Min, 19.9999MHz Max, ROHS COMPLIANT, LEADLESS, CERAMIC PACKAGE-4

M12536JP10FREQ1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
package instruction	ROHS COMPLIANT, LEADLESS, CERAMIC PACKAGE-4
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	30 ppm
load capacitance	10 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	19.9999 MHz
Minimum operating frequency	13 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L3.2XB2.5XH0.65 (mm)/L0.126XB0.098XH0.026 (inch)
Series resistance	80 Ω
surface mount	YES

Preview

Download Datasheet

View All

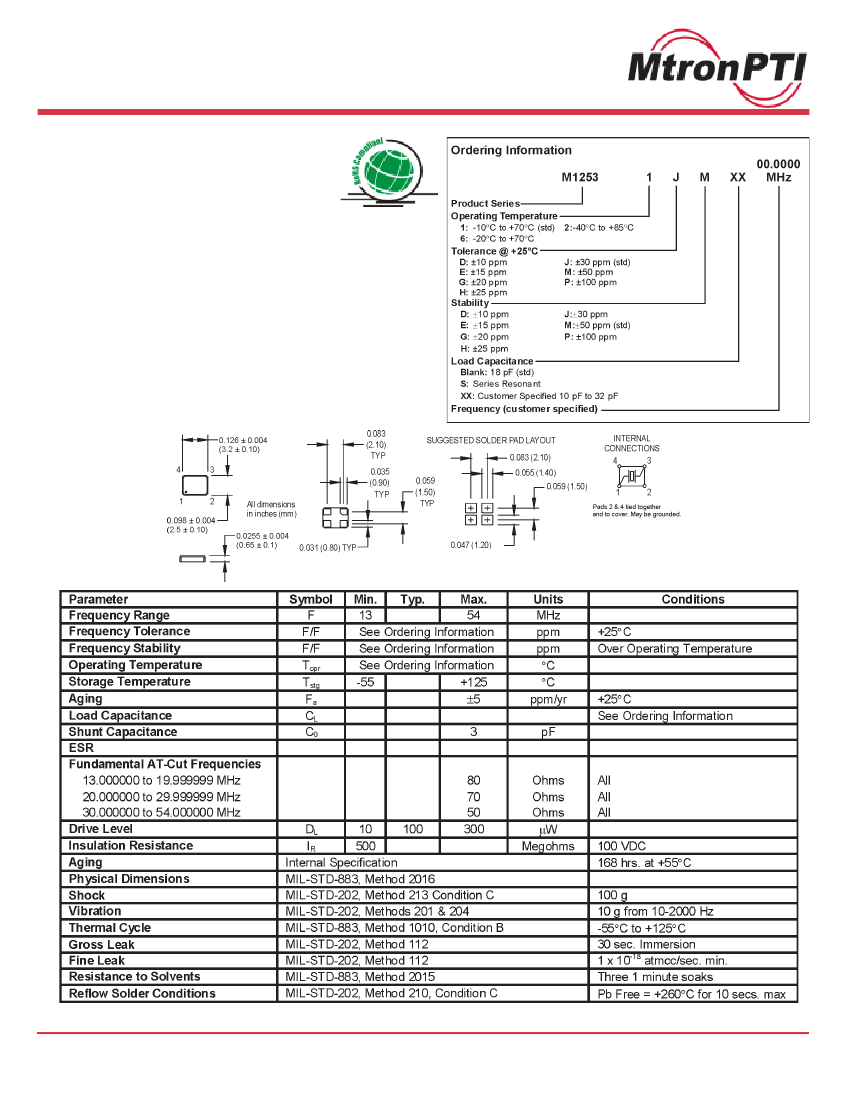

M1253 Surface Mount Crystal

2.5 x 3.2 x 0.65 mm

Features:

•

Ultra-Miniature Size

•

Tape & Reel

•

Leadless Ceramic Package - Seam Sealed

Applications:

•

Handheld Electronic Devices

•

PDA, GPS, MP3

•

Portable Instruments

•

PCMCIA Cards

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Issue 1: 11/22/05
