MMBZ5225 to MMBZ5267
Vishay Semiconductors
Small Signal Zener Diodes
Features
• Silicon Planar Power Zener Diodes.
• Standard Zener voltage tolerance is ± 5 % with a
"B" suffix, suffix “C” is ± 2 % tolerance.
• High temperature soldering guaranteed:
250 °C/10 seconds at terminals.
• These diodes are also available in MiniMELF case
with the type designation ZMM5225...ZMM5267,
SOD-123 case with the type designation
MMSZ5225... MMSZ5267.
3
1
2
18078
Mechanical Data
Case:
SOT-23 Plastic case
Weight:
approx. 8.8 mg
Packaging Codes/Options:
GS18 / 10 k per 13 " reel (8 mm tape), 10 k/box
GS08 / 3 k per 7 " reel (8 mm tape), 15 k/box
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Zener current (see Table
"Characteristics")
Power dissipation
T
A
= 25 °C
P
tot
P
tot
1)
2)
Test condition
Symbol
Value
Unit
225
1)
300
2)
mW
mW
On FR - 5 board using recommended solder pad layout
On alumina substrate
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Thermal resistance junction to
ambient air
Maximum junction temperature
Storage temperature range
1)
Test condition
Symbol
R
thJA
T
j
T
S
Value
556
1)
150
-65 to + 175
Unit
°C/W
°C
°C
On FR - 5 board using recommended solder pad layout
Document Number 85772
Rev. 1.3, 08-Nov-04
www.vishay.com
1
MMBZ5225 to MMBZ5267
Vishay Semiconductors
the Zener current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK
. Zener Impedance is measured at two points to insure a sharp knee on the
breakdown curve and to eliminate unstable units.
2)
3)
Valid provided case is kept at ambient temperature.
Measured at thermal equilibrium.
Typical Characteristics (Tamb = 25
°C
unless otherwise specified)
18114
18672

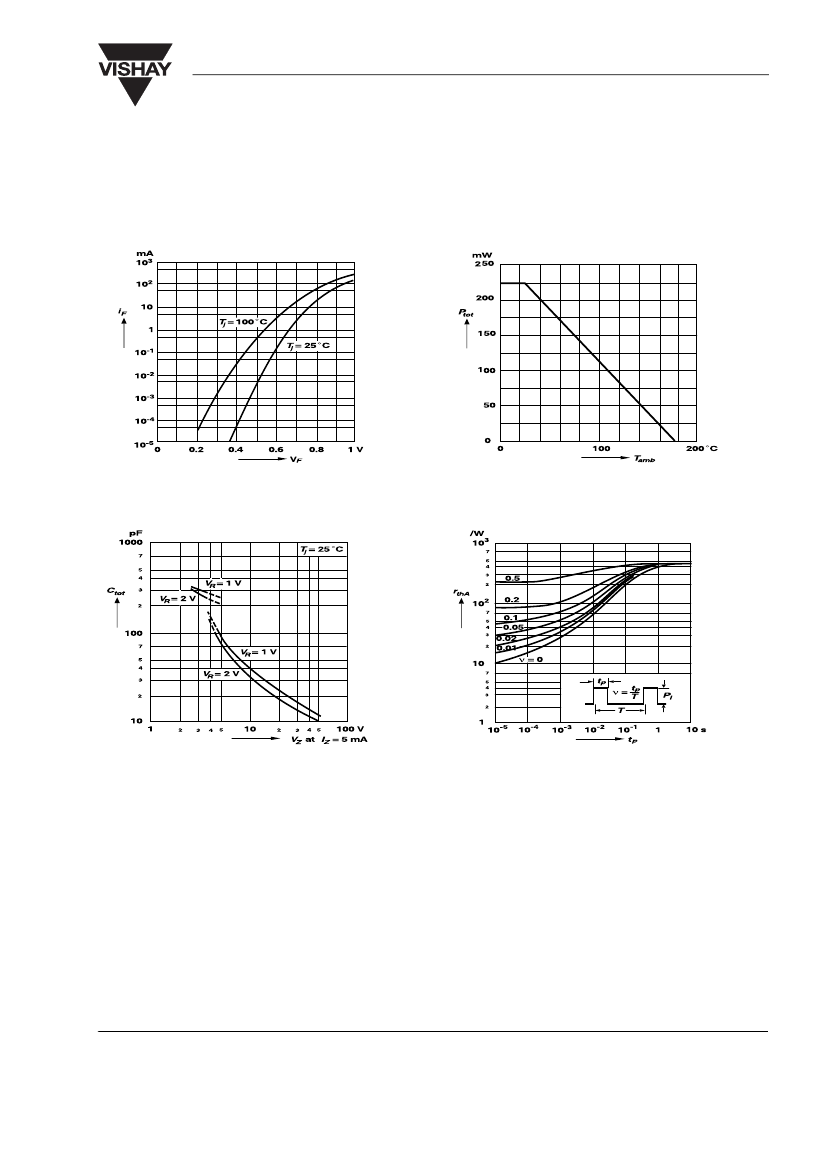

Figure 1. Forward characteristics
Figure 3. Admissible Power Dissipation vs. Ambient Temperature
°
C
18118
18116
Figure 2. Capacitance vs. Zener Voltage
Figure 4. Pulse Thermal Resistance vs. Pulse Duration
Document Number 85772
Rev. 1.3, 08-Nov-04
www.vishay.com
3
MMBZ5225 to MMBZ5267
Vishay Semiconductors
