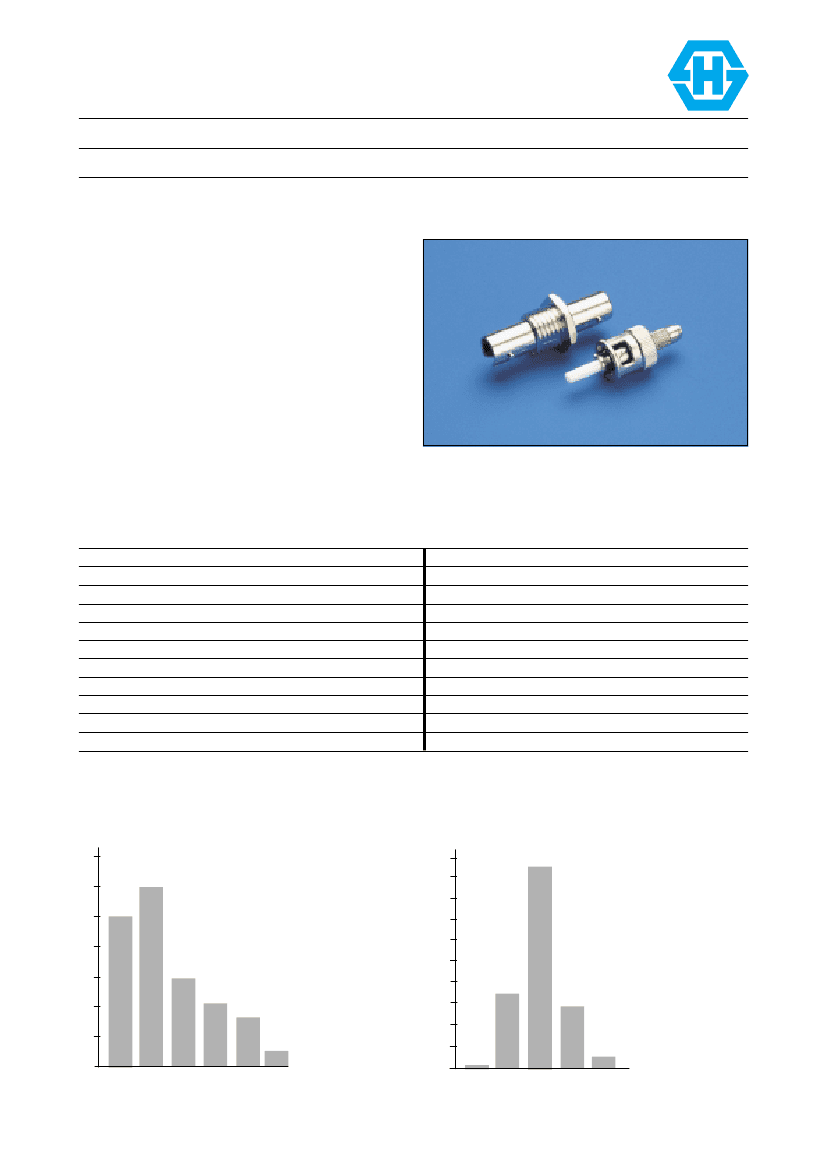

SUHNER FIBEROPTIC
FST-SECURITY CONNECTOR
Features
- Fully strain reliefed which guarantees
connection even with strain on both ends
- Spring loaded zirconia ceramic ferrule
- Special ferrule preform for short polishing time
Applications
- LAN
- MAN, CATV, sensor systems
Specifications
Insertion loss singlemode, E9/125, acc. to ECO class
Return loss singlemode
Insertion loss mulitmode, G50, G62.5/125
Insertion loss multimode, G100/140
Strain relief
Operating temperature
Durability
Assembly procedure
Connection
Lock mechanism
Standard
50% < 0.23dB; 98% < 0.5dB
50% > 49dB; 98% > 47dB
50% < 0.2dB; 98% < 0.5dB
50% < 0.8dB; 98% < 1.2dB
crimped, 100N (conditioned by type of cable)
-40° to +85°C (conditioned by type of cable)
min. 500 cycles
glue and polish
physical contact of ferrules
bayonet catch
according to IEC 874-10
Insertion loss singlemode
Number of measurements
70
60
50
40
30
20
10
0
0,1 0,2
0,3 0,4 0,5 0,6
Insertion loss [dB]
Return loss singlemode
Number of measurements
100
90
80
70
60
50
40
30
20
10
0
47
48
49 50 51
Return loss [dB]
2.5
8
10.1
10.3
28.3
12.5
SW 12.0
9.5
4
9.6
max. 3.4mm
9.9
29.4
2
3/8-24 UNF-2A
Mounting hole
Wall thickness
Ordering table
Connector
FST-SEC-A001
FST-SEC-B001
FST-SEC-C001
Adapter
FST-FST-C100
Crimpset black
009-BK-B001
021-BK-B001
028-BK-B001
035-BK-B001
FST-SECURITY connector, singlemode, zirconia ferrule
FST-SECURITY connector, multimode, zirconia ferrule
FST-SECURITY connector, multimode, metal ferrule
FST-HQ adapter with 1 loose, 1 fixed nut and 1 washer
for D-hole mounting
for
for
for
for
cable-∅
cable-∅
cable-∅
cable-∅
< 1.0mm
2.0 - 2.3mm
2.6 - 2.9mm
3.0 - 3.6mm
SW 7.6
8.0
Waiver
While the information contained has been carefully complied to the best of our present
knowledge, it is not intended as representation or warranty of any kind on our part regarding
the fitness of the products concerned for any particular use or purpose and neither shall any
statement contained herein be construed as a recommendation to infringe any industrial
property rights or as a liscense to use any such rights. The fitness of each product for any
particular purpouse must be checked beforehand with our specialists.
