FPH-2321T: DescriptionBoard Connector, 23 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking Mech, Blue Insulator, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

FPH-2321T Overview

Board Connector, 23 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking Mech, Blue Insulator, Receptacle

FPH-2321T Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH STANDOFFS
body width	0.331 inch
subject depth	0.445 inch
body length	2.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	FPH
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	150u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	23
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

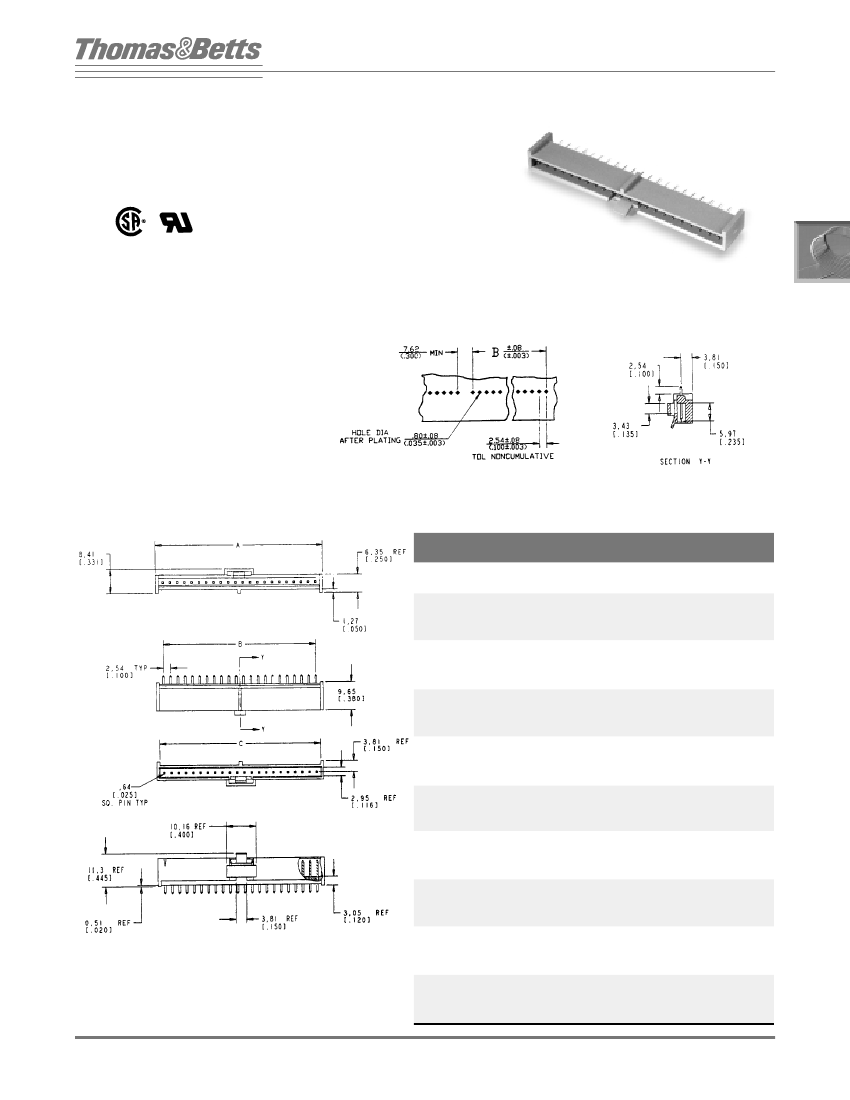

Flexible Interconnections

Flexpac

®

FLEXPAC

®

LOCKING HEADER,

SINGLE ROW

STRAIGHT CONTACTS

.100" CENTER SPACING

LR49571

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Thermoplastic rated 94V-0

C

OLOR

:

Blue

C

ONTACT

M

ATERIAL

:

Phosphor Bronze

C

ONTACT

P

LATING

:

Contact Area, .000030" Gold

over .000050" nickel, PCB Area: .000150" Tin over

.000050" nickel

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

3 amps

I

NSULATION

R

ESISTANCE

:

>1 x 10

9

0hms @ 500 VDC

DWV:

> 500 VRMS at sea level

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

- 40˚C TO 105°C

UL A

PPROVAL

:

E47817

M

ATING

C

ONNECTOR

See pages 175, 177

Ordering Information

GOLD CONTACT

PLATING

FPH-0421G

FPH-0521G

FPH-0621G

FPH-0721G

FPH-0821G

FPH-0921G

FPH-1021G

FPH-1121G

FPH-1221G

FPH-1321G

FPH-1421G

FPH-1521G

FPH-1621G

FPH-1721G

FPH-1821G

FPH-1921G

FPH-2021G

FPH-2121G

FPH-2221G

FPH-2321G

FPH-2421G

FPH-2521G

FPH-2621G

FPH-2721G

FPH-2821G

FPH-2921G

FPH-3021G

FPH-3121G

FPH-3221G

TIN CONTACT

PLATING

FPH-0421T

FPH-0521T

FPH-0621T

FPH-0721T

FPH-0821T

FPH-0921T

FPH-1021T

FPH-1121T

FPH-1221T

FPH-1321T

FPH-1421T

FPH-1521T

FPH-1621T

FPH-1721T

FPH-1821T

FPH-1921T

FPH-2021T

FPH-2121T

FPH-2221T

FPH-2321T

FPH-2421T

FPH-2521T

FPH-2621T

FPH-2721T

FPH-2821T

FPH-2921T

FPH-3021T

FPH-3121T

FPH-3221T

NO. OF

POS.

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

A

12.70 (.500)

15.24 (.600)

17.78 (.700)

20.32 (.800)

22.86 (.900)

25.40 (1.000)

27.94 (1.100)

30.48 (1.200)

33.02 (1.300)

35.56 (1.400)

38.10 (1.500)

40.64 (1.600)

43.18 (1.700)

45.72 (1.800)

48.26 (1.900)

50.80 (2.000)

53.34 (2.100)

55.88 (2.200)

58.42 (2.300)

60.96 (2.400)

63.50 (2.500)

66.04 (2.600)

68.58 (2.700)

71.12 (2.800)

73.66 (2.900)

76.20 (3.000)

78.74 (3.100)

81.28 (3.200)

83.82 (3.300)

DIMENSIONS

B

7.62 (.300)

10.16 (.400)

12.70 (.500)

15.24 (.600)

17.78 (.700)

20.32 (.800)

22.86 (.900)

25.40 (1.000)

27.94 (1.100)

30.48 (1.200)

33.02 (1.300)

35.56 (1.400)

38.10 (1.500)

40.64 (1.600)

43.18 (1.700)

45.72 (1.800)

48.26 (1.900)

50.80 (2.000)

53.34 (2.100)

55.88 (2.200)

58.42 (2.300)

60.96 (2.400)

63.50 (2.500)

66.04 (2.600)

68.58 (2.700)

71.12 (2.800)

73.66 (2.900)

76.20 (3.000)

78.74 (3.100)

C

10.57 (.416)

13.11 (.516)

15.65 (.616)

18.19 (.716)

20.73 (.816)

23.27 (.916)

25.81 (1.016)

28.35 (1.116)

30.89 (1.216)

33.43 (1.316)

35.97 (1.416)

38.51 (1.516)

41.05 (1.616)

43.59 (1.716)

46.13 (1.816)

48.67 (1.916)

51.21 (2.016)

53.75 (2.116)

56.29 (2.216)

58.83 (2.316)

61.37 (2.416)

63.91 (2.516)

66.45 (2.616)

68.99 (2.716)

71.53 (2.816)

74.07 (2.916)

76.61 (3.016)

79.15 (3.116)

81.69 (3.216)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

179
