IC-497-1-1-MF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> IC-497-1-1-MF

IC-497-1-1-MF: Description144 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SURFACE MOUNT, SOCKET; CategoryThe connector socket; File Size43KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric Compare View All

IC-497-1-1-MF Overview

144 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SURFACE MOUNT, SOCKET

IC-497-1-1-MF Parametric

Parameter Name	Attribute value
Maker	Yamaichi Electronics Co., Ltd.
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	IC-497

Preview

Download Datasheet

View All

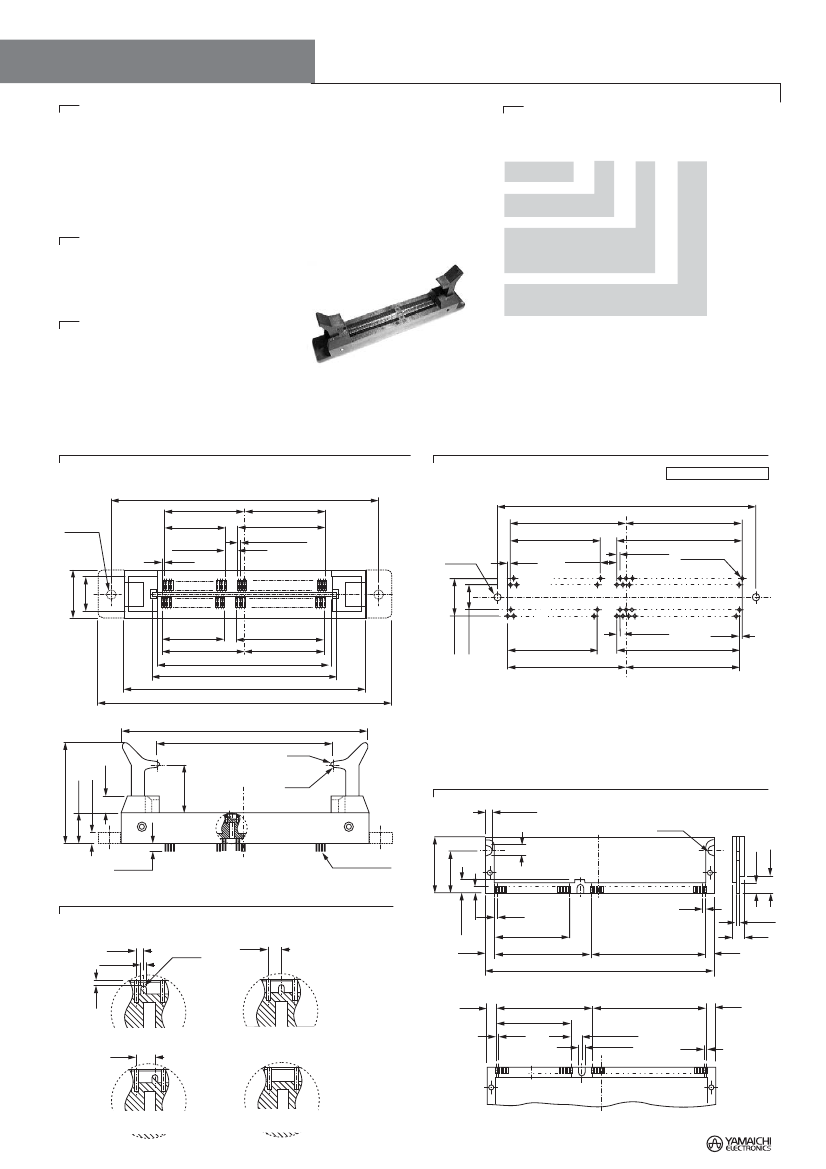

IC497 Series

Specifications

Insulation Resistance:

Dielectric Withstanding Voltage:

Contact Resistance:

Operating Temperature Range:

Mating Cycles:

Pin Count:

Dual Inline Memory Module

(DIMM, 144 pins)

Part Number

(Details)

1,000M

min. at 500V DC

700V AC for 1 minute

30m

max. at 10mA/20mV max.

–55°C to +170°C

10,000 insertions min.

144 contact pins

IC-497

1 - *

Series No.

Design No.

Positioning

Detail

(see Section "A")

MF = Flanged

Unmarked = Not Flanged

Materials and Finish

Housing: Polyetherimide (PEI), glass-filled

Contacts: Beryllium Copper (BeCu)

Plating: Gold over Nickel

Features

Card thickness 1.00mm

4 different positioning indicators

Outline Socket Dimensions

Recommended PC Board Layout

Top View from Socket

101.00 ±0.2

30.10 ±0.05

0.1

Æ3.20

+ 0

30.50 ±0.05

0.80x41=32.80 ±0.2

0.80 ±0.05

30.10 ±0.05

0.80x29=23.20 ±0.1

Æ3.20

+ 0.1

101.00 ±0.1

30.50 ±0.05

0.80x41=32.80 ±0.1

0.80 ±0.05

(0.40)

4.60 ±0.1

144-

0.80

+ 0.1

0.80x29=23.20 ±0.2

(4.60±0.1)

(0.40)

17.00

13.00

7.70±0.05

4.50±0.05

0.80x29=23.20 ±0.2

30.50 ±0.1

0.80x41=32.80 ±0.2

30.10 ±0.1

+ 0.2

63.50

+ 0.2

67.80

92.00 ±0.4

110.00 ±0.4

(91.50)

(65.00)

R 0.50

0.80 ±0.05

0.80x29=23.20 ±0.1

30.50 ±0.05

(0.40)

0.80x41=32.80 ±0.1

30.10 ±0.05

17.70 ±0.1

6.00

(36.50)

0.3

11.00

+ 0

R 1.70

Matching Module Dimensions

2.00 min

4.00

Section "A"

R 2.00

(25.40~38.10)

3.50 ±0.5

4.00 ±0.1

2.55

Positioning Details

Section "A"

1.35

2.10

R - 0.55

20.00

w0.30 x t0.30

0.80

0.80x29=23.20

27.80 ±0.05

67.60 ±0.15

0.80x41=32.80

3.70

1.00 ±0.1

3.80

max

3.30

1.10

- 0.1

0.80

3.70

27.80 ±0.05

0.80x29=23.20

0.80x41=32.80

3.30

IC-497-1-1-**

IC-497-1-2-**

0.80

see Sec. "A"

1.50 ±0.1

0.80

2.85

Back

IC-497-1-3-**

IC-497-1-4-**

B-2

Test & Burn-In

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

3.20

Front

5.00

4.00 ±0.1

IC-497-1-1-MF Related Products

	IC-497-1-1-MF	IC-497-1-3-MF	IC-497-1-2-MF	IC-497-1-4-MF
Description	144 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SURFACE MOUNT, SOCKET	144 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SURFACE MOUNT, SOCKET	144 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SURFACE MOUNT, SOCKET	144 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SURFACE MOUNT, SOCKET
Maker	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	IC-497	IC-497	IC-497	IC-497
