2x3mm RECTANGULAR SOLID LAMP
L-914ADT
AMBER
Features
z
LOW
z
ULTRA
Description
POWER CONSUMPTION.
BRIGHTNESS IS AVAILABLE.
AND RUGGED.
UNIFORMITY OF LIGHT OUTPUT.
The
2-07
source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
z
RELIABLE
z
EXCELLENT
z
SUITABLE
z
RoHS
FOR LEVEL INDICATOR.
COMPLIANT.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAE8351
APPROVED: J. Lu
REV NO: V.2
CHECKED: Allen Liu
DATE: MAR/21/2005
DRAWN: H.Q.YUAN
PAGE: 1 OF 3
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 10 mA
Min.
L-914ADT
AMBER (GaAsP/GaP)
AMBER DIFFUSED
1.8
Typ.
5
Viewing
Angle
2
θ
1/2
100
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Amber
Amber
Amber
Amber
Amber
Amber
Typ.
590
588
35
20
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Amber
105
30
140
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAE8351
APPROVED: J. Lu
REV NO: V.2
CHECKED: Allen Liu
DATE: MAR/21/2005
DRAWN: H.Q.YUAN
PAGE: 2 OF 3

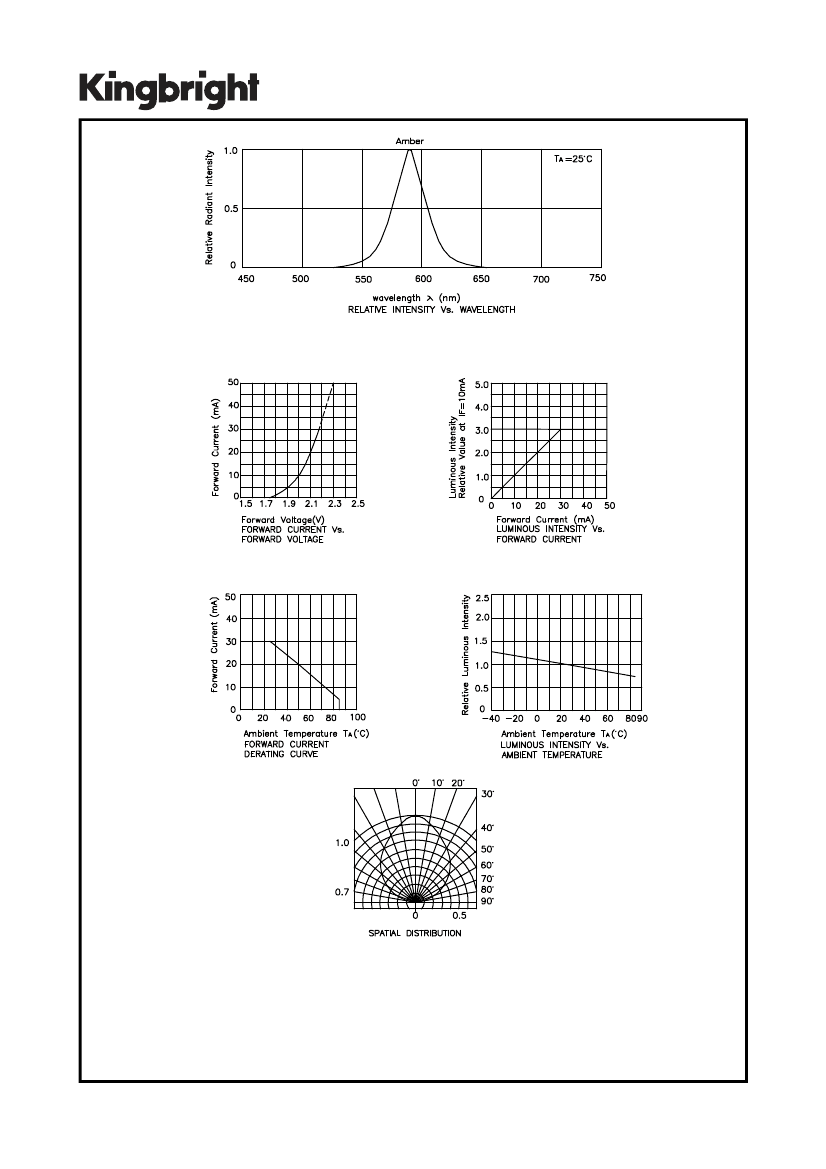

Amber
L-914ADT
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAE8351
APPROVED: J. Lu
REV NO: V.2
CHECKED: Allen Liu
DATE: MAR/21/2005
DRAWN: H.Q.YUAN
PAGE: 3 OF 3
