FX5545G2025V9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> FX5545G2025V9

FX5545G2025V9: DescriptionDC-DC Booster Module, 1 Output, 3W, Hybrid, LOW PROFILE, BGA-20; CategoryPower/power management The power supply circuit; File Size172KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

FX5545G2025V9 Overview

DC-DC Booster Module, 1 Output, 3W, Hybrid, LOW PROFILE, BGA-20

FX5545G2025V9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
Parts packaging code	MODULE
package instruction	BGA,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC BOOSTER MODULE
Maximum input voltage	6 V
Minimum input voltage	2.5 V
Nominal input voltage	3.6 V
JESD-30 code	R-XBGA-B20
JESD-609 code	e0
length	14.7 mm
Number of functions	1
Output times	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	5.9 V
Package body material	UNSPECIFIED
encapsulated code	BGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3 mm
surface mount	YES
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	BALL
Terminal pitch	2.54 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	3 W
Fine-tuning/adjustable output	NO
width	12.2 mm

Preview

Download Datasheet

View All

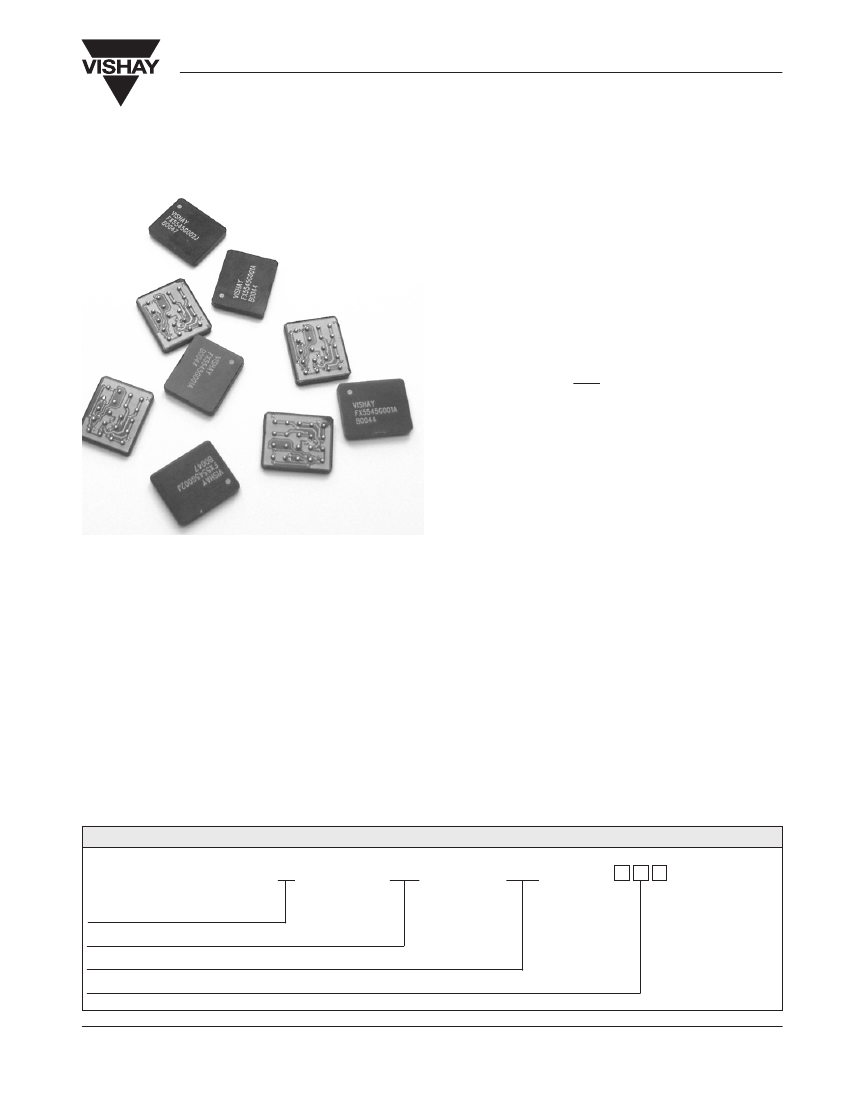

FX5545G202

Vishay

Industry Smallest and Low Profile

3W DC/DC Boost Converter

with High Output Density Power

FEATURES

• Fully integrated DC/DC converter

• High efficiency over large load range

• 2MHz switching frequency

• 100% duty cycle

• Power density - more than 100W/inch

• 1uA shutdown current

• 2.5V to 6V input range (1Li+ and 3-cell NiCd or NiMH cells)

• 3.3V to 6V output voltage

• Programmable PWM/PSM controls

• Low output ripple

• BGA/LGA construction

• Temperature range: - 40°C to + 85°C

• No external components needed

• Output power 3W

• Maximum current 600mA

• Low profile

The DC/DC converter provides fully integrated synchronous

boost converter solution for the latest one-cell lithium ion cel-

lular phones. Its input voltage is between 2.5V to 6V, capable

of delivering up to 600mA of output current at 3.3V to 6V.

The DC/DC converter combines the 2MHz-switching

controller with fully integrated passive components needed to

deliver the smallest and most efficient converter available

today. The high switching frequency minimizes the output

capacitance with peak to peak output ripple as low as 20mV.

The DC/DC converter delivers efficiency up to 95%.

The programmable pulse-skipping mode (PSM) maintains this

high efficiency even during the standby and idle modes to

increase overall battery life and talktime. In order to extract

the last ounce of power from the battery, the DC/DC converter

is designed with 100% duty cycle control for this mode. This

function enables the DC/DC converter to operate like a

saturated linear regulator delivering the highest potential

output voltage for longer talk time.

The DC/DC converter is available in 20-ports BGA package.

In order to satisfy the stringent ambient temperature require-

ments, the DC/DC converter is designed to handle the indus-

trial temperature range of - 40°C to + 85°C.

APPLICATION

•

Cordless phones, PDAs and others

Supply voltage source for low voltage chip sets

Portable computers

Battery back-up supplies

Cameras

ORDERING INFORMATION

FUNCTION

SIZE

SERIAL NUMBER

OUTPUT VOLTAGE-Example: 5.0V should be written as 5V0 as the V indicates the decimal point.

5545

G202

Document Number: 10105

Revision 09-Apr-02

For technical questions, contact FunctionPAK@vishay.com

For marketing questions, contact FunctionPAK.marketing@vishay.com

www.vishay.com
