FDF2302S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> FDF2302S

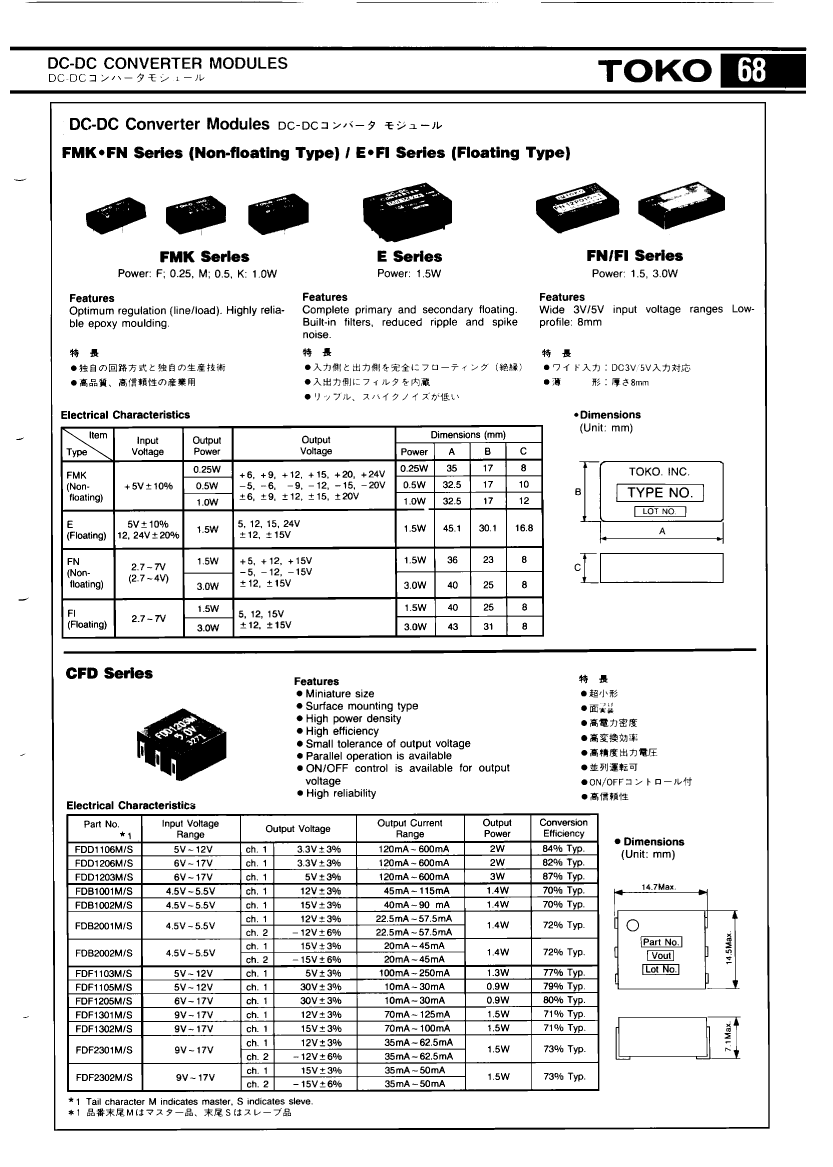

FDF2302S: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 1.5W, Hybrid; CategoryPower/power management The power supply circuit; File Size56KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

FDF2302S Overview

DC-DC Regulated Power Supply Module, 2 Output, 1.5W, Hybrid

FDF2302S Parametric

Parameter Name	Attribute value
Maker	TOKO, INC.
package instruction	SOC,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	73%
Maximum input voltage	17 V
Minimum input voltage	9 V
JESD-30 code	R-XDSO-C6
Number of functions	1
Output times	2
Number of terminals	6
Maximum output voltage	15.45 V
Minimum output voltage	14.55 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
encapsulated code	SOC
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	7.1 mm
surface mount	YES
technology	HYBRID
Terminal form	C BEND
Terminal location	DUAL
Maximum total power output	1.5 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

FDF2302S Related Products

	FDF2302S	FDF1302S	FDF1301M	FDF2302M	FDB1002M	FDF1302M	FDF1301S	FDB1002S	FDB1001S
Description	DC-DC Regulated Power Supply Module, 2 Output, 1.5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 1.5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 1.5W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 1.5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 1.4W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 1.5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 1.5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 1.4W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 1.4W, Hybrid
package instruction	SOC,	SOC,	SOC,	SOC,	SOC,	SOC,	SOC,	SOC,	SOC,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	73%	71%	71%	73%	70%	71%	71%	70%	70%
Maximum input voltage	17 V	17 V	17 V	17 V	5.5 V	17 V	17 V	5.5 V	5.5 V
Minimum input voltage	9 V	9 V	9 V	9 V	4.5 V	9 V	9 V	4.5 V	4.5 V
JESD-30 code	R-XDSO-C6	R-XDSO-C6	R-XDSO-C6	R-XDSO-C6	R-XDSO-C6	R-XDSO-C6	R-XDSO-C6	R-XDSO-C6	R-XDSO-C6
Number of functions	1	1	1	1	1	1	1	1	1
Output times	2	1	1	2	1	1	1	1	1
Number of terminals	6	6	6	6	6	6	6	6	6
Maximum output voltage	15.45 V	15.45 V	12.36 V	15.45 V	15.45 V	15.45 V	12.36 V	15.45 V	12.36 V
Minimum output voltage	14.55 V	14.55 V	11.64 V	14.55 V	14.55 V	14.55 V	11.64 V	14.55 V	11.64 V
Nominal output voltage	15 V	15 V	12 V	15 V	15 V	15 V	12 V	15 V	12 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SOC	SOC	SOC	SOC	SOC	SOC	SOC	SOC	SOC
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.1 mm	7.1 mm	7.1 mm	7.1 mm	7.1 mm	7.1 mm	7.1 mm	7.1 mm	7.1 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	1.5 W	1.5 W	1.5 W	1.5 W	1.4 W	1.5 W	1.5 W	1.4 W	1.4 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO
Maker	TOKO, INC.	TOKO, INC.	TOKO, INC.	-	-	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.
