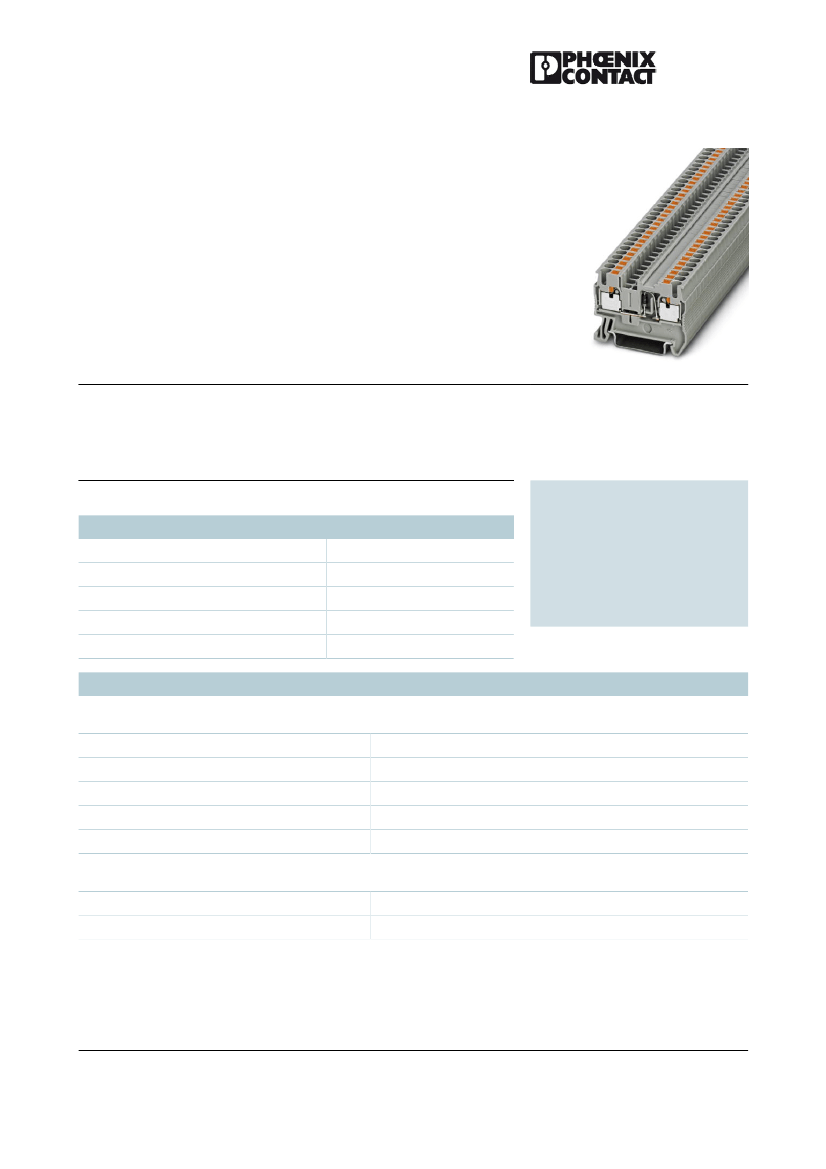

PIT 2,5-DIO/R-L
Order No.: 3210237
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3210237
Feed-through modular terminal block, Connection type: Leg spring
connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Nominal
current: 0.5 A, Nominal voltage: 800 V, Length: 48.5 mm, Width: 5.2
mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
5.2 mm
48.5 mm
1
2
gray
PA
V0
4046356334549
50 pcs.
85369010
0.00734 KG
Page 196 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Apr 9, 2010
PIT 2,5-DIO/R-L
Order No.: 3210237
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3210237
Height NS 35/7,5
Height NS 35/15
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Nominal current I
N
Nominal voltage U
N
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Accessories
Item
Assembly
3030721
ATP-ST 4
Designation
36.5 mm
44 mm
8 kV
3
III
I
0.5 A (the maximum current is determined by the diode)
800 V
ja
0.14 mm²
4 mm²
0.14 mm²
2.5 mm²
26
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
0.5 mm²
Leg spring connection
10 mm
A3
Description
Partition plate, Length: 61 mm, Width: 2 mm, Height: 42 mm,
Color: gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Apr 9, 2010
PIT 2,5-DIO/R-L
Order No.: 3210237
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3210237
3022276
CLIPFIX 35-5
Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
End cover, Length: 48.5 mm, Width: 2.2 mm, Height: 36.5 mm,
Color: gray
Spacer plate, Color: red
DIN rail, material: Aluminum, unperforated, height 7.5 mm, width
35 mm, length: 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
NS 35 DIN rail, height 7.5 mm, length 755 mm
NS35 DIN rail, height 7.5 mm, length 955 mm
NS 35 DIN rail, height 7.5 mm, length 1155 mm
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, Color: silver
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, Color: silver
DIN rail, Color: silver
DIN rail, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm,
Color: silver
DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Galvanized, unperforated, height 7.5 mm, width
35 mm, length: 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, Color: silver
DIN rail, Color: silver
DIN rail, material: Galvanized, unperforated, height 15 mm, width
35 mm, length: 2 m
Cross connector/bridge, Number of positions: 2, Color: red
3030417
3036725
0801704
0801762
1207640
1207653
1207666
0801733
1208131
0801681
1208115
1208128
0801377
1206421
1206434
1201895
1201730
1201714
1208144
1208157
1206586
3038943
Bridges
3030161
3030174
D-ST 2,5
DP PS-5
NS 35/ 7,5 AL UNPERF
2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 755MM
NS 35/ 7,5 PERF 955MM
NS 35/ 7,5 PERF 1155MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 PERF/...
NS 35/ 7,5 UNPERF 2000MM
NS 35/ 7,5 UNPERF/...
NS 35/ 7,5 UNPERF/SO/...
NS 35/ 7,5 V2A UNPERF
2000MM
NS 35/ 7,5 ZN PERF 2000MM
NS 35/ 7,5 ZN UNPERF
2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15 UNPERF/...
NS 35/15 UNPERF/SO/...
NS 35/15 ZN UNPERF 2000MM
RB ST (2,5/4)-1,5
FBS 2-5
FBS 3-5
Cross connector/bridge, Number of positions: 2, Color: red
Cross connector/bridge, Number of positions: 3, Color: red
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Apr 9, 2010
PIT 2,5-DIO/R-L
Order No.: 3210237
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3210237
3030187
3030190
3030213
3030226
3038930
General
0810588
FBS 4-5
FBS 5-5
FBS 10-5
FBS 20-5
FBS 50-5
Cross connector/bridge, Number of positions: 4, Color: red
Cross connector/bridge, Number of positions: 5, Color: red
Cross connector/bridge, Number of positions: 10, Color: red
Cross connector/bridge, Number of positions: 20, Color: red
Cross connector/bridge, Number of positions: 50, Color: red
GBS 5-25X12
Group marker label, snaps onto terminal center for screw, spring-
cage and quick connection terminal blocks, labeled with a 25 x 12
mm label or manually with the B-STIFT, in the foot part with ZB 5
Group marking label, snaps onto terminal center for screw, spring-
cage and quick connection terminal blocks, labeled with ESL
26x6 mm or EST 25x6 mm, in the foot part with Zack marker strip,
length: 29 mm
0809298
GBS-ZB/26X6
Marking
3037643
0818108
STP 5-2-ZB
UC-TM 5
Double marker carrier, snaps onto the spring-cage terminal blocks
ST 2.5..., labeled with ZB 5 or ZBF 5
UniCard sheets, for labeling terminal blocks using Zack marker
strip groove,96-section, labeling with BLUEMARK X1 and CMS-
P1-PLOTTER, color: White
UniCard sheets, for labeling terminal blocks with a zack marker
strip groove, can be printed as per customer requirements
UniCard sheets, for labeling terminal blocks using a flat Zack
marker strip groove, 192-section, can be labeled with CMS-P1-
PLOTTER, color: White
Zack strip, unprinted, 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, pack is sufficient for 100 terminal
blocks, for a terminal width of 5.2 mm, color: White
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
0824581
0819796
UC-TM 5 CUS
UC-TMF 5L
1050004
ZB 5 :UNBEDRUCKT
1050295
ZB 5:SO/CMS
Plug/Adapter
3002843
3002856
3002869
0201731
0201689
0201702
0201728
0201676
0201715
ISH 2,5/0,2
ISH 2,5/0,5
ISH 2,5/1,0
MPS-IH BK
MPS-IH BU
MPS-IH GN
MPS-IH GY
MPS-IH RD
MPS-IH VT
Insulation stop sleeve, Color: white
Insulation stop sleeve, Color: gray
Insulation stop sleeve, Color: black
Insulating sleeve, for MPS metal part, Color: black
Insulating sleeve, for MPS metal part, Color: blue
Insulating sleeve, for MPS metal part, Color: green
Insulating sleeve, for MPS metal part, Color: gray
Insulating sleeve, Color: red
Insulating sleeve, for MPS metal part, Color: violet
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Apr 9, 2010
PIT 2,5-DIO/R-L
Order No.: 3210237
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3210237
0201663
0201692
0201744
3030925
3030983
Tools
1204517
MPS-IH WH
MPS-IH YE
MPS-MT
PAI-4
PS-5
Insulating sleeve, for MPS metal part, Color: white
Insulating sleeve, for MPS metal part, Color: yellow
Metal part
Test adapter, Color: gray
Test adapter, Color: red
SZF 1-0,6X3,5
Screwdriver, blade: 0.6 x 3.5 x 100 mm, length 180 mm
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 6
Apr 9, 2010
