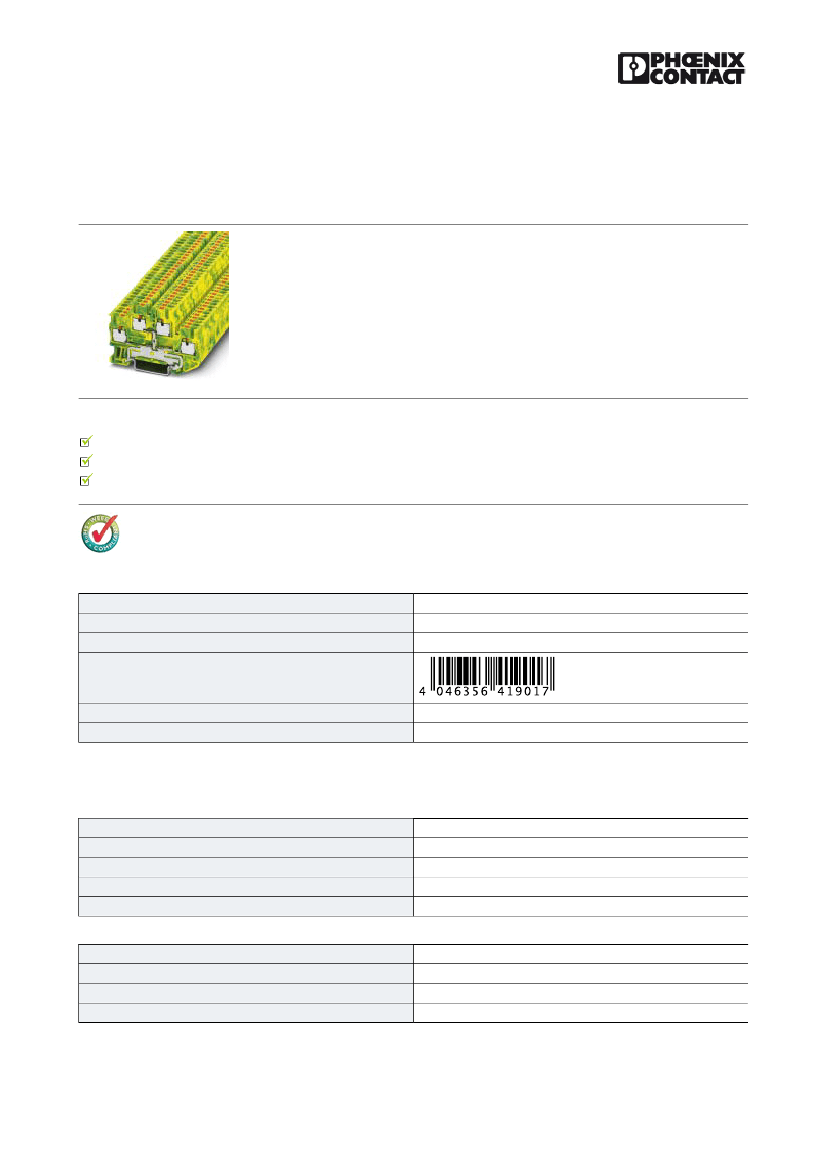

Protective conductor double-level terminal block - PTTB 2,5-
PE - 3210596
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Protective conductor double-level terminal block, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12,
Connection type: Push-in connection, Width: 5.2 mm, Color: green-yellow, Mounting type: NS
35/7.5, NS 35/15
Why buy this product
Same shape and pitch as the feed-through terminal blocks
Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
All the requirements of standard IEC 60947-7-2 are met
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85369010
GERMANY
0
50
Page 101 (CL1-2011)
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
2
4
green-yellow
PA
V0
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
5.2 mm
68 mm
47.5 mm
55 mm
03.10.2012 Page 1 / 15
https://www.phoenixcontact.com/us/produkte/3210596
Protective conductor double-level terminal block - PTTB 2,5-
PE - 3210596
Technical data
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Oscillation, broadband noise test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Shock test result
Temperature index, insulating material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
6 kV
3
III
I
IEC 60947-7-2
ja
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, on vehicle body
f1 = 5 Hz to f2 = 150 Hz
1.857 (m/s2)2/Hz
0.8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
Test passed
130 °C
-60 °C
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
0.14 mm²
4 mm²
0.14 mm²
2.5 mm²
26
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
03.10.2012 Page 2 / 15
https://www.phoenixcontact.com/us/produkte/3210596
Protective conductor double-level terminal block - PTTB 2,5-
PE - 3210596
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
0.5 mm²
Push-in connection
10 mm
A3
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141118
27141118
27141118
27141118
27141141
27141141
etim
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000901
EC000901
EC000901
EC000901
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / GOST / LR / GL / RS / ABS / NK / BV / cULus Recognized
Ex Approvals
ATEX / IECEx
Approvals submitted
03.10.2012 Page 3 / 15
https://www.phoenixcontact.com/us/produkte/3210596
Protective conductor double-level terminal block - PTTB 2,5-
PE - 3210596
Approvals
Approval details
CSA
mm²/AWG/kcmil
26-12
UL Recognized
mm²/AWG/kcmil
B
26-12
C
26-12
cUL Recognized
mm²/AWG/kcmil
B
26-12
C
26-12
GOST
LR
GL
RS
ABS
NK
BV
cULus Recognized
03.10.2012 Page 4 / 15
https://www.phoenixcontact.com/us/produkte/3210596
Protective conductor double-level terminal block - PTTB 2,5-
PE - 3210596

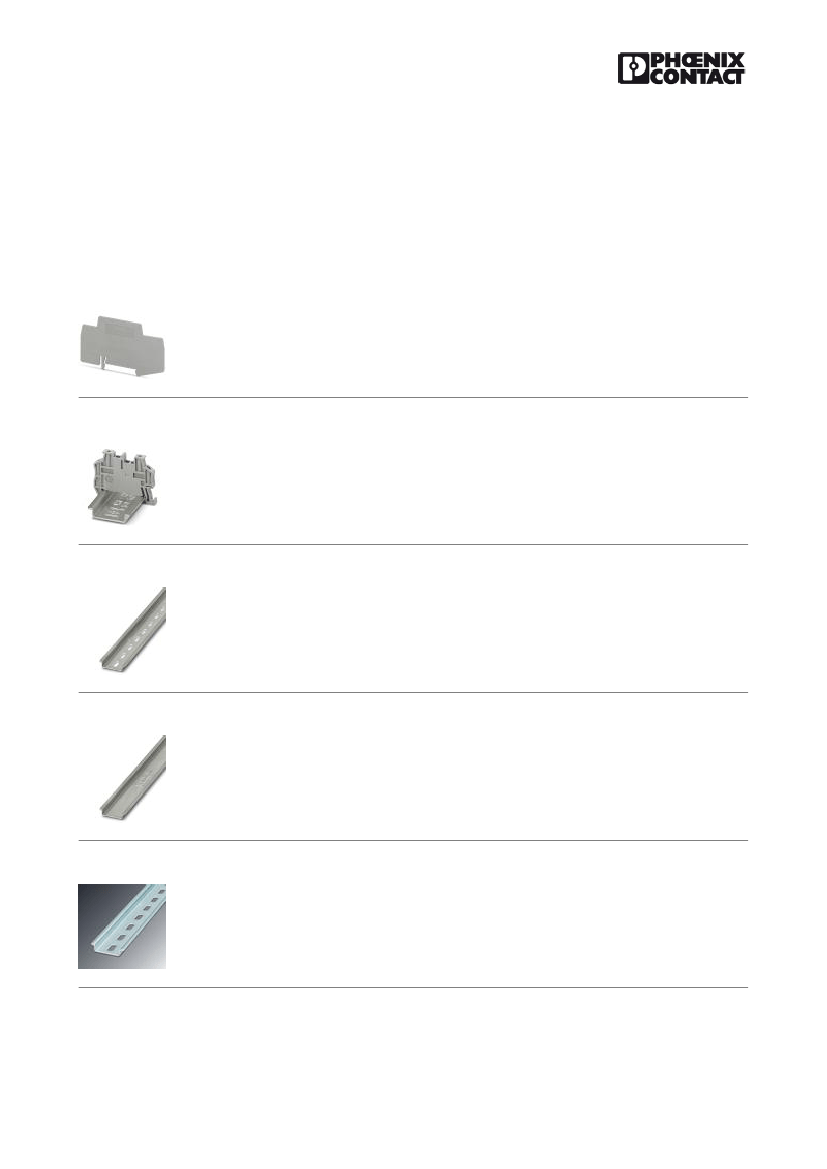

Accessories
Accessories
Assembly
Partition plate - ATP-STTB 4 - 3030747
Partition plate, Length: 88.7 mm, Width: 2 mm, Height: 53 mm, Color: gray
End clamp - CLIPFIX 35-5 - 3022276
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, can be fitted with ZB 5 and ZBF 5
zack marker strip, KLM 2, KLM3, and KML3L terminal strip marker, parking option for FBS...5, FBS...6, KSS
5, KSS 6, width: 5.15 mm, color: gray
DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35
mm, length: 2000 mm
DIN rail - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 35/ 7,5 WH PERF 2000MM - 1204119
DIN rail 35 mm (NS 35)
03.10.2012 Page 5 / 15
