2.5 V to 5.5 V Octal Voltage Output 8-/10-/12-Bit DACs in 16-Lead TSSOP

User Manual

【User Guides】DC1850 - Demo Manual

Preview

Download Datasheet

View All

2.5 V to 5.5 V Octal Voltage Output

8-/10-/12-Bit DACs in 16-Lead TSSOP

AD5308/AD5318/AD5328

FEATURES

AD5308: 8 buffered 8-bit DACs in 16-lead TSSOP

A version: ±1 LSB INL, B version: ±0.75 LSB INL

AD5318: 8 buffered 10-bit DACs in 16-lead TSSOP

A version: ±4 LSB INL, B version: ±3 LSB INL

AD5328: 8 buffered 12-bit DACs in 16-lead TSSOP

A version: ±16 LSB INL, B version: ±12 LSB INL

Low power operation: 0.7 mA @ 3 V

Guaranteed monotonic by design over all codes

Power-down to 120 nA @ 3 V, 400 nA @ 5 V

Double-buffered input logic

Buffered/unbuffered/V

reference input options

Output range: 0 V to V

REF

or 0 V to 2 V

REF

Power-on reset to 0 V

Programmability

Individual channel power-down

Simultaneous update of outputs (LDAC)

Low power, SPI-®, QSPI-™, MICROWIRE-™, and DSP-

compatible 3-wire serial interface

On-chip rail-to-rail output buffer amplifiers

Temperature range: −40°C to +105°C

APPLICATIONS

Portable battery-powered instruments

Digital gain and offset adjustment

Programmable voltage and current sources

Optical networking

Automatic test equipment

Mobile communications

Programmable attenuators

Industrial process control

GENERAL DESCRIPTION

The AD5308/AD5318/AD5328 are octal 8-, 10-, and 12-bit

buffered voltage output DACs in a 16-lead TSSOP. They operate

from a single 2.5 V to 5.5 V supply, consuming 0.7 mA typical

at 3 V. Their on-chip output amplifiers allow the outputs to

swing rail-to-rail with a slew rate of 0.7 V/μs. The AD5308/

AD5318/AD5328 use a versatile 3-wire serial interface that

operates at clock rates up to 30 MHz and is compatible with

standard SPI, QSPI, MICROWIRE, and DSP interface

standards.

The references for the eight DACs are derived from two

reference pins (one per DAC quad). These reference inputs can

be configured as buffered, unbuffered, or V

inputs. The parts

incorporate a power-on reset circuit, which ensures that the

DAC outputs power up to 0 V and remain there until a valid

write to the device takes place. The outputs of all DACs may be

updated simultaneously using the asynchronous LDAC input.

The parts contain a power-down feature that reduces the current

consumption of the devices to 400 nA at 5 V (120 nA at 3 V).

The eight channels of the DAC may be powered down individually.

All three parts are offered in the same pinout, which allows

users to select the resolution appropriate for their application

without redesigning their circuit board.

Rev. D

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

www.analog.com

AD5308/AD5318/AD5328

TABLE OF CONTENTS

Features .............................................................................................. 1

Applications....................................................................................... 1

General Description ......................................................................... 1

Revision History ............................................................................... 2

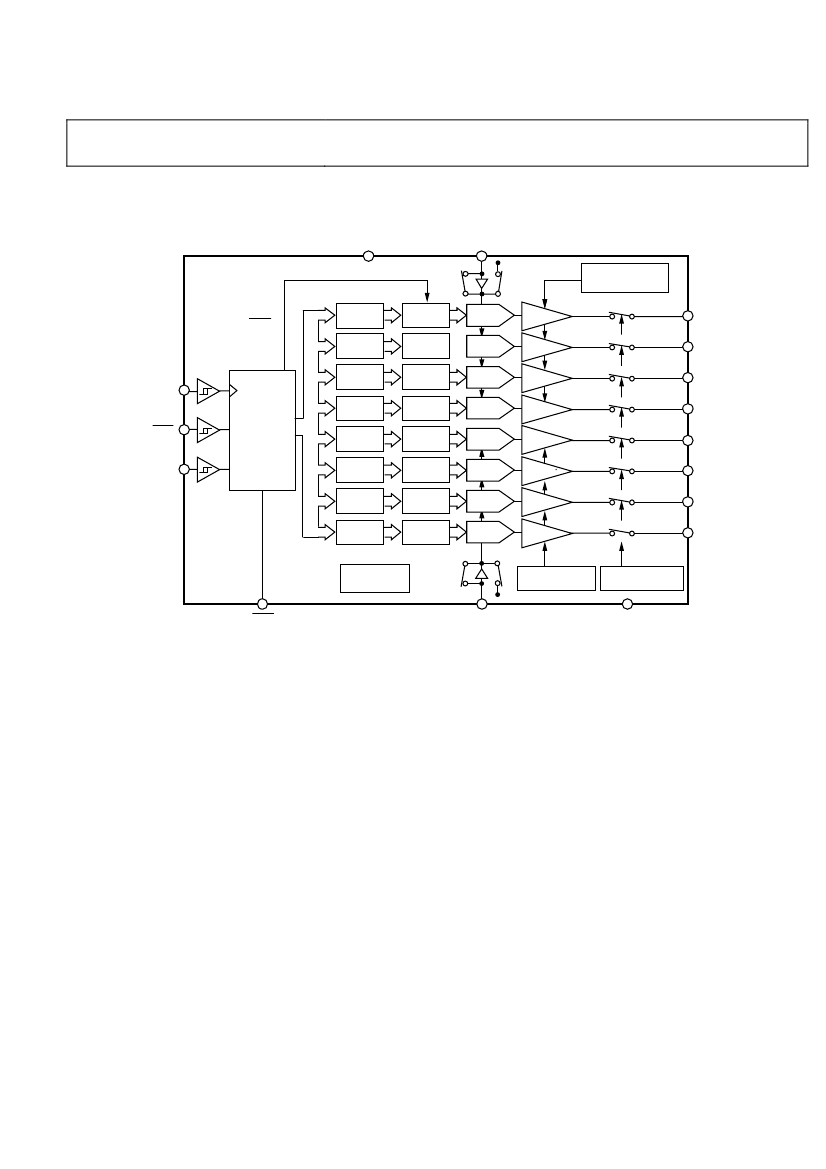

Functional Block Diagram .............................................................. 3

Specifications..................................................................................... 4

Absolute Maximum Ratings............................................................ 7

ESD Caution.................................................................................. 7

Pin Configuration and Function Descriptions............................. 8

Typical Performance Characteristics ............................................. 9

Terminology .................................................................................... 13

Theory of Operation ...................................................................... 15

Digital-to-Analog Converter .................................................... 15

Resistor String ............................................................................. 15

Output Amplifier........................................................................ 15

Power-On Reset .......................................................................... 16

Power-Down Mode .................................................................... 16

Serial Interface ............................................................................ 16

Low Power Serial Interface ....................................................... 18

Load DAC Input (LDAC) Function......................................... 18

Double-Buffered Interface ........................................................ 18

Microprocessor Interface............................................................... 19

ADSP-2101/ADSP-2103-to-AD5308/AD5318/AD5328

Interface ....................................................................................... 19

68HC11/68L11-to-AD5308/AD5318/AD5328 Interface ..... 19

80C51/80L51-to-AD5308/AD5318/AD5328 Interface......... 19

Microwire-to-AD5308/AD5318/AD5328 Interface.............. 20

Applications Information .............................................................. 21

Typical Application Circuit....................................................... 21

Driving V

from the Reference Voltage ................................ 21

Bipolar Operation Using the AD5308/AD5318/AD5328..... 21

Opto-Isolated Interface for Process Control Applications ... 21

Decoding Multiple AD5308/AD5318/AD5328s.................... 22

Outline Dimensions ....................................................................... 24

Ordering Guide .......................................................................... 24

REVISION HISTORY

3/07—Rev. C to Rev. D

Updated Format..................................................................Universal

Changes to Absolute Maximum Ratings Section......................... 7

9/05—Rev. B to Rev. C

Updated Format..................................................................Universal

Change to Equation........................................................................ 21

11/03—Rev. A to Rev. B

Changes to Ordering Guide ............................................................ 4

Changes to Y axis on TPCs 12, 13, and 15 .................................... 9

8/03—Rev. 0 to Rev. A

Added A Version.................................................................Universal

Changes to Features.......................................................................... 1

Changes to Specifications ................................................................ 2

Edits to Absolute Maximum Ratings ............................................. 4

Edits to Ordering Guide .................................................................. 4

Updated Outline Dimensions ....................................................... 18

Rev. D | Page 2 of 24
