L29C524IMB25 datasheet, PDF - EEWORLD Datasheet

L29C524IMB25: DescriptionPipeline Register, 8-Bit, CMOS, CDIP28, 0.400 INCH, CERAMIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size322KB，10 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric View All

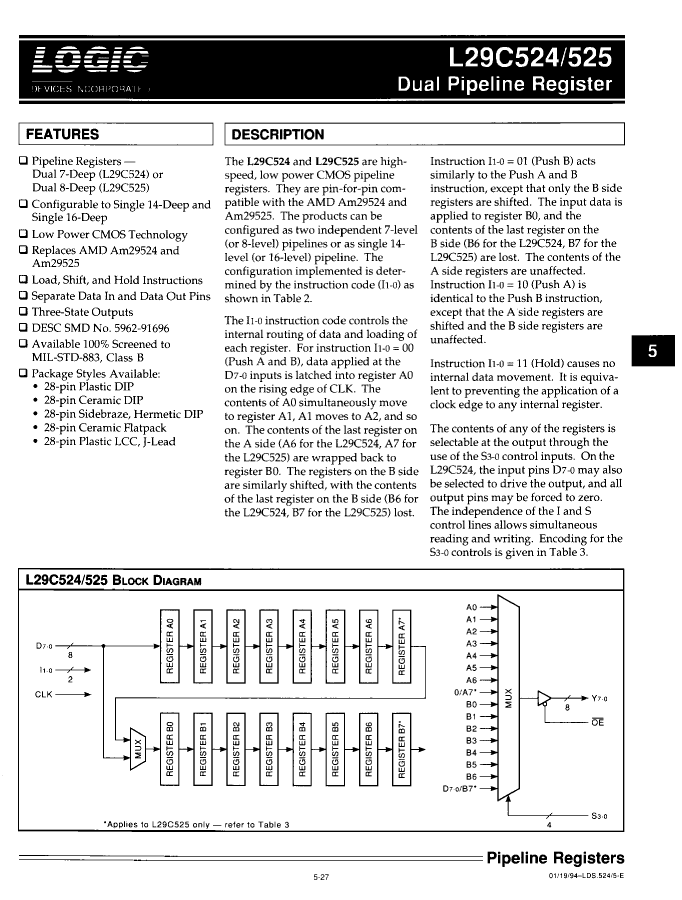

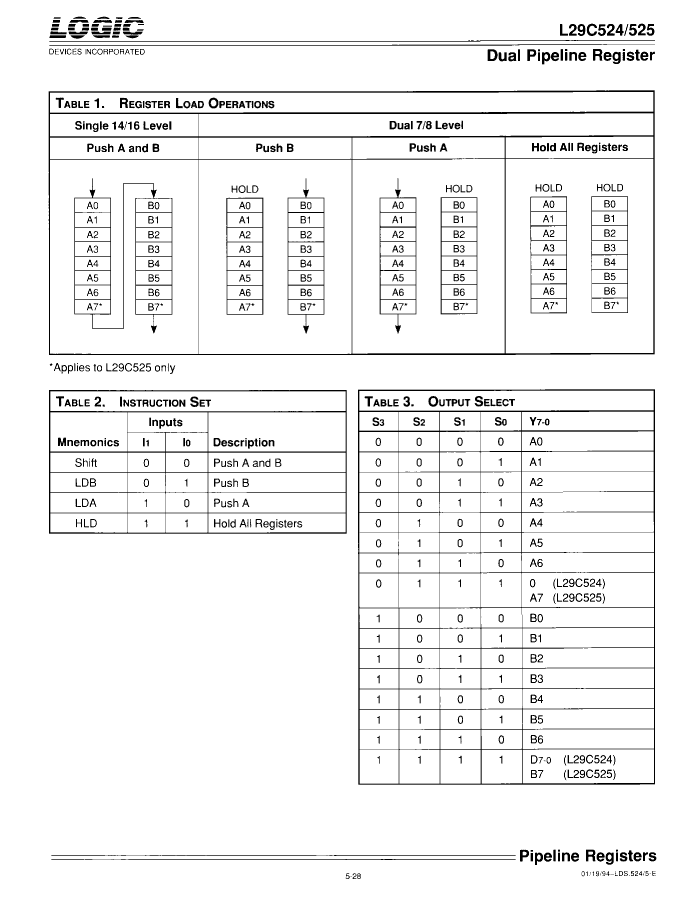

L29C524IMB25 Overview

Pipeline Register, 8-Bit, CMOS, CDIP28, 0.400 INCH, CERAMIC, DIP-28

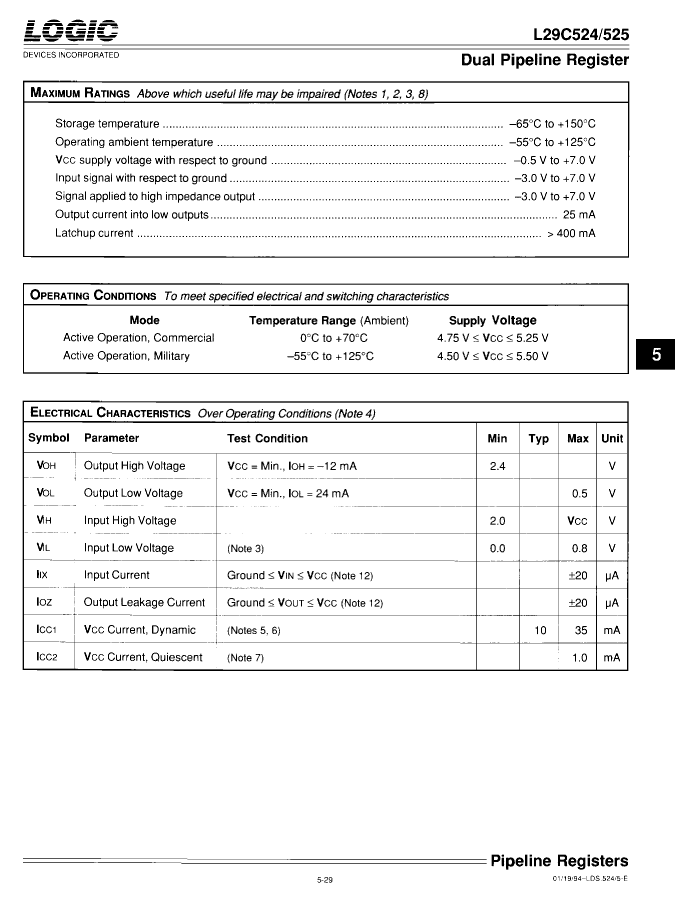

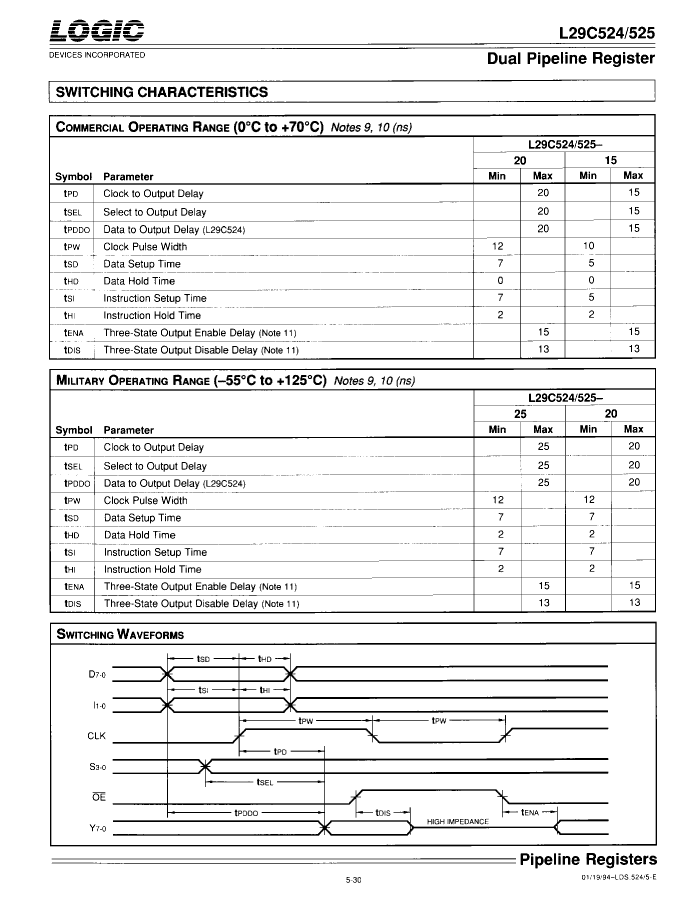

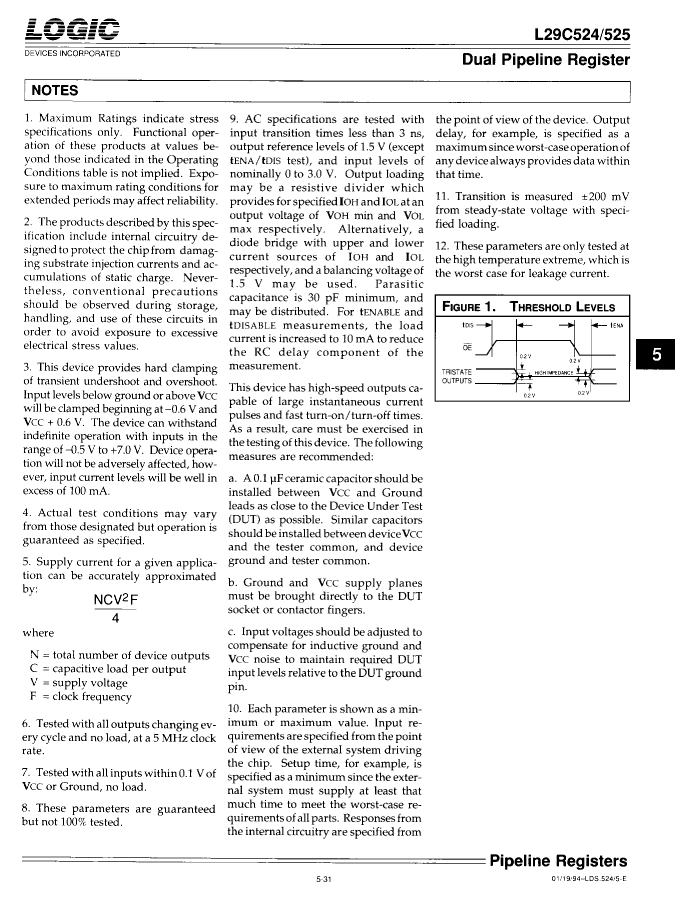

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	DIP
package instruction	DIP, DIP28,.4
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	ICC SPECIFIED @ 5MHZ
boundary scan	NO
External data bus width	8
JESD-30 code	R-GDIP-T28
JESD-609 code	e0
length	35.56 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	8
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.4
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	4.953 mm
Maximum slew rate	35 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER
