OP207AY: DescriptionOperational Amplifier, 2 Func, 230uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size331KB，6 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric Compare View All

OP207AY Overview

Operational Amplifier, 2 Func, 230uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14

OP207AY Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Precision Monolithics Inc
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0056 µA
Maximum bias current (IIB) at 25C	0.003 µA
Nominal Common Mode Rejection Ratio	120 dB
frequency compensation	YES
Maximum input offset voltage	230 µV
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
low-dissonance	YES
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Nominal slew rate	0.2 V/us
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	600 kHz
Minimum voltage gain	150000

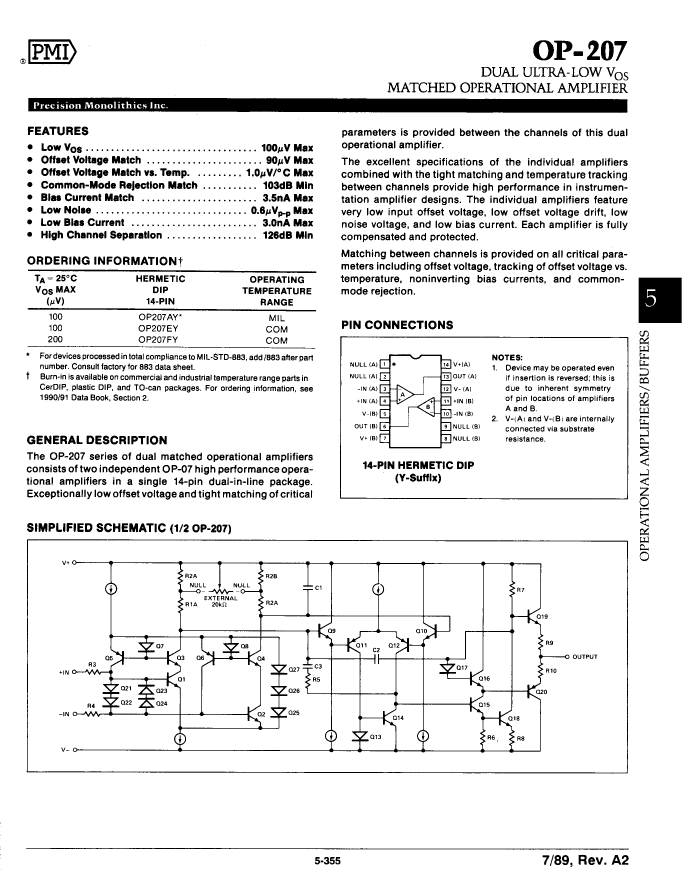

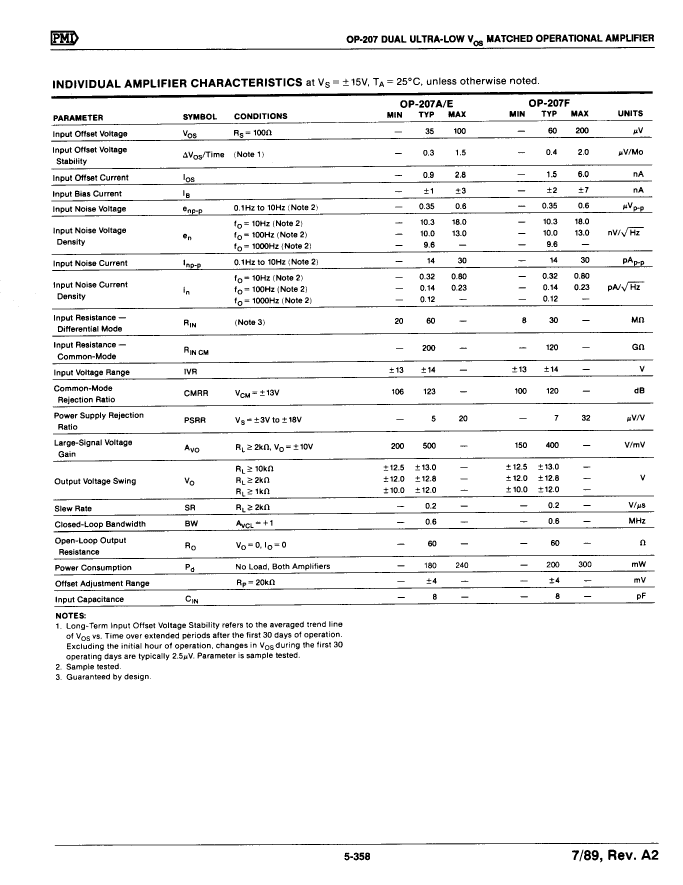

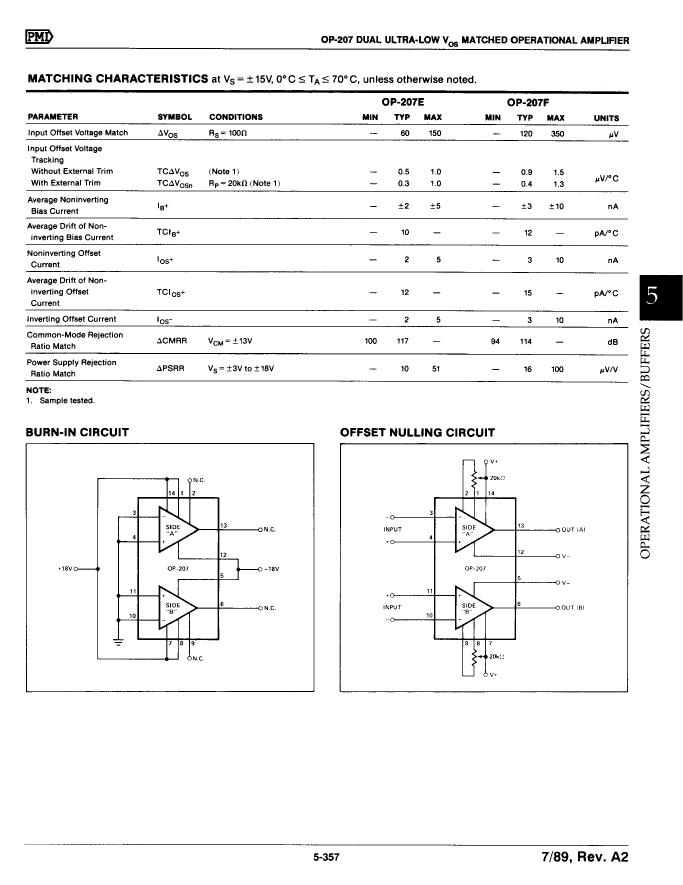

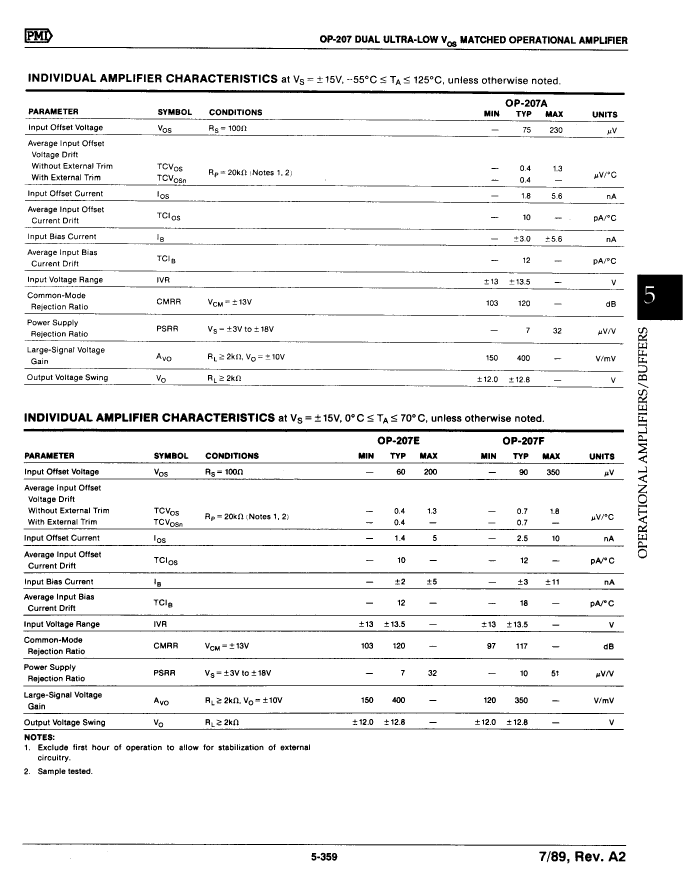

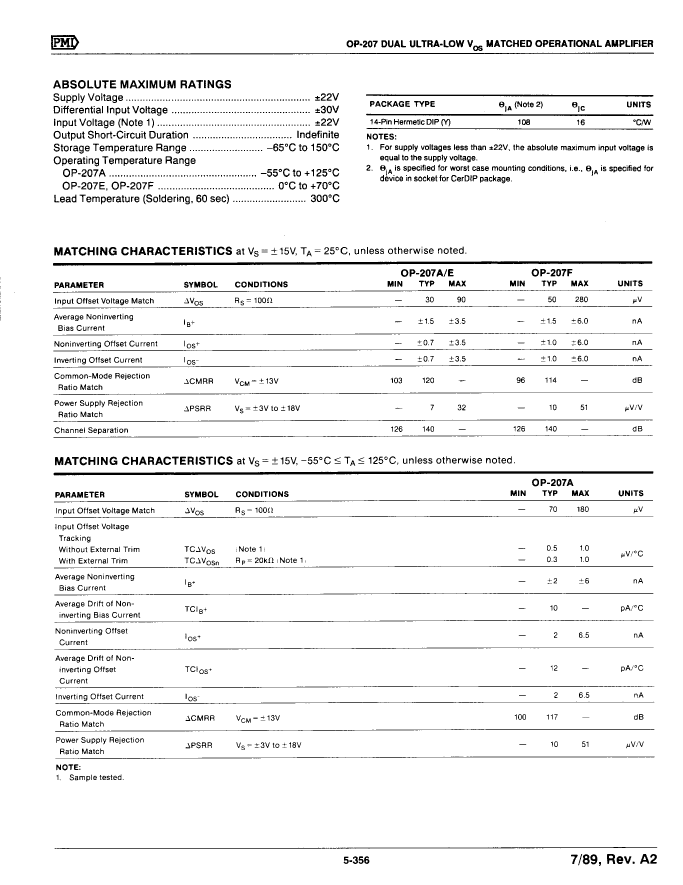

Preview

Download Datasheet

View All

OP207AY Related Products

	OP207AY	OP207AY/883	OP207EY	OP207FY	OP207BY
Description	Operational Amplifier, 2 Func, 230uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 2 Func, 230uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 2 Func, 200uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 2 Func, 350uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 2 Func, 400uV Offset-Max, BIPolar, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES	YES	YES
Maximum input offset voltage	230 µV	230 µV	200 µV	350 µV	400 µV
JESD-30 code	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0
low-dissonance	YES	YES	YES	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2	2
Number of terminals	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum average bias current (IIB)	0.0056 µA	0.0056 µA	0.005 µA	0.011 µA	-
Maximum bias current (IIB) at 25C	0.003 µA	0.003 µA	0.003 µA	0.007 µA	-
Nominal Common Mode Rejection Ratio	120 dB	120 dB	120 dB	117 dB	-
Negative supply voltage upper limit	-22 V	-22 V	-22 V	-22 V	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Nominal slew rate	0.2 V/us	0.2 V/us	0.2 V/us	0.2 V/us	-
Supply voltage upper limit	22 V	22 V	22 V	22 V	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Nominal Uniform Gain Bandwidth	600 kHz	600 kHz	600 kHz	600 kHz	-
Minimum voltage gain	150000	150000	150000	120000	-
