THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY TE Connectivity
ALL RIGHTS RESERVED.
7
2017
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
2017
FX
KEYING OPTION
00
KEYING OPTION
"C"
"D"
KEYING OPTION
A1
A2
A3
A4
REVISED PER ECO-11-007403
REVISED PER ECO-11-010896
REVISED PER ECO-11-015077
ECO-17-017583
08APR2011
31MAY2011
15SEP2011
01DEC2017
DD
DD
DD
KP
RL
RL
RL
CM
"B"
1
TERMINAL CAVITY ID.
SPACER IS SHIPPED IN PRE-ASSEMBLY POSITION.
TE ASSEMBLY PART NUMBER AND DATE CODE LOCATED ON THIS SURFACE.
LOCATION AND ORIENTATION OPTIONAL.
MOLD CAVITY ID.
MATERIAL IDENTIFICATION.
PACKAGING: CONNECTOR ASSEMBLIES BULK PACKED IN CARDBOARD BOX.
DURING SHIPPING AND HANDLING THE TPA MAY BE DISPLACED TO IT'S
LOCKED POSITION. THE CONNECTOR CAN BE RETURNED TO IT'S PROPER
FUNCTION USING IS SHEET 408-10104.
APPLICABLE TERMINAL PART NUMBERS (SOLD SEPARATELY) GOLD
APPLICATIONS 1393364 AND 1393365. TIN APPLICATIONS 1393366 AND
1393367 FOR TERMINATION AND REELING OPTIONS, SEE DRAWINGS:
1393364, 1393365, 1393366 AND 1393367.
D
2.
SCALE
D
2:1
SCALE
2:1
SCALE
2:1
3
4
5
6.
7.
8.
C
HOUSING
5
C
28 MIN
1
SPACER
( 12.13 )
SECTION
( 23.37 )
1.27
7X
2.54
( 23.6 )
B
A-A
B
4
3
"B"
"D"
"C"
A
PBT
PBT
PBT
MATERIAL
SPACER
DWN
CHK
APVD
RED
RED
RED
COLOR
10AUG2007
10AUG2007
10AUG2007
NYLON
NYLON
NYLON
MATERIAL
HOUSING
BLACK
BLACK
BLACK
COLOR
1924639-3
1924639 -2
1924639 -1
PART NUMBER
TE Connectivity
KEY
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
R. VESTAL
D. STRAUSSER
D. STRAUSSER
-
-
mm
NAME
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
-
-
PRODUCT SPEC
APPLICATION SPEC
-
-
-
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
SIZE

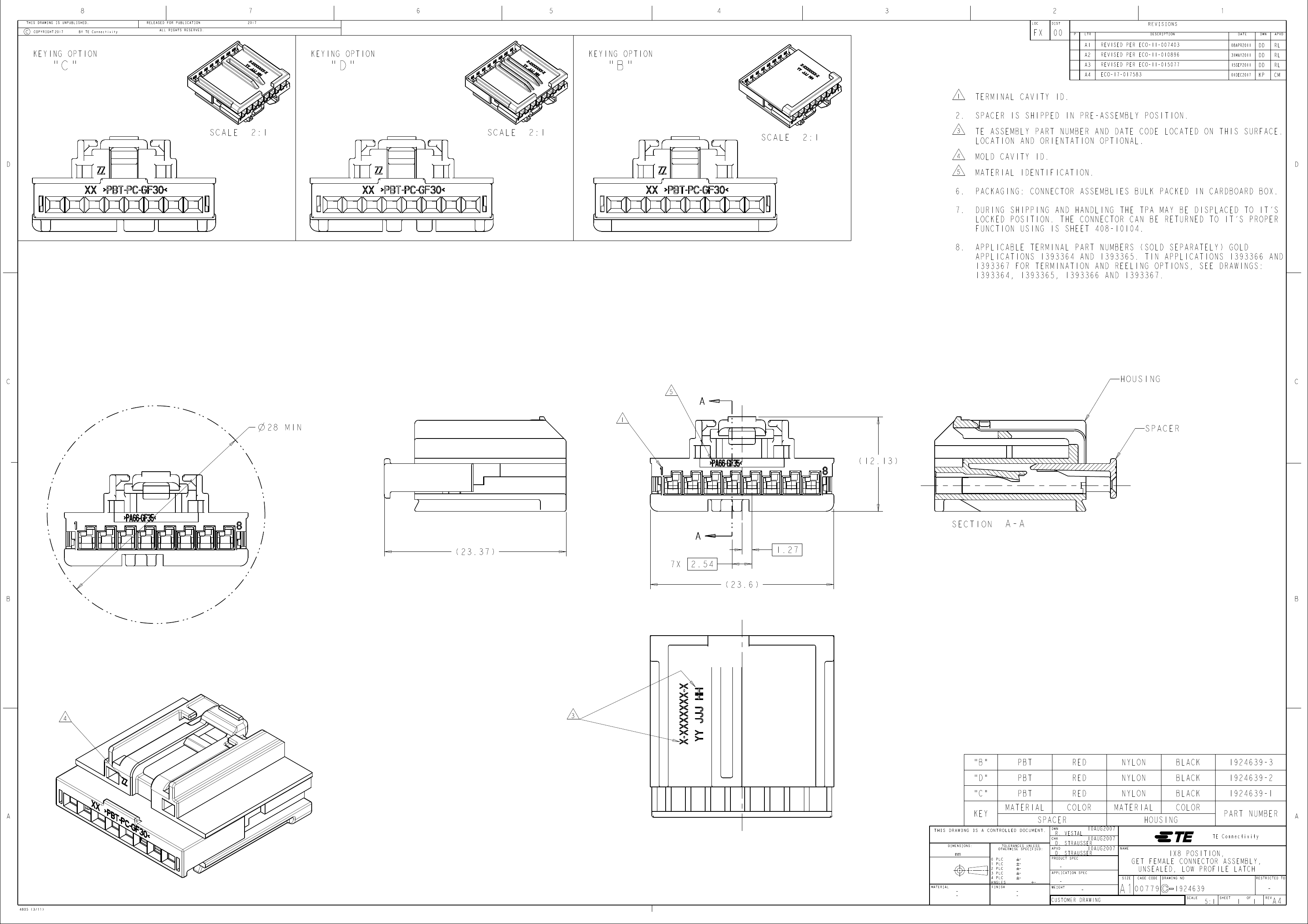

1X8 POSITION,
GET FEMALE CONNECTOR ASSEMBLY,
UNSEALED, LOW PROFILE LATCH
CAGE CODE
DRAWING NO
RESTRICTED TO
1924639
SCALE
4805 (3/11)
5:1
SHEET
1
OF
1
REV
-
A4
