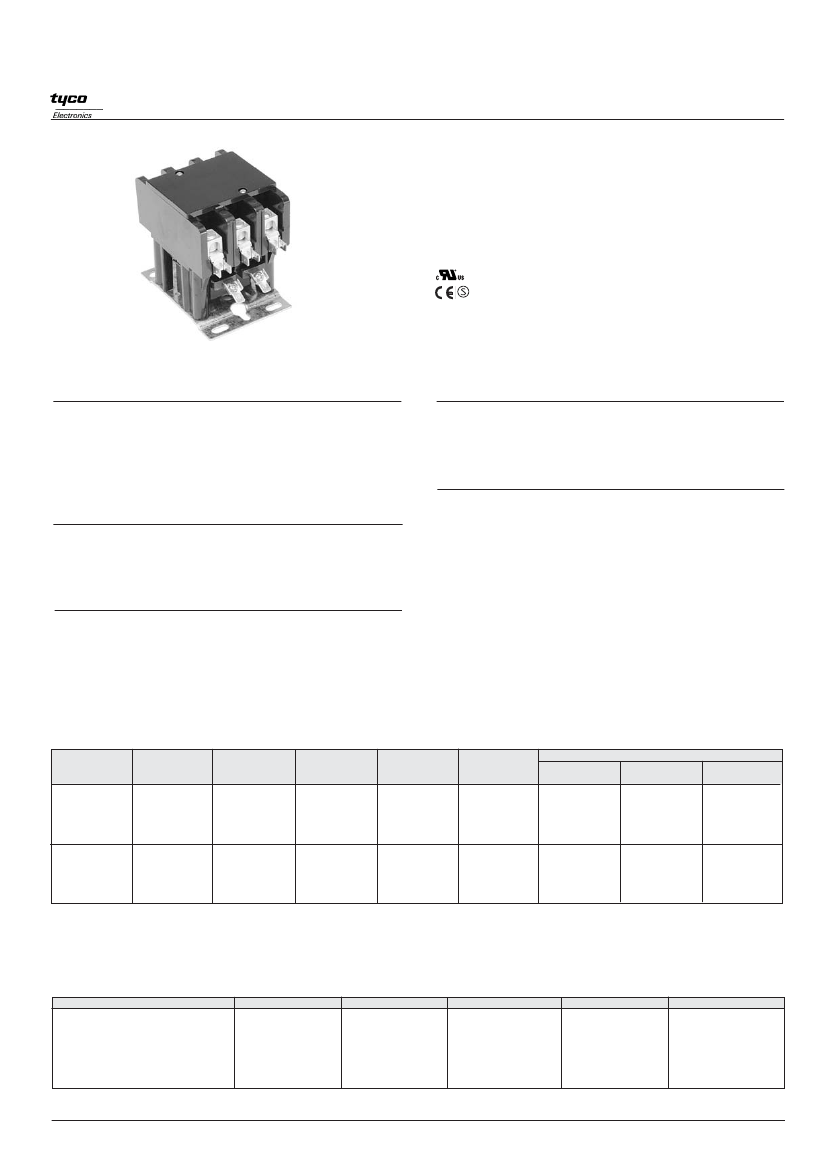

Catalog 1308242
Issued 3-03 (PDF Rev. 1-06)
PRODUCTS UNLIMITED
Model 93 - 3100
series
Definite Purpose Contactor
3-pole, 50-60 FLA
AC Coil
File E75492
File EN60947-4-1:1991
IEC 947-4-1
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that users also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• 3-pole contactors.
• Convenient “universal” mounting plate.
• Optional interlock/auxiliary switches available.
Environmental Data
Temperature Range:
Storage and Operating: -40°C – +65°C.
Flammability:
UL 94-HB housing.
Mechanical Data
Contact Data @ 25°C
Arrangements:
3 Form X (3PST-NO-DM).
Maximum Ratings:
See Contact Ratings Table.
Material:
Silver Cadmium Oxide.
Contact Termination:
Type:
Box Lug with dual 0.250” (6.35 mm) quick connects.
Wire Size:
14-2 Cu/Al AWG
Tightening Torque:
50 in.-lbs.
Coil Termination:
Dual 0.250” (6.35 mm) quick connects, standard.
A 0.250” quick connect and a #6-32 screw, optional.
Arc Cover:
Standard.
Weight:
32 oz. (910 g) approximately
Coil Data @ 25°C
Voltage:
24 - 480 VAC, 50/60 Hz. See Coil Data Table below.
Insulation Class:
UL Class B (130°C).
Duty Cycle:
Continuous.
Contact Ratings
Full
Load
Amps
50
Number
of
Poles
3
Line
Voltage
Locked
Rotor
Amps
300
250
200
Resistive
Amps
Tungsten/
Ballast
Amps
–
53
–
Voltage
110/120
200/208
240/277
480
600
110/120
200/208
240/277
480
600
Maximum Horsepower
Single
Phase
3
7.5
10
-
-
5
7.5
10
-
-
Three
Phase
-
15
15
25
25
-
25
25
30
30
240
480
600
65
65
65
60
3
240
480
600
360
300
240
75
75
75
–
53
–
Coil Data
Nominal Coil Voltage
Maximum Pickup Volts
Drop-Out Volts Range
Nominal Inrush VA @ 50 Hz
Nominal Inrush VA @ 60 Hz
Nominal Sealed VA @ 50 Hz
Nominal Sealed VA @ 60 Hz
Nominal DC Resistance - Ohms
24
182
6 -15
140
132
20
14
2.4
120
93
20 - 70
140
132
20
14
45
208/240
177
40 - 135
140
132
20
14
180
277
235
50-180
140
132
20
14
280
480
374
120 - 286
140
132
20
14
852
Dimensions are shown for
834
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
Catalog 1308242
Issued 3-03 (PDF Rev. 1-06)
PRODUCTS UNLIMITED
Ordering Information
Typical Part No.
B
3100
-
30
I
16
999
1. Series:
3100 = 3-pole, 50-60 FLA contactor
2.Packaging:
Y = Individual Pack
- = Bulk Pack
A-ZZZ = Customer specific information (assigned by factory)
3.Pole Configuration:
30 = 3 Form X (3PST-NO-DM)
4.Coil Voltage (50/60 Hz.):
I = 24VAC, molded
K = 208/240VAC, molded
J = 120VAC, molded
M = 277VAC, molded
W = 480VAC, molded
5.Contact Ratings (Inductive):
16 = 50 FLA
17 = 60 FLA
6.Customer ID Suffix:
999 = Standard Model
000-998 = Factory assigned customer ID
7. Option Code:
Leave Blank = No customer-specific options
A - ZZ = Factory assigned customer-specific options.
Standard part numbers listed below are more likely to be available from stock.
None at present.

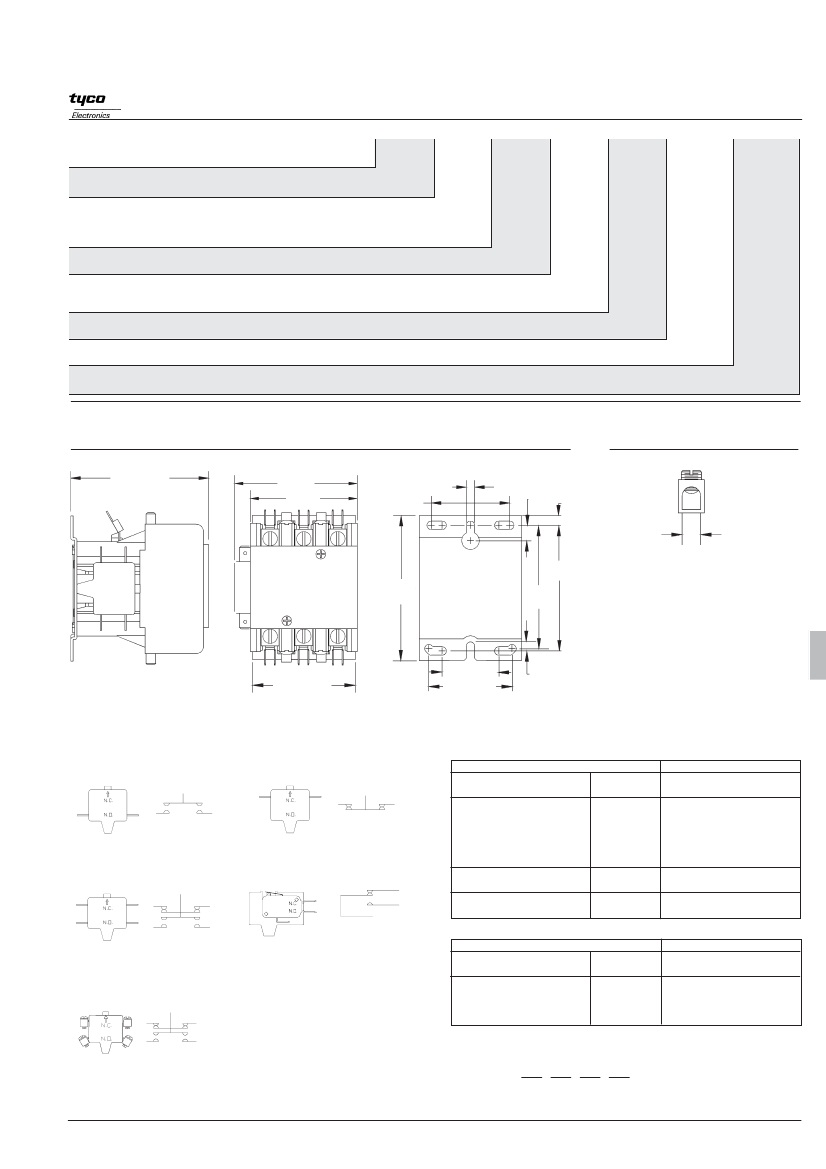

Outline Dimensions
3.563
(90.5)
3.10
(78.7)
2.75
(69.9)
.218 TYP
.
(5.537)
2.032
(51.61)
.438
(11.12)
Termination
.250
(6.35)
.253
(6.43)
3.25
(82.55)
3.75
(95.25)
3.19
(81.03)
Standard
on 50-60 FLA
Lug accepts 14-2
Cu/Al AWG
2.65
(67
.3)
1.468
(37
.29)
2.242
(56.95)
.250
(6.35)
Shown with Optional Auxiliary Switch
Various interlock / auxiliary switches are available for the Model 93 contactor.
Equipped with 0.250” (6.35) Quick Connect Terminals
Factory Modifications
Contact Config.
NO
NC
Single unit interlock
1
0
configurations listed.
0
1
Maximum of two. Must
1
1
be same polarity.
2
0
See footnote (1) for ratings.
0
2
2
2
SPDT Circuit
1
1
See footnote (2) for ratings.
2
2
SPDT Dry Circuit, 0.1 amp max. 1
1
Gold Flashed Contacts
2
2
Description
Field Added Kits
Kit Catalog
Number of
Number
Kits Required
34300-303
1
34300-331
1
34300-332
1
34300-303
2
34300-331
2
34300-332
2
34300-337
1
34300-337
2
34300-341
1
34300-340
1
NORMALLY OPEN
-303 STYLE
NORMALLY CLOSED
-331 STYLE
NORMALLY OPEN & CLOSED
-332 STYLE
SPDT
-337 & -341 STYLE
Equipped with #6-32 Screw Terminals & Saddle Clamps
Factory Modifications
Field Added Kits
Description
Contact Config.
Kit Catalog
Number of
NO
NC
Number
Kits Required
Single unit interlock
1
0
34300-342
1
configurations listed.
0
1
34300-343
1
Maximum of two. Must
1
1
34300-344
1
be same polarity. (note 1)
Footnotes: Ratings of Auxiliary Interlocks / Switches
(1) Contact Rating Single Circuit NO or NC
(2) Contact Rating SPDT (337):
and two circuit NO/NC:
10A, 1/3 HP 125 or 250 VAC
,
1/2A, 125 VDC; 1/4A, 250 VDC:
120V 240V 480V 600V
Break
3.0A 1.5A 0.75A 0.6A
4A 120 VAC on Lamp Load
Make
30A 15A 7.5A 6A
Continuous 10A 10A 10A 10A
W/ #6-32 SCREW & SADDLE CLAMP
-344 STYLE
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
