CDEUX Series - Extended Range Buﬀer Networks (Capacitive Input)

CDEUX Series

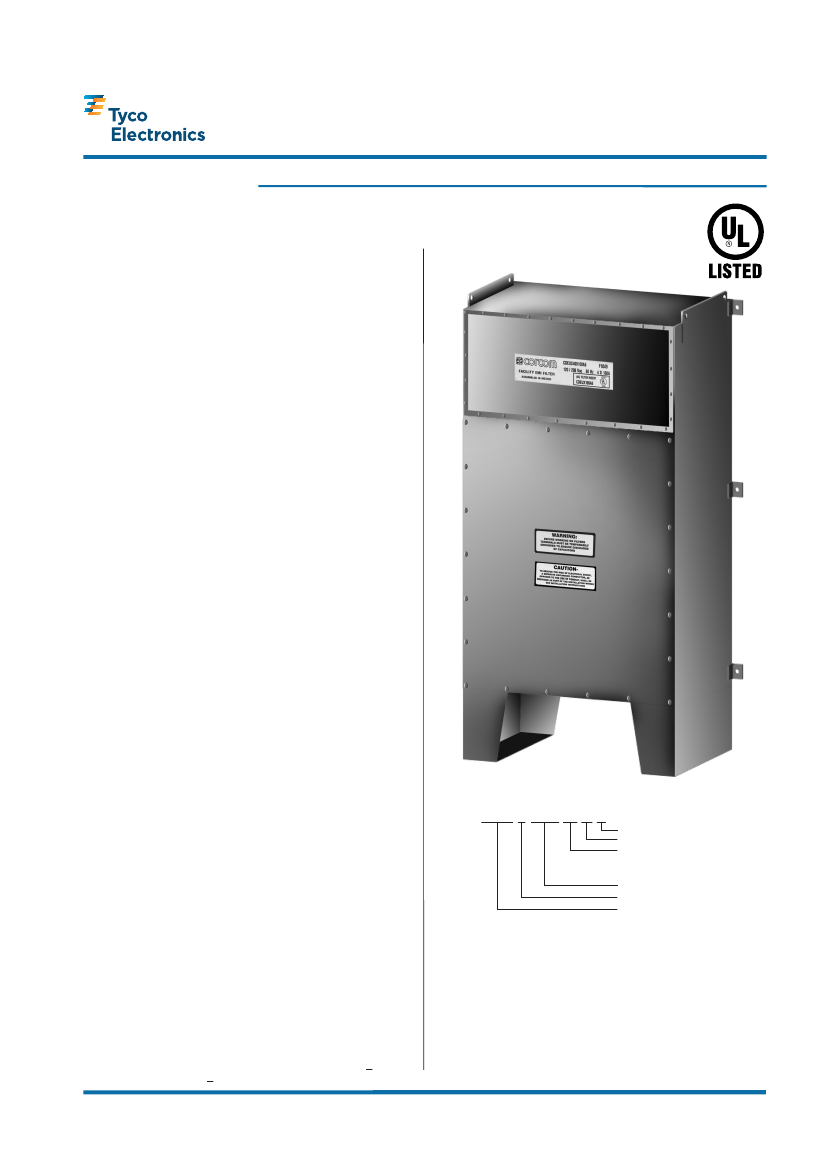

Filter Cabinet

• Modiﬁed NEMA I, constructed of not less than #14

gauge CRS with galvanized bulkhead

• Blue epoxy ﬁnish to all non-conductive surfaces

• R.F. Radiation of the shielded (load) compartment

greater than 100 dB from 14 kHz to 10 GHz

• Front cover access, dual cover design

• Filter inserts pre-wired to standoffs and lugs

• Lifting hooks and mounting tabs

• Legs for ﬂoor mount available (see page 24)

6P16 †

Individual Filters

• Sealed components with welded and/or soldered

seams

• Constructed of not less than #16 gauge steel with

corrosion resistant plating

• Bleeder resistor to eliminate shock hazard provided

• Surge arrestors provided upon request‡

Electrical Characteristics

Voltage Drop:

Less than 1% @ unity power factor

Overload:

140% of rated current for 15 minutes

Harmonic Distortion:

Less than 2% @ full rated current

Dielectric Withstanding Voltage:

Per MIL-PRF-15733 and UL1283

D.C. Insulation Resistance:

Per MIL-STD-202, Method 302

Terminal Strength:

Per MIL-STD-202, Method 211, Condition E

Temperature Rise:

Per MIL-PRF-15733 and UL1283

Shown with optional legs

R.F. Radiation:

100 dB minimum shielding eﬀectiveness

How to Order:

CDEUX 4 01000 A6 -S -L

Legs

Surge Arrestors

(optional)

Voltage/Frequency

A6 - 120/208V, 60Hz

B6 - 277/480V, 60Hz

A4 - 120/208V, 400Hz

Insertion Loss:

100 dB from 14 kHz - 10 GHz per MIL-STD-220A, under

load condition, using extended range buﬀer networks

over the frequency range of 14 kHz - 20 MHz

Current Rating

# of Filters

Series

Applicable Publications:

Examples:

MIL-PRF-15733 — Filters, radio interference

MIL-STD-202 — Test methods for Components

MIL-STD-220A — Test method of Insertion Loss

MIL-STD-285 — Test method for Shielding Eﬀectiveness

NFPA 70-1987 — National Electric Code

486A - 1983 — Wire Connectors and Lug

UL1283 — Underwriter Laboratories

CDEUX401000A6-S-L =

4, 1000A CDEUX, 120/280V ﬁlters in cabinet

with surge arrestors and legs

CDEUX300030B6 =

3, 30A CDEUX, 277/480V ﬁlters in cabinet

Note 1:

Surge Arrestor for A6/A4* Models: V251BA60

Surge Arrestor for B6 Models: V481BA60

Current conﬁguration listed as 5 digits with leading zeros

Note 2:

‡ Not intended for HEMP applications. Refer to the CDEUL(<150A)

page 12 or TECUL Series (>225A) page 14 for HEMP applications..

† 60 Hz Models Only

Dimensions are in inches and millimeters unless otherwise specified. Values in italics are metric

equivalents. Dimensions are shown for reference purposes only. Specifications subject to change.

USA Cust. Svc.:

Corcom Prods:

1-800-468-2023

1-847-680-7400

www.tycoelectronics.com

www.corcom.com
