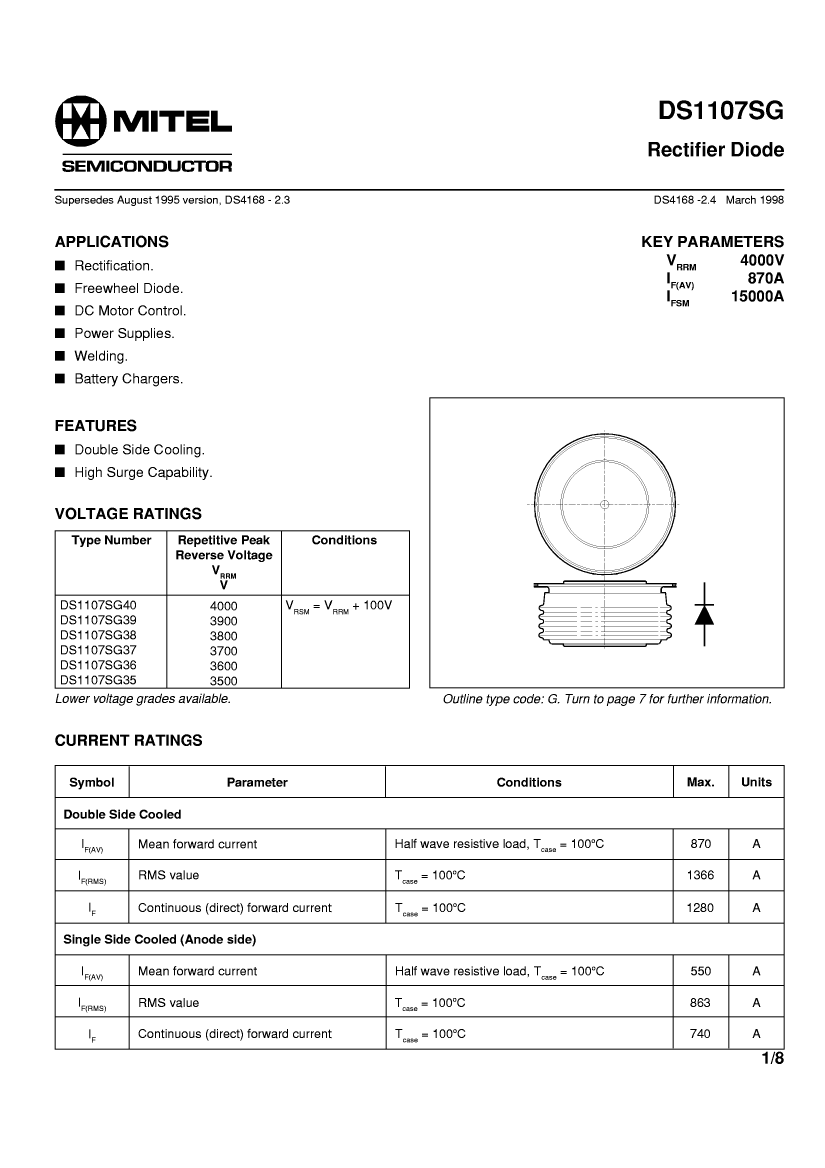

DS1107SG36 datasheet, PDF - EEWORLD Datasheet

DS1107SG36: DescriptionRectifier Diode, 1 Element, 1120A, 3600V V(RRM),; CategoryDiscrete semiconductor diode; File Size199KB，8 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

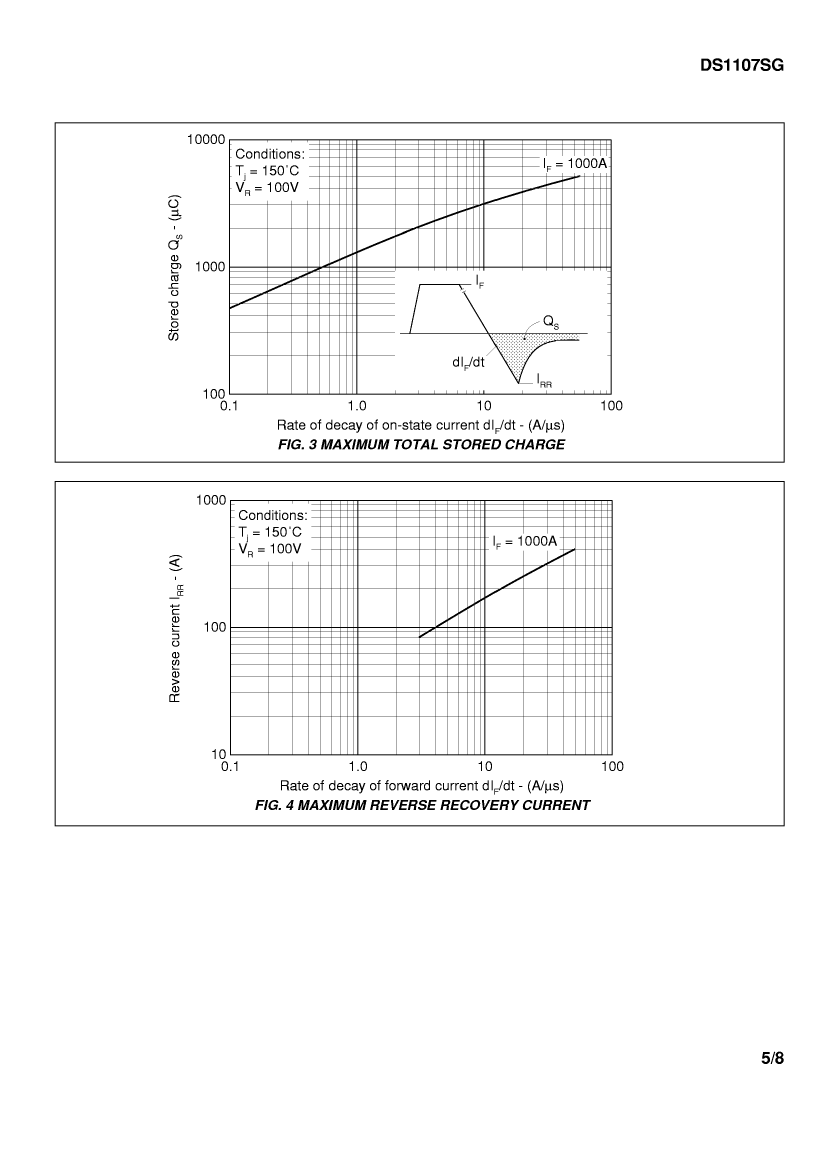

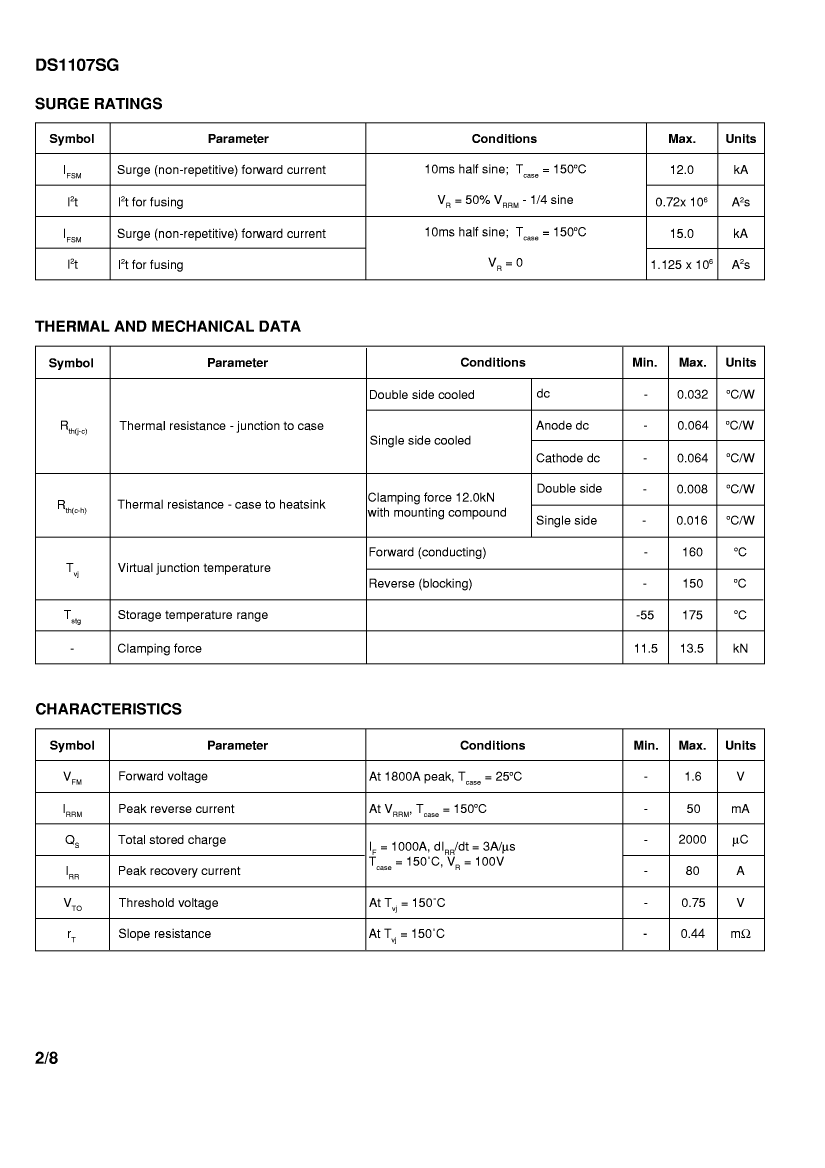

DS1107SG36 Overview

Rectifier Diode, 1 Element, 1120A, 3600V V(RRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	RECTIFIER DIODE

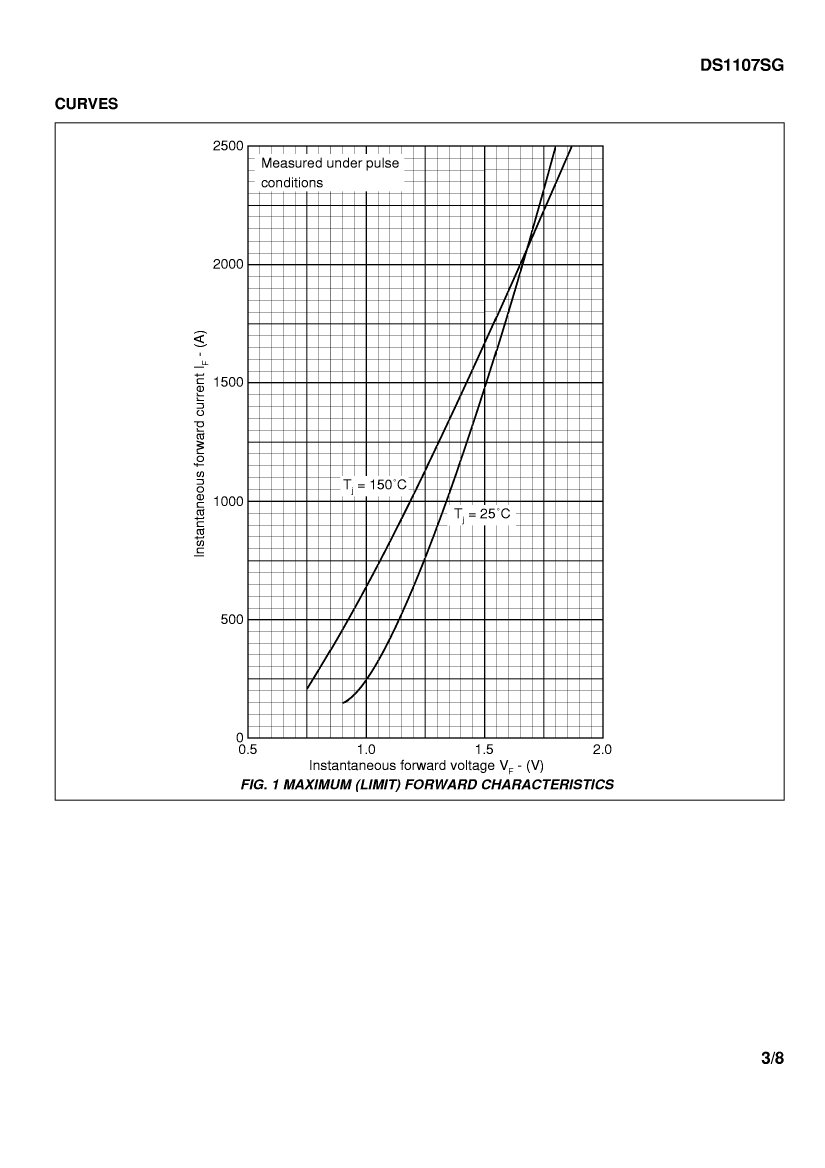

Maximum forward voltage (VF)	1.6 V
Maximum non-repetitive peak forward current	12000 A
Number of components	1
Maximum operating temperature	150 °C

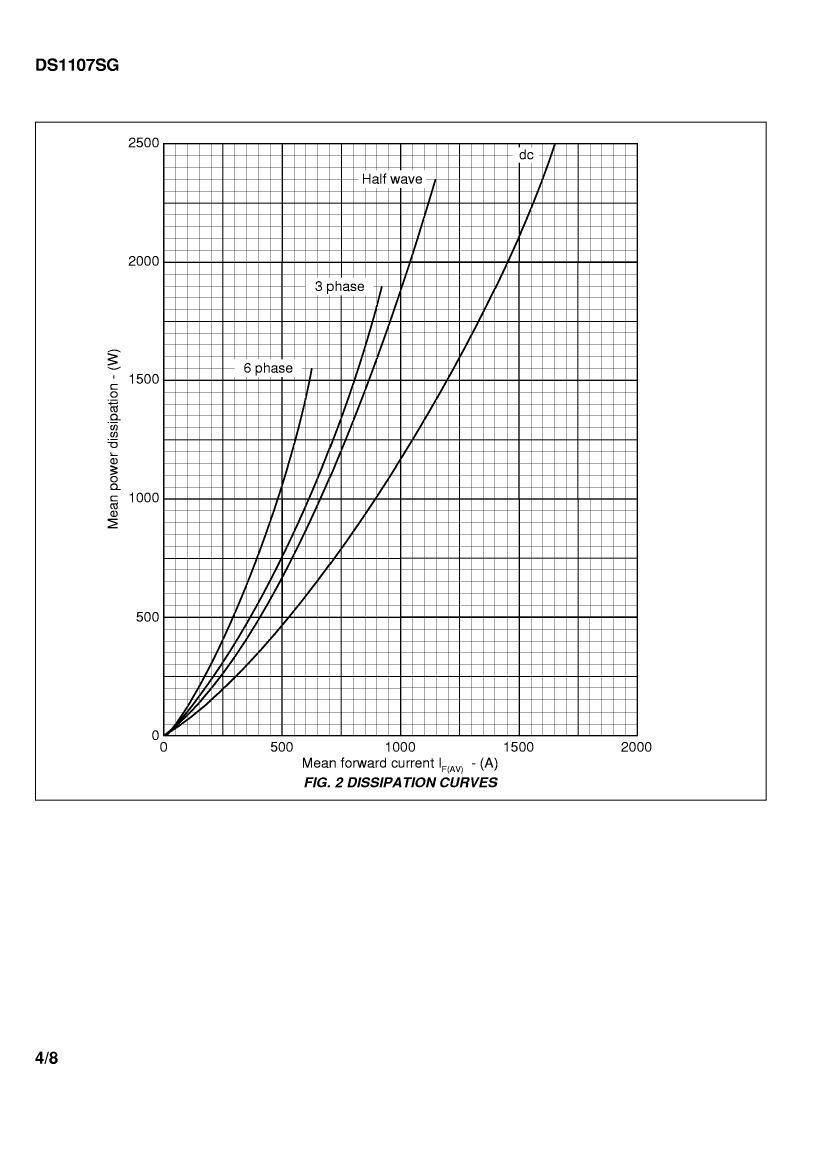

Maximum output current	1120 A
Maximum repetitive peak reverse voltage	3600 V
surface mount	NO

	DS1107SG36	DS1107SG40	DS1107SG35	DS1107SG37	DS1107SG38	DS1107SG39
Description	Rectifier Diode, 1 Element, 1120A, 3600V V(RRM),	Rectifier Diode, 1 Phase, 1 Element, 1280A, 4000V V(RRM), Silicon,	Rectifier Diode, 1 Element, 870A, 3500V V(RRM),	Rectifier Diode, 1 Phase, 1 Element, 1280A, 3700V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 1280A, 3800V V(RRM), Silicon,	Rectifier Diode, 1 Element, 870A, 3900V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V
Maximum non-repetitive peak forward current	12000 A	12000 A	12000 A	12000 A	12000 A	12000 A
Number of components	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1120 A	870 A	870 A	870 A	870 A	870 A
Maximum repetitive peak reverse voltage	3600 V	4000 V	3500 V	3700 V	3800 V	3900 V
surface mount	NO	NO	NO	NO	NO	NO
