Ceramic Resonators (Chip Type)
Ceramic Resonators, Chip Type
(Thin Type)
Type:
Type:
Type:
Type:
PS
PM
DM
LM
(4 to 8 MHz)
(4 to 13 MHz)
(12 to 20 MHz)
(
16.0 to 20.0 MHz
)
30.1 to 50.0 MHz
n
Recommended Applications
l
Clock generator for microprocessers
l
Carrier between telecommunication equipment
(Telephone to telephone, personal computer to
printer)
n
Features
l
Encased in ceramic package
l
High reliability against soldering heat and mechanical
stress
l
Moisture-proof sealing
l
Low Profile Type (1.8 mm maximum in thickness)
l
Designed for reflow soldering
l
Flat-bottom plate for better mountings
n
Application Notes
n
Precautions for Safety
(See Page 218 to 219)
n

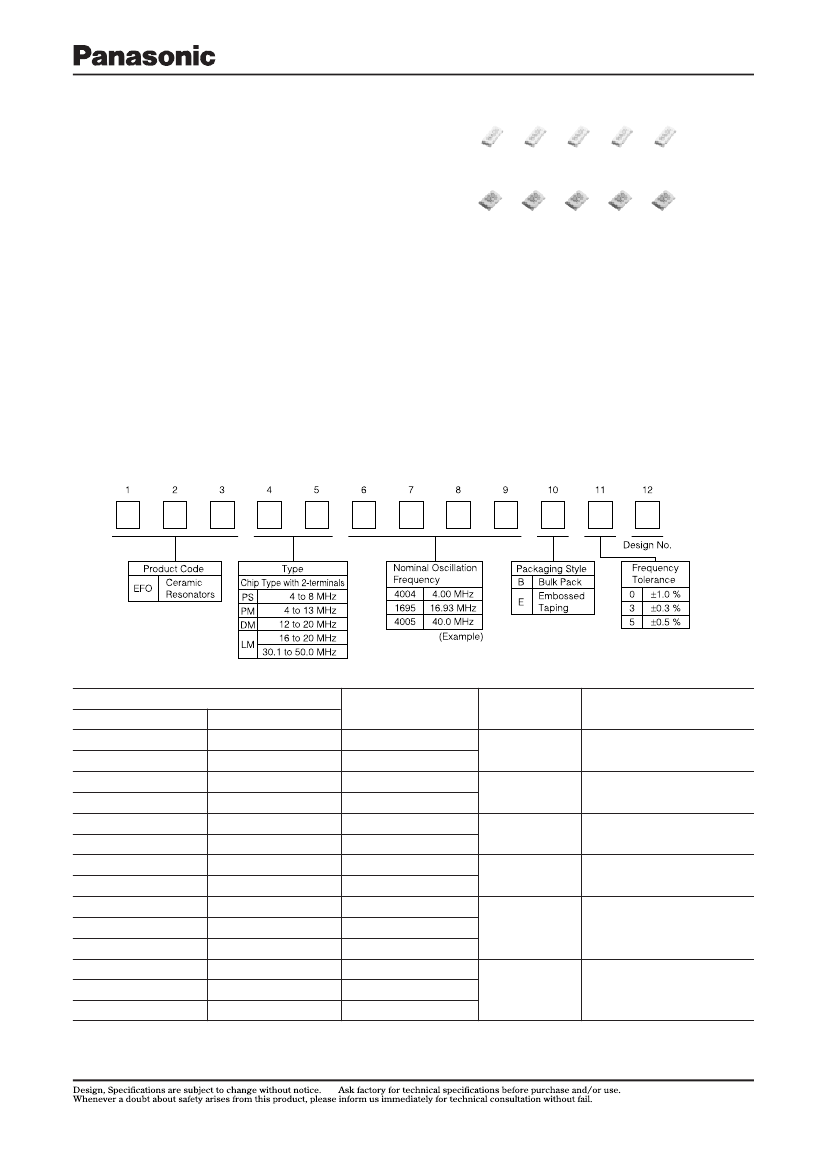

Explanation of Part Numbers
E
F
O
4
l
Soldering Conditions
Reflow soldering shall be done at 220 ûC for less
than 10 seconds, and peak temperature of 240 ûC.
(Remark) Flow soldering method and dip soldering
method shall not be applied.
0
0
4
n
Ratings and Characteristics
Part Number
Bulk Pack
EFOPS4004B5
EFOPS8004B5
EFOPM4004B5
EFOPM8004B5
EFOPM1005B5
EFOPM1205B5
EFODM1205B5
EFODM2005B5
EFOLM1605B5
EFOLM1695B5
EFOLM2005B5
EFOLM3205B5
EFOLM3385B5
EFOLM4005B5
Embossed Taping
EFOPS4004E5
EFOPS8004E5
EFOPM4004E5
EFOPM8004E5
EFOPM1005E5
EFOPM1205E5
EFODM1205E5
EFODM2005E5
EFOLM1605E5
EFOLM1695E5
EFOLM2005E5
EFOLM3205E5
EFOLM3385E5
EFOLM4005E5
Oscillation
Frequency
(fo)
4.00 MHz ±0.5 %
8.00 MHz ±0.5 %
4.00 MHz ±0.5 %
8.00 MHz ±0.5 %
10.00 MHz ±0.5 %
12.00 MHz ±0.5 %
12.00 MHz ±0.5 %
20.00 MHz ±0.5 %
16.00 MHz ±0.5 %
16.93 MHz ±0.5 %
20.00 MHz ±0.5 %
32.00 MHz ±0.5 %
33.868 MHz ±0.5 %
40.00 MHz ±0.5 %
6 dB min.
15 dB min.
Loop Gain
(G)
10 dB min.
10 dB min.
15 dB min.
15 dB min.
Temperature
Characteristics
Maximum frequency drift:
±1.0 %, Ð20 to 80 ¡C
Maximum frequency drift:
±0.3 %, Ð20 to 80 ¡C
Maximum frequency drift:
±1.0 %, Ð20 to 80 ¡C
Maximum frequency drift:
±1.0 %, Ð20 to 80 ¡C
Maximum frequency drift:
±1.0 %, Ð20 to 80 ¡C
Maximum frequency drift:
±0.3 %, Ð20 to 80 ¡C
l
Operating Temperature Range: Ð20 to 80 ûC
Note:
Also available are types other than above standard products in the
frequency range of 3 to 50.0 MHz.
Please contact us for more information.
Ceramic Resonators (Chip Type)
n

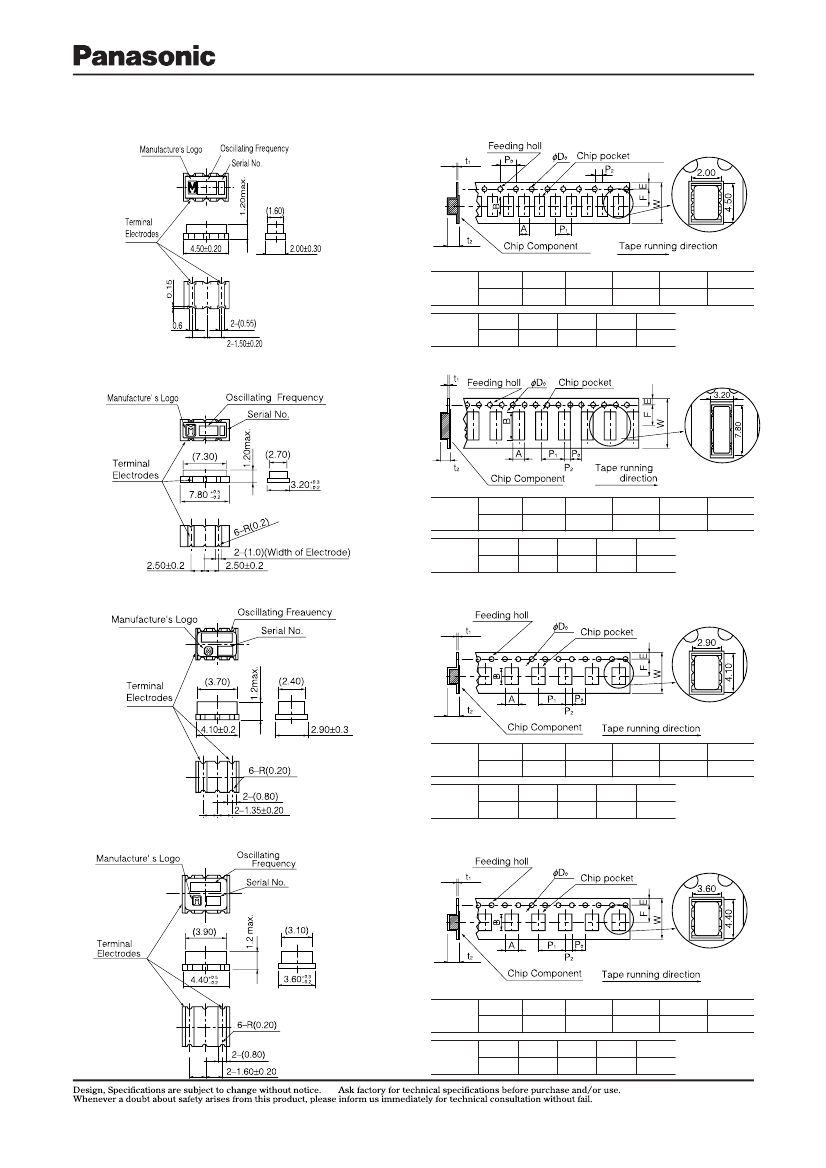

Dimensions in mm (not to scale)
l
Bulk
[Type PS] EFOPS1111B1
l
Embossed Taping
EFOPS1111E1
Dim.
(mm)
Dim.
(mm)
A
B
W
F
E
P
1
2.6±0.2 5.1±0.2 12.0±0.3
P
2
P
0
fD
0
1.5
+0.1
0
5.5±0.1 1.75±0.10 4.0±0.1
t
1
t
2
2.0±0.1 4.0±0.1
0.6 max. 3.0 max.
[Type PM] EFOPM1111B1
EFOPM1111E1
Dim.
(mm)
Dim.
(mm)
A
B
W
F
E
P
1
3.7±0.2 8.3±0.2 16.0±0.3
P
2
P
0
fD
0
1.5
+0.1
0
7.5±0.1 1.75±0.10 8.0±0.1
t
1
0.3
t
2
3.5 max.
2.0±0.1 4.0±0.1
[Type DM] EFODM1111B1
EFODM1111E1
Dim.
(mm)
Dim.
(mm)
A
B
W
F
E
P
1
3.4±0.2 4.6±0.2 12.0±0.3
P
2
P
0
fD
0
1.5
+0.1
0
5.5±0.1 1.75±0.10 8.0±0.1
t
1
t
2
2.0±0.1 4.0±0.1
0.6 max. 3.0 max.
[Type LM] EFOLM1111B1
EFOLM1111E1
Dim.
(mm)
Dim.
(mm)
A
B
W
F
E
P
1
4.1±0.2 4.9±0.2 12.0±0.3
P
2
P
0
fD
0
1.5
+0.1
0
5.5±0.1 1.75±0.10 8.0±0.1
t
1
t
2
2.0±0.1 4.0±0.1
0.6 max. 3.0 max.
Ceramic Resonators (Chip Type)
n

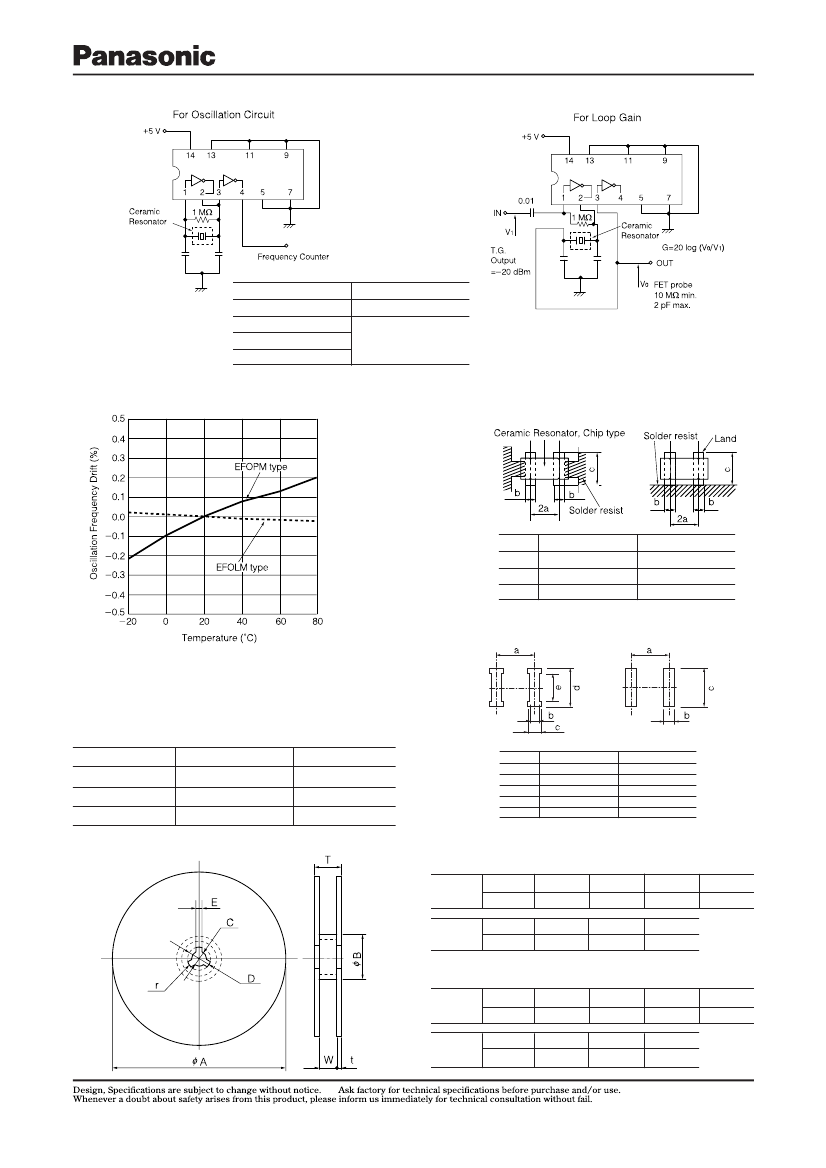

Test Circuits Diagram
Frequency
3.00 to 8.38 MHz
8.4 to 13.0 MHz
16.0 to 20.0 MHz
30.1 to 50.0 MHz
IC
µPD 4069UBC
µPD 74HCU04
n
Typical Characteristics
n
Recommended Land Dimensions
(Type PM/LM)
a
b
c
l
Type EFOPS
Type PM
2.5
0.9 to 1.2
3.8 to 4.7
Type LM
1.6
0.7 to 1.0
4.2 to 5.1
(mm)
l
Type EFODM
n
Packaging Specifications
l
Standard Packing Quantity
Type
PM
PS
LM, Dm
Supplied in bulk or taped & reel packing style
Embossed Taping
2500 pcs./reel
2000 pcs./reel
1000 pcs./reel
Bulk
500 pcs./bag
500 pcs./bag
500 pcs./bag
a
b
c
d
e
Type SS
3.0
0.55
0.8
2.6
1.6
Type BM
1.35
0.8
Ñ
3.9
Ñ
(mm)
l
Dimensions for Reel in mm (not to scale)
[Type PM]
Dim.
(mm)
Dim.
(mm)
fA
330±5
W
16.4
+2.0
0
fB
80 min.
T
22.4 max.
C
13.0±0.5
t
3 max.
D
21.0±0.8
r
1.0
E
2.0±0.5
[Type LM, PS, DM]
Dim.
(mm)
Dim.
(mm)
fA
180±5
W
12.4
+2.0
0
fB
60 min.
T
18.4 max.
C
13.0±0.5
t
3 max.
D
21.0±0.8
r
1.0
E
2.0±0.5
