QTLP670CIB_7870D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> QTLP670CIB_7870D

Preview

QTLP670CIB_7870D: DescriptionSingle Color LED, Blue, Water Clear, 2.4mm, PLASTIC, LCC-2; CategoryLED optoelectronic/LED photoelectric; File Size3MB，9 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/

Download Datasheet Parametric Compare View All

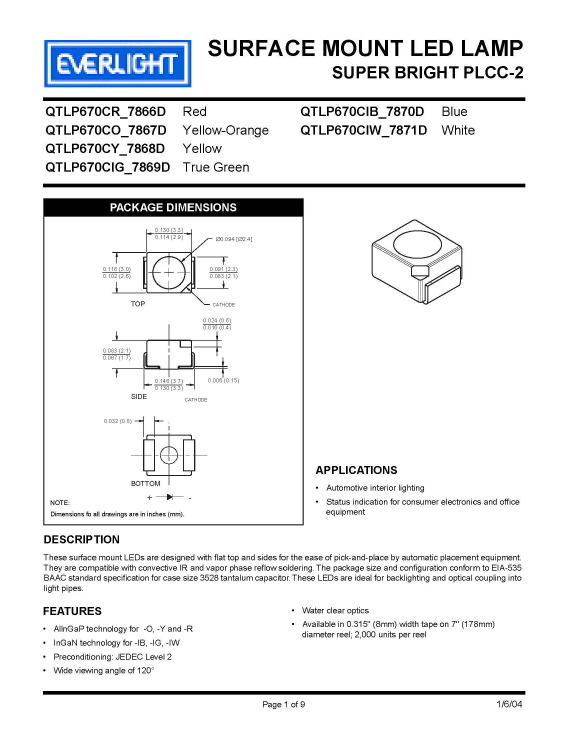

QTLP670CIB_7870D Overview

Single Color LED, Blue, Water Clear, 2.4mm, PLASTIC, LCC-2

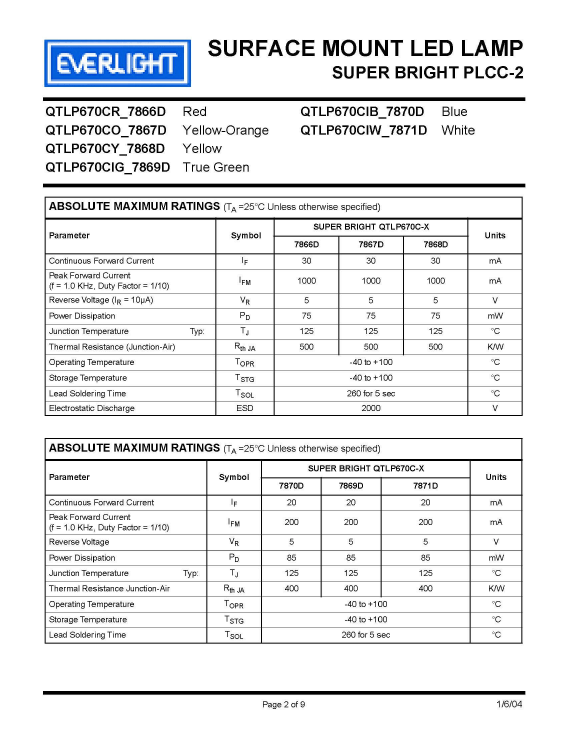

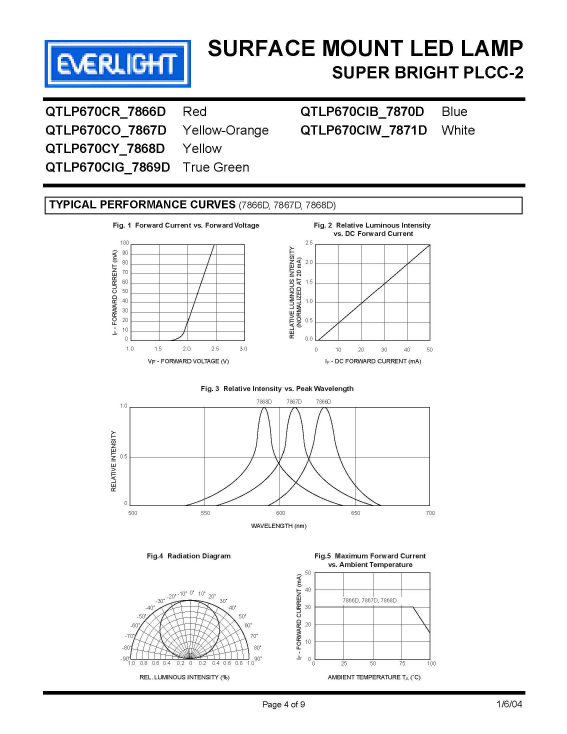

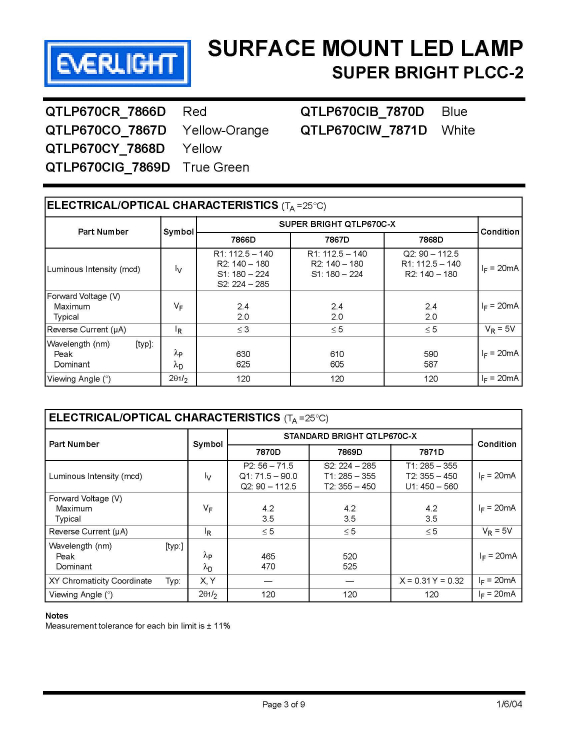

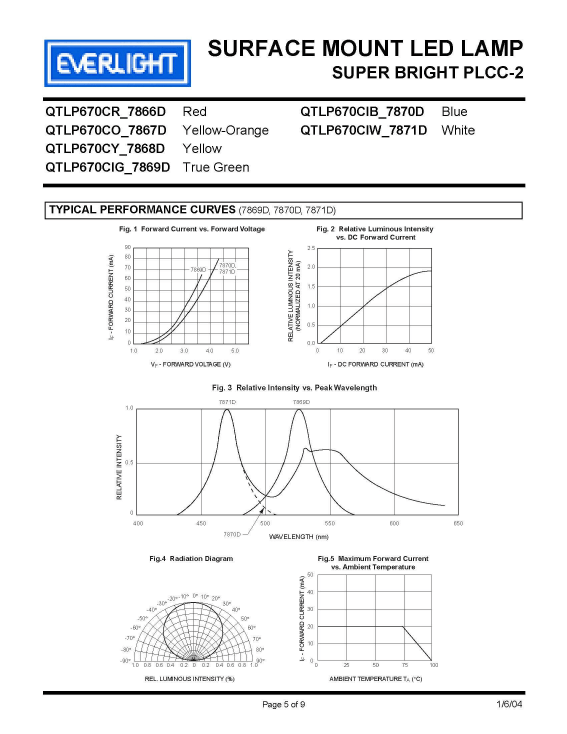

QTLP670CIB_7870D Parametric

Parameter Name	Attribute value
Maker	EVERLIGHT
package instruction	PLASTIC, LCC-2
Reach Compliance Code	compliant
color	BLUE
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	WATER CLEAR
Nominal luminous intensity	337.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.9 mm
method of packing	TAPE AND REEL 7\"
peak wavelength	520 nm
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal pitch	4.5 mm
perspective	120 deg

Preview

Download Datasheet

View All

QTLP670CIB_7870D Related Products

	QTLP670CIB_7870D	QTLP670CD_7869D	QTLP670CO_7867D	QTLP670CR_7866D	QTLP670CIW_7871D	QTLP670CIG-7869D
Description	Single Color LED, Blue, Water Clear, 2.4mm, PLASTIC, LCC-2	Single Color LED, True Green, Water Clear, 2.4mm, PLASTIC, LCC-2	Single Color LED, Yellow Orange, Water Clear, 2.4mm, PLASTIC, LCC-2	Single Color LED, Red, Water Clear, 2.4mm, PLASTIC, LCC-2	Single Color LED, White, Water Clear, 2.4mm, PLASTIC, LCC-2	Visible LED
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant
Maker	EVERLIGHT	-	EVERLIGHT	EVERLIGHT	EVERLIGHT	EVERLIGHT
package instruction	PLASTIC, LCC-2	PLASTIC, LCC-2	PLASTIC, LCC-2	PLASTIC, LCC-2	PLASTIC, LCC-2	-
color	BLUE	TRUE GREEN	YELLOW ORANGE	RED	WHITE	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Maximum forward current	0.02 A	0.02 A	0.03 A	0.03 A	0.02 A	-
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	-
Nominal luminous intensity	337.0 mcd	84.25 mcd	168.25 mcd	198.75 mcd	422.5 mcd	-
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Number of functions	1	1	1	1	1	-
Number of terminals	2	2	2	2	2	-
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	-
total height	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	-
method of packing	TAPE AND REEL 7\"	TAPE AND REEL 7"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	-
peak wavelength	520 nm	465 nm	610 nm	630 nm	-	-
shape	ROUND	ROUND	ROUND	ROUND	ROUND	-
size	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm	-
surface mount	YES	YES	YES	YES	YES	-
Terminal pitch	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	-
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	-
