FRS-R-3-2/10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> FRS-R-3-2/10

FRS-R-3-2/10: DescriptionTIME DELAY BLOW ELECTRIC FUSE, 3.2A, 600VAC, 250VDC, 200000A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size347KB，3 Pages; ManufacturerEaton

Download Datasheet Parametric View All

FRS-R-3-2/10 Overview

TIME DELAY BLOW ELECTRIC FUSE, 3.2A, 600VAC, 250VDC, 200000A (IR), INLINE/HOLDER

FRS-R-3-2/10 Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
Other features	RATED BREAKING CAPACITY AT 250 VDC: 20000 A
Fusing characteristics	TIME DELAY
body height	127 mm
Body length or diameter	20.57 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	FRS-R
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	20.57mm x 127mm
Rated breaking capacity	200000 A
Rated current	3.2 A
Rated voltage (AC)	600 V
Rated voltage (DC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

Technical Data 1017

Effective May 2016

Supersedes August 2013

BUSSMANN

SERIES

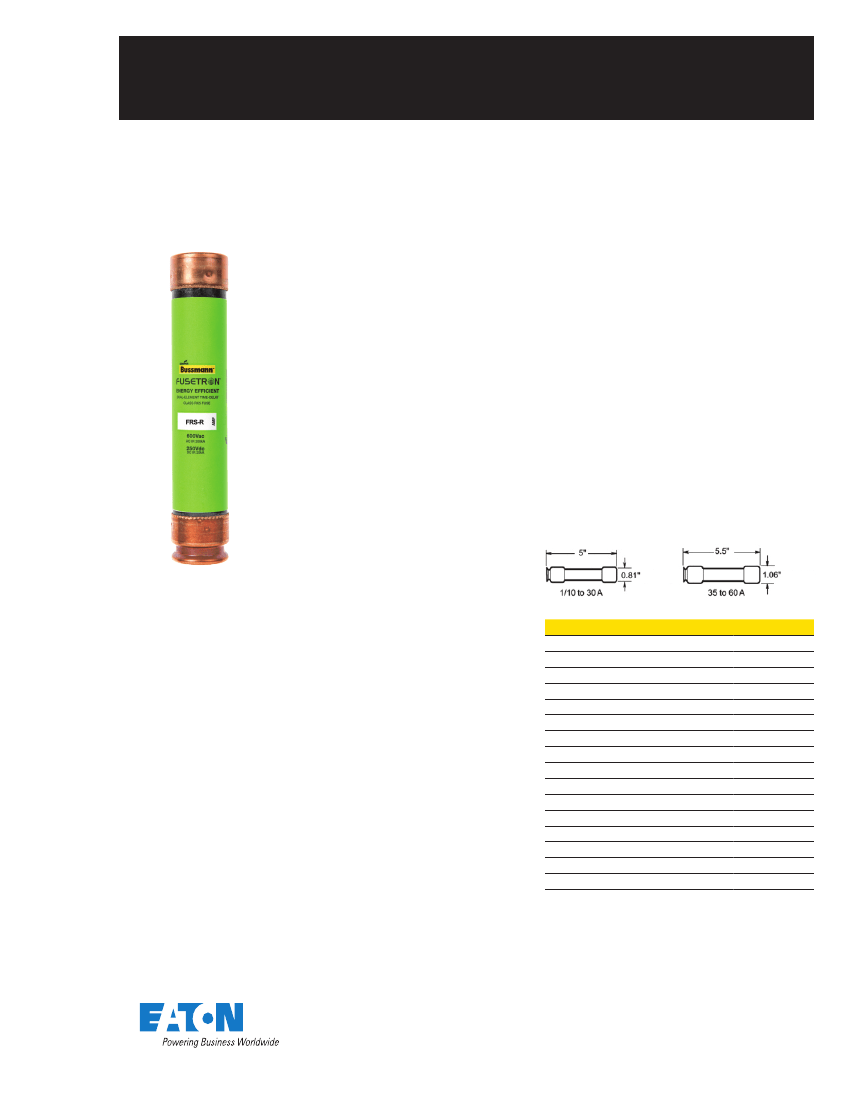

Fusetron™ 600 V Class RK5, FRS-R — 600 Vac/300 Vdc,

1/10-60 A, dual element, time-delay fuses

Catalog symbol:

•

FRS-R-(amp) (non-indicating)

FRS-R-(amp)ID (indicating)

•

Dual-element fuses can be applied in circuits

subject to temporary motor overloads

and surge currents to provide both high

performance short-circuit and overload

protection

Offers a 10-second time delay at 5 times the

rated current

The time-delay feature makes it possible

to use fuse amp ratings that are much

smaller than those of non-time delay

fuses. Considerable cost savings occur by

permitting the use of smaller size switches,

panels, and fuses themselves.

Provides current limitation to help protect

downstream components from high fault

currents.

Gives motor running back-up protection to

motors without extra costs.

Description:

•

Advanced protection, energy efficient

Class RK5 dual element, current-limiting,

time-delay fuses with optional open fuse

indication on select ratings

Time-delay – 10 second (minimum) at 500%

of rated current

•

Specifications:

Ratings

•

Volts

•

600 Vac, 300 Vdc (1/10-30 A)

•

600 Vac, 250 Vdc (35-60 A)

Dimensions - in:

•

Amps — 1/10-60 A

Interrupting rating

•

200 kA Vac RMS Sym

•

20 kA Vdc

Catalog numbers (amps) — Non-indictaing fuses

FRS-R-1/10

FRS-R-1/8

FRS-R-15/100

FRS-R-2/10

FRS-R-1/4

FRS-R-3/10

FRS-R-4/10

FRS-R-1/2

FRS-R-6/10

FRS-R-8/10

FRS-R-1

FRS-R-1 1/8

FRS-R-1 1/4

FRS-R-1 4/10

FRS-R-1 1/2

FRS-R-1 6/10

FRS-R-1 8/10

FRS-R-2

FRS-R-2 1/4

FRS-R-2 1/2

FRS-R-2 8/10

FRS-R-3

FRS-R-3 2/10

FRS-R-3 1/2

FRS-R-4

FRS-R-4 1/2

FRS-R-5

FRS-R-5 6/10

FRS-R-6*

FRS-R-6 1/4*

FRS-R-7*

FRS-R-7 1/2*

FRS-R-8*

FRS-R-9*

FRS-R-10*

FRS-R-12*

FRS-R-15*

FRS-R-17 1/2*

FRS-R-20*

FRS-R-25*

FRS-R-30*

FRS-R-35*

FRS-R-40*

FRS-R-45*

FRS-R-50*

FRS-R-60*

–

Agency information:

•

CE, UL Listed, Std. 248-12, Class RK5, Guide

JDDZ, File E4273

•

CSA Certified, C22.2 No. 248.12, Class

1422-02, File 53787

•

Features:

•

Dual-element feature provides the best

time-delay performance, allowing closer

sizing and superior protection of motors and

transformers

Closer sizing allows for smaller fuses and

less costly switches

Class RK5 fuses with a 200 kA interrupting

rating for use in a broad range of

applications

Provides motor overload, ground fault, and

short-circuit protection

Helps protect motors against burnout from

overloads and single-phasing when sized

properly

•

* Open fuse indication available by inserting the sufix

“ID. E.g., FRS-R-15ID.

”

•
