3AYO1_1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> 3AYO1_1

Preview

3AYO1_1: Description250 V, 50/60 HZ, THREE PHASE EMI FILTER; CategoryPassive components; File Size313KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

3AYO1_1 Overview

250 V, 50/60 HZ, THREE PHASE EMI FILTER

3AYO1_1 Parametric

Parameter Name	Attribute value
working frequency	50/60 HZ
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Installation type	Panel mounting
terminal coating	NOT SPECIFIED
Dimensions	L85.1XB52.5XH38.7 (mm)/L3.35XB2.07XH1.53 (inch)
Manufacturer Series	AYO
filter type	three phase filter
Rated current	20 A
Rated voltage	250 V
Maximum leakage current	5.5 mA
Maximum insertion loss frequency	32 dB
Minimum insertion loss frequency	7 dB

Preview

Download Datasheet

View All

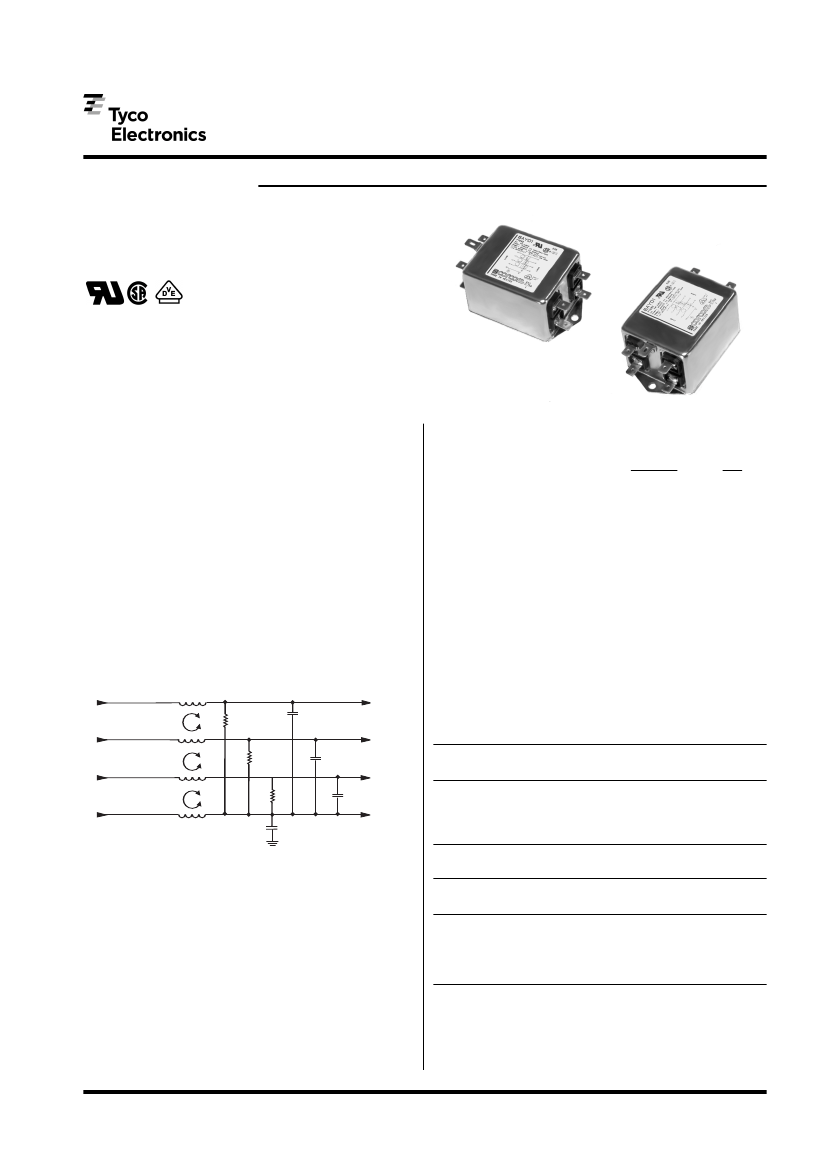

CORCOM Product Guide

Lower Current Three Phase RFI Filters

AYO Series

UL Recognized

CSA Certified

VDE Approved

AYO1

AYO Series

The AYO series filters are designed for 3-phase, four wire,

WYE applications providing filtering in each of the three

lines plus neutral.

These lower current RFI filters provide filtering to industrial

3-phase applications.

Specifications

Maximum leakage current, each line-to-ground:

3, 6, 10A

@ 120 VAC 60 Hz:

2.0 mA

@ 250 VAC 50 Hz:

3.0 mA

Hipot rating (one minute):

line-to-ground

line-to-line

Operating frequency:

Rated voltage (max.):

phase-to-phase

phase-to-neutral/ground

20A

3.5mA

5.5mA

1500 VAC

1450 VDC

50/60 Hz

440 VAC

250 VAC

3A

6A

10A

20A

Electrical Schematic

LINE

LOAD

Rated current:

03AYO1

06AYO1

10AYO1

20AYO1

Minimum insertion loss in dB:

Line-to-ground in 50 ohm circuit

Current

Rating

03A

06A

10A

20A

.15

12

7

–

Frequency-MHz

.5

1

5

23

–

7

29

30

5

11

33

40

16

32

10

38

50

28

23

30

35

30

15

12

N

Resistor location for reference only.

N

Line-to-line in 50 ohm circuit

Current

Rating

03A

06A

10A

20A

.15

–

10

Frequency-MHz

.5

1

5

12

18

20

24

50

31

42

10

35

28

38

30

28

22

23

18

Catalog 1654001

Revised 05-07

Dimensions are in inches and

millimeters unless otherwise

specified. Values in italics

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA Cust. Svc.: 1-800-468-2023

CORCOM Prods: 1-847-680-7400

Germany:

49-89-6089-0

www.corcom.com

www.tycoelectronics.com

3AYO1_1 Related Products

	3AYO1_1	10AYO1	20AYO1	3AYO1	6AYO1
Description	250 V, 50/60 HZ, THREE PHASE EMI FILTER	250 V, 50/60 HZ, THREE PHASE EMI FILTER	250 V, 50/60 HZ, THREE PHASE EMI FILTER	250 V, 50/60 HZ, THREE PHASE EMI FILTER	250 V, 50/60 HZ, THREE PHASE EMI FILTER
working frequency	50/60 HZ	50/60 HZ	50/60 HZ	50/60 HZ	50/60 HZ
Lead-free	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
Installation type	Panel mounting	Panel mounting	Panel mounting	Panel mounting	Panel mounting
terminal coating	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Dimensions	L85.1XB52.5XH38.7 (mm)/L3.35XB2.07XH1.53 (inch)	L85.1XB52.5XH38.7 (mm)/L3.35XB2.07XH1.53 (inch)	L85.1XB52.5XH38.7 (mm)/L3.35XB2.07XH1.53 (inch)	L85.1XB52.5XH38.7 (mm)/L3.35XB2.07XH1.53 (inch)	L85.1XB52.5XH38.7 (mm)/L3.35XB2.07XH1.53 (inch)
Manufacturer Series	AYO	AYO	AYO	AYO	AYO
filter type	three phase filter	three phase filter	three phase filter	three phase filter	three phase filter
Rated current	20 A	20 A	20 A	20 A	20 A
Rated voltage	250 V	250 V	250 V	250 V	250 V
Maximum leakage current	5.5 mA	5.5 mA	5.5 mA	5.5 mA	5.5 mA
Maximum insertion loss frequency	32 dB	32 dB	32 dB	32 dB	32 dB
Minimum insertion loss frequency	7 dB	7 dB	7 dB	7 dB	7 dB
