LH52252BK-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH52252BK-20

LH52252BK-20: DescriptionStandard SRAM, 64KX4, 20ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24; Categorystorage storage; File Size287KB，7 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH52252BK-20 Overview

Standard SRAM, 64KX4, 20ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24

LH52252BK-20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	0.300 INCH, PLASTIC, SOJ-24
Reach Compliance Code	unknown
Maximum access time	20 ns
JESD-30 code	R-PDSO-J24
JESD-609 code	e0
length	16 mm
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	24
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX4
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3.7 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.7 mm

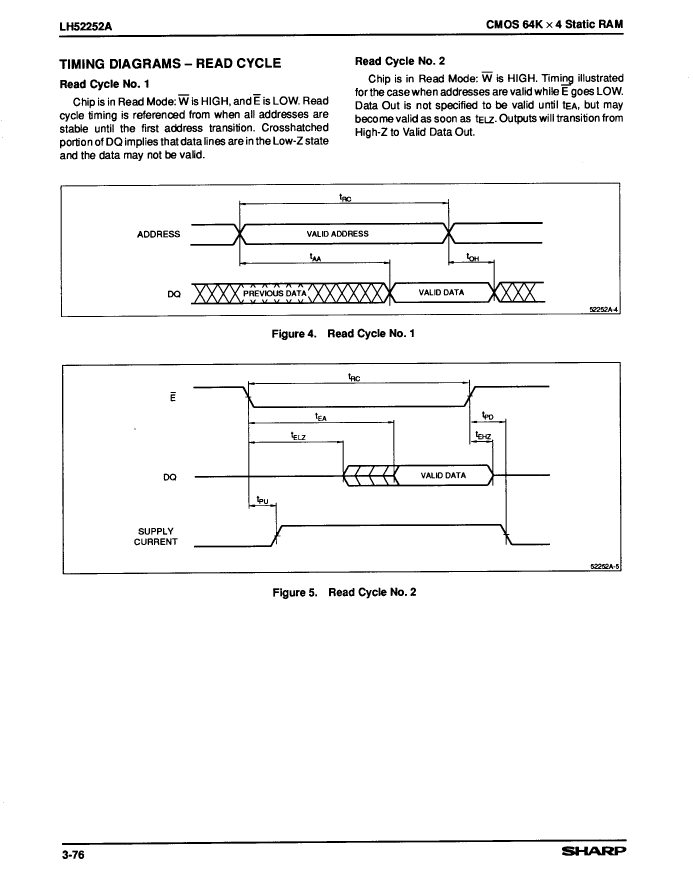

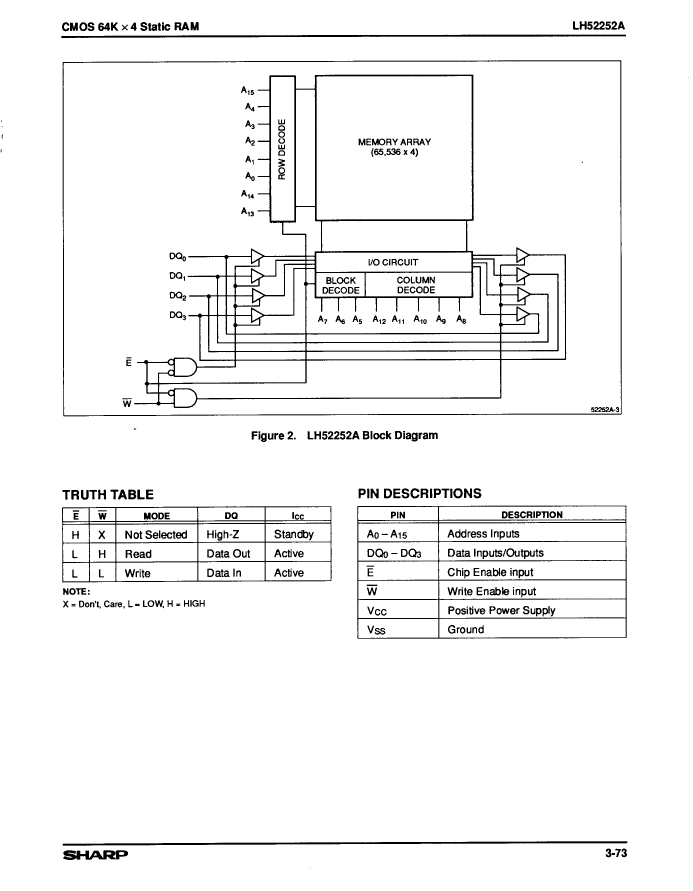

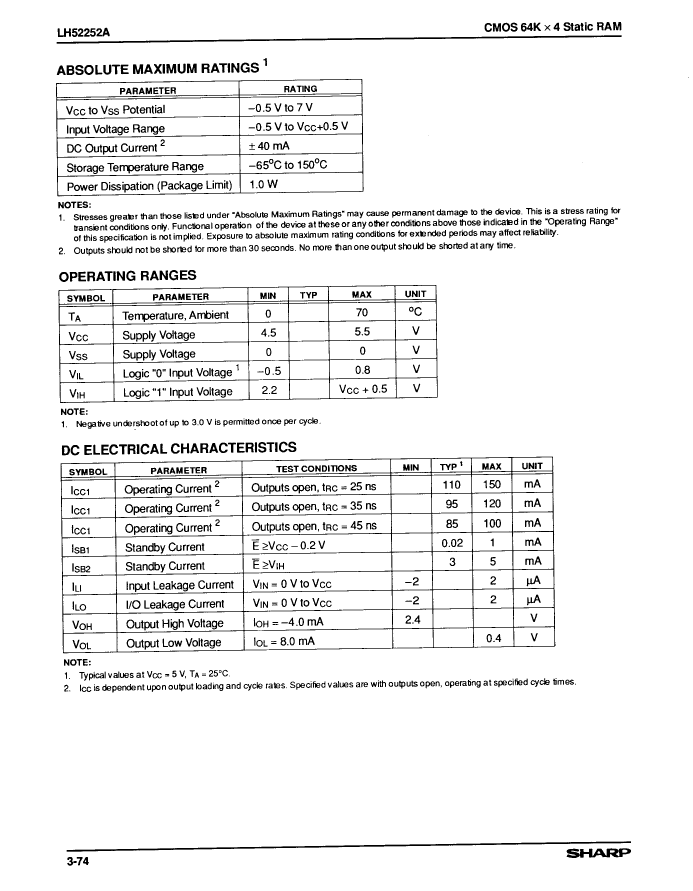

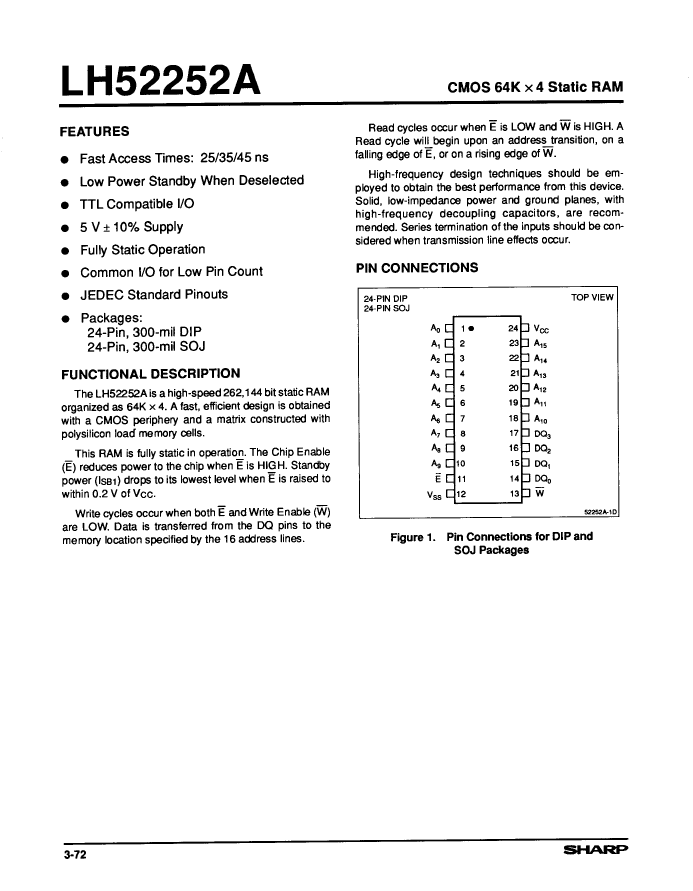

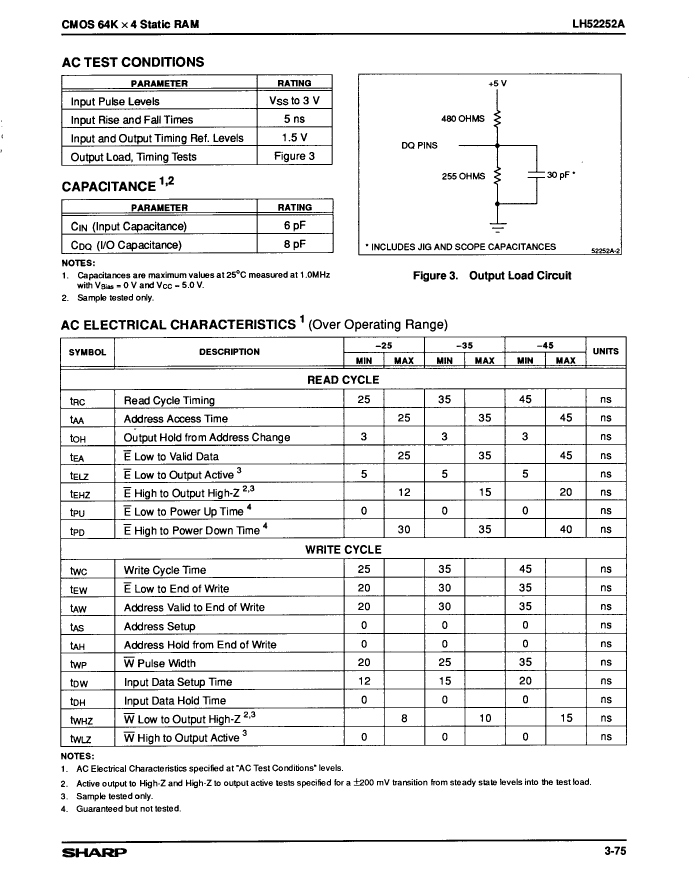

Preview

Download Datasheet

View All

LH52252BK-20 Related Products

	LH52252BK-20	LH52252BD-20	LH52252BK-25	LH52252BD-25	LH52252BK-15	LH52252BD-15
Description	Standard SRAM, 64KX4, 20ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Standard SRAM, 64KX4, 20ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Standard SRAM, 64KX4, 25ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Standard SRAM, 64KX4, 25ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Standard SRAM, 64KX4, 15ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Standard SRAM, 64KX4, 15ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	0.300 INCH, PLASTIC, SOJ-24	0.300 INCH, PLASTIC, DIP-24	0.300 INCH, PLASTIC, SOJ-24	0.300 INCH, PLASTIC, DIP-24	0.300 INCH, PLASTIC, SOJ-24	0.300 INCH, PLASTIC, DIP-24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	20 ns	20 ns	25 ns	25 ns	15 ns	15 ns
JESD-30 code	R-PDSO-J24	R-PDIP-T24	R-PDSO-J24	R-PDIP-T24	R-PDSO-J24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0
length	16 mm	29.6 mm	16 mm	29.6 mm	16 mm	29.6 mm
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	DIP	SOJ	DIP	SOJ	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.7 mm	4.4 mm	3.7 mm	4.4 mm	3.7 mm	4.4 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.7 mm	7.62 mm	7.7 mm	7.62 mm	7.7 mm	7.62 mm
Maker	SHARP	-	SHARP	SHARP	SHARP	SHARP
