C231A-245: DescriptionSilicon Controlled Rectifier, 25A I(T)RMS, 100V V(DRM), 100V V(RRM), 1 Element; CategoryAnalog mixed-signal IC Trigger device; File Size52KB，1 Pages; ManufacturerSemitronics Corp.

Download Datasheet Parametric View All

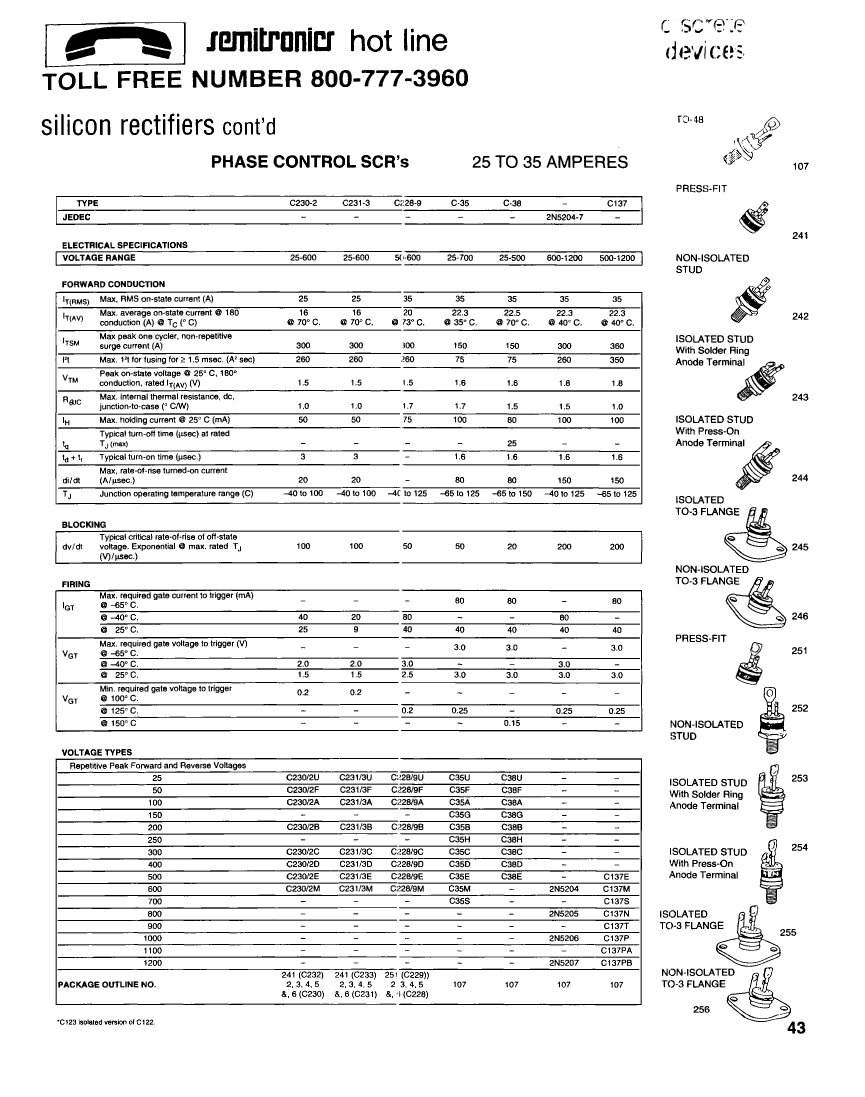

C231A-245 Overview

Silicon Controlled Rectifier, 25A I(T)RMS, 100V V(DRM), 100V V(RRM), 1 Element

Parameter Name	Attribute value
Maker	Semitronics Corp.
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Maximum DC gate trigger current	9 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA
JESD-30 code	O-MXFM-D3
Number of components	1
Number of terminals	3
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	25 A
Off-state repetitive peak voltage	100 V
Repeated peak reverse voltage	100 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UNSPECIFIED
Trigger device type	SCR
