CTB08-600BPT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> CTB08-600BPT

CTB08-600BPT: DescriptionTRIAC, 600V V(DRM), 8A I(T)RMS, TO-220AB, TO-220AB, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size202KB，2 Pages; ManufacturerCynergy 3; Environmental Compliance

Download Datasheet Parametric View All

CTB08-600BPT Overview

TRIAC, 600V V(DRM), 8A I(T)RMS, TO-220AB, TO-220AB, 3 PIN

CTB08-600BPT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cynergy 3
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	10 V/us
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	25 mA
Maximum DC gate trigger voltage	1.3 V
Maximum holding current	25 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum leakage current	0.005 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	600 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	TRIAC

Preview

Download Datasheet

View All

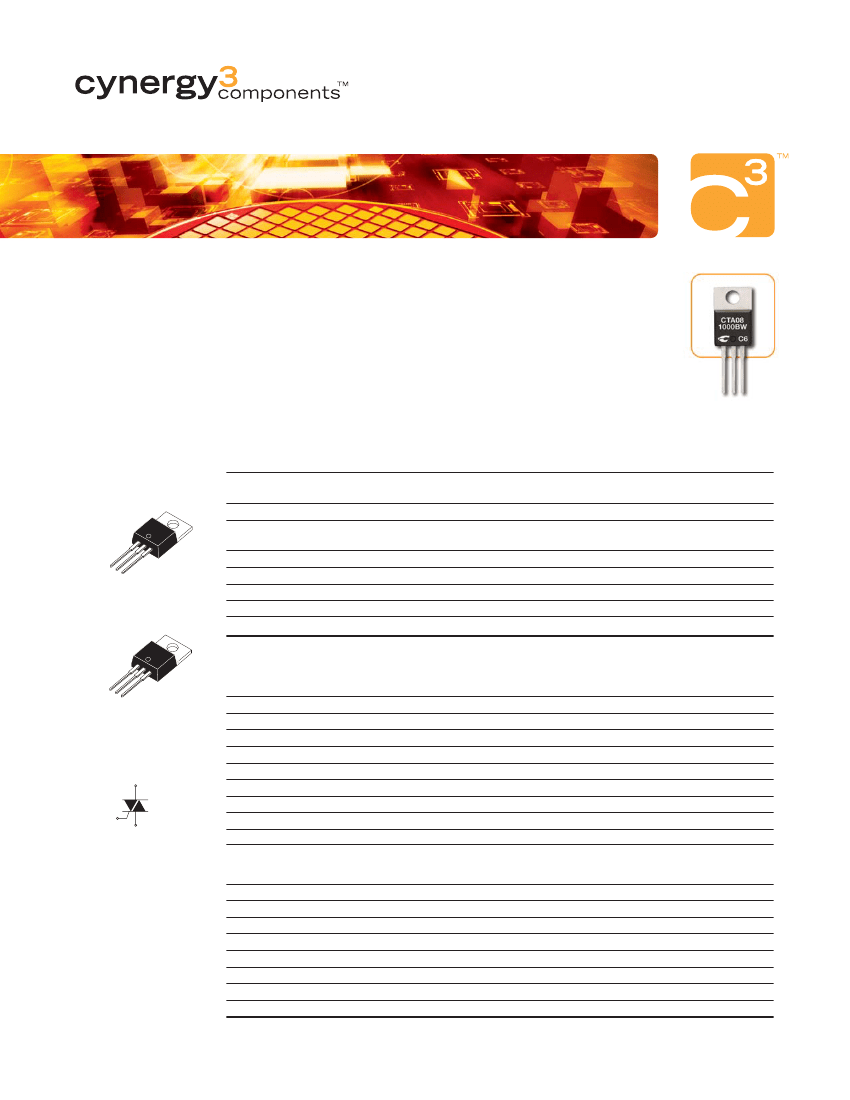

CTA/CTB 08

8Amp - 400/600/800/1000V - TRIAC

Applications

• Phase Control

• Static Switching

• Light Dimming

• Motor Speed Control

• Kitchen Equipment

• Power Tools

• Solenoid Valve Controls:

- Dishwashers

- Washing Machines

Suitable for General Purpose AC Switching

Altgernistor/No Snubber Versions for

Inductive Loads

Logic Level Available for Use with

Microcontrollers and Low Level Devices

IGT Range 5-50 mA (Q1)

VDRM/VRMM 400, 600, 800, 1000V

Absolute Maximum Ratings

RMS On-State Current (full sine wave)

Non Repetitive Surge Peak On-State Current

(Full Cycle, Tj Initial = 25˚C)

t Value for fusing

Critical rate of rise of on-state current

=2 x I

, tr<100 ns, Tj = 125˚C

Peak Gate Current @ Tj = 125˚C

Tc = 110˚C

Tc = 100˚C

CONDITIONS

TO-220AB

TO-220AB Iso

F =50 Hz

F =60 Hz

tp = 10 ms

F =120 Hz

tp = 20 µs

SYMBOL

T(RMS)

TSM

di/dt

G(AV)

Tstg

ISO

RATING

80A

84A

78A

100A/µs

-40 to +150˚C

-40 to +125˚C

2500 V

RMS

Average Gate Power Dissipation @ Tj = 125˚C

Storage Temperature Range

Operating Junction Temperature Range

Isolation Voltage (CTA Series only)

TO-220AB Isolated

(CTA08)

Electrical Characteristics

ALTERNISTOR/NO SNUBBER AND LOGIC LEVEL (3 Quadrants)

5mA

1.3V

0.2V

10mA

1.3V

0.2V

15mA

25mA

30mA

40V/µs

5.4A/ms

2.8A/ms

35mA

1.3V

0.2V

35mA

50mA

60mA

400V/µs

50mA

1.3V

0.2V

50mA

70mA

80mA

1000V/µs

MAX @ V

=12 V, R

= 30Ω

NOTE 1

QI-II-III

Tj = 125˚C

QI-II-III

MAX @ V

=12 V, R

= 30Ω

MIN @ V

DRM

, R

= 3.3kΩ

MAX @ I

= 500 mA

MAX @ I

= 1.2 I

TO-220AB Non-Isolated

(CTB08)

NOTE 2

QI-III

Q-II

Tj = 125˚C

10mA

15mA

20V/µs

3.5A/ms

1.5A/ms

MAX @ I

= 1.2 I

dv/dt MIN @ VD = 67%V

DRM

(gate open)

NOTE 2

(di/dt)c MIN @ (dv/dt)c = 0.1 V/ms

NOTE 2

(di/dt)c MIN @ (dv/dt)c = 10 V/ms

NOTE 2

(di/dt)c MIN without Snubber

NOTE 2 & 4

4.5A/ms

50mA

100mA

1.3V

0.2V

25mA

QI-III-IV

Q-II

40mA

80mA

200V/µs

5V/µs

50mA

100mA

400V/µs

10V/µs

7A/ms

STANDARD (4 Quadrants)

MAX @ V

=12 V, R

= 30Ω

MAX @ V

=12 V, R

= 30Ω

MIN @ V

DRM

, R

= 3.3kΩ

MAX @ I

= 500 mA

MAX @ I

= 1.2 I

MAX @ I

= 1.2 I

dv/dt MIN @ VD = 67%V

DRM

(gate open)

NOTE 2

(dv/dt)c MIN @ (di/dt)c = 3.5 A/ms

NOTE 4

Tj = 125˚C

NOTE 2

NOTE 1

QI-II-III

QIV

Q-All

Tj = 125˚C

Q-All

25mA

50mA

MAX @ V

=12 V, R

= 30Ω

NOTE 1

GENERAL NOTES

ISO

9001

C E R T I F I E D

Minimum IGT is guaranted at 5% of IGT max.

For both polarities of A2 referenced to A1

All parameters at 25 degrees C unless otherwise specified.

Commutating dv/dt=50V.µsec (exponential to 200Vpk)

Competitive part number cross-reference available at:

www.cynergy3.com

Recommended Resources

A floating source instrument amplification circuit diagram

Pet automatic feeding circuit

Single tube constant current charger circuit diagram

GW-0520CH-PS switching power supply circuit diagram

Carrier inspection alarm circuit

Computer motherboard circuit diagram 815 4_36
