MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
One Watt Darlington Transistors
PNP Silicon
COLLECTOR 3
MPSW63
MPSW64 *
*Motorola Preferred Device
BASE
2
EMITTER 1
1
2
3
MAXIMUM RATINGS
Rating
Collector – Emitter Voltage
Collector – Base Voltage
Emitter – Base Voltage
Collector Current — Continuous
Total Device Dissipation @ TA = 25°C
Derate above 25°C
Total Device Dissipation @ TC = 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
Symbol
VCES
VCBO
VEBO
IC
PD
PD
TJ, Tstg
MPSW63
MPSW64
–30
–30
–10
–500
1.0
8.0
2.5
20
– 55 to +150
Unit
Vdc
Vdc
Vdc
mAdc
Watt
mW/°C
Watts
mW/°C
°C
CASE 29–05, STYLE 1
TO–92 (TO–226AE)
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Case
Symbol
R
q
JA
R
q
JC
Max
125
50
Unit
°C/W
°C/W
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic
Symbol
Min
Max
Unit
OFF CHARACTERISTICS
Collector – Emitter Breakdown Voltage
(IC = –100
µAdc,
VBE = 0)
Collector Cutoff Current
(VCB = –30 Vdc, IE = 0)
Emitter Cutoff Current
(VEB = –10 Vdc, IC = 0)
V(BR)CES
ICBO
IEBO
–30
—
—
—
–100
–100
Vdc
nAdc
nAdc
Preferred
devices are Motorola recommended choices for future use and best overall value.
2–710
Motorola Small–Signal Transistors, FETs and Diodes Device Data
MPSW63 MPSW64
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted) (Continued)
Characteristic
Symbol
Min
Max
Unit
ON CHARACTERISTICS(1)
DC Current Gain
(IC = –10 mAdc, VCE = –5.0 Vdc)
hFE
MPSW63
MPSW64
MPSW63
MPSW64
VCE(sat)
VBE(on)
5,000
10,000
10,000
20,000
—
—
—
—
—
—
–1.5
–2.0
Vdc
Vdc
—
(IC = –100 mAdc, VCE = –5.0 Vdc)
Collector–Emitter Saturation Voltage
(IC = –100 mAdc, IB = –0.1 mAdc)
Base–Emitter On Voltage
(IC = –100 mAdc, VCE = –5.0 Vdc)
SMALL–SIGNAL CHARACTERISTICS
Current–Gain — Bandwidth Product(2)
(IC = –10 mAdc, VCE = –5.0 Vdc, f = 100 MHz)
1. Pulse Test: Pulse Width
2. fT = |hfe|
•
ftest.
fT
125
—
MHz
v
300
m
s, Duty Cycle
v
2.0%.
TYPICAL ELECTRICAL CHARACTERISTICS
200
h FE, DC CURRENT GAIN (X1.0 k)
TJ = 125°C
100
70
50
30
20
10
7.0
5.0
3.0
2.0
–0.3
25°C
VCE = –2.0 V
–5.0 V
–55°C
–10 V
–0.5
–0.7
–1.0
–2.0
–3.0
–5.0
–7.0
–10
–20
–30
–50
–70
–100
–200
–300
IC, COLLECTOR CURRENT (mA)

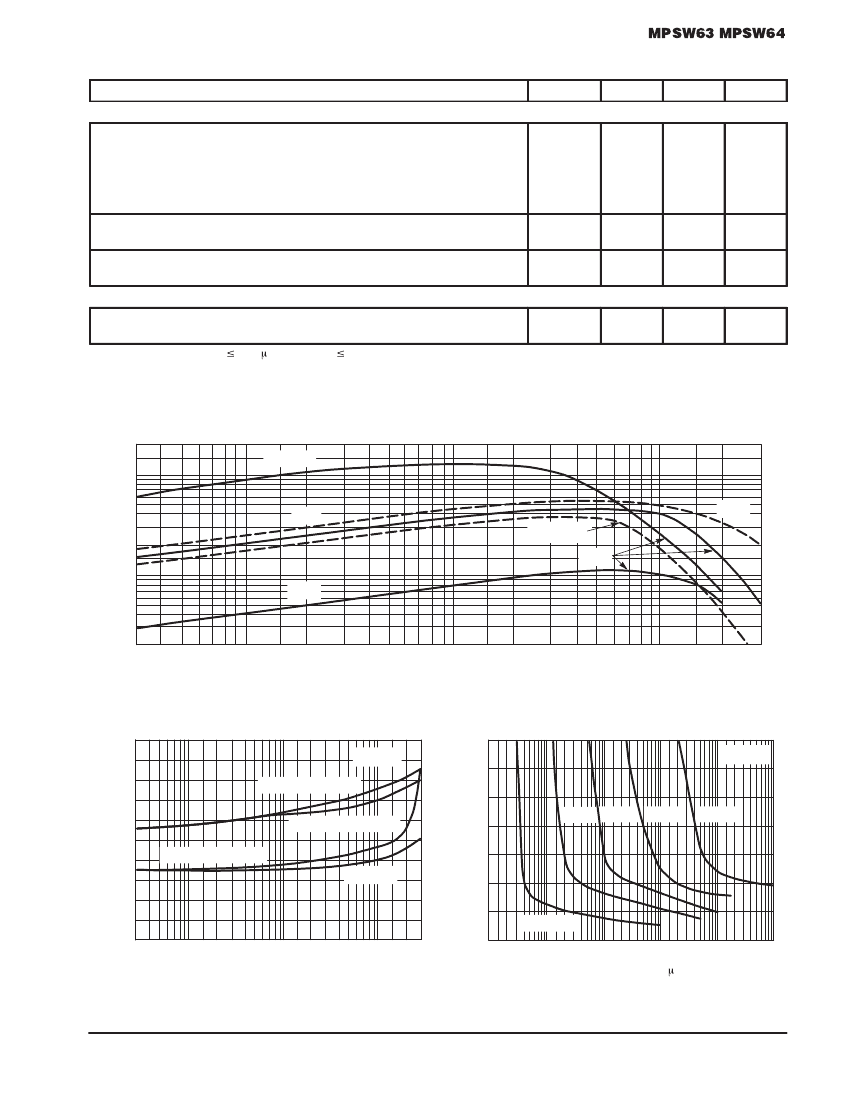

Figure 1. DC Current Gain
VCE , COLLECTOR–EMITTER VOLTAGE (VOLTS)
–2.0
TJ = 25°C
–1.6
V, VOLTAGE (VOLTS)
VBE(sat) @ IC/IB = 100
VBE(on) @ VCE = –5.0 V
VCE(sat) @ IC/IB = 1000
IC/IB = 100
–0.4
0
–0.3 –0.5 –1.0
–2.0
TJ = 25°C
–1.8
–1.6
–50 mA –100 mA –175 mA
–1.4
–1.2
–1.0
–0.8
–0.6
–0.1 –0.3
–300 mA
–1.2
–0.8
IC = –10 mA
–1.0 –3.0
–10
–30
–100 –300 –1 k –3 k –10 k
–3.0 –5.0
–10
–30 –50 –100
–300
IC, COLLECTOR CURRENT (mA)
IB, BASE CURRENT (
m
A)
Figure 2. “ON” Voltage
Figure 3. Collector Saturation Region
Motorola Small–Signal Transistors, FETs and Diodes Device Data
2–711
MPSW63 MPSW64
R
q
V , TEMPERATURE COEFFICIENT (mV/
°
C)
+5.0
+4.0
+3.0
+2.0
+1.0
0
–1.0
–2.0
–3.0
–4.0
R
q
VB FOR VBE
–2.0
–5.0
–10
–20
*R
q
VC FOR VCE(sat)
–50°C TO +25°C
+25°C TO +125°C
–50 –100
–300
+25°C TO +125°C
–50°C TO +25°C
*APPLIES FOR IC/IB
≤
hFE/100
f T , CURRENT–GAIN – BANDWIDTH PRODUCT (MHz)
600
400
300
200
TJ = 25°C
VCE = –20 V
100
60
40
30
20
–0.3 –0.5 –1.0 –2.0
–5.0 –10
–20
–50 –100
–300
–10 V
–5.0 V
–5.0
–0.3 –0.5 –1.0
IC, COLLECTOR CURRENT (mA)
IC, COLLECTOR CURRENT (mA)

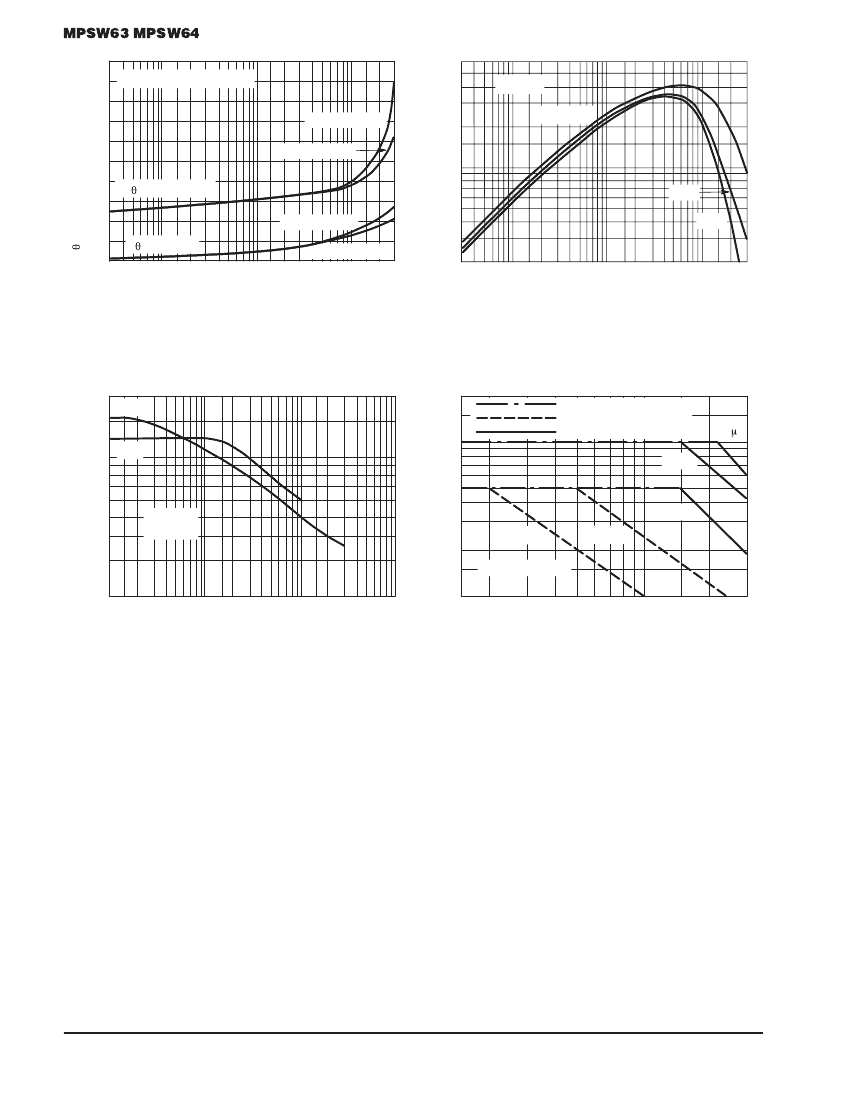

Figure 4. Temperature Coefficients
Figure 5. Current–Gain — Bandwidth Product
20
15
C, CAPACITANCE (pF)
10
7.0
5.0
Cobo
IC , COLLECTOR CURRENT (mA)
–2 k
Cibo
–1 k
CURRENT LIMIT
THERMAL LIMIT
SECOND BREAKDOWN LIMIT
1.0 mS
100
m
s
–500
1.0 s
TA = 25°C
–200
DUTY CYCLE
≤
10%
–100
–1.5 –2.0
TC = 25°C
TJ = 25°C
f = 1.0 MHz
3.0
2.0
–0.1 –0.2
–0.5
–1.0
–2.0
–5.0
–10
–20 –30
–5.0
–10
–20
–30
VR, REVERSE VOLTAGE (VOLTS)
VCE, COLLECTOR–EMITTER VOLTAGE (VOLTS)
Figure 6. Capacitance
Figure 7. Active Region, Safe Operating Area
2–712
Motorola Small–Signal Transistors, FETs and Diodes Device Data
