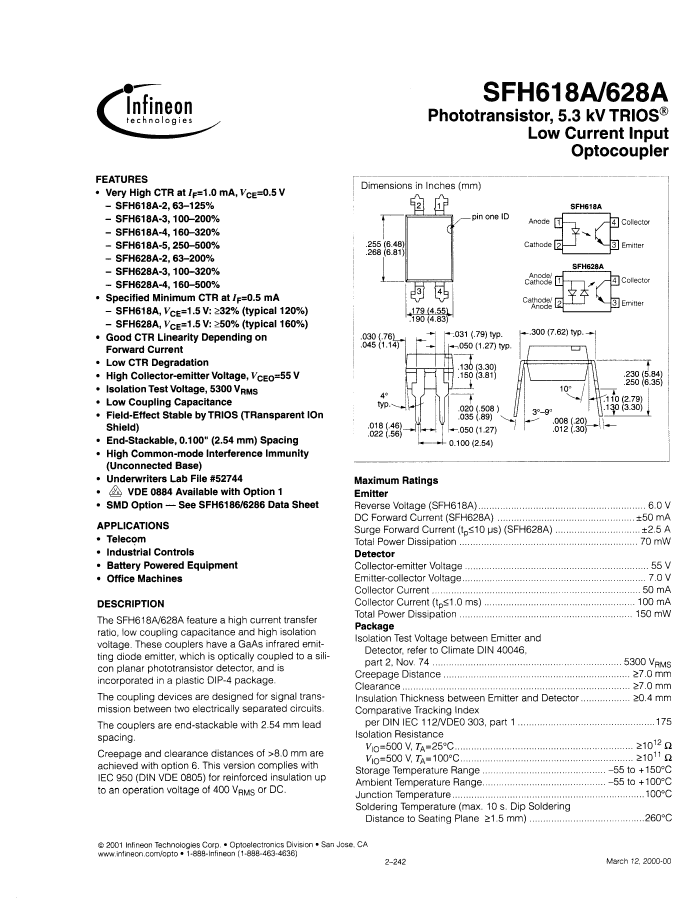

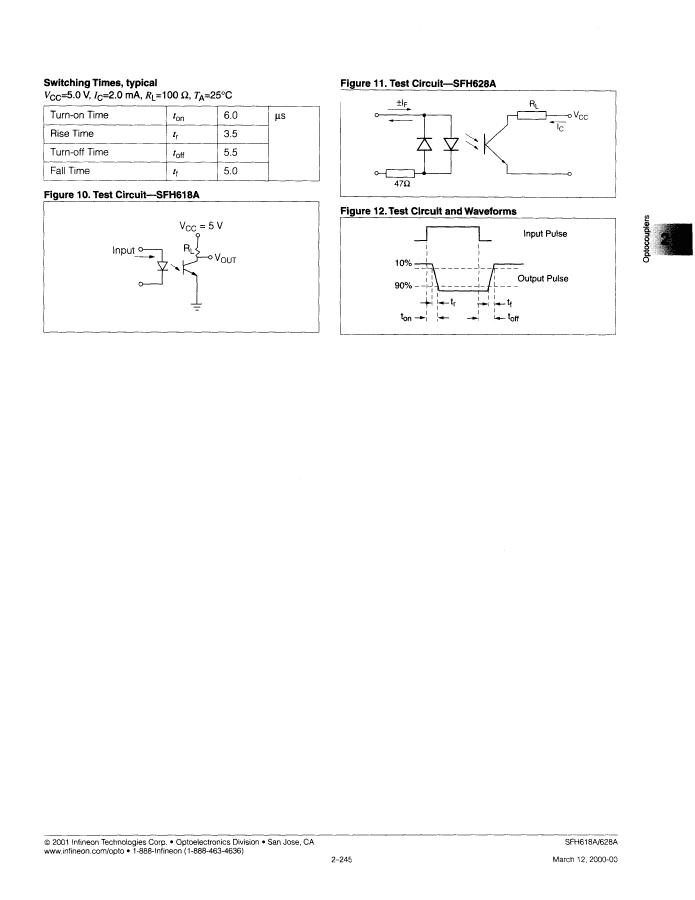

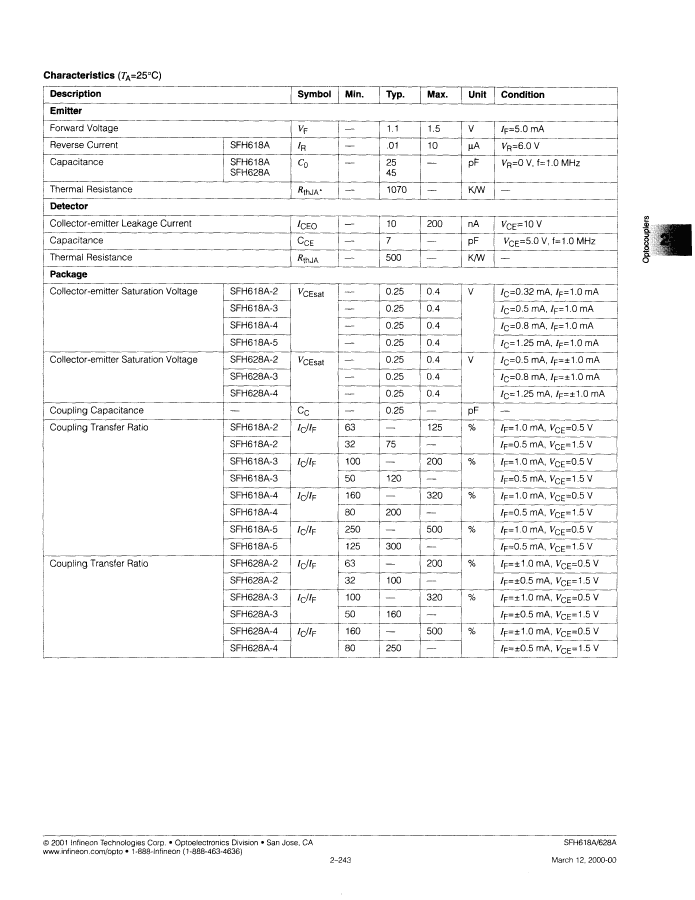

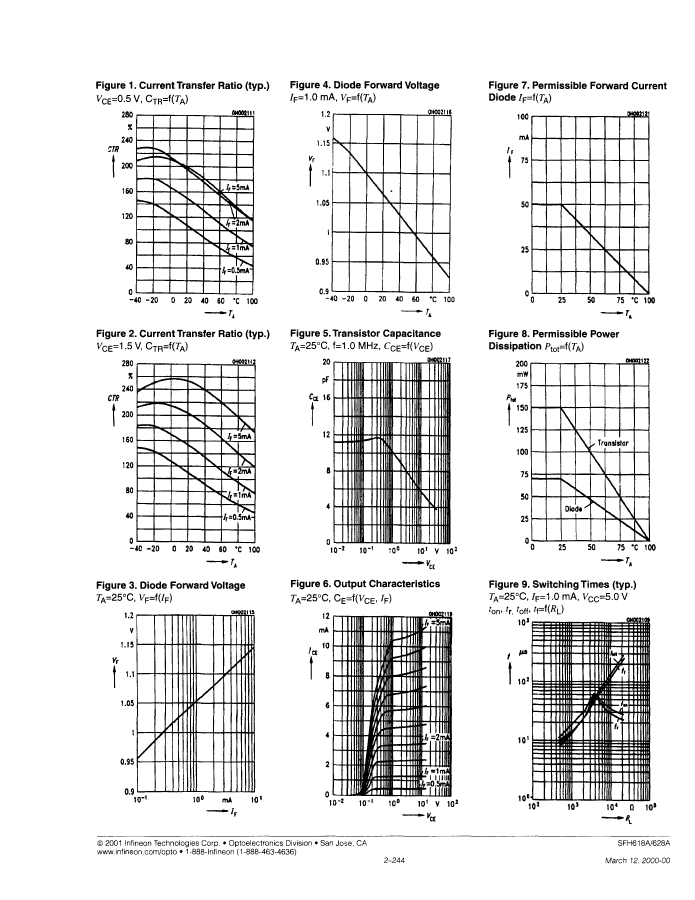

SFH628A-3-X001: DescriptionAC Input-Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-4; CategoryLED optoelectronic/LED photoelectric; File Size214KB，4 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

SFH628A-3-X001 Overview

AC Input-Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-4

SFH628A-3-X001 Parametric

Parameter Name	Attribute value
Maker	Infineon
package instruction	PLASTIC, DIP-4
Reach Compliance Code	unknown
Other features	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	55 V
Configuration	SINGLE
Nominal current transfer ratio	160%
Maximum dark power	200 nA
Maximum forward current	0.05 A
Maximum insulation voltage	5300 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

Preview

Download Datasheet

View All

SFH628A-3-X001 Related Products

	SFH628A-3-X001	SFH628A-2-X001	SFH618A-3-X001	SFH618A-5-X001	SFH618A-4-X001	SFH618A-2-X001	SFH628A-4-X001
Description	AC Input-Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-4	AC Input-Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-4	Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-4	AC Input-Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-4
Maker	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
package instruction	PLASTIC, DIP-4	PLASTIC, DIP-4	PLASTIC, DIP-4	PLASTIC, DIP-4	PLASTIC, DIP-4	PLASTIC, DIP-4	PLASTIC, DIP-4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	55 V	55 V	55 V	55 V	55 V	55 V	55 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	160%	100%	120%	300%	200%	75%	250%
Maximum dark power	200 nA	200 nA	200 nA	200 nA	200 nA	200 nA	200 nA
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	5300 V	5300 V	5300 V	5300 V	5300 V	5300 V	5300 V
Number of components	1	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
