CORCOM Product Guide

Power Entry Module with Optional RFI Power Line Filters for General and

Medical Applications

M Series

XM/ZM

UL Recognized

CSA Certified

VDE Approved

M Series

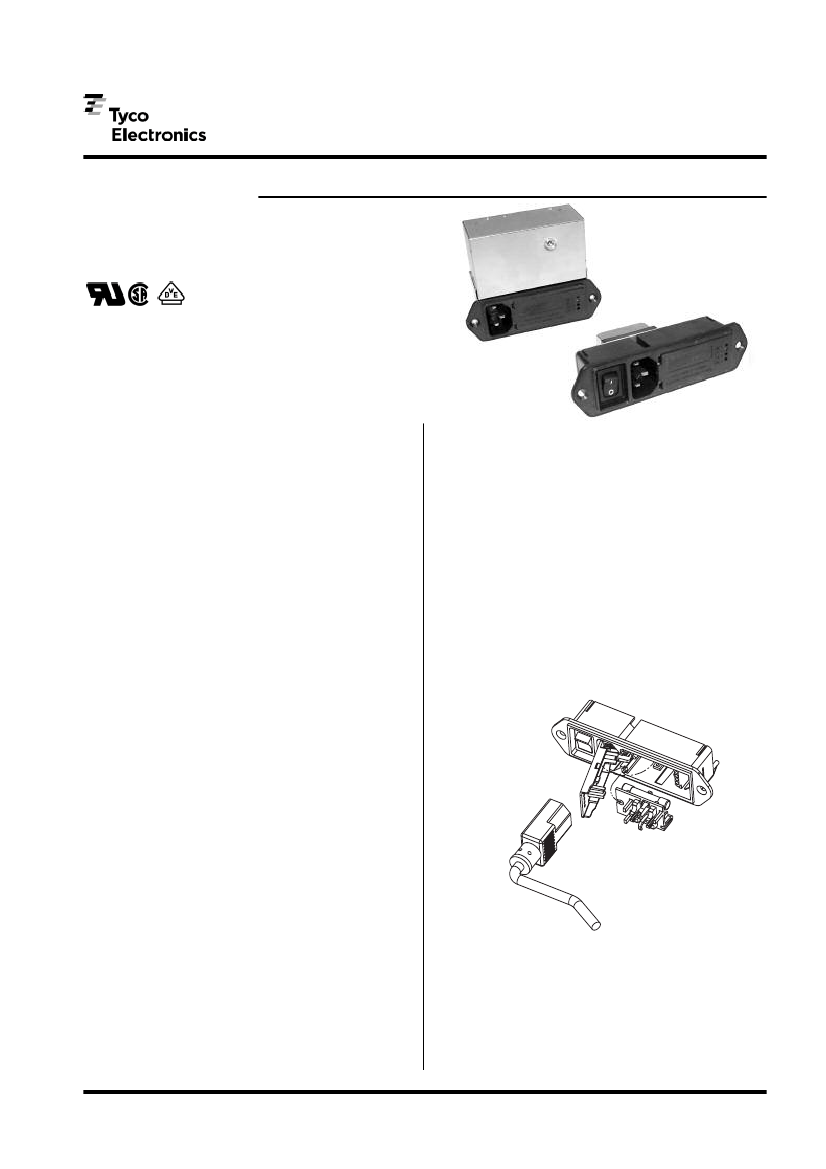

The M series power entry modules offer the most choices

of power entry components and filtering options to fit a

specific need. The fully configured M series expands the

options of a manufacturer whose products are marketed

worldwide. One component, fully assembled and tested,

provides the capability of interfacing a multi-voltage power

supply to any common voltage or fusing scheme in the

world, without modification.

•The IEC connector provides an internationally accepted

power entry termination, which can be used with a variety

of line cords.

•The selectable fuseholder allows use of single or dual

European fuses, or a single North American fuse.

•The optional DPST on/off switch breaks both sides of the

line and is labeled with the international I/O markings.

•The optional voltage selector provides a convenient

means to change transformer primary connection,

and it is available in both 2-voltage and 4-voltage

configurations.

•The series is available with four filter circuits to meet a

variety of applications, and convenient connections are

provided on unfiltered models to allow wiring of a

separate RFI filter.

The M series is a family of components offering greater

flexibility and cost-effectiveness in the selection of primary

power components. Wiring to the modules is accom-

plished via .110” terminals for labor savings and

convenience.

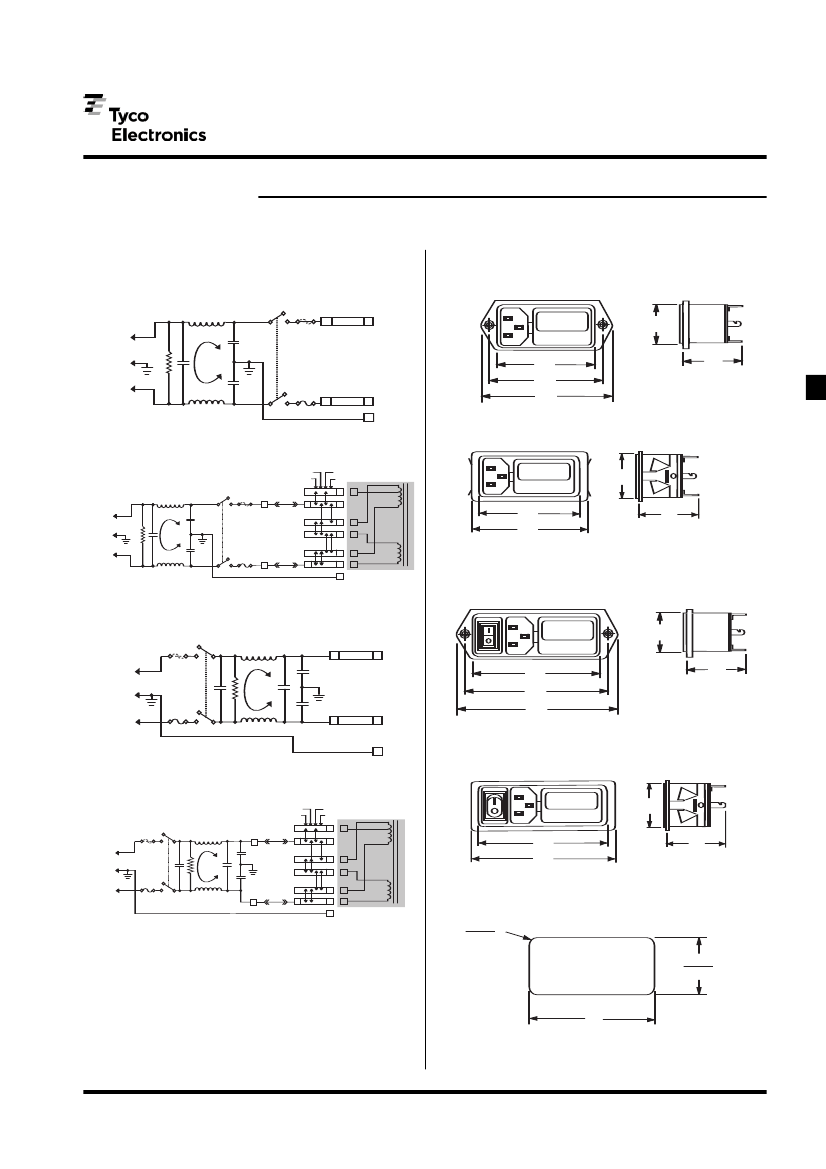

Four filter circuits provide a choice of attenuation tailored to

specific categories of susceptibility and emissions needs.

HM Models

– This medical filter provides susceptibility

protection without the leakage current associated with

line-to-ground capacitors. Designed to allow equipment

to meet UL544 for patient care and non-patient care

equipment, the HM filter has a maximum leakage current

of 2 µA at 120 VAC 60 Hz. See Appendix C for more

information on medical applications and UL standards.

124

Catalog 1654001

Revised 05-07

Dimensions are in inches and

millimeters unless otherwise

specified. Values in italics

are metric equivalents.

FM Models

– General purpose RFI filter designed for sus-

ceptibility applications, effectively providing RFI control of

line-to-ground noise. The design is compact and meets

the very low leakage current requirements of VDE portable

equipment as well as (120 Volt) UL544 non-patient medical

equipment.

XM Models

– High performance RFI filter designed to bring

most digital equipment (including switching power

supplies) into compliance with FCC Part 15J, Class B

conducted emissions limits.

ZM Models

– Premium RFI filter designed to bring most

digital equipment (including switching power supplies) into

compliance with EN55022, Level B (as well as FCC Part

15J, Class B) conducted emissions limits.

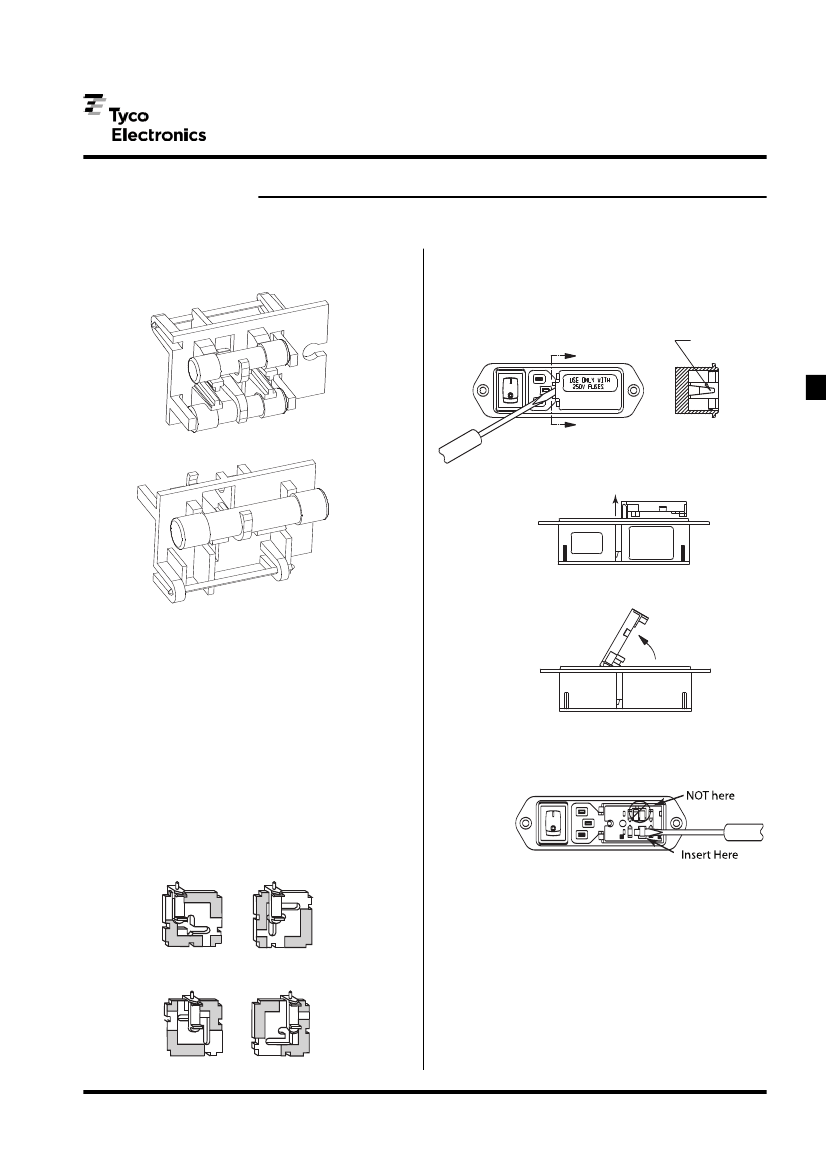

Fuse Installation Instructions

Remove power cord.

Pry door open at socket.

Lift and swing door into socket.

Lift fuse holder out of housing.

Install one (1) AG fuse or two (2) metric fuses*.

Replace fuse holder into housing.

Swing and snap door back in place.

*Install fuses on one side only, do not install both AG and metric fuses at the

same time.

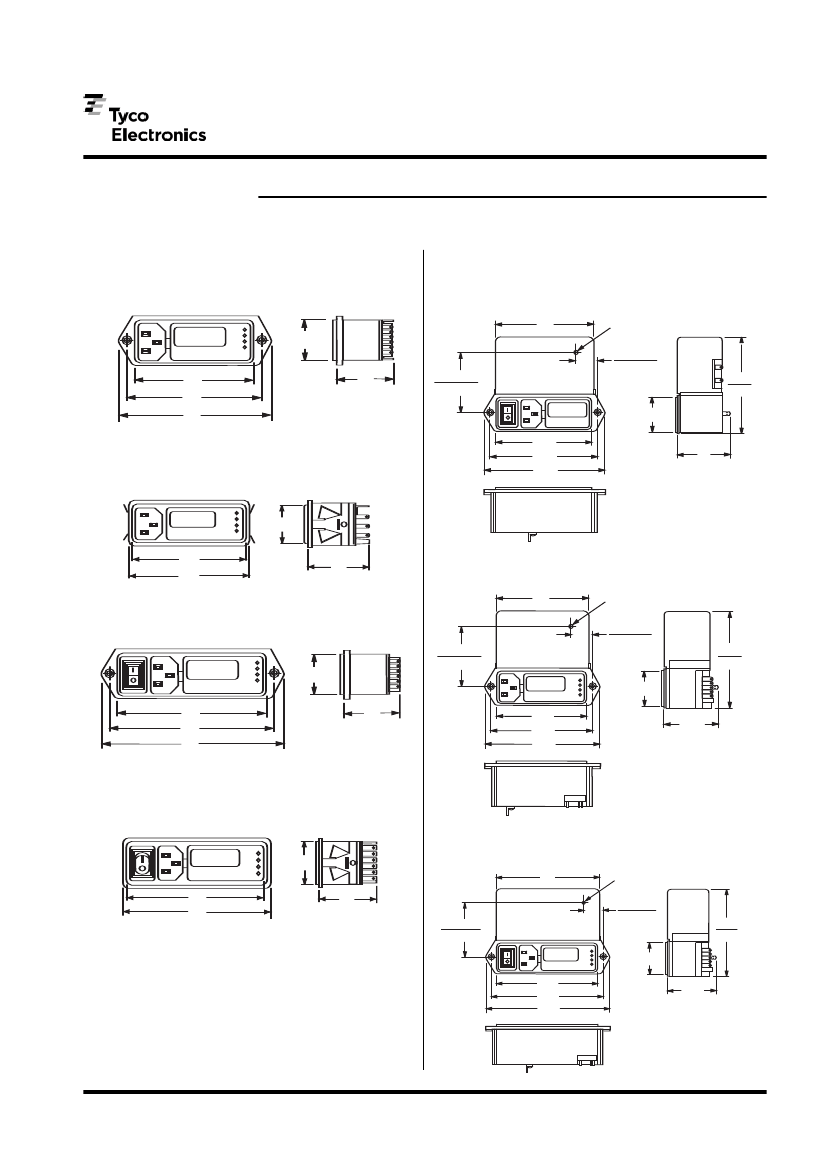

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA Cust. Svc.: 1-800-468-2023

CORCOM Prods: 1-847-680-7400

Germany:

49-89-6089-0

www.corcom.com

www.tycoelectronics.com
