SSR2010ZUBTX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SSR2010ZUBTX

SSR2010ZUBTX: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 100V V(RRM), Silicon, TO-254, HERMETIC SEALED, TO-254Z, 3 PIN; CategoryDiscrete semiconductor diode; File Size92KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric View All

SSR2010ZUBTX Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 100V V(RRM), Silicon, TO-254, HERMETIC SEALED, TO-254Z, 3 PIN

SSR2010ZUBTX Parametric

Parameter Name	Attribute value
Maker	SSDI
Parts packaging code	TO-254
package instruction	HERMETIC SEALED, TO-254Z, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-254
JESD-30 code	S-XSFM-P3
Maximum non-repetitive peak forward current	300 A
Number of components	2
Phase	1
Number of terminals	3
Maximum output current	20 A
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
technology	SCHOTTKY
Terminal form	PIN/PEG
Terminal location	SINGLE

Preview

Download Datasheet

View All

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

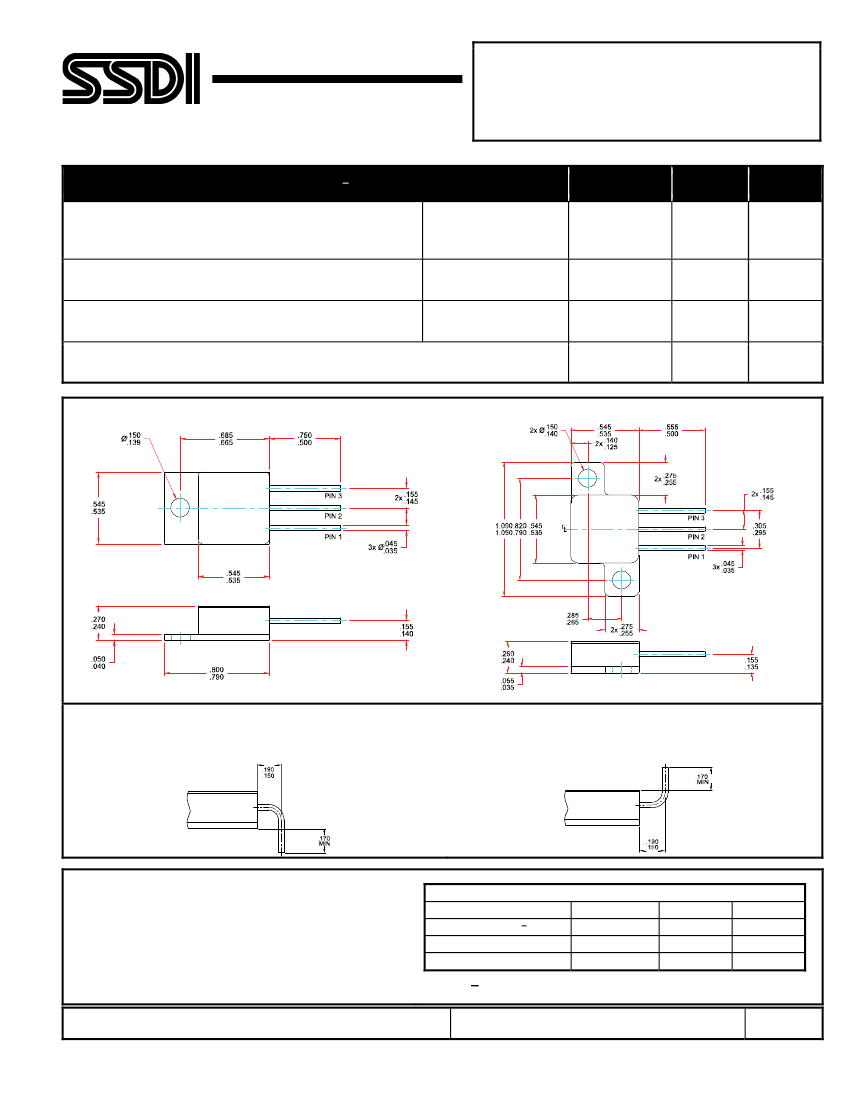

SSR2008M, SSR2008Z

SSR2009M, SSR2009Z

SSR2010M, SSR2010Z

20 AMPS

100 VOLTS

SCHOTTKY

RECTIFER

FEATURES:

•

PIV: 100 Volts

Low Reverse Leakage Current

Low Forward Voltage Drop

Guard Ring for Overvoltage Protection

Isolated Hermetically Sealed Package

Available in Glass or Ceramic Seal Packages

Custom Lead Forming Available

Eutectic Die Attach

175

C Operating Junction Temperature

TX, TXV, and Space Level Screening

Available

Designer’s Data Sheet

Part Number/Ordering Information

SSR20 __ __ __ __

│

└

│

└

│

└

Screening

= Not Screened

TX = TX Level

TXV = TXV Level

S = S Level

Lead Options

__ = Straight Leads,

DB = Bent Down

UB = Bent Up

M = TO-254

Z = TO-254Z

Package

Voltage / Family

08 = 80V

09 = 90V

10 = 100V

MAXIMUM RATINGS

Peak Repetitive Reverse Voltage and

DC Blocking Voltage

Average Rectified Forward Current

1/4/

(Resistive Load, 60 Hz, Sine Wave, T

= 25

Peak Surge Current

(8.3 ms Pulse, Half Sine Wave, T

= 25

Operating and Storage Temperature

Maximum Thermal Resistance

(Junction to Case)

NOTE:

Derate linearly at 1A/ C for T

> 155 C

Screening based on MIL-PRF-19500. Screening flows available on request.

All electrical characteristics @25

C, unless otherwise specified

Pins 2 and 3 externally connected together

Symbol

SSR2008M & Z

SSR2009M & Z

SSR2010M & Z

RRM

RWM

FSM

& T

stg

θJC

TO-254

Value

100

300

-65 to +175

1.2

Unit

Volts

Amps

C/W

TO-254Z

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RS0091J
