551-125.000MHZ-AE0 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 551-125.000MHZ-AE0

551-125.000MHZ-AE0: DescriptionHCMOS Output Clock Oscillator, 125MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size169KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

551-125.000MHZ-AE0 Overview

HCMOS Output Clock Oscillator, 125MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

551-125.000MHZ-AE0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	3.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	125 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.3mm
longest rise time	3.5 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

HCMOS 5x3.2mm 1.8V SMD Oscillator

Model: F510L Series

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 5/7/2009

http://www.foxonline.com/need_a_sample.htm

FEATURES

•

1.8V Operation

HCMOS Output

Low Power Consumption

Standby Function

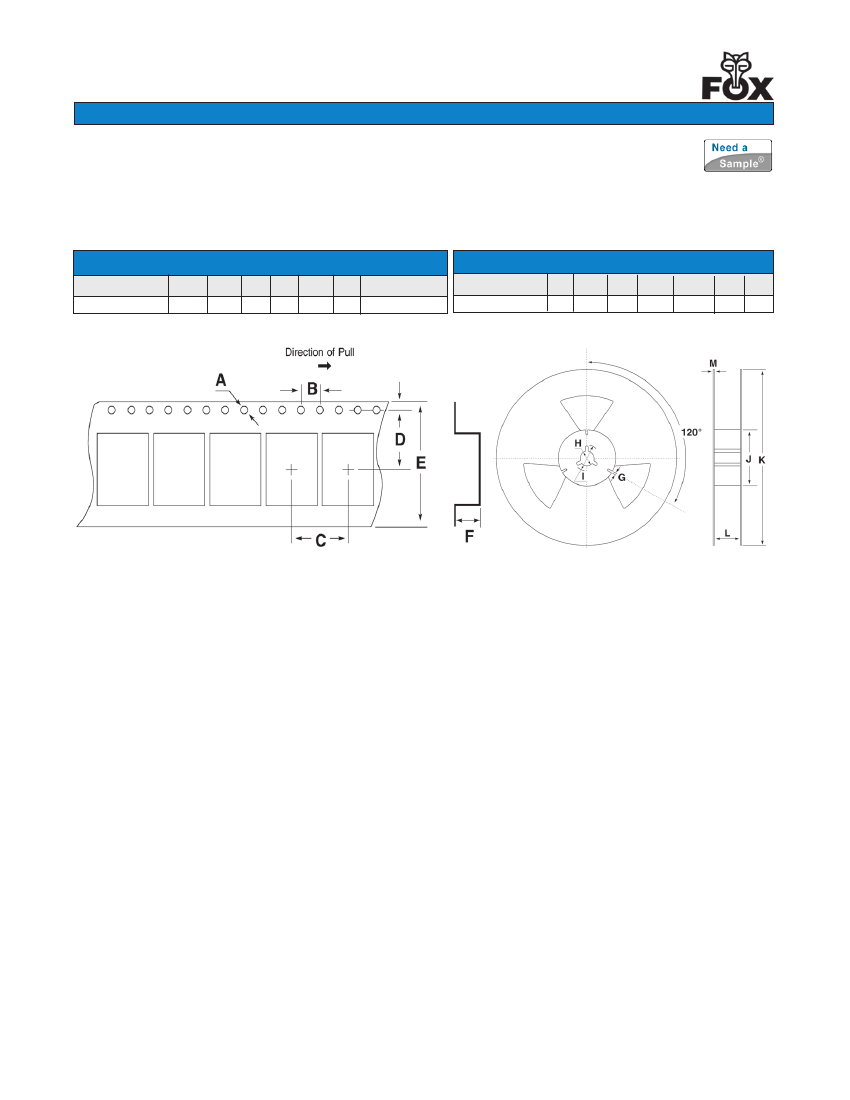

Tape and Reel (1,000 pcs. STD)

5.0 ± 0.2

• PART nUMbER SELECTIOn

Learn More - Internet Required

Part Number

551-Frequency-xxxxx

552-Frequency-xxxxx

553-Frequency-xxxxx

554-Frequency-xxxxx

555-Frequency-xxxxx

556-Frequency-xxxxx

557-Frequency-xxxxx

Model

Number

F510L

F510LR

F515L

F515LR

F516L

F516LR

F518L

Frequency

Stability

±100PPM

±50PPM

±25PPM

±25PPM*

±20PPM*

Operating

Temperature (ºC)

-10 ~ +70

-40 ~ +85

-10 ~ +70

-40 ~ +85

-10 ~ +70

-40 ~ +85

-10 ~ +70

Frequency

Range (MHz)

1.800 ~ 125.000

1.800 ~ 50.000

Top

View

Dot denotes

pin 1

3.2 ± 0.2

1.3 Max

• ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

STG

)

Supply Voltage

)

Input Current

)

1.800 ~ 32.100 MHz

32.100+ ~ 50.000 MHz

50.000+ ~ 125.000 MHz

Output Symmetry (50% V

)

Rise Time (20% ~ 80% V

) (T

)

1.800 ~ 32.100 MHz

32.100+ ~ 125.000 MHz

Fall Time (80% ~ 20% V

) (T

)

1.800 ~ 32.100 MHz

32.100+ ~ 125.000 MHz

Output Voltage

)

Output Current

)

Output Load

(HCMOS)

Standby Current

Start-up Time

)

Output Disable Time

Output Enable Time

MAX

(unless otherwise noted)

1.800 ~ 125.000 MHz

-55ºC ~ +125ºC

1.8V ± 5%

7mA

15mA

25mA

40% ~ 60%

5nS

3.5nS

5nS

3.5nS

20% V

80% V

Min

2mA Min

15pF

10µA

10mS

300nS

10mS

Bottom

View

1.0

2.54±0.1

1.2

Recommended

Solder Pad Layout

2.54

1.29

2.25

1.24

All dimensions are in millimeters.

Pin Connections

#1 E/D

#2 GnD

#3 Output

#4 V

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration. *Excludes Shock/Vibration

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

Note: A 0.01µF capacitor should be placed between V

(Pin 4) and GND (Pin2) to minimize

power supply noise.

Drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may

vary. All specifications subject to change without notice.

• EnAbLE / DISAbLE FUnCTIOn

INH (Pin 1)

OUTPUT (Pin 3)

OPEN

ACTIVE

'1' Level V

≥

70% V

ACTIVE

'0' Level V

≤

30% V

High Z

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
