FPX-FREQ6-BBE10010 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FPX-FREQ6-BBE10010

FPX-FREQ6-BBE10010: DescriptionParallel - Fundamental Quartz Crystal, 9MHz Min, 13MHz Max, PLASTIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size77KB，1 Pages; ManufacturerFOX [Fox Electronics]

Download Datasheet Parametric View All

FPX-FREQ6-BBE10010 Overview

Parallel - Fundamental Quartz Crystal, 9MHz Min, 13MHz Max, PLASTIC, SMD, 4 PIN

FPX-FREQ6-BBE10010 Parametric

Parameter Name	Attribute value
Maker	FOX [Fox Electronics]
package instruction	PLASTIC, SMD, 4 PIN
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
load capacitance	10 pF
Manufacturer's serial number	FPX
Installation features	SURFACE MOUNT
Maximum operating frequency	13 MHz
Minimum operating frequency	9 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L12.9XB5.0XH5.0 (mm)/L0.508XB0.197XH0.197 (inch)
Series resistance	60 Ω
surface mount	YES

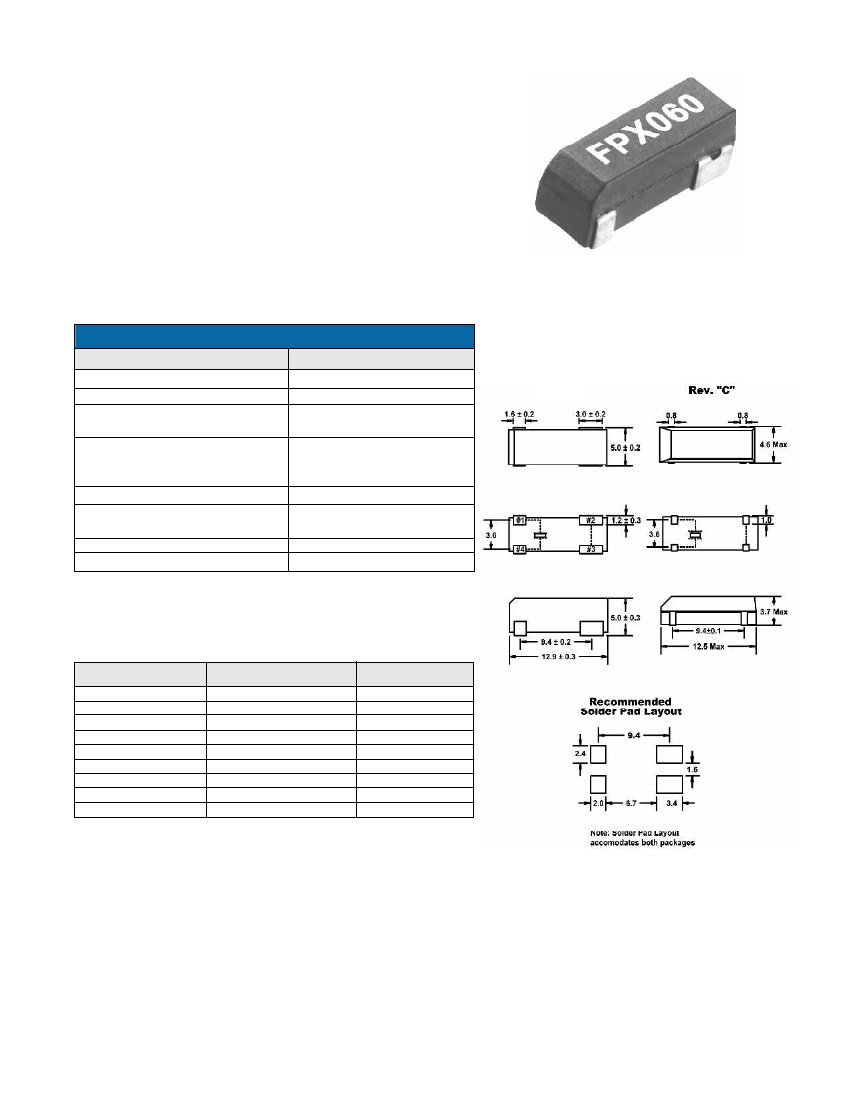

Preview

Download Datasheet

View All

PLASTIC ENCASED SMD CRYSTAL

FPX

FEATURES

•

Low Cost

Stocking Standard

Plastic Encapsulated

Tape and Reel (1,000 pcs. STD)

OPTIONS

• Tolerances to < 20 PPM

• Stabilities to < 20 PPM

• Temperatures to -40ºC ~ +85ºC

• Alternate Metal Can Package

(HC49SPX)

Discontinued

DISCONTINUED

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance (Co)

Load Capacitance

)

Drive Level

Aging per year

MAX

(unless otherwise noted)

3.579545 ~ 90.000MHz

±50 PPM

-10ºC ~ +70ºC

-55ºC ~ +125ºC

7.0 pF

10 pF ~ Series

(Customer Specified)

0.1 mW

±5 PPM

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer

Service for specific requirements.

All specifications subject to change without notice.

Rev.

8/1/03

Frequency Range

(MHz)

3.579545 ~ 4.000

4.000+ ~ 5.000

5.000+ ~ 6.000

6.000+ ~ 7.000

7.000+ ~ 9.000

9.000+ ~ 13.000

13.000+ ~ 20.000

20.000+ ~ 30.000

30.000+ ~ 90.000

Operating Mode

Fundamental

3rd OT

Max ESR

Ω

200

150

120

100

All dimensions are in millimeters.

See

page 28

for tape and reel specifications.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +001(239)693-0099 FAX +001(239)693-1554

http://www.foxonline.com
