ADV7146KN35 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ADV7146KN35

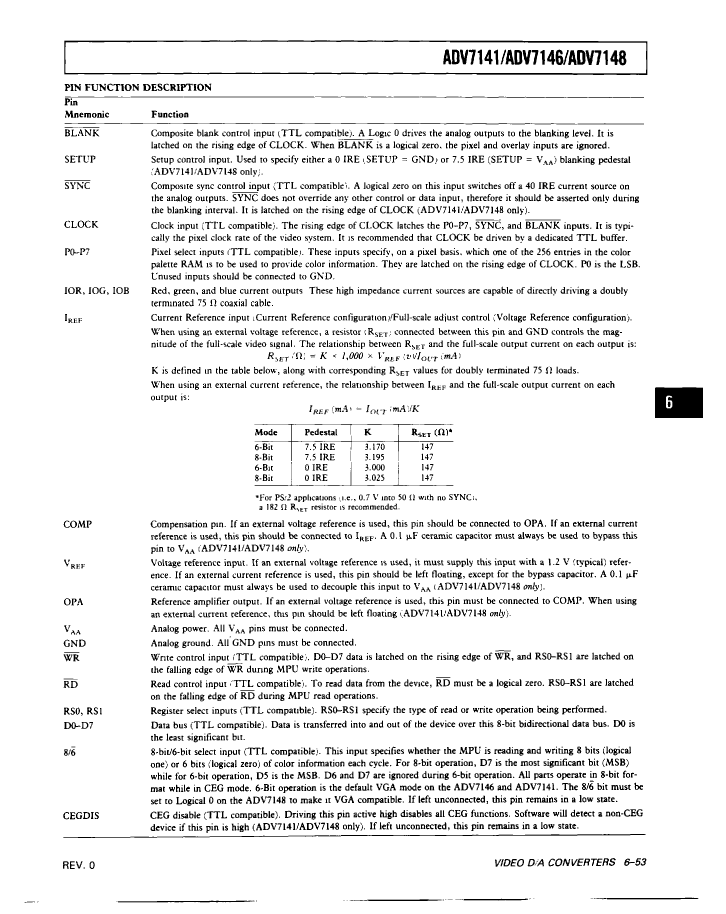

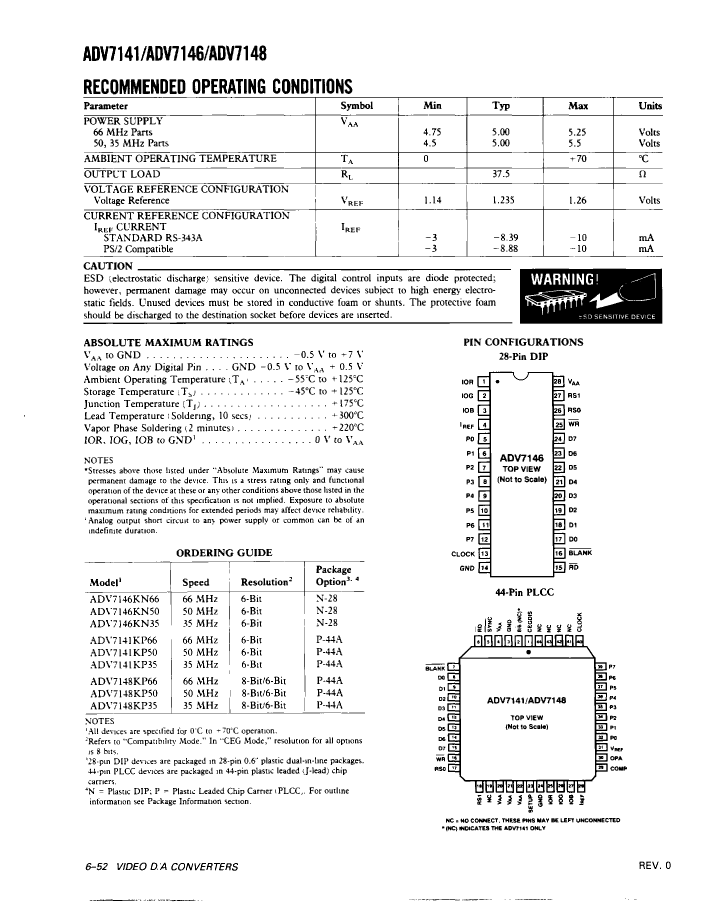

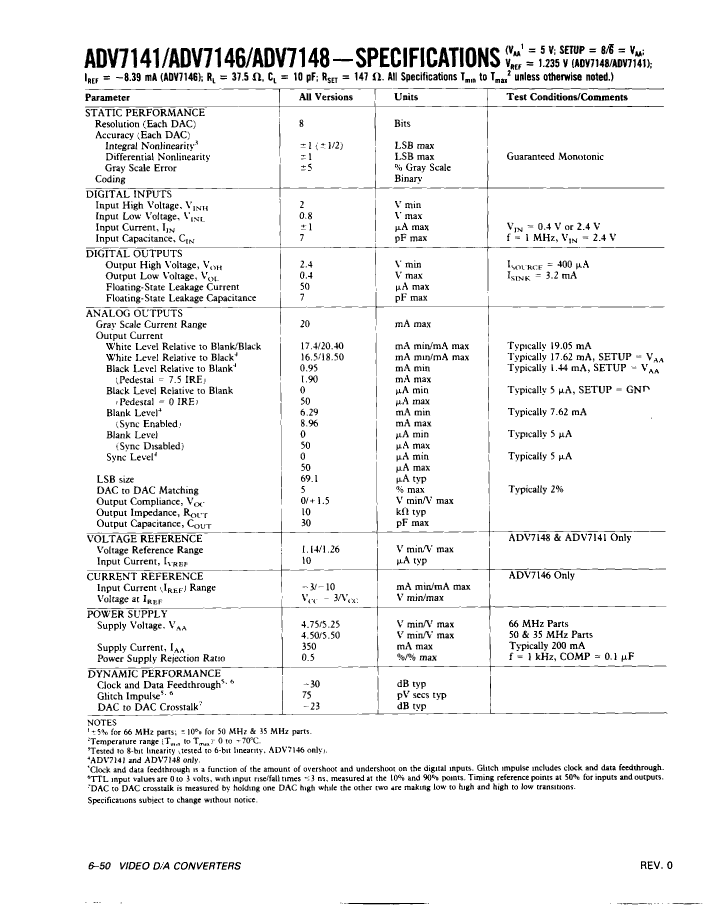

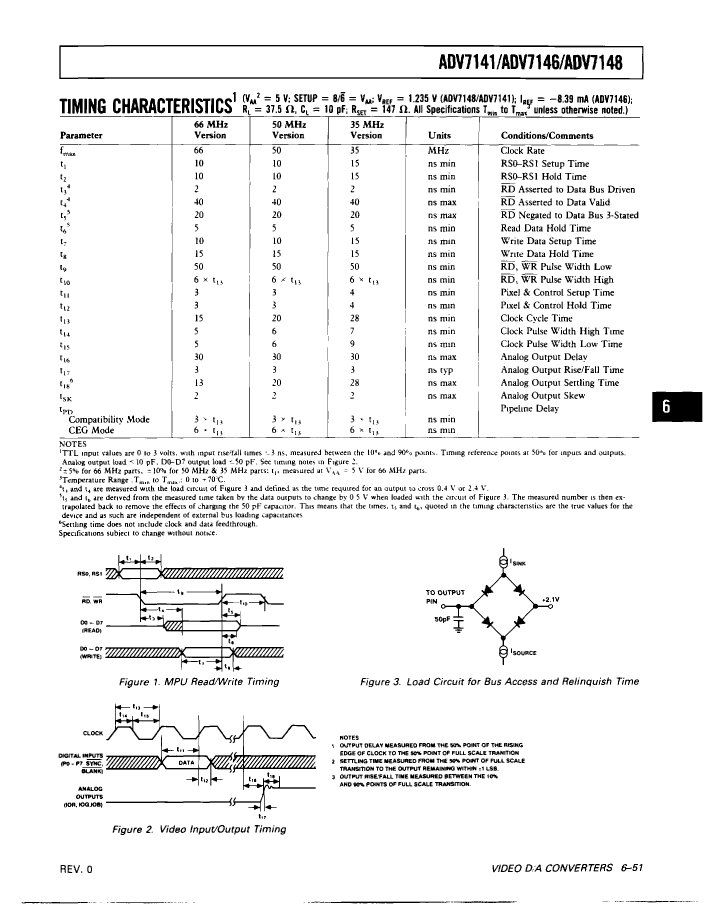

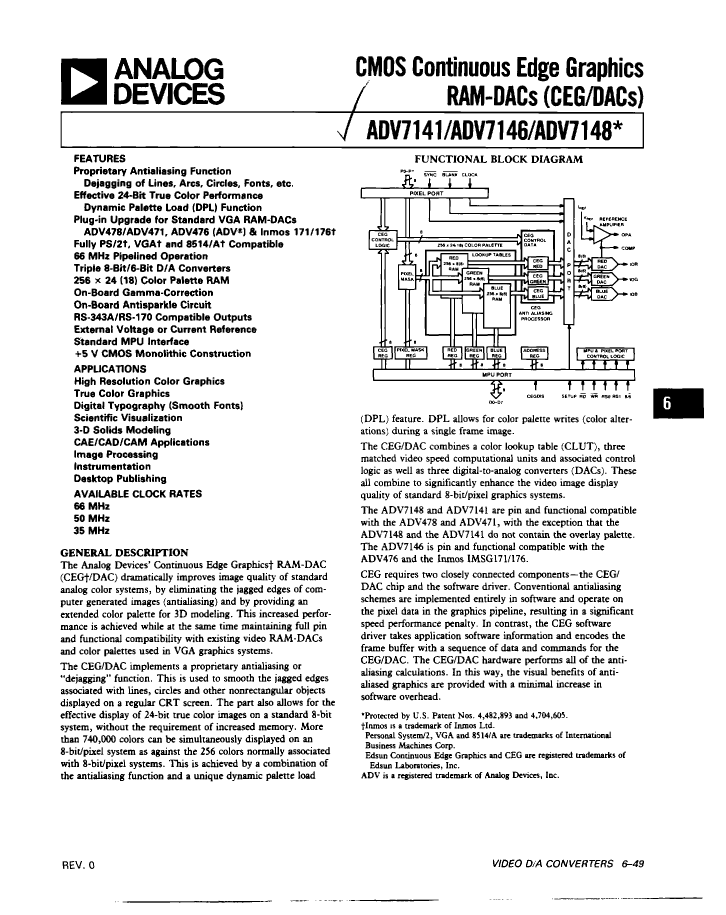

Preview

ADV7146KN35: DescriptionIC PALETTE-DAC DSPL CTLR, PDIP28, PLASTIC, DIP-28, Display Controller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size750KB，19 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

ADV7146KN35 Overview

IC PALETTE-DAC DSPL CTLR, PDIP28, PLASTIC, DIP-28, Display Controller

ADV7146KN35 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	PLASTIC, DIP-28
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Address bus width	2
Bus compatibility	8086; 80286; 80386; 80486
External data bus width	8
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	37.4 mm
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	6.35 mm
Maximum slew rate	350 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC

Preview

Download Datasheet

View All

ADV7146KN35 Related Products

	ADV7146KN35	ADV7146KN50	ADV7146KN66
Description	IC PALETTE-DAC DSPL CTLR, PDIP28, PLASTIC, DIP-28, Display Controller	IC PALETTE-DAC DSPL CTLR, PDIP28, PLASTIC, DIP-28, Display Controller	IC PALETTE-DAC DSPL CTLR, PDIP28, PLASTIC, DIP-28, Display Controller
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP
package instruction	PLASTIC, DIP-28	PLASTIC, DIP-28	PLASTIC, DIP-28
Contacts	28	28	28
Reach Compliance Code	unknown	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99
Address bus width	2	2	2
Bus compatibility	8086; 80286; 80386; 80486	8086; 80286; 80386; 80486	8086; 80286; 80386; 80486
External data bus width	8	8	8
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0	e0
length	37.4 mm	37.4 mm	37.4 mm
Number of terminals	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	6.35 mm	6.35 mm	6.35 mm
Maximum slew rate	350 mA	350 mA	350 mA
Maximum supply voltage	5.5 V	5.5 V	5.25 V
Minimum supply voltage	4.5 V	4.5 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC
Maker	ADI	ADI	-
Base Number Matches	-	1	1
