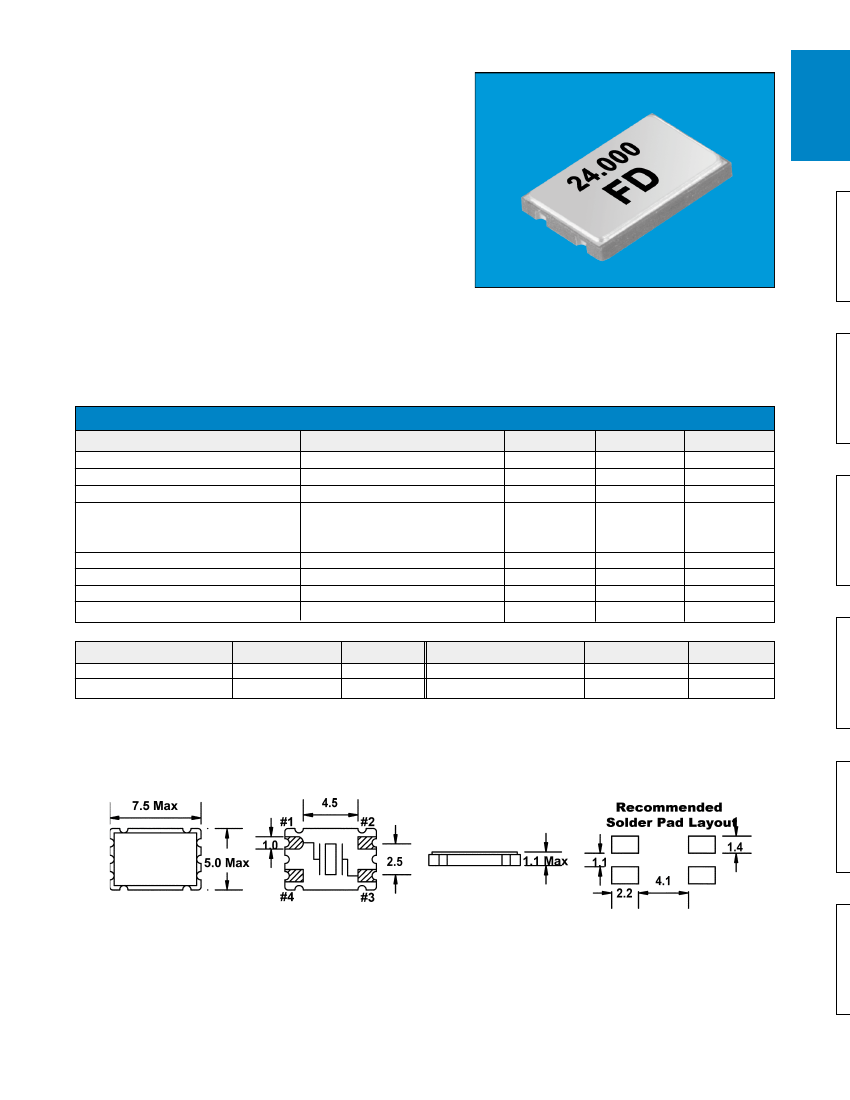

MICRO MINIATURE CERAMIC SMD CRYSTAL

CRYSTALS

The FD, our miniature SMD crystal, features a 1.1mm max height,

a 9.8304MHz to 160MHz frequency range and standard

microprocessor parameters for applications such as notebook

computers, pocket LAN adapters, PCMCIA, and disk drives. An

optional 10 PPM is available for telecommunications and other

tight tolerance applications.

FEATURES

Ultra Low Profile

Wide Frequency Range

Tight Stability Option

Tight Tolerance Option

AT Cut Crystal Blank (BT Cut availabe)

Tape and Reel (3,000 pcs. STD)

FD STANDARD SPECIFICATIONS *

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability, ref @ 25ºC

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

Aging

CONDITIONS

Ta = 25ºC

Ta = -10ºC ~ +60ºC

MIN

9.8304

- 50

-10

-30

Customer Specified

9.8304 ~ 160.000 MHz

Ta = 25ºC; per year

10.0

-5.0

MAX

160.000

+ 50

+60

+85

7.0

Series

0.5

+5.0

UNITS

MHz

PPM

ºC

PPM

Frequency Range

(MHz)

Operating Mode Max ESR

9.8304 ~16.000

Fundamental

16.000+ ~32.000

Fundamental

Frequency Range

(MHz)

Operating Mode Max ESR

28.000 ~ 84.000

3rd OT

84.000 ~ 160.000

5th OT

* Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer Service for specific requirements, or use crystal order form on page 6.

All specifications subject to change without notice. Rev. 03/02/00

All dimensions are in millimeters.

See page 31 for tape and reel specifications.

FOXElectronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

941-693-0099

FAX 941-693-1554

http://www.foxonline.com
