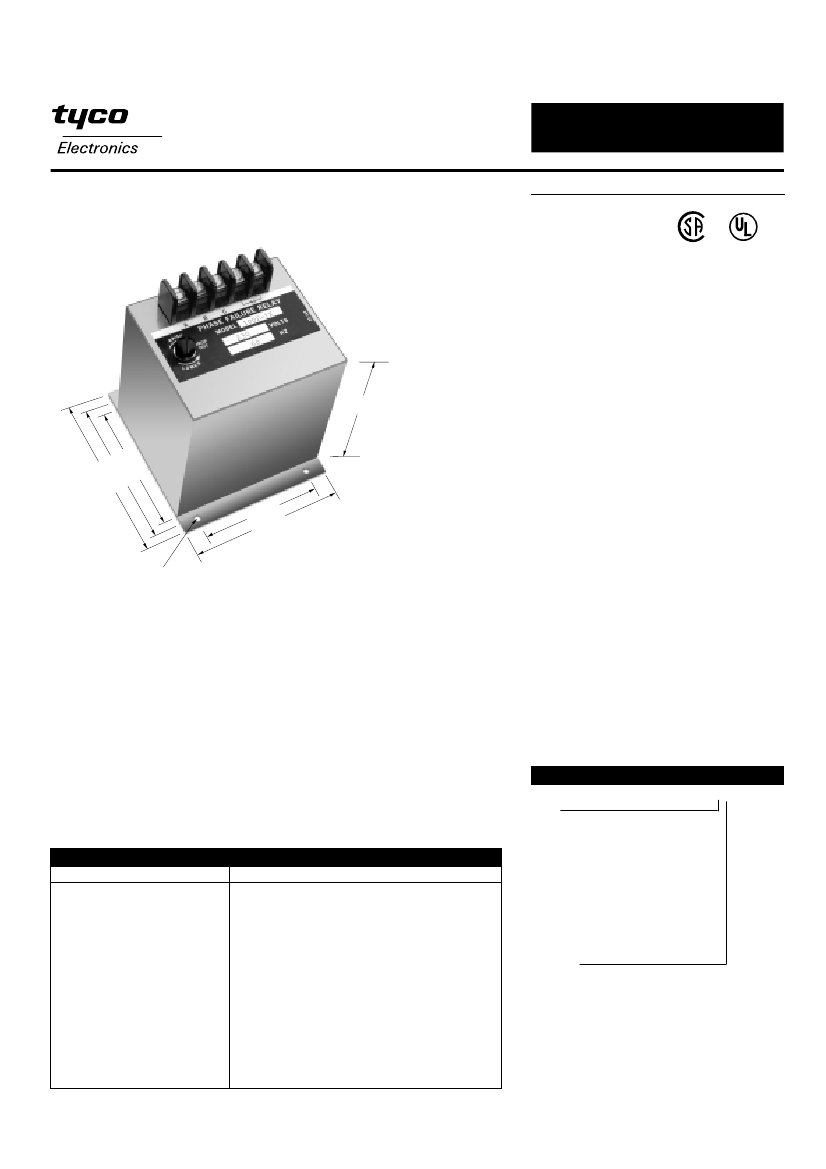

Phase Failure Relays
WILMAR™ Protective Relays – 1000 Series
Function:
47
•
ANSI/IEEE C37.90-1978
TERMINAL STRIPS
#6 - 32 SCREWS
•
UL file No. E58048
•
CSA file No. LR61158
Phase failure relays protect motors, equipment and
personnel from damage or injury caused by open
phase, reversed phase sequence, or low voltage in a
three phase system. Models are available for 50 and
60 Hz with voltages up to 575 volts. Motor control
switchboards are a common application.
Operation:
The contacts of the relay will close only when it
senses normal conditions of three phase power at
the proper phase sequence.
The relay contacts will remain in their normally open
position (de-energized) when voltage with incorrect
phase sequence is applied, one or more phases are
open, or at undervoltage condition.
3 13/16
Note:
Dimensions in inches. Multiply values by 25.4 for dimensions in mm.
Part Number
Nominal Voltage .............................
Voltage Drop-Out ...........................
Pick-Up to Drop-Out Differential ....
Ambient Operating Temperature ....
Temperature Drift ...........................
Time Delay .....................................
Output Contacts .............................
Contact Ratings ..............................
3.0
1 /2
3
/8
7
3
2
3/4
1/2
3
11/64" DIA.
4 MTG. HOLES
PART NUMBER SELECTION
PART NUMBER SELECTION
Sample Part No.
1004X
Type:
1001 = 120 V, 60 Hz, 3 phase,L-L
1007 = 208 V, 60 Hz, 3 phase, L-L
1002 = 230 V, 60 Hz, 3 phase,L-L
1012 = 300 V, 60 Hz, 3 phase, L-L
1013 = 350 V, 60 Hz, 3 phase, L-L
1003 = 380 V, 50 Hz, 3 phase, L-L
1004 = 460 V, 60 Hz, 3 phase,L-L
1005 = 525 V, 60 Hz, 3 phase,L-L
1006 = 575 V, 60 Hz, 3 Phase, L-L
Mounting:
X = Flange
Blank - Stud
Consult factory for additional models and options
Notes:
1. Remove screw for access to the undervoltage
adjustment.
2. Clockwise rotation of the adjustment
potentiometer will raise the drop-out voltage.
PRODUCT SPECIFICATIONS
1000 Series
See Table
75% to 100% of nominal, screwdriver adjustable
3% approx.
-40
o
C to +70
o
C
±
1%
See Curve
One set, normally open
10 amp at 28 VDC resistive
10 amp at 230 VAC resistive
30
Tyco Electronics
/ www.tycoelectronics.com / Factory Direct Technical Support: 800-253-4560, ext. 2023 (U.S., Canada, Mexico) or 805-220-2020, ext. 2023 (International)
